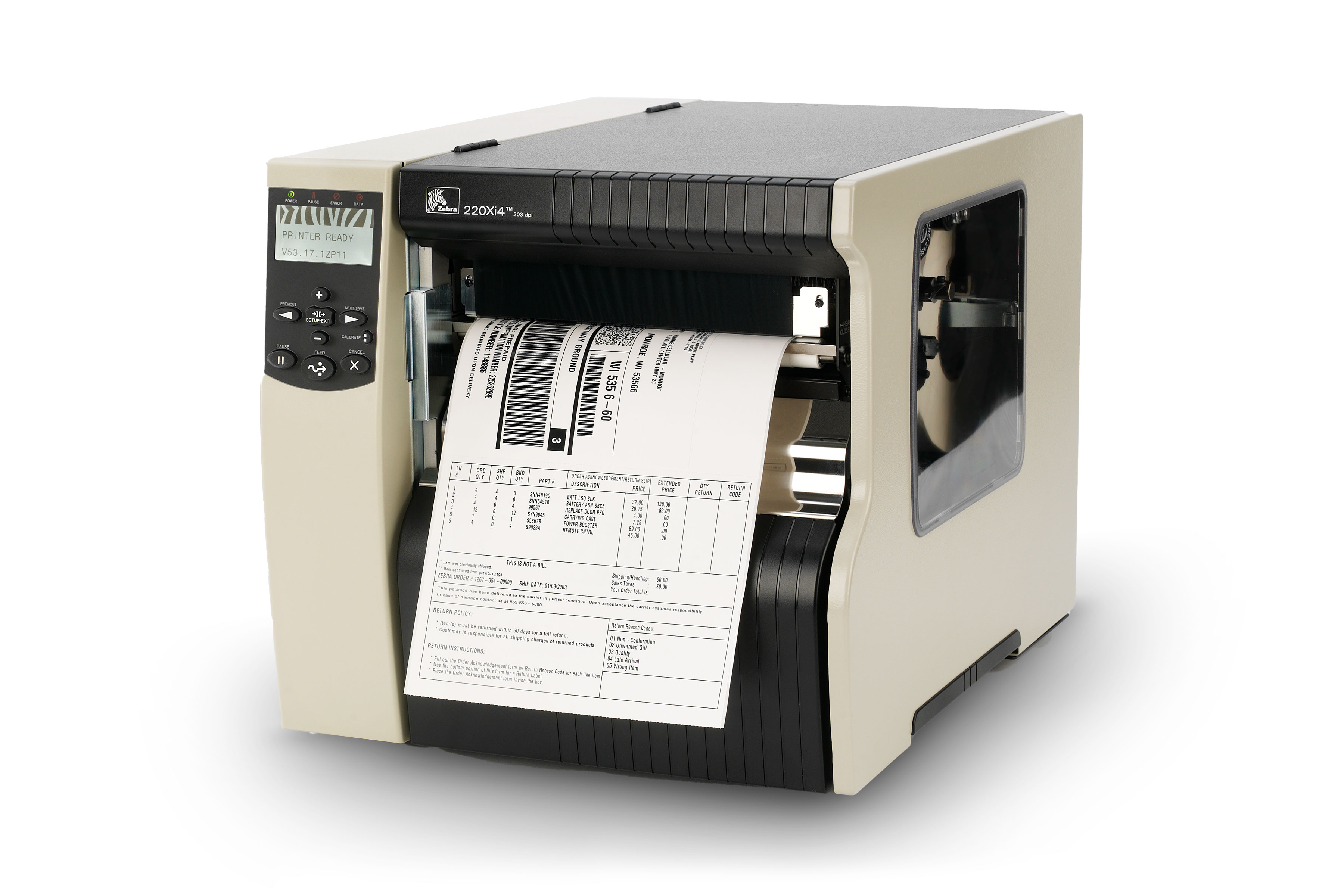

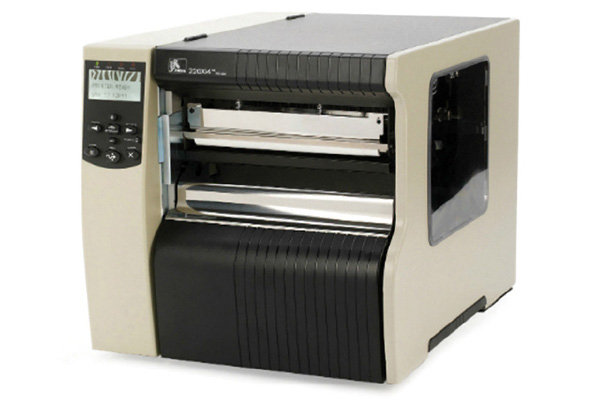

220Xi4 High-Performance Printer

The 220Xi4 is a rugged and reliable industrial printer by Zebra, built for durability, fast printing speeds, and exceptional quality. Designed to handle wide labels (up to 8") for demanding applications like chemical drum labeling, it ensures minimal downtime and maximum productivity with its durable all-metal construction. Ideal for 24/7 operations, the 220Xi4 provides outstanding print quality and longevity, ensuring low maintenance costs and high return on investment.

Key Features:

• Wide Label Printing: Supports labels up to 8" wide.
• Rugged Durability: All-metal design for harsh environments.
• Reliability: Long-lasting performance, minimizing downtime.
• Easy Integration: Multiple connectivity options and ZebraLink™ Solutions for remote management.
• Energy Star Certified for energy-efficient operations.



  Specifications

  Standard Features

  Print methods: Thermal transfer or direct thermal Full-function front panel and large, multilingual, back-lit LCD display with user-programmable password protection Clear media side door allows easy monitoring of supplies usage without opening the printer systems 32 bit 133 Mhz RISC processor 64 MB on-board linear Flash memory 16 MB SDRAM Flash memory Internal real-time clock Advanced label/media counters Dual media sensors — transmissive and reflective, selectable through software or front panel Auto calibration when printer is turned on or when printhead is closed using approximately two labels Early warning systems provide low label, low ribbon and clean printhead alerts via the front panel and ZebraLink alerts Thin film printhead with E3™ Element Energy™ Equalizer for superior print quality Communications: USB 2.0, RS-232 Serial, and bi-directional Parallel port with auto detect Internal ZebraNet® 10/100 Print Server (Ethernet) ENERGY STAR® qualified

  Printer Specifications

  Resolution	203 dpi/8 dots per mm 300 dpi/12 dots per mm
  Memory	64 MB Flash; 16 MB RAM
  Maximum Print Width	8.5"/216 mm
  Maximum Print Speed	10"/254 mm per second (203 dpi) 6"/152.4 mm per second (300 dpi)
  Media Sensors	Transmissive and reflective

  Media Characteristics

  Media Width	4.25" (108 mm) to 8.8" (224 mm)
  Maximum Media Roll Size	8.0" (203 mm) outside diameter on a 3" (76 mm) inside diameter core
  Thickness	0.003"/0.076 mm to 0.012"/0.305 mm
  Media Types	Continuous, die-cut gap, black mark, notch or hole
  Minimum Non- Continuous Label Length	0.25"/6 mm (Rewind mode) 0.5"/13 mm (Peel mode) 0.7"/18 mm (Tear-off mode) 1.5"/38 mm (Cutter mode)

  Ribbon Characteristics (Thermal-transfer option only)

  Outside Diameter	3.2"/81.3 mm
  Standard Length	1476'/450 M 984'/300 M
  Width	4.25" (108 mm) to 8.6" (220 mm)
  Core I.D.	1.0"/25.4 mm

  Operating Characteristics

  Environmental	Operating Temperature: 40°F to 105°F/5°C to 40°C Thermal transfer: 40°F to 105°F/5°C to 40°C Direct thermal: 32°F to 105°F/0°C to 40°C Operating Humidity: 20% to 85% non-condensing Storage/Transportation Temperature: -40°F to 140°F/-40°C to 60°C Storage Humidity: 5% to 85% non-condensing
  Electrical	90-264VAC; 48-62Hz ENERGY STAR qualified (140Xi4, 170Xi4, 220Xi4)
  Agency Approvals	IEC 60950-1, EN 55022 Class B, EN 55024, EN 61000-3-2, EN 61000-3-3 Product Markings: cTUVus, CE, FCC-B, ICES-003, VCCI, C-Tick, NOM, S-Mark(Arg), CCC, GOST-R, BSMI, KCC, STB, and UkrSEPRO

  Physical Characteristics

  Height	15.5" / 393.7 mm
  Width	15.81" / 401.6 mm
  Depth	20.38" / 517.5 mm
  Weight	72 lbs. / 32.7 kg

  Software Tools

  ZebraLink Solutions Zebra Setup Utilities — A Windows application to quickly set up and configure your Zebra printer. ZebraDesigner™ — Simple Windows WYSIWYG label design application with basic features. ZebraDesigner Pro — Simple Windows WYSIWYG label design application offering more advanced features for more complex label designs. ZBI-Developer™ — Programming utility makes it dramatically easier for programmers to create and test complex ZBI 2.0™ programs and distribute them to the printer (standard with ZBI 2.0). ZebraNet™ Bridge Enterprise — Centrally manage Zebra printers from a single PC screen anywhere on your global network. ZebraNet Utilities v7.0 — Provides enhanced printing, conversion and administration capabilities; message management; and more. Zebra Enterprise Connector — Print labels directly from Oracle’s BI Publisher with the Enterprise Connector and Zebra printers. ZDesigner Windows Driver — Zebra’s powerful Microsoft certified Windows driver.

  Web View Connect and control Zebra barcode printers using ZPL II via the printer’s web interface using common web browsers.

  Alert Printers equipped with ZebraNet print servers will notify you via any email-enabled wired, or wireless device to minimize downtime.

  Firmware

  ZBI 2.0 — Optional powerful programming language that lets printers run stand-alone applications, connect to peripherals, and much more. ZPL® & ZPL II® — Zebra Programming Language provides sophisticated label formatting and printer control and is compatible with all Zebra printers.

  Barcode Symbologies

  Linear Barcodes: Code 11, Code 39, Code 93, Code 128 with subsets A/B/C and UCC Case C Codes, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2-or 5-digit extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar and Planet Code 2D Barcodes: Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, TLC 39, GS1 DataBar (RSS), Aztec

  Fonts and Graphics

  Unicode™-compliant Global Printing Bitmap fonts A through H and GS symbols are expandable up to 10 times, height and width independent Smooth scalable font Ø (CG Triumvirate™ Bold Condensed*) is expandable dot-by-dot, height and width independent IBM® Code Page 850 International Characters Supports user-defined fonts and graphics — including custom logos 61 MB user-available non-volatile memory storage for downloadable objects 12 MB user-available SDRAM Bitmap fonts A through H and GS symbols are *Contains UFST® from Agfa Monotype Corporation

  Options and Accessories

  Clear media side bi-fold door–allows shorter media door opening radius Full-width rotary knife cutter and catch tray–operates under software control cutting labels individually or in strips Media rewind spindle–rewinds finished roll internally onto 3" (76 mm) core or enables label peel and liner rewind Applicator interface – provides status and control signals for applicators and remote control devices Media supply spindle for 3" (76mm) core or 40mm core Additional fonts

  For optimum print quality and printer performance, use Genuine Zebra supplies. Specifications subject to change without notice.
