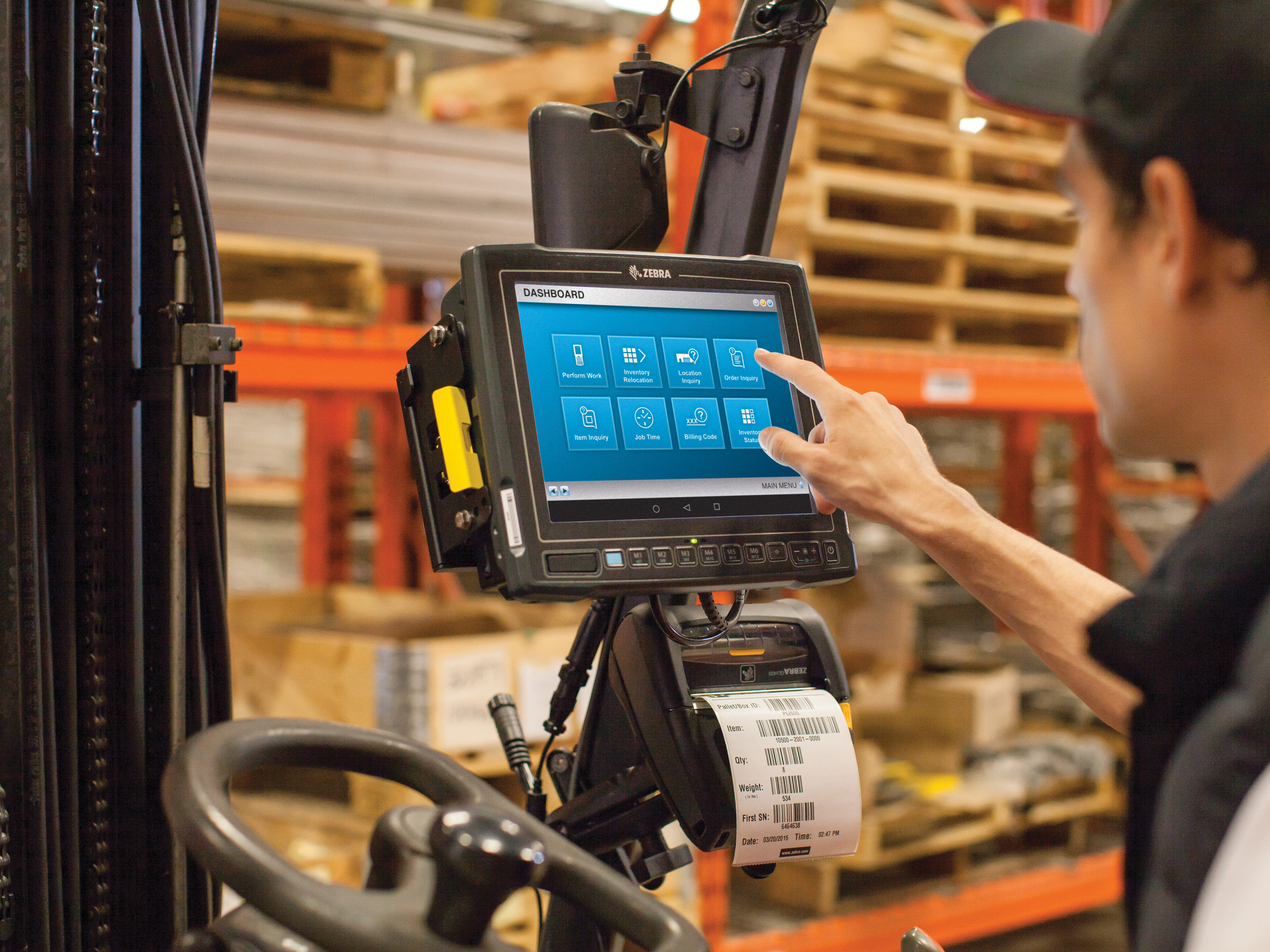

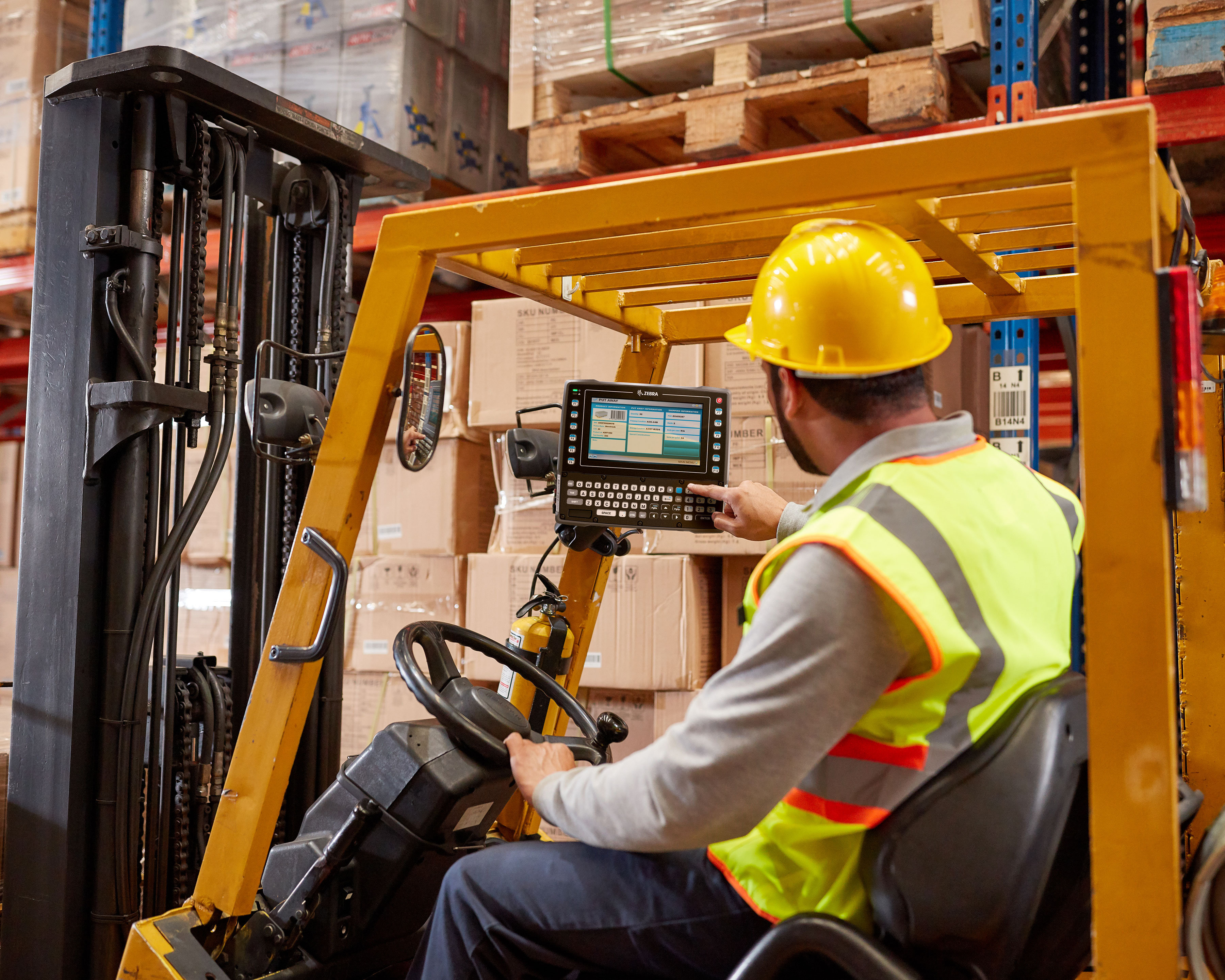

Durability & Performance: Withstand harsh warehouse environments, cold chains, and exposure to dust and water. Rugged Build: Shock-resistant and vibration-tolerant for reliability in tough industrial settings. Quick-Mount Capabilities: Ideal for forklifts, order pickers, and other industrial vehicles, with easy installation. Real-Time Data Access: Empower front-line workers with mobility and up-to-date information. Operational Efficiency: Optimize order fulfillment processes for faster and more accurate task completion. Flexible & Versatile: Suitable for demanding environments like warehouses, yards, and loading docks. Markets and Applications Environments Warehouses Manufacturing plants Freezers Outdoor yards Airports Seaports Railway yards Applications Receiving Picking Packing Shipping Replenishment Cross-dock Work-in-Process (WIP) Vehicles Sit-down forklifts Standing forklifts Enclosed forklifts Extended reach forklifts Yard mules and trucks Cranes Container bridges Read more

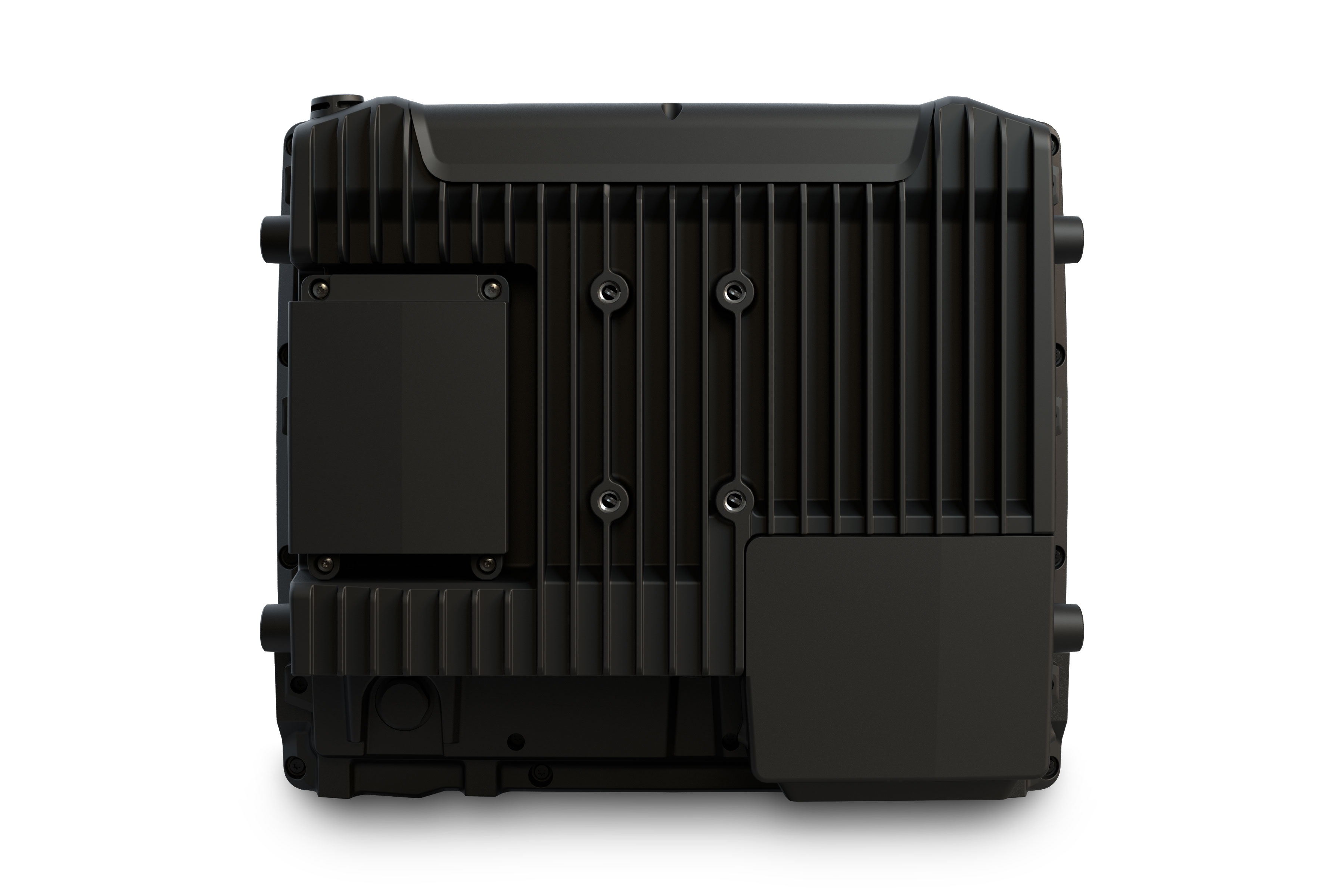

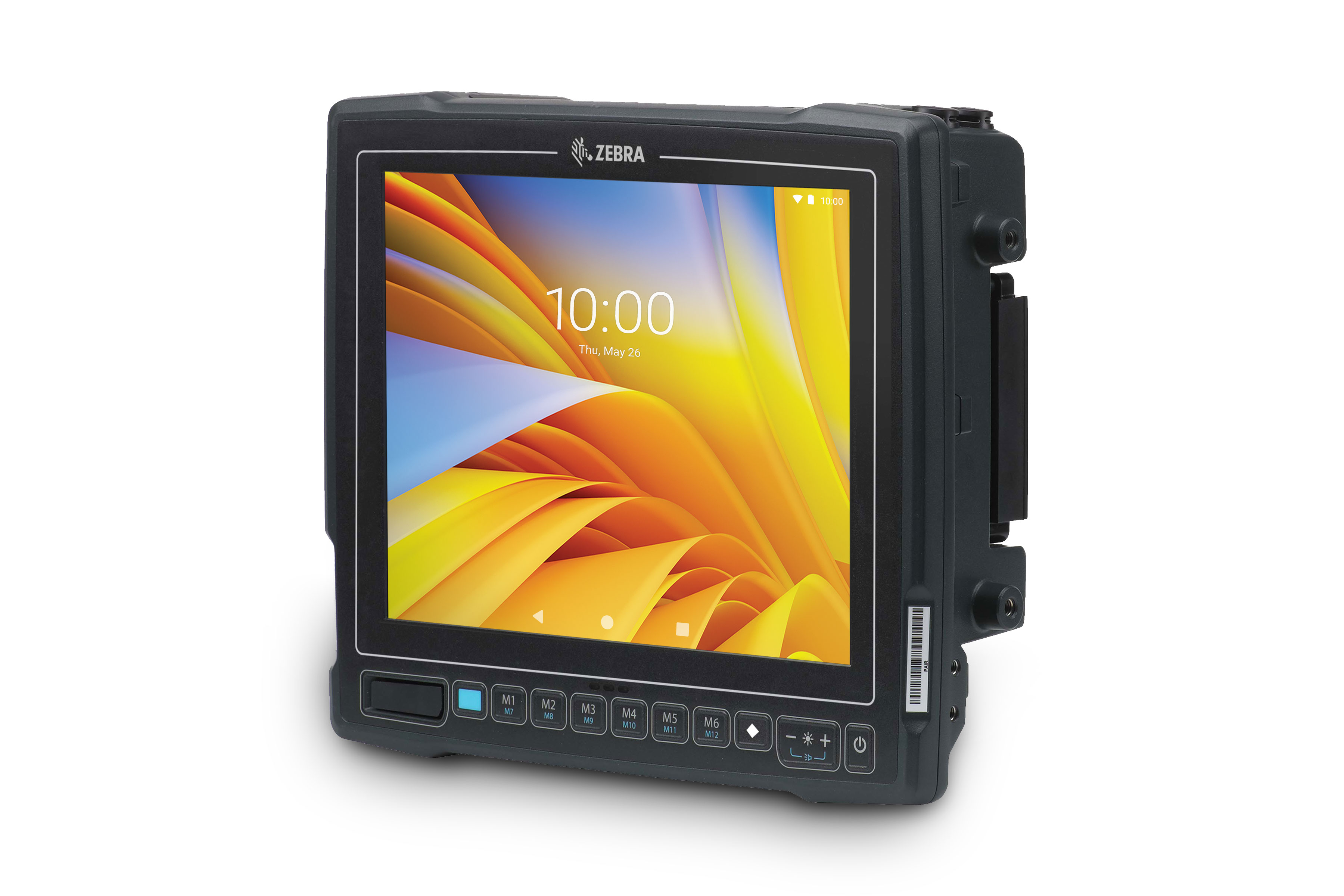

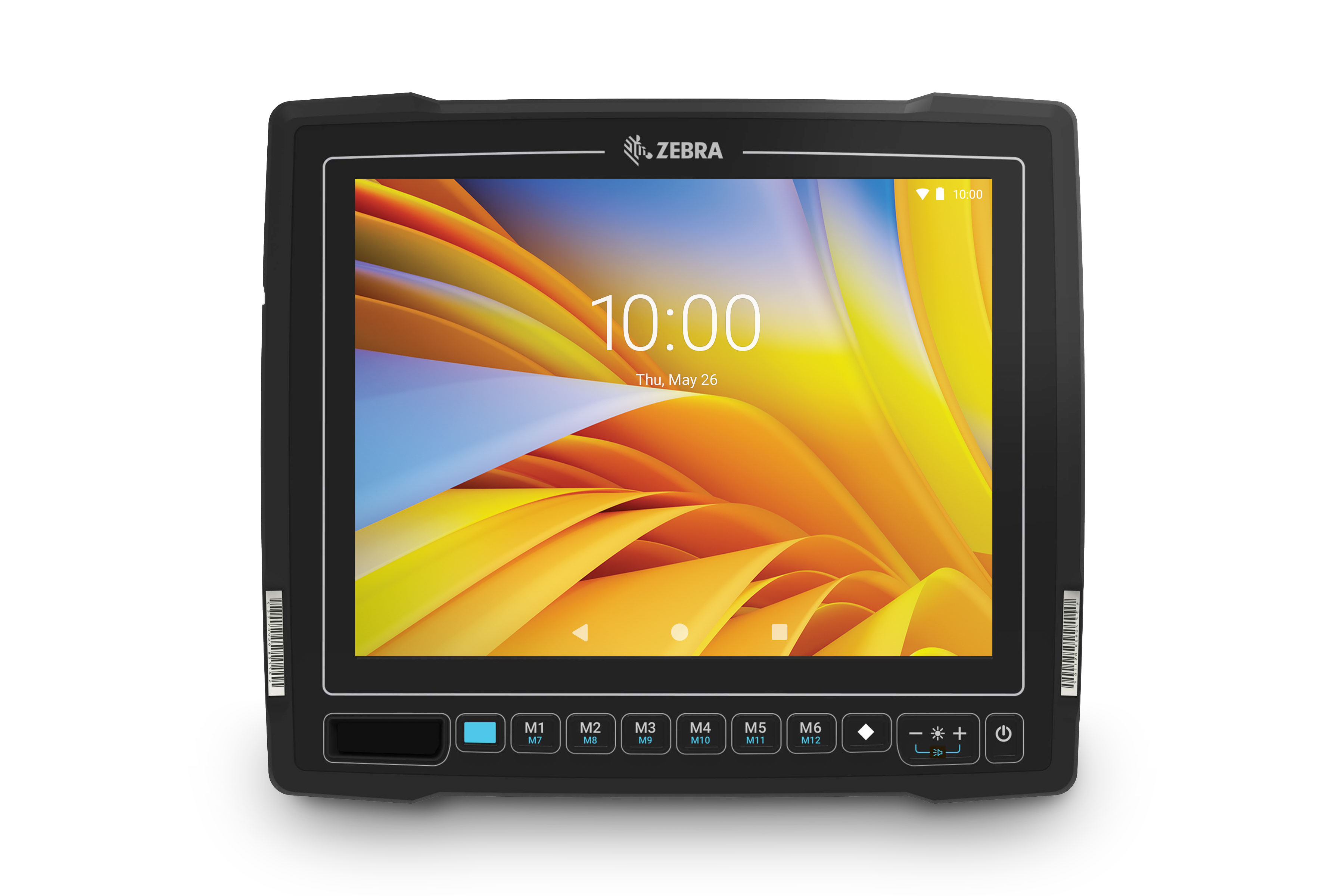

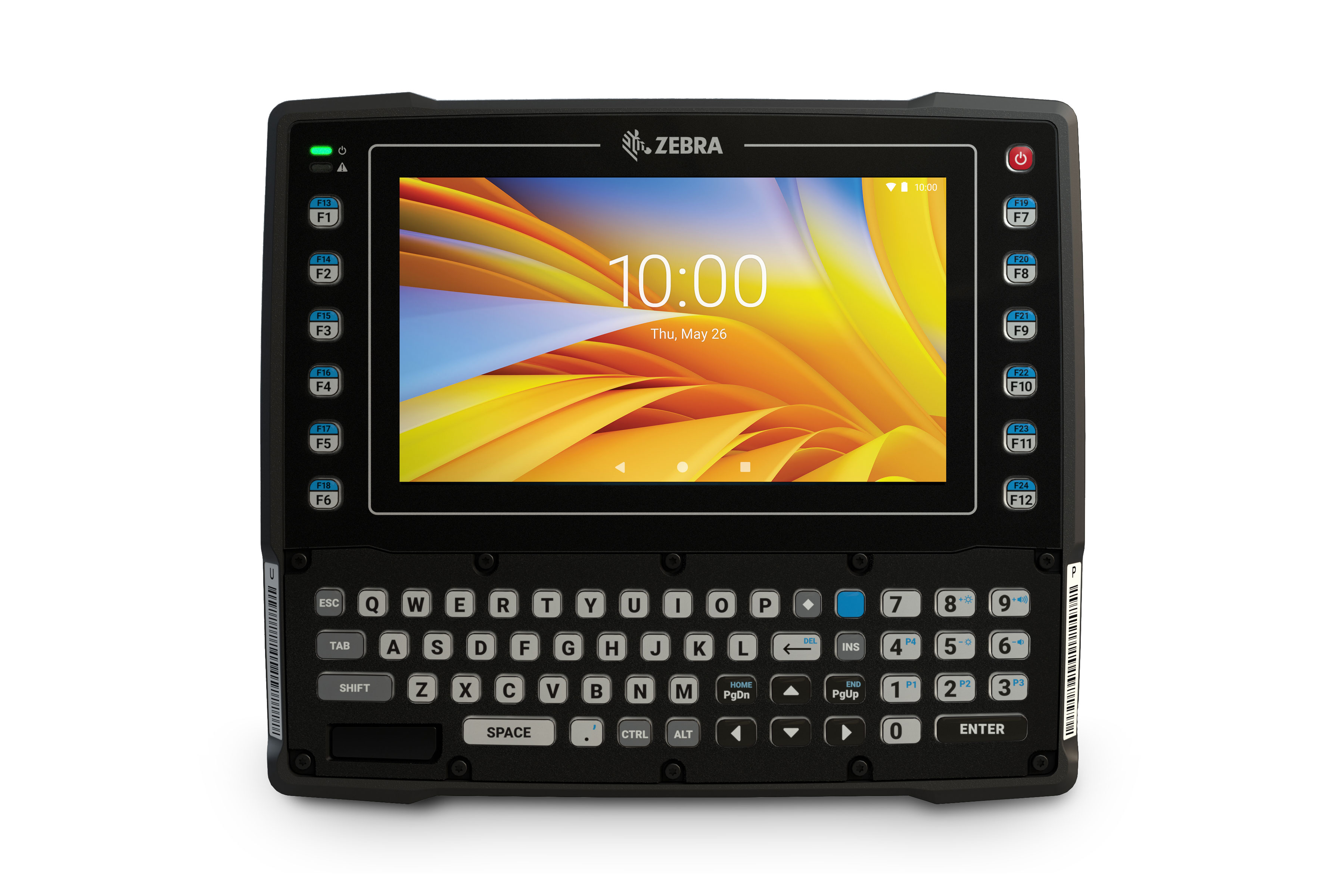

VC8300 8 & 10 InchVehicle Mount Computer
Equip your workforce with high-performance technology to enhance efficiency and support flawless fulfillment across your operation.
Physical Characteristics
Dimensions | 10.87 in. W x 9.37 in. H x 3.54 in. D |
| Weight | 8.2 lbs./3.7 kg |
| Display | 10.4 in. color XGA (1024 x 768); 400 NITs |
| Touch Panel | Standard version: capacitive multi touch, Corning Gorilla Glass with air gap Freezer version: resistive touchscreen with passive stylus or finger operation, integrated touchscreen heater evaporates external condensation |
| Power | 12 to 48VDC nominal |
| Power Consumption | OFF: <1W Suspend: 4 - 7.5W Run Mode: 10-13W: display brightness at 50%, keyboard backlight off, Wi-Fi radio in receiving mode, and UPS battery fully charged. 36-40W: display brightness at 100%, keyboard backlight at 100%, Wi-Fi radio receiving and transmitting, UPS battery is charging, and scanner connected.61-65W: display brightness at 100%, keyboard backlight at 100%, Wi-Fi radio receiving and transmitting, UPS battery is charging, scanner connected and touch screen heater is on |
| UPS | Heated Uninterruptable Power Supply (UPS); minimum 30-minute life over the full operating temperature range |
| Connectivity | 1x Type C USB 3.0 combination host and client port; 1x USB 2.0 host port supports BC1.2; 1x standard powered USB 2.0 host port with 12V/1.5A; 2 x RS-232 COM ports with power on pin 9; 1 x 3.5 mm audio jack for push-to-talk speaker/mic. |
| Scanner Support | HID via USB and Bluetooth; SSI via USB and Bluetooth for DS/LI 36XX and RS6000; Serial RS232 with power on pin 9 |
| Notifications | Indicators: audible tone |
| Voice and Audio | High volume 87 dBA speaker |
| Keyboard Options | Optional heated external QWERTY or AZERTY keyboard; optional keyboard mounting tray |
| Keys | Six (6) programmable keys, volume/brightness, blue key for 2nd level functions, on/off key, diamond key (pops up on-screen keyboard) |
| Mounting | RAM mount; quick release mount; U-mount; adapter for legacy vehicle computer mounts |
Performance Characteristics
| CPU | Qualcomm SnapdragonTM 660 octa-core 2.2 GHz |
| Memory | 4 GB RAM/32 GB Flash pSLC |
| Operating System | Upgradeable to Android 14 |
| Software | Ivanti Velocity (pre-loaded and pre-licensed) |
User Environment
| Operating Temp. | -22° F to 122° F/-30° C to 50° C |
| Storage Temp. | -40° F to 140° F/-40° C to 60° C |
| Humidity | 5% to 95% non-condensing (standard version); 5% to 95% condensing (freezer version with internal heating) |
| Sealing | IP66 |
| Impact | Ball drop; 5 Joules on touchscreen; IEC EN 60079-15:2003 |
| Shock/Vibration | IEC 60721-3-5M3; MIL-STD 810G; Method 514.6; |
| Thermal Shock | -22° F to 122° F/-30° C to 50° C |
| Integrated Sensors | Gyroscope; Motion (Accelerometer); Temperature |
| Salt Fog | 48h of 5% solution at 35° C |
| Solar Radiation | EN/IEC 60068-2-5 solar radiation spectral energy distribution, 1120 W/m2 at display surface Environmental temperature: 40°C. Irradiation duration: 24 hours |
Electrostatic | +/-20kV air discharge; +/-10kV contact discharge; |
Wireless LAN
| Radio | IEEE 802.11a/b/g/n/ac/k/r/d/h/i/v/w; IPv4, IPv6, 2x2 MU-MIMO |
| Data Rates | 5GHz: 802.11a/n/ac—up to 866.7 Mbps |
| Operating Channels | Channel 1-13 (2412-2472MHz): 1,2,3,4,5,6,7,8,9,10,11,12,13 Channel 36-165 (5180-5825 MHz): 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140, 144, 149, 153, 157, 161, 165 |
| Security and Encryption | WEP (40 or 104 bit); WPA/WPA2 Personal (TKIP and AES);WPA3 Personal (SAE); WPA/WPA2 Enterprise (TKIP and AES); WPA3 Enterprise (AES)— EAP-TTLS (PAP, MSCHAP, MSCHAPv2, GTC), EAP-TLS, PEAPv0-MSCHAPv2, PEAPv1-EAP-GTC and LEAP, EAP-PWD; WPA Enterprise 192-bit (GCMP-256) — EAP-TLS; Enhanced Open (OWE) |
| Multimedia | Wi-Fi Multimedia (WMM and WMM-PS; Including TSPEC) |
| Certifications | WFA (802.11n; 802.11ac; PMF, WMM-PS, WMM-AC, Voice Enterprise and Wi-Fi Direct) |
| Fast Roam | PMKID caching, Cisco CCKM, OKC, 802.11r |
| WLAN Antennas | Switchable internal or external antennas, various whip and magnetic mounted antennas available |
Wireless PAN
| Bluetooth | Class 2, Bluetooth v5.0, Bluetooth Low Energy (BLE) |
Freezer and Condensing
Selected industrial components with a wide temperature range specification |
Communication and Messaging
Workforce Connect PTT Express and PTT Pro optional licenses are available for purchase to easily add push-to-talk capabilities to your Zebra devices. Workforce Connect PTT Express provides instant push-to-talk small group communications across Wi-Fi networks. Workforce Connect PTT Pro provides a scalable network agnostic push-to-talk solution, which also includes messaging, location services and two-way radio integration. |
Platforming
| Mobility DNA, Enterprise MDK, Standard Android SDK and SOTI for Android, Analytics Agent |
Warranty
Subject to the terms of Zebra’s hardware warranty statement, the VC8300 is warranted against defects in workmanship and materials for a period of 1 (one) year from the date of shipment. For complete warranty statement, please visit: |
