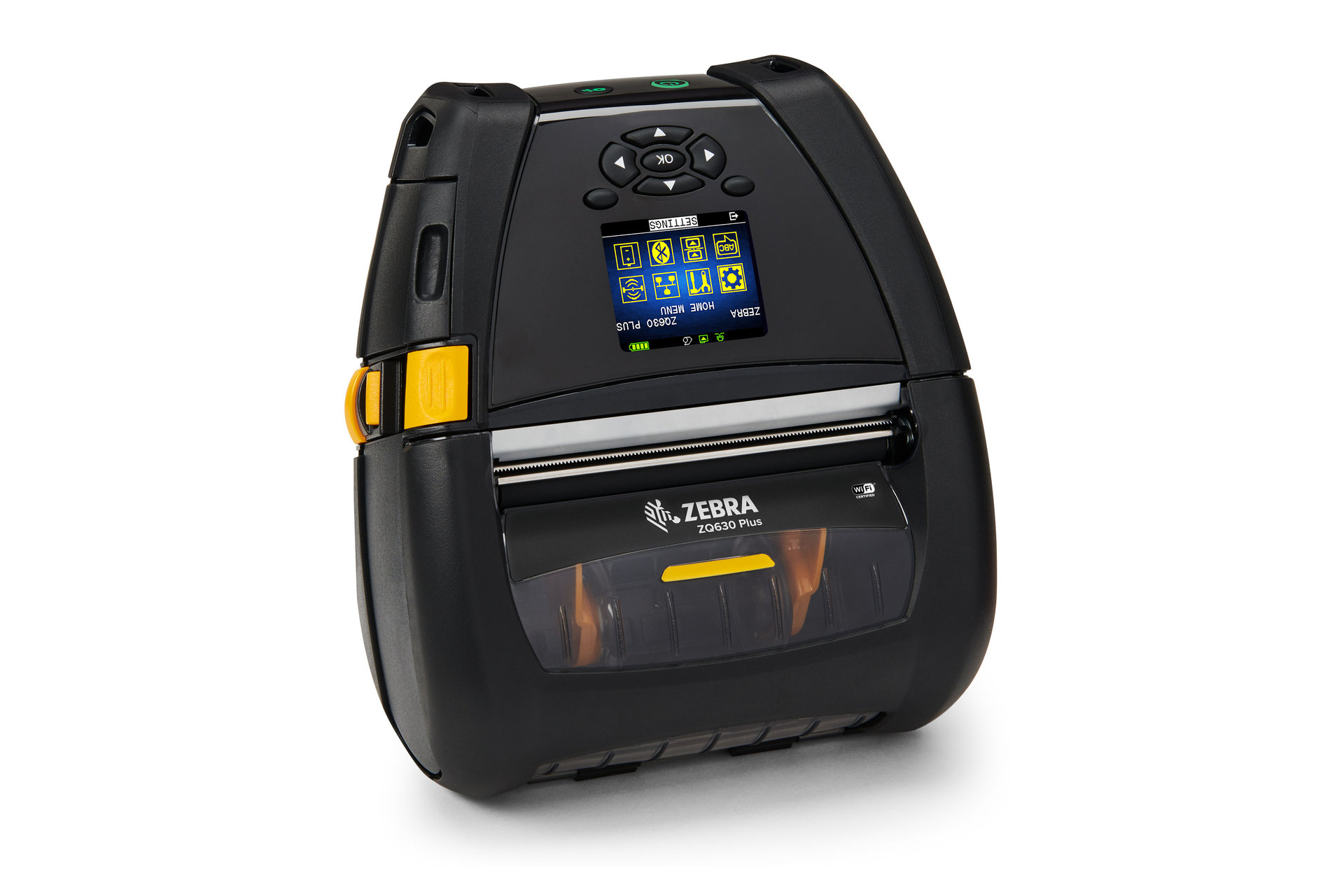

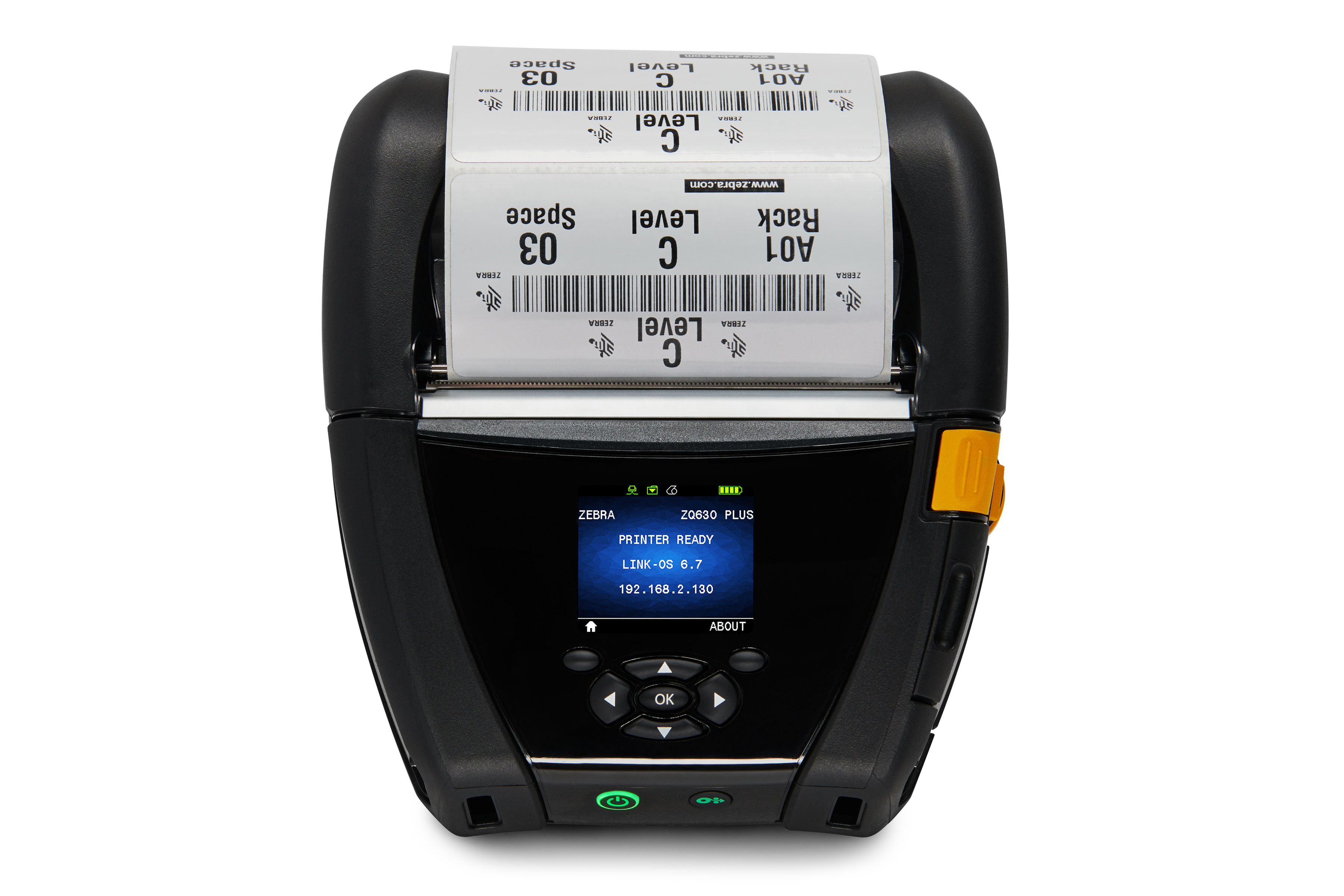

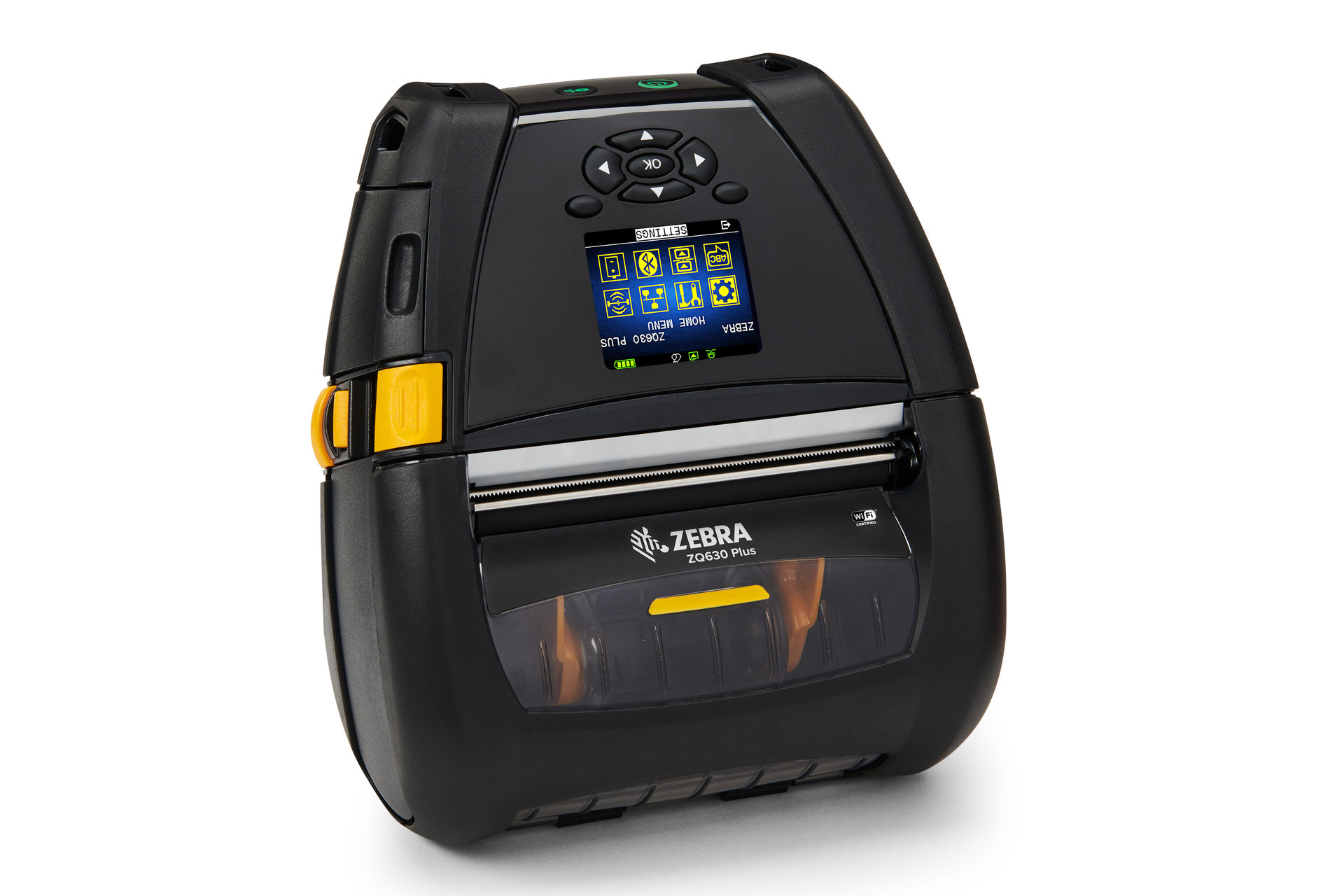

The Zebra ZQ630 Plus and ZQ630 Plus RFID are advanced mobile printers designed to enhance productivity across various industries, including retail, manufacturing, logistics, and healthcare.

Key Features:

• Printing Capabilities: Both models support direct thermal printing of labels, receipts, and tags. The ZQ630 Plus RFID model additionally offers RFID printing and encoding, enabling efficient asset tracking and inventory management.

  zebra.com

• Connectivity: Equipped with dual radio options, the ZQ630 Plus supports 802.11ac Wi-Fi and Bluetooth 4.x, while the ZQ630 Plus RFID model features Wi-Fi 6 dual radio (802.11ax) and Bluetooth 5.x, ensuring fast and reliable wireless communication.

  zpsstore.com

• Battery Life: Both printers are powered by a 6800 mAh (nominal) 49.4 Wh removable PowerPrecision+ Li-Ion battery, providing extended operational time to support demanding work shifts.

  barcodegiant.com

• Media Handling: The ZQ630 Plus accommodates media widths from 2 to 4.4 inches (50.8–111 mm) and supports linerless printing. The ZQ630 Plus RFID model offers similar media handling capabilities, with a maximum print width of 4.1 inches (104 mm).

  docs.zebra.com

• Durability: Both models are designed for rugged environments, featuring an IP54 rating for dust and water resistance and the ability to withstand multiple drops from 6 ft./1.83 m to concrete.


  Description	This 4-inch mobile printer is optimized for high-volume label printing and also prints receipts and linerless media. The ZQ630 Plus features fast connections with Wi-Fi 6 (802.11ax) and Bluetooth 5.3 dual radio, best-in-class security, large color display, patented battery and battery management technologies and instant wake-up feature to help your users do more wherever they work. The ZQ630 Plus can be mounted to a forklift for easy access while moving throughout the warehouse. Wi-Fi 5 (802.11ac) and Bluetooth 4.2 option also available.	Give your enterprise a competitive edge with feature-rich mobile printing plus RFID encoding. The ZQ630 Plus RFID mobile 4-inch printer gives workers the flexibility to print and encode RFID labels on the spot with ease, saving time and reducing errors. This printer features fast and secure Wi-Fi 6 (802.11ax) and Bluetooth 5.3 connections, large color display, superior battery management and an instant wake-up feature. Wi-Fi 5 (802.11ac) and Bluetooth 4.2 option also available.
  Positioning	Premium	Premium
  Applications	Cross Docking, Receiving, Pick and Pack Labels and Lists, Warehouse Management, Inventory Management	Asset Labels, Apparel and Merchandise Tracking, Airline Baggage Tagging, Shipping Labels, RFID Case Pallet Labels
  Industries	Manufacturing, Warehouse and Distribution, Retail, Transportation and Logistics	Retail, Transportation and Logistics
  Key Product Features	Max print width 4.1 in./104 mm Heavy volume label and receipt printing: supports linerless printing Two dual radio options: Wi-Fi 6 (802.11ax) + Bluetooth 5.3 and Wi-Fi 5 (802.11ac) + Bluetooth 4.2 High capacity PowerPrecision+ 6600 mAh battery Forklift mount and Ethernet cradle available	Max print width 4.1 in./104 mm Label, receipt and linerless printing; prints and encodes RFID tags and labels Two dual radio options: Wi-Fi 6 (802.11ax) + Bluetooth 5.3 and Wi-Fi 5 (802.11ac) + Bluetooth 4.2 High capacity PowerPrecision+ 6600 mAh battery Forklift mount and Ethernet cradle available
  Recognition		RAIN RFID

  Physical Characteristics

  Dimensions	7.35 in. L x 6.5 in. W x 3.25 in. H 187 mm L x 165 mm W x 82.5 mm H	7.35 in. L x 6.5 in. W x 3.25 in. H 187 mm L x 165 mm W x 82.5 mm H
  Weight	2.45 lbs./1.1 kg (with battery)	2.45 lbs./1.1 kg (with battery)
  Connectivity	Bluetooth Specification 4.2 (Classic and Low Energy)  WLAN 802.11ac with 802.11r  Ethernet (with cradle)  Serial  USB	Dual radio options: 802.11ax + Bluetooth 5.3, 802.11ac + Bluetooth 4.2 (both with 802.11r fast roaming) Bluetooth 4.2 (Classic and Low Energy)  Ethernet (with cradle)  Serial  USB

  Power

  Battery Capacity/Type	6600 mAh (nominal) 47.5 Wh removable, rechargeable PowerPrecision + Li-Ion battery	6600 mAh (nominal) 47.5 Wh removable, rechargeable PowerPrecision + Li-Ion battery

  Performance Characteristics

  Operating System	Link-OS®	Link-OS®
  Memory	256 MB RAM; 512 MB Flash (standard)	256 MB RAM; 512 MB Flash (standard)

  Printer Specifications

  Media Sensor	Black mark sensing using fixed center position sensors; label present sensor for issuing batch labels one at a time	Black mark sensing using fixed center position sensors; label present sensor for issuing batch labels one at a time
  Print Speed	Up to 4.5 in./115 mm per second	Up to 4.5 in./115 mm per second
  Print Width	4 in.	4 in.
  Print Resolution	203 dpi/8 dots per mm	203 dpi/8 dots per mm
  Print Technology	Direct Thermal	Direct Thermal

  Media Characteristics

  Media Roll Outer Diameter	2.6 in./66 mm O.D. on a 0.75 in./19 mm or 1.375 in./34.9 mm inner core	2.6 in./66 mm O.D. on a 0.75 in./19 mm or 1.375 in./34.9 mm inner core

  RFID

  RFID Capability		Yes

  Environment

  Drop Specifications	Tolerance of multiple drops from 5 ft./1.52 m (ZQ620 Plus & ZQ610 Plus) and 6 ft./1.83 m (ZQ630 Plus) to concrete²	Tolerance of multiple drops from 5 ft./1.52 m (ZQ620 Plus & ZQ610 Plus) and 6 ft./1.83 m (ZQ630 Plus) to concrete²
  IP Sealing	IP54 dust and water resistance rating	IP54 dust and water resistance rating
  Operating Temperature	-4° F to 122° F / -20° C to 50° C	-4° F to 122° F / -20° C to 50° C
