The Zebra ZXP Series 7 card printer offers fast, reliable, and high-quality card printing with photo-like images, making it ideal for a wide range of business applications. The printer is designed for ease of use, cost-efficiency, and high productivity, delivering sharp cards with precise color control.

Key Features:

1. Superior Performance:

   • Generates near-photographic print quality and edge-to-edge printing.
   • Optional lamination for added security and durability.

2. High Productivity:

   • Fast print speeds with click-to-drop and batch printing capabilities.
   • Simultaneous dual-sided lamination and printing, processing up to three jobs at once.

3. Easy Setup & Maintenance:

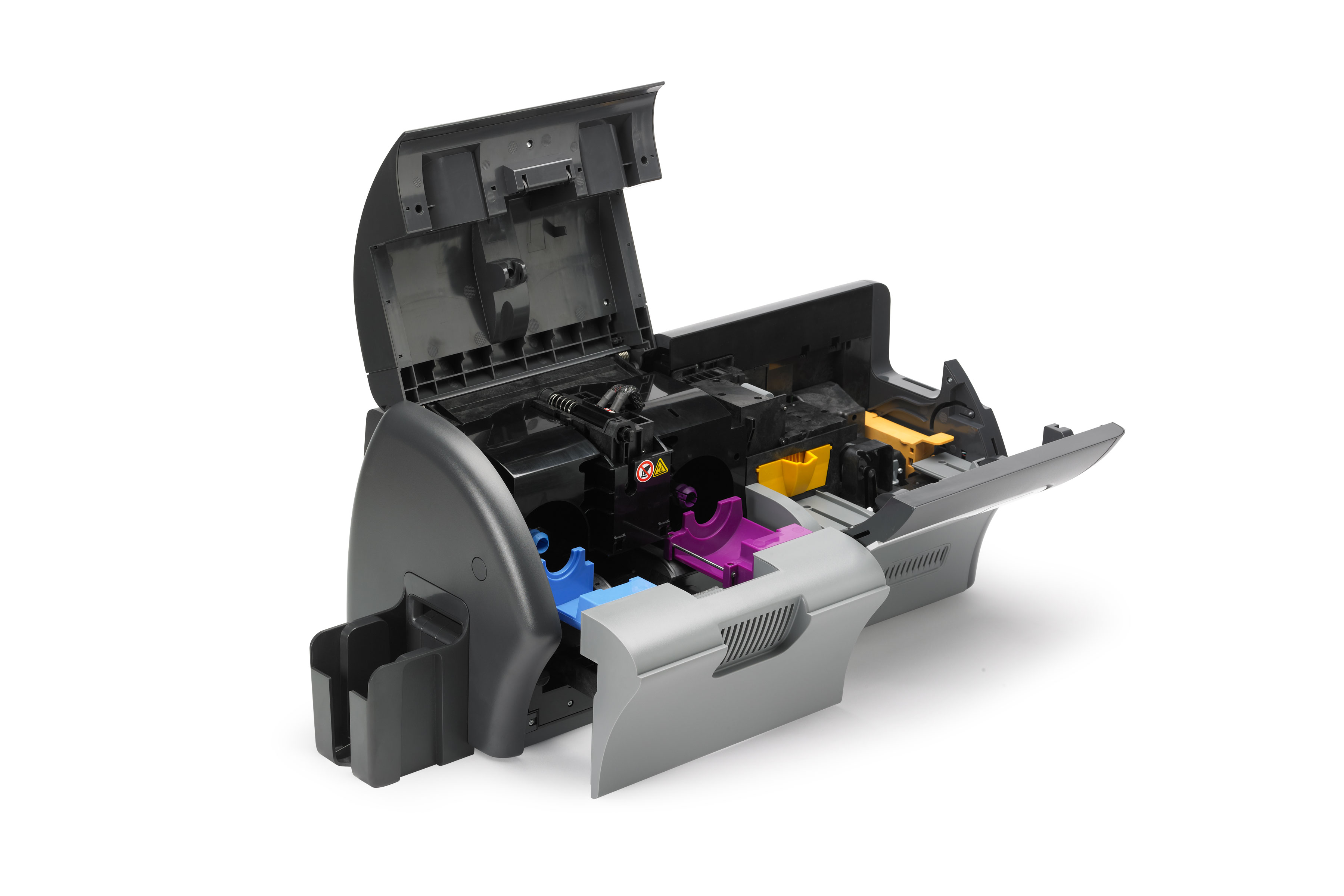

   • Simplified ribbon loading and high-capacity media.
   • Quick integration with Windows® drivers, ZMotif™ SDK, and networking options.

4. Adaptable & Cost-Efficient:

   • Supports single- or dual-sided printing, various encoding and connectivity options (UHF encoding, wireless).
   • Designed for cost-saving with high-capacity ribbons and True Secure laminates to reduce waste and counterfeiting.

5. Intelligent Adaptability:

   • Customizable options and advanced security features for tailored printing needs.
   • Software tools like ZMotif SDK and ZXP Toolbox for better control and administration.

6. Zebra CardStudio™ Software:

   • Easy-to-use design software for creating sophisticated cards with dynamic data, barcodes, photos, and security features.


     Specifications

     Printer Names

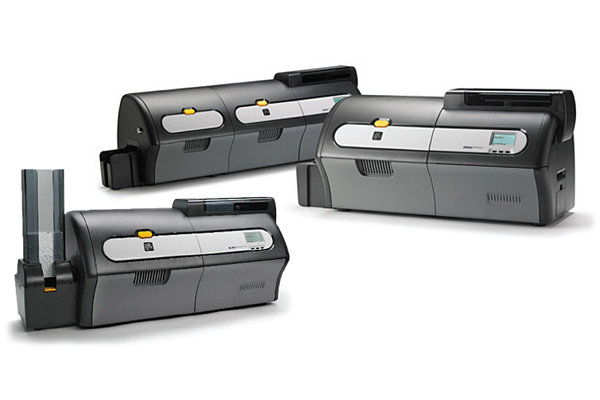

     ZXP Series 7 ZXP Series 7 Pro

     Standard Features

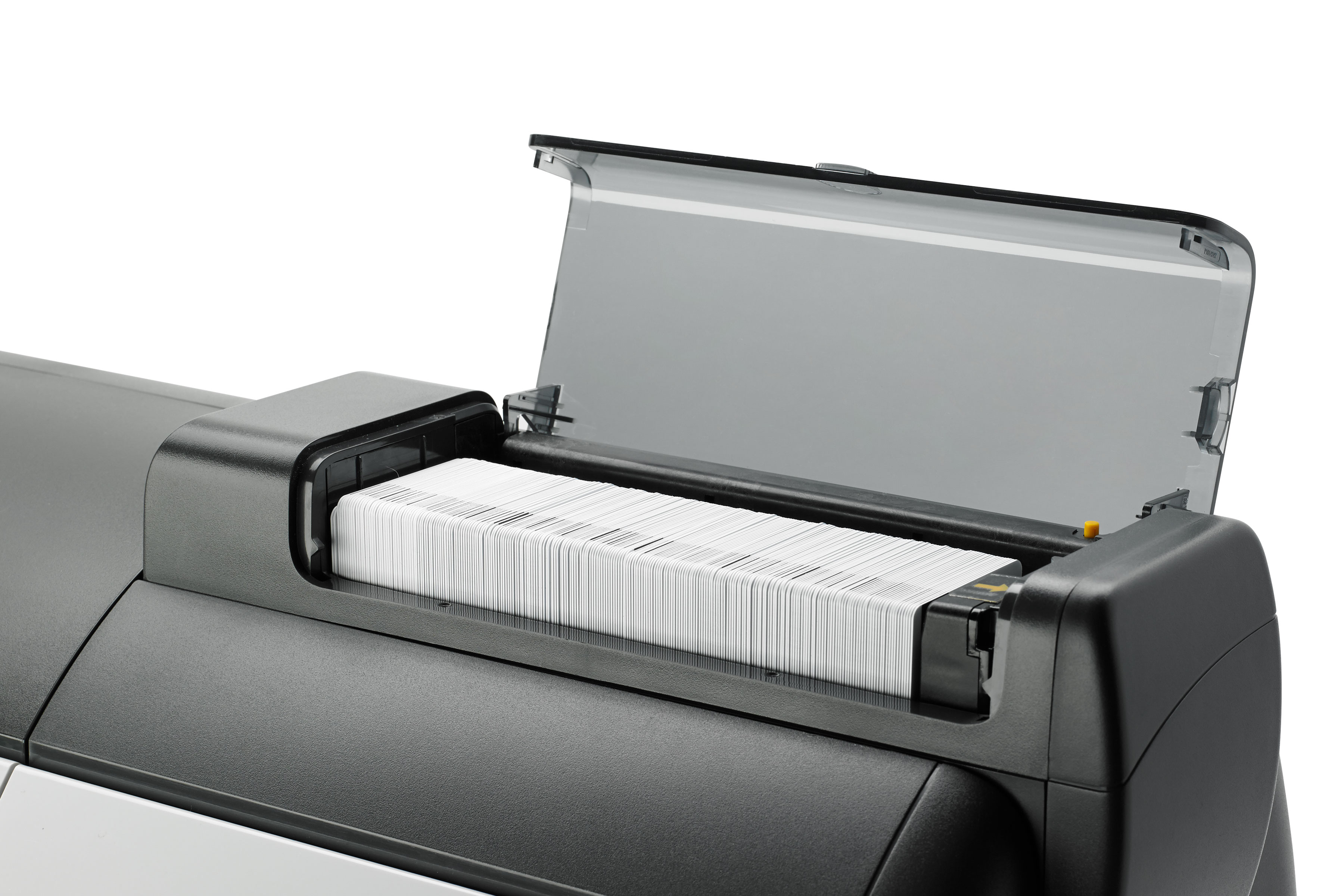

     • 300 dpi/11.8 dots per mm print resolution • USB 2.0 and Ethernet 10/100 connectivity • Microsoft® Windows Certified drivers • 15-card reject hopper (30 mil) • ZXP Series 7 and Series 7 Pro: 250-card input capacity feeder (30 mil) • ZXP Series 7: 100-card output hopper (30 mil) • ZXP Series 7 Pro: 250 First-in, First-out mechanical output hopper • Single-card feed capability • ix Series intelligent media technology • 21-character x 6-line LCD operator display with configurable soft keys • Kensington® physical lock slot • Two-year limited warranty on printer and printhead

     Printing and Laminating Specifications

     • Color dye sublimation or monochrome thermal-transfer printing • Single- and dual-sided printing • Near photographic print quality • Edge-to-edge printing on standard CR-80 media • Simultaneous printing, encoding, and laminating capability • One-pass single- and dual-sided wasteless lamination • 1375 cards / hour monochrome single-sided or 555 cards / hour dual sided printing • 300 cards / hour full-color YMCKO single-sided printing • 225 cards / hour full-color YMCKOK dual-sided printing • 270 cards / hour full-color YMCKO single-sided printing with lamination   NOTE: Printing throughput (cards per hour) based on batch printing with USB connectivity. Times may vary depending on the computer configuration.

     Media Specifications

     Zebra’s intelligent technology RFID tags authenticate and automate ix Series ribbons and i Series laminates Card cleaning rollers included with each ribbon carton Specially designed cleaning supplies simplify preventative maintenance True Colours ix Series Ribbons • YMCKO: 250 or 750 images / roll • YMCUvK: 750 images / roll • YMCKOK: 250 or 750 images / roll • ½-panel YMC, full KO: 1250 images / roll • KdO and KrO: 2000 images / roll • WrKr: 2000 images / roll • Blue, red, gold, silver monochrome: 5000 images / roll • Black monochrome: 2500 or 5000 images / roll • White monochrome: 4000 images / roll • Scratch-off gray: 3250 images / roll • Other colors available on request True Secure i Series Laminates • Linerless waste-free 1.0 mil top and bottom laminate: 750 images / roll • Laminate types: clear, magnetic stripe, smart card, and holographic wallpaper designs • Custom laminates with registered or wallpaper holographic images available on request Card Compatibility For optimum card quality and printer performance, use genuine Zebra card supplies. For more information, visit www.zebra.com/cards • Card thickness: 10 – 50 mil (0.25 – 1.27 mm) • Card thickness for lamination: 30 mil (0.76 mm) • Card size: CR-80, ISO 7810 format, Type ID-1 • Card material: PVC and composite, ABS cards, PET, PET-G, PET-F, PETix, and Teslin® composite • Technology cards: contact and contactless smart cards • Specialty cards: adhesive backed, signature panel, transparent cards with IR-blocker

     Operating Characteristics

     Environmental	Operating Temperature: 59ºF to 95ºF/15ºC to 35ºC Operating Humidity: 20% to 80% non-condensing Storage Temperature: 23ºF to 158ºF/-5ºC to 70º C Storage Humidity: 10% to 90% non-condensing Media Storage: Temperature: 41ºF to 86ºF/5ºC to 30ºC Humidity: 30% to 50% non-condensing Do not store in direct sunlight
     Electrical	Auto-switching single-phase AC power 90V – 264V AC and 47 – 63Hz (50 – 60Hz nominal) FCC Class A

     Physical Characteristics

     Dimensions	ZXP Series 7: Printer only: 12 in. H x 10.9 in. L x 27.5 in. W 306 mm H x 277 mm D x 699 mm W Printer with laminator: 12 in. H x 10.9 in. L x 38 in. W 306 mm H x 277 mm D x 964 mm W ZXP Series 7 Pro: Printer only: 13.75 in. H x 10.9 in. L x 28.25 in. W 349 mm H x 277 mm D x 718 mm W
     Weight	ZXP Series 7: Printer only: 26.9 lbs/12.2 kg Printer with laminator: 39.5 lbs/17.9 kg ZXP Series 7 Pro: Printer only: 31.7 lbs/14.4 kg Printer with laminator: 44.3 lbs/20.1 kg

     Communication and Interface Capabilities

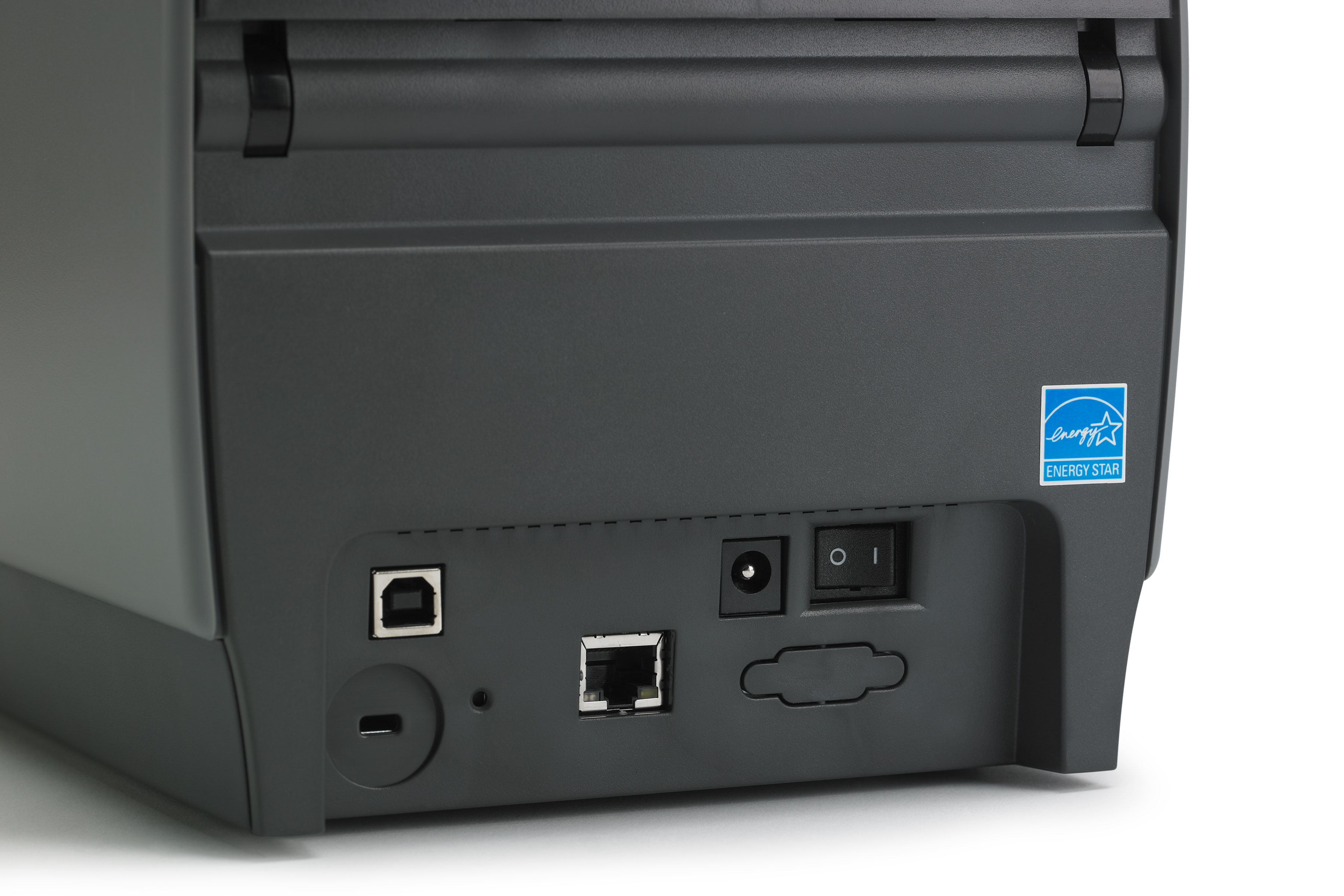

     USB 2.0 USB supports plug-and-play printer identification 10/100 Ethernet 802.11b/g wireless option

     Software Tools

     ZMotif SDK support and sample code available Windows 7® (32 and 64 bit), Windows Server 2008 (32 and 64 bit) Windows 8® (32 and 64 bit), Windows 8.1® (32 and 64 bit), Windows Server 2012 (64 bit), Windows 10 (32 and 64 bit) CardStudio card design and issuance software NOTE: Please see www.zebra.com for up to-date listing of supported systems.

     Optional Features

     • Single and dual-sided laminator • Optional contact/contactless SmartCard encoding option module • FIPS 201 compliant dual-sided laminator (only for North America) • Lockable enclosures and card feeder • Extended product warranty programs • 802.11b/g wireless connectivity • 1D barcode scanner • Duo-Print upgrade kit Encoding Options and Specifications • Magnetic stripe encoder — AAMVA and ISO 7811 (new and pre-encoded, tracks 1, 2, and 3, high and low coercivity) • ISO 7816 Smart Card Contact Station for third-party external contact encoders • Combined MIFARE® ISO 14443 A and B (13.56MHz) contactless and ISO 7816 Contact Encoder with EMV level 1 certification, and PC/SC compliance • EPCglobal® Gen 2 UHF RFID encoder

     Zebra Synchronized Supplies for Operational Efficiency and Lower Costs

     Color Print Operations	Ribbon Media 750 Images per ribbon** 250 Card Capacity Input and Output Hopper 3X synchronized card input and ouput: 250 cards (x3) = 750 = 3 full card feeder cassettes per YMCKO ribbon
     Mono Print Operations	Ribbon Media 5,000 Images per ribbon 250 Card Capacity Input and Output Hopper 20X synchronized card input and ouput: 250 cards (x20) = 5,000 = 20 full card feeder cassettes per black mono ribbon

     Product Warranty

     The ZXP Series 7 is warranted against defects in workmanship and materials for a period of 2 (two) years from the date of shipment. For the complete warranty statement, please visit: www.zebra.com/warranty
