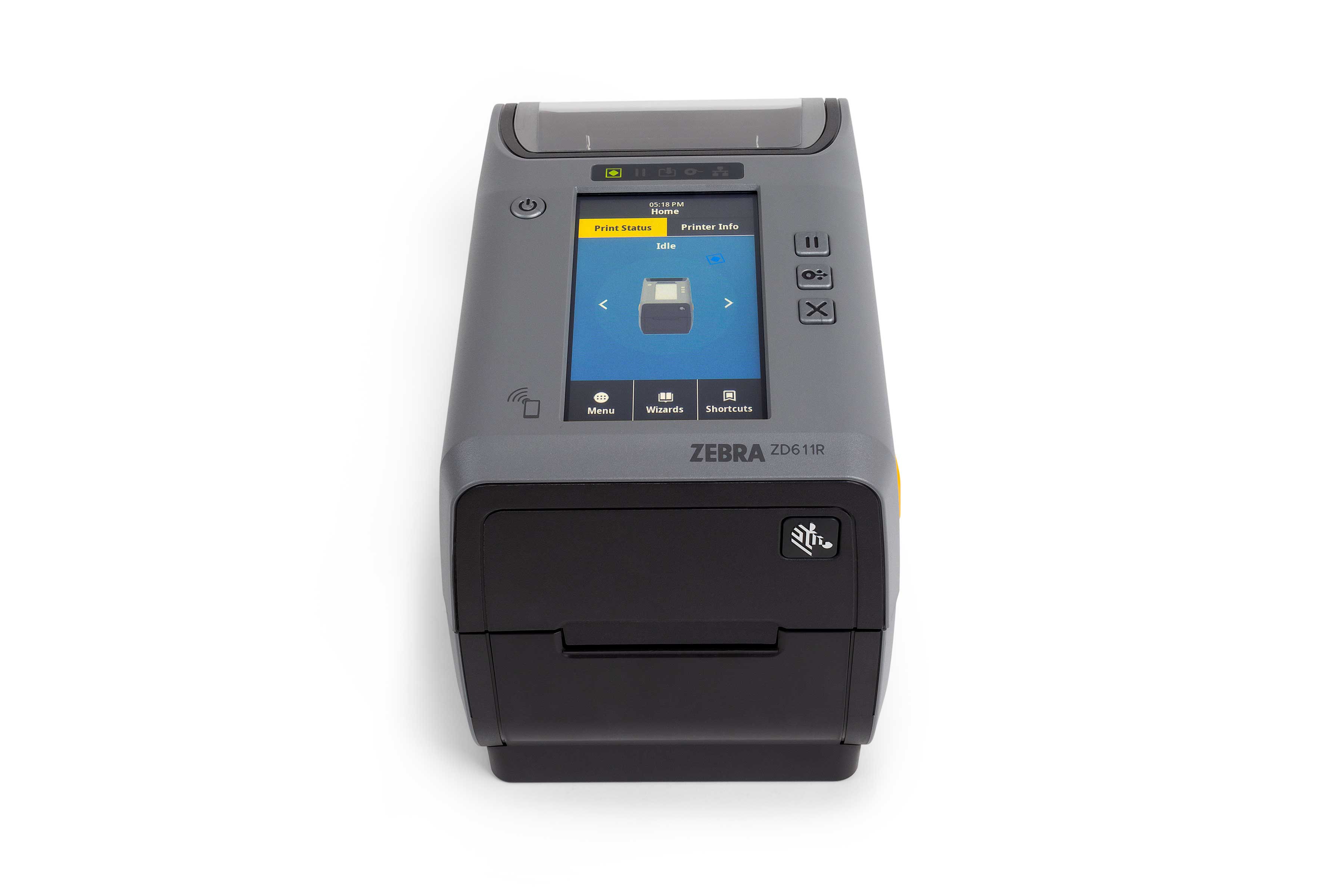

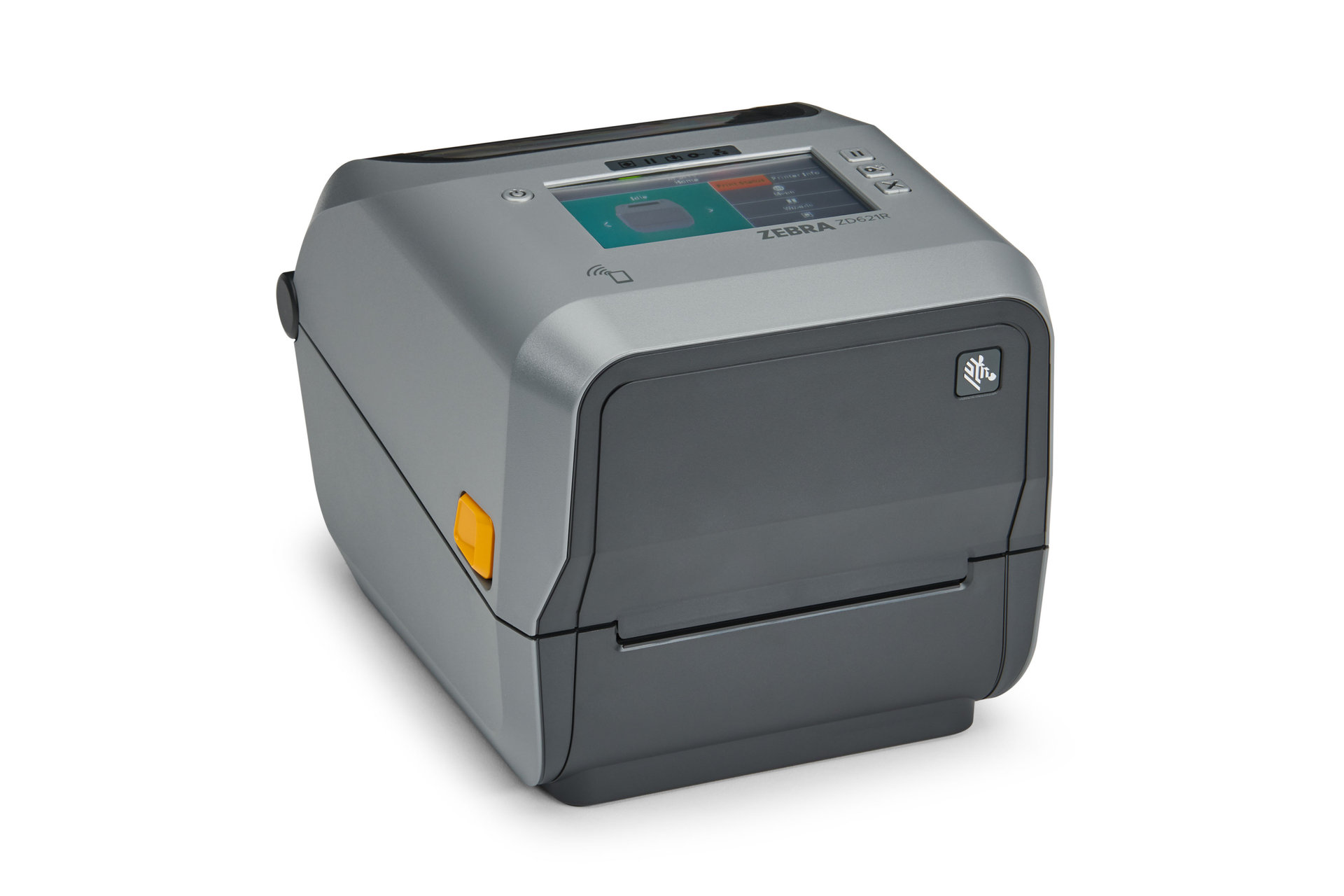

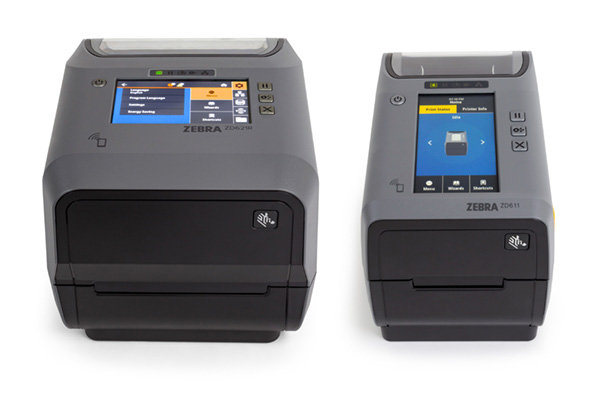

Key Features of ZD621R/ZD611R:

1. Premium Performance & Flexibility:

   • These printers are designed to print and encode 4-inch (ZD621R) and 2-inch (ZD611R) labels and tags. They feature Zebra's RE40 RFID module, ensuring high-quality prints and the flexibility to handle various media types.
   • Both models are ideal for industries such as retail, logistics, healthcare, and manufacturing, providing excellent tracking capabilities and deeper operational insights.

2. High Security:

   • The printers offer unmatched security to protect sensitive data from cyberattacks. This includes Zebra's PrintSecure feature, which allows configuration via secure connections, identifies vulnerabilities, and blocks unauthorized access.

3. User-Friendly Interface:

   • The 4.3-inch full-color LCD touch display makes it easy to set up and operate the printer. The display includes step-by-step wizards, media-loading guidance, and troubleshooting help. The interface also changes color to show printer status at a glance, making it intuitive for users to operate and maintain.

4. Exceptional Print Quality:

   • With a 300 dpi print resolution option, the ZD621R ensures high-quality prints, regardless of speed. It also comes with a media dancer for consistent results across all print jobs.

5. Connectivity and Integration:

   • The ZD621R and ZD611R support various connectivity options, including Ethernet, USB 2.0, USB Host, Wi-Fi, and Bluetooth. These printers can be connected to existing wired and wireless networks, as well as mobile devices (Windows, Android, iOS).

6. Print DNA Suite:

   • The printers come with Zebra’s Print DNA suite, which makes setup, management, and troubleshooting simple. Additionally, Zebra's Printer Profile Manager Enterprise allows users to remotely manage their printers from a single location.

7. Battery-Powered Option:

   • The ZD621R and ZD611R can be used as portable printers with a battery option that lasts a full shift, ideal for applications requiring mobility.

8. Managed Print Services (MPS):

   • These printers are designed for Managed Print Services with built-in analytics, security, and remote management, making them ideal for organizations that want to lower operating costs and IT workloads.

9. Service and Support:

   • Zebra offers global repair support and Zebra OneCare maintenance plans for enhanced coverage beyond standard warranties. Zebra also provides Certified Supplies, ensuring that labels, tags, and receipt paper are optimized for consistent printer performance.



     Specifications

     RFID Features

     • Supports tags compatible with UHF EPC Gen 2 V2.1, ISO/IEC 18000-63 and RAIN RFID protocols • Prints and encodes tags with a minimum pitch of 0.6”/16 mm • Adaptive Encoding Technology simplifies RFID setup and eliminates complex RFID placement guidelines • RFID job monitoring tools track RFID performance • Globally certified in more than 70 countries for RFID to support multinational deployments • RFID log records all RFID data with timestamps, ensuring complete traceability • RFID ZPL commands provide computability with existing Zebra printers • Support for industry-standard, multi-vendor chip-based serialization (MCS) • Integrated Zebra RE40 RFID Reader/Encoder

     Standard Features

     • Print methods: Thermal Transfer or Direct Thermal • ZPL and EPL programming languages • 4.3 in. full color touch LCD (resolution: 480 wide x 272 high) with 3-button user interface • Ethernet, USB 2.0, USB Host • Printer setup mobile app for Android and iOS via BLE (Bluetooth Low Energy 5) connection* * BLE is intended for use with Zebra printer setup mobile app only • Real Time Clock (RTC) • Media dancer for excellent print quality 2 • OpenACCESS™ for easy media loading • Dual-wall frame construction • ENERGY STAR® certified

     Physical Characteristics

     Dimensions	ZD621R: 10.5 in. L x 8.0 in. W x 7.5 in. H 267 mm L x 202 mm W x 192 mm H ZD611R: 9.56 in. L x 5.46 in. W x 6.66 in. H 242.9 mm L x 138.7 mm W x 169.2 mm H
     Weight	ZD621R: 5.5 lb./2.5 kg ZD611R: 3.59 lb./1.629 kg

     Printer Specifications

     Operating System	Link-OS® printer operating system
     Resolution	203 dpi/8 dots per mm 300 dpi/12 dots per mm (optional)
     Memory	512 MB Flash; 256 MB SDRAM
     Maximum Print Width	ZD621R: 4.09 in./104 mm for 203 dpi; 4.27 in./108 mm for 300 dpi ZD611R: 2.2 in./56 mm for 203 dpi; 2.13 in./54 mm for 300 dpi
     Maximum Print Speed	8 in./203 mm per second (203 dpi) 6 in./152 mm per second (300 dpi)
     Media Sensors	Full width, moveable reflective/black mark sensor; multi-position transmissive/gap sensor
     Firmware	ZPL II; EPL 2; XML; ZBI; PDF Direct

     Media and Ribbon Characteristics

     Label Length	Minimum: 0.25 in./6.35 mm Maximum: 39.0 in./991 mm
     Media Width	ZD621R: 0.585 in./15 mm to 4.65 in./118 mm ZD611R: 0.585 in./15 mm to 2.36 in./60 mm
     Media Roll Size	Maximum outer diameter: 5.00 in./127 mm Core inner diameter: 0.5 in./12.7 mm and 1.0 in./25.4 mm standard, 1.5 in./38.1, 2.0 in./50.8 mm and 3.0 in./76.2 mm using optional adapters
     Media Thickness	0.0024 in./0.06 mm min.; 0.0075 in./0.1905 mm max. (tear-off mode only)
     Media Types	Roll-fed or fan-fold, die cut or continuous with or without black mark, tag stock, continuous receipt paper, and wristbands
     Ribbon Outside Diameter	2.6 in./66 mm (300 m); 1.34 in./34 mm (74 m)
     Ribbon Standard Length	984 ft./300 m; 243 ft./74 m
     Ribbon Ratio	1:4 ribbon to media (300 m) 1:1 ribbon to media (74 m)
     Ribbon Width	ZD621R: 1.3 in./33 mm - 4.3 in./109.2 mm ZD611R: 1.3 in./33 mm - 2.24 in./58 mm
     Ribbon Core I.D.	300 meter ribbon 1 in./25.4 mm 74 meter ribbon 0.5 in./12.7 mm

     Operating Characteristics

     Operating Temp.	40° to 105° F/4.4° to 41° C
     Storage Temp.	-40° to 140° F/-40° to 60° C
     Operating Humidity	10% to 90% non-condensing
     Storage Humidity	5% to 95% non-condensing
     Electrical	Auto-detectable (PFC Compliant) 100-240VAC, 50-60Hz; ENERGY STAR certified; Energy Efficiency Level VI certified; optional 2750 mAh battery; Healthcare models include IEC60601-1 certified power supply

     Options and Accessories

     Media Handling	Dispenser/Peeler: label peel and present with label present sensor (factory installed or field installable) Cutter (factory or field installable)
     Communications	Field installable RS-232 auto-sensing Serial*, factory installed or field installable wireless dual radio – 802.11ac Wi-Fi and Bluetooth Classic 4.2 * Serial is standard on ZD621R
     Battery	Provides power to the printer to support a full shift of printing at maximum print speed; supports all media handling options
     Keyboard Display Unit	ZKDU keyboard display unit for stand-alone printing solution

     Fonts/Graphics/Symbologies

     Barcode Ratios	2:1 and 3:1
     1D Barcodes	Code 11, Code 39, Code 93, Code 128, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2-or 5-digit extensions, Plessey, Postnet, Standard
     2D Barcodes	Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, MicroPDF, Aztec
     Fonts and Graphics	16 resident expandable ZPL II bitmap fonts, two resident scalable ZPL fonts, five resident expandable EPL2 fonts, native open-type font support, Unicode compliant. China units include SimSun simplified Chinese font 64 MB user available non-volatile memory, 8 MB user available SDRAM

     Printers Supplies

     For industry-leading quality, service and thermal printing expertise, choose Zebra Certified Supplies to ensure consistent, optimized performance for your Zebra printer.

     Regulatory

     IEC 60950-1, IEC 62368-1, EN55022 Class B, EN55024, EN55035, EN61000-3-2, EN61000-3-3, FCC Class B, ICES-003, FCC 15.209; 15.247(d), IC RSS 247, EN 300 328, EN 301 893, EN 62311, cTUVus CE Marking, VCCI, C-Tick, S-Mark, CCC, CU, BSMI, KCC, SABS, IN-Metro, BIS, NOM

     Environmental Compliance

     Environment • RoHS Directive 2011/65/EU; Amendment 2015/863 • REACH SVHC 1907/2006 For a complete list of product and materials compliance, please visit www.zebra.com/environment
