The Zebra DS9908R-HD is a versatile, corded hybrid barcode scanner that offers high-performance scanning, UHF RFID reading capabilities, and a high-density scanning mode, making it ideal for retail, laboratory, and pharmacy environments requiring efficient data capture and inventory management. Read more

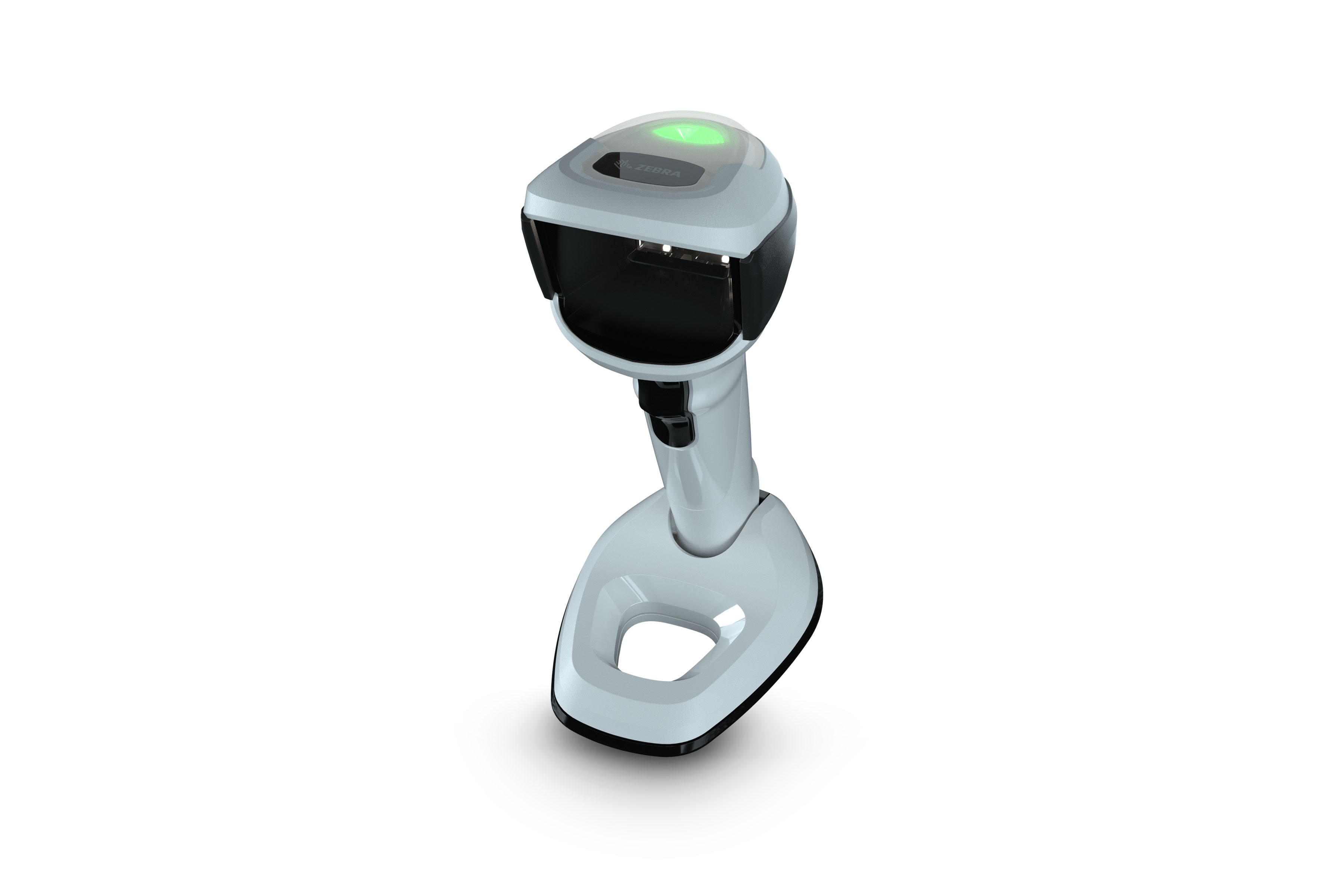

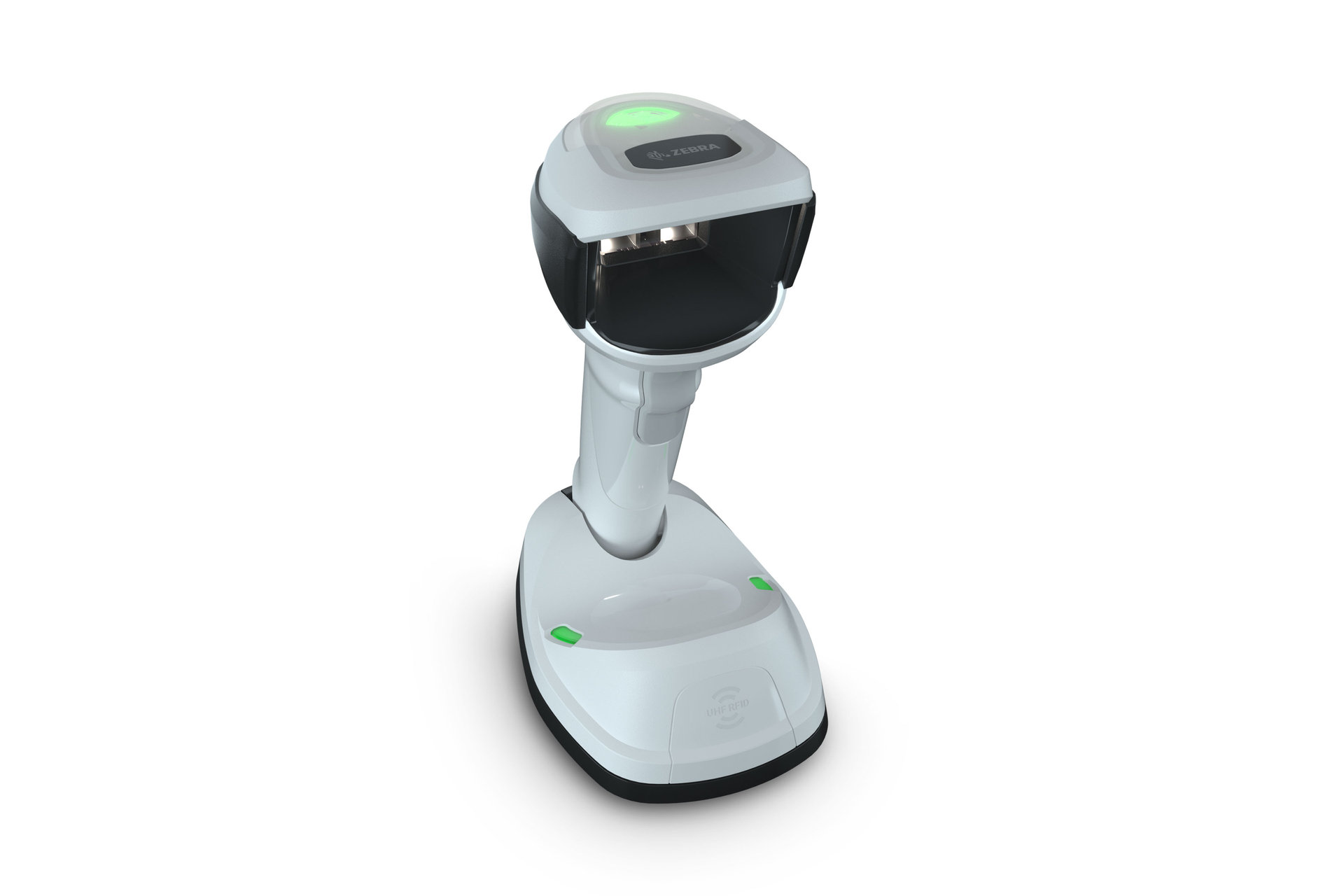

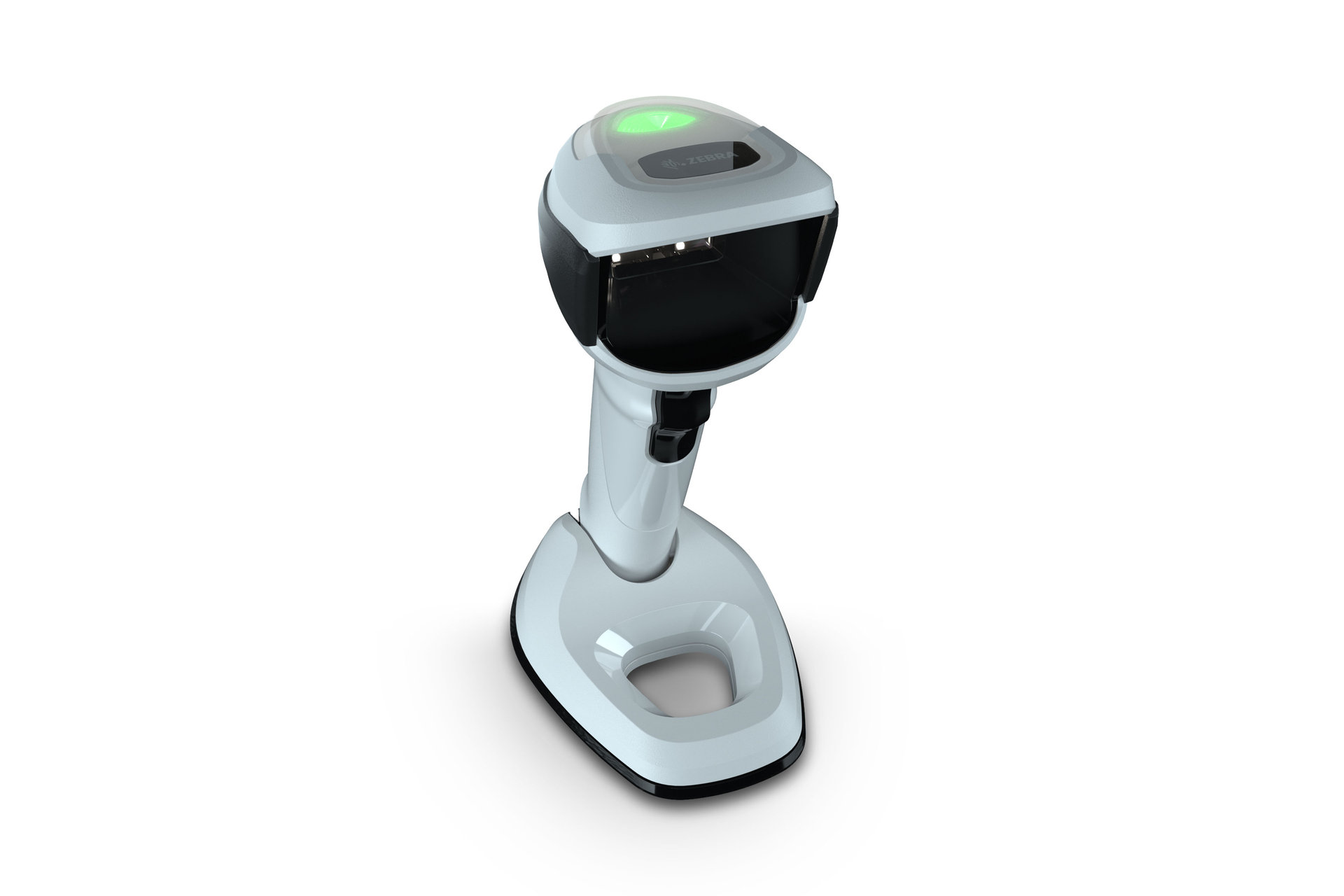

The Zebra DS9908R-HD is a corded hybrid barcode scanner that combines high-performance 1D and 2D barcode scanning with UHF RFID reading capabilities. Its unique hybrid form factor allows for both handheld and hands-free scanning, providing flexibility to users. This scanner is designed to enhance productivity in retail environments by enabling quick and accurate data capture, including the ability to read RFID-tagged merchandise at the point of sale for faster checkouts and real-time inventory visibility. Additionally, the DS9908R-HD features a high-density scanning mode, making it ideal for environments where small, high-density barcodes are prevalent.
Key Features:
Primary Uses:
Physical Characteristics
| 3Dimensions | DS9908: 8.0 in. H x 3.7 in. W x 5.2 in. D 20.3 cm H x 9.4 cm W x 13.2 cm D DS9908R: 8.0 in. H x 3.9 in. W x 5.75 in. D 20.3 cm H x 9.9 cm W x 14.6 cm D |
| Weight | DS9908: 11.6 oz./330.0 g DS9908R: 14.8 oz./420.0 g |
| Input Voltage Range | 4.5 to 5.5 VDC Host Powered; 4.5 to 5.5 VDC External Power Supply |
| Current | Operating current at nominal voltage (5.0V): DS9908: 321 mA (typical) DS9908R: 400 mA (typical) Standby current (idle) at nominal voltage (5.0V): DS9908: 70 mA (typical) DS9908R: 135 mA (typical) |
| Color | Alpine White |
| Supported Host Interfaces | USB Certified3, RS232, Keyboard Wedge, TGCS (IBM) 46XX over RS485 |
| Keyboard Support | Supports over 90 international keyboards |
| TAA Compliance | Trade Agreement Act Compliant |
| User Indicators | Direct Decode Indicator, Good Decode LEDs, Speaker (adjustable tone and volume) |
| Swipe Speed (Hands-Free) | Up to 240 in./610 cm per second for 13 mil UPC in optimized mode |
| Light Source | Aiming Pattern: Circular 528nm green LED |
| Illumination | (2) warm white LEDs |
| Imager Field of View | 48° H x 30.6° V nominal |
| Image Sensor | 1280 x 800 pixels |
| Minimum Print Contrast | 16% minimum reflective difference |
| Skew Tolerance | +/- 60° |
| Pitch Tolerance | +/- 60° |
| Roll Tolerance | 0° - 360° |
RFID (DS9908R)
| Standard Supported | EPC Class 1 Gen2; EPC Gen2 V2; ISO-18000-63 |
| RFID Engine | Zebra Proprietary Radio Technology |
| Nominal Read Range | ~18 in. / ~45.7 cm |
| RFID Power Output | 3 dBm to 22 dBm |
| Frequency Range | US: 902 - 928 MHz EU: 865 - 868 MHz Japan: 916 - 923 MHz |
Imaging Characteristics
| Graphics Format Support | Images can be exported as Bitmap, JPEG or TIFF |
| Image Quality (A4 Document) | 116 PPI on an 8.3 x 11.7 in./21.0 x 29.7 cm document @ 8.0 in./20.3 cm |
Environmental
| Operating Temperature | 32.0° to 122.0° F / 0.0° to 50.0° C |
| Storage Temperature | -40.0° to 158.0° F / -40.0° to 70.0° C |
| Humidity | 5% to 95% RH, non-condensing |
| Drop Specification | DS9908: Designed to withstand multiple drops at 5.0 ft./1.5 m to concrete DS9908R: Designed to withstand multiple drops at 4.0 ft./1.2 m to concrete |
| Tumble Specification | Designed to withstand 2,000 tumbles in 1.5 ft. /0.5 m tumbler4 |
| Environmental Sealing | DS9908: IP52 DS9908R: IP42 |
| Electrostatic Discharge (ESD) | ESD per EN61000-4-2, +/-15 KV Air, +/-8 KV Direct, +/-8 KV Indirect |
| Ambient Light Immunity | 0 to 10,000 Foot Candles / 0 to 107,600 Lux |
Regulatory
| Environmental | EN 50581:2012 |
| Electrical Safety | IEC 62368-1 (ed.2) EN 62368-1:2014/AC:2015 |
| LED Safety | IEC 62471:2006 (Ed.1.0) EN 62471:2008 (LED) |
| EMI/RFI | EN 55032:2012/AC:2013 (Class B) EN 55032:2015/AC:2016 (Class B) EN 55024:2010 EN 55024:2010/A1:2015 EN 55035:2017 EN 61000-3-2:2014 (Class A) EN 61000-3-3:2013 47 CFR Part 15, Subpart B, Class B ICES-003 Issue 6, Class B |
Accessories
Multi-Mount Bracket (non RFID model only) |
Symbol Decode Capability6
| 1D | Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma) |
| 2D | PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Han Xin, Postal Codes |
| OCR | OCR-A, OCR-B, MICR, US Currency |
| Minimum Element Resolution | Code 39 - 3.0 mil Code 128 - 3.0 mil* DataMatrix - 5.0 mil QR Code - 5.0 mil * with Decode Range Limit feature disabled. |
Warranty
| Subject to the terms of Zebra’s hardware warranty statement, the DS9900 Series is warranted against defects in workmanship and materials for a period of Five Years from the date of shipment. For the complete Zebra hardware product warranty statement, please visit: www.zebra.com/warranty |
Recommended Services
| Zebra OneCare Select; Zebra OneCare Essential |
Utilities and Management
| 123Scan | Programs scanner parameters, upgrades firmware, provides scanned barcode data and prints reports. www.zebra.com/123Scan |
| Symbol Scanner SDK | Generates a fully-featured scanner application, including documentation, drivers, test utilities and sample source code. www.zebra.com/windowsSDK |
| Scanner Management Service (SMS) | Remotely manages your Zebra scanner and queries its asset information. www.zebra.com/sms |
DS9908-HD Handheld Decode Ranges (Typical)5
