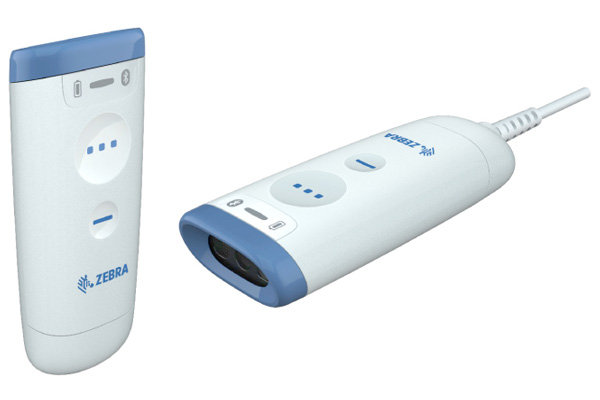

The Zebra CS60-HC is a versatile healthcare barcode scanner featuring a convertible design that allows for both corded and cordless operation, as well as handheld and hands-free use. Its durable construction and advanced mobility features make it suitable for various clinical applications, including patient identification, medication administration, and inventory management. Read more

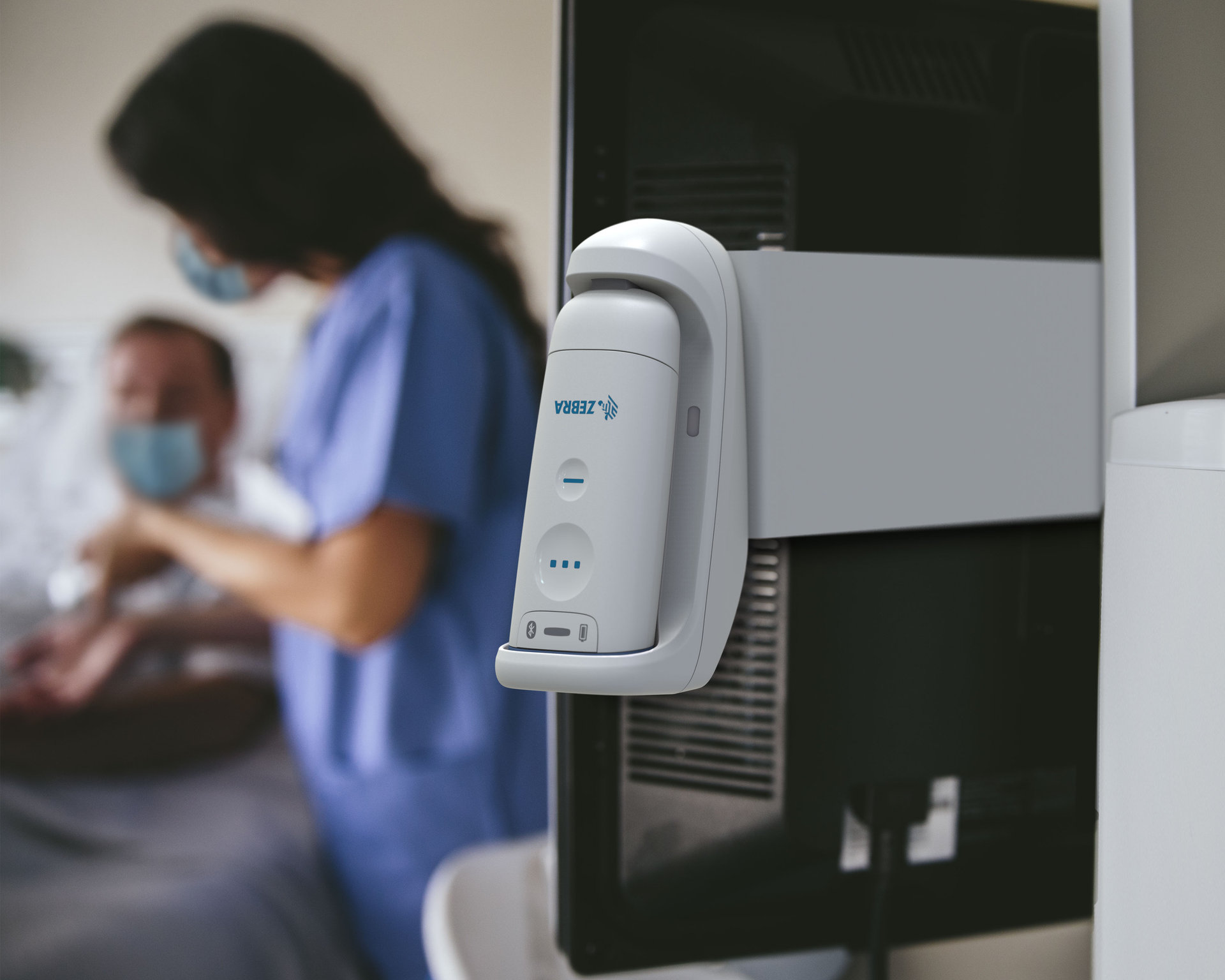

The Zebra CS60-HC is a versatile healthcare barcode scanner designed to seamlessly transition between corded and cordless operation, adapting to various clinical workflows. Its innovative design allows for handheld or hands-free use, providing flexibility in different environments. The scanner features a durable, easy-to-clean construction suitable for all-day, everyday use. Advanced mobility features include Qi inductive charging, NFC tap-to-pair, and a Wi-Fi-friendly mode. The CS60-HC is also equipped with a safe LED aimer, night mode, and an IP65-sealed disinfectant-ready housing, making it suitable for use throughout the hospital, including sensitive areas like the NICU, labor and delivery, and mother-baby units.
Key Features:
Primary Uses:
Physical Characteristics
| Dimensions | Scanner 0.9 in. H x 1.8 in. W x 4.3 in. D 2.3 cm H x 4.6 cm W x 10.9 cm D Presentation Cradle 3.5 in. H x 2.1 in. W x 2.4 in. D 9.0 cm H x 5.3 cm W x 6.1 cm D |
| Weight | Corded CS60-HC: 2.0 oz. / 58.0 g Cordless CS60-HC: 3.1 oz. / 87.0 g Presentation Cradle: 3.4 oz. / 96.0 g |
| Input Voltage Range | Scanner and presentation cradle: 4.5 to 5.5 VDC Host Powered; 4.5 to 5.5 VDC External Power Supply |
| Current | Operating current at nominal voltage (5.0V): 400 mA (typical) Standby current (idle) at nominal voltage (5.0V): 90 mA (typical) Presentation Cradle: 450 mA (typical) Standard USB; 600 mA (typical) BC 1.2 USB |
| Color | Healthcare white |
| Supported Host Interfaces | USB Certified |
| Keyboard Support | Supports over 90 international keyboards |
| FIPS Security Certification and TAA Compliance | Certified compliant with FIPS 140-3; Trade Agreement Act Compliant (specific configuration required) |
| User Indicators | Direct Decode Indicator, Good Decode LEDs, beeper (adjustable tone and volume), haptic feedback on decode, capacitive trigger with haptic and audible feedback, dedicated battery gauge, dedicated Bluetooth LED |
Performance Characteristics
| Motion Tolerance (handheld) | Up to 20 in. / 51 cm. per second for 13 mil UPC in optimized mode |
| Light Source | Aiming Pattern: circular 525nm true green LED |
| Illumination | (1) warm white LED |
| Imager Field of View | 45° H x 34° V nominal |
| Image Sensor | 1280 x 960 pixels |
| Minimum Print Contrast | 20% Minimum Reflective Distance |
| Skew Tolerance | +/- 60° |
| Pitch Tolerance | +/- 60° |
| Roll Tolerance | 0° - 360° |
| Minimum Element Resolution | Code 39 - 5.0 mil |
User Environment
| Operating Temp. | 32° F to 122° F / 0° C to 50° C |
| Storage Temp. | -40° F to 158° F / -40° C to 70° C |
| Humidity | 5% to 95% RH, non-condensing |
| Drop Specification | Designed to withstand multiple drops at 6.0 ft./1.8 m to concrete |
| Tumble Specification | Designed to withstand 250 tumbles in 1.5 ft./0.5 m tumbler (1 tumble = 0.5 cycle) |
| Sealing | Scanner: IP65 |
| Approved Cleaners | Disinfectant Ready. Refer to the product reference guide for the complete list of approved cleaners. |
| Electrostatic Discharge (ESD) | Scanner and cradle: ESD per EN61000-4-2, +/-15 KV Air, +/-8 KV Direct, +/-8 KV Indirect |
| Ambient Light Immunity | 0 to 10037 foot candles / 0 to 108,000 Lux |
Radio Specifications
| Bluetooth Radio | Standard Bluetooth Version 5.0 with BLE: Class 1 330ft. (100m) and Class 2 33ft. (10m), Serial Port and HID Profiles |
| Adjustable Bluetooth Power | Output power adjustable down to negative 10 dBm in 8 steps |
| MFi | MFi Certified (specific configuration required) |
Battery
| Battery Capacity/Type | 745 mAh Lithium Polymer battery |
| Scans Per Battery Charge2 | 13,000 scans |
| Operating Time Per Full Charge2 | 18 hours |
Battery Charge Time (from empty)
| Standard USB | Full charge: 8 hours |
| BC1.2 USB | Full charge: 6 hours |
Regulatory
| Environmental | EN 50581:2012 EN IEC 63000:2018 |
| Electrical Safety | IEC 62368-1 (Ed.2) EN 62368-1:2014/AC:2015 |
| LED Safety | IEC 62471:2006 (Ed.1.0) EN 62471:2008 (LED) |
| EMI/RFI | EN 55032:2015/AC:2016 (Class B) |
Accessories
| Cordless Accessories | Presentation cradle, spare battery, 4-slot scanner ShareCradle, 4-slot battery ShareCradle, lanyard, Qi Pad |
| Corded Accessories | Gooseneck Intellistand (weighted and standard), cup, corded USB converter |
Symbol Decode Capability4
| 1D | Base 32 (Italian Pharma), Codabar/NW7, Code 11, Code 39, Code 93, Code 128, GS1 DataBar, I 2 of 5, Korean 3 of 5, MSI Plessey, UPC/EAN |
| 2D | Aztec, Composite Codes, DataMatrix, Dotted DataMatrix, Dotcode, Han Xin, MaxiCode, PDF417, Micro PDF417, Postal Codes, QR Code, Micro QR, TLC-39, SecurPharm |
| OCR | OCR-A, OCR-B, MICR, US Currency |
Decode Ranges (Typical)3
| Symbology/Resolution | Near/Far |
| Code 39: 5 mil | 2.4 in./6.1 cm to 9.5 in./24.1 cm |
| Code 39: 20 mil | 2.5 in./6.4 cm to 26.0 in./66.0 cm |
| Code 128: 5 mil | 2.8 in./7.1 cm to 9.0 in./22.9 cm |
| PDF 417: 6.7 mil | 2.4 in./6.1 cm to 8.0 in./20.3 cm |
| UPC: 13 mil (100%) | 1.8 in./4.6 cm to 19.5 in./49.5 cm |
| Data Matrix: 10 mil | 2.9 in./7.4 cm to 8.0 in./20.3 cm |
| QR: 20 mil | 1.2 in./3.0 cm to 14 in./35.6 cm |
Environmental Compliance
