The DS55 Series Fixed Mount Scanner is a specialized barcode scanner designed for laboratory and medical environments. With its high-precision scanning, omnidirectional scanning capability, and fixed-mount design, it allows for fast and accurate scanning of barcodes on small items, including vials, equipment, and medical supplies. Its durability, compact size, and integration options make it a great choice for labs that require efficiency and accuracy in their workflows. Read more
The DS55 Series Fixed Mount Scanner is designed for specialized use in laboratory environments and other areas requiring precise and reliable barcode scanning. This scanner series provides high-speed and high-accuracy scanning, ideal for scanning barcodes on small vials, laboratory equipment, or other products in controlled environments.
The DS55 Series typically comes in a fixed-mount form, allowing for hands-free scanning of barcodes placed in front of the scanner. It is engineered for robustness, accuracy, and durability in demanding lab settings, where consistent scanning performance is crucial for traceability and accurate data entry.
Physical Characteristics
| Dimensions | 1.2 in H x 2.2 in W x 2.8 in D (3.0cm H x 5.6cm W x 7.2cm D) |
| Weight | 2.3 oz (65.2g) |
| Input Voltage Range | 4.75 to 5.25 VDC Host Powered; 4.75 to 5.25 VDC External Power Supply |
| Operating Current at Nominal Voltage (average) | Presentation Mode: 360 mA RMS (Typical), Trigger Mode: 350 mA RMS (Typical) |
| Standby Current (Idle) at Nominal Voltage (average) | Presentation Mode: 185 mA RMS (Typical), Trigger Mode: 155 mA RMS (Typical) |
| Color | Alpine White |
| Supported Host Interfaces | USB, RS232 |
| USB Certification | USB Certification |
| User Indicators | Good Decode LEDs, Speaker (adjustable tone and volume) |
Performance Characteristics
| Swipe Speed (Hands-Free) | Up to 100 in (254cm) per second for 13 mil UPC in optimized mode |
| Image Sensor | 1280 x 800 pixels |
| Aiming pattern | Circular 525 nm True Green LED |
| Illumination | (1) Warm White LED |
| Imager Field of View | 48° H x 30° V nominal |
| Minimum Print Contrast | 15% minimum reflective difference |
| Skew Tolerance | +/- 60° |
| Pitch Tolerance | +/- 60° |
| Roll Tolerance | 0°-360° |
Imaging Characteristics
| Graphics Format | Images can be exported as Bitmap, JPEG or TIFF |
| Image Quality | 200 PPI on a 6.0 x 3.8 in. (15.2 x 9.5 cm) document @ 7.0 in. (17.8 cm) |
User Environment
| Operating Temperature | -4F to +122F (-20C to +50C) |
| Storage Temperature | -40F to +158F (-40C to +70C) |
| Humidity | 5% to 95% RH, non-condensing |
| Environmental Sealing | IP54 |
| Drop Specification | Designed to withstand multiple drops at 5 ft (1.5m) to concrete |
| Approved Cleaners | Refer to the product reference guide for the complete list of approved cleaners. |
| Electrostatic Discharge (ESD) | ESD per EN61000-4-2, +/-15 KV Air, +/-8 KV Direct, +/-8 KV Indirect |
| Ambient Light Immunity | 0 to 10,000 Foot Candles / 0 to 107,600 Lux |
Symbol Decode Capability
| 1D | All major 1D barcodes including Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma) |
| 2D | All major 2D barcodes including PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Han Xin, Postal Codes, SecurPharm |
| OCR | OCR-A, OCR-B, MICR, US Currency |
| Minimum Input Resolution | Code 39: 3.0 mil; Code 128: 3.0 mil; Data Matrix: 5.0 mil; QR Code: 5.0 mil |
| Refer to Product Reference Guide for complete list of symbologies. |
Decode Ranges (Typical)1
| Symbology/Resolution | Near/Far |
| Code 39: 3 mil | Trigger Mode: 2.8 in to 5.6 in (7.1cm to 14.2cm) Presentation: 2.8 in to 5.6 in (7.1cm to 14.2cm) |
| Code 39: 4 mil | Trigger Mode: 2.4 in to 8.0 in (6.1cm to 20.3cm) Presentation: 2.4 in to 8.0 in (6.1cm to 20.3cm) |
| Code 39: 5 mil | Trigger Mode: 1.6 in to 10.0 in (4.1cm to 25.4cm) Presentation: 1.6 in to 9.0 in (4.1cm to 22.9cm) |
| Code 39: 7.5 mil | Trigger Mode: 2.1 in to 15.0 in (5.3cm to 38.1cm) Presentation: 2.2 in to 10.0 in (5.6cm to 25.4cm) |
| Code 39: 20 mil | Trigger Mode: 1.6 in to 35.9 in (4.1cm to 91.2cm) Presentation: 2.0 in to 18.0 in (5.1cm to 45.7cm) |
| Code 128: 3 mil | Trigger Mode: 2.9 in to 5.5 in (7.1cm to 14.0cm) Presentation: 2.9 in to 5.5 in (7.1cm to 14.0cm) |
| Code 128: 5 mil | Trigger Mode: 2.1 in to 9.6 in (5.3cm to 24.4cm) Presentation: 2.1 in to 8.5 in (5.3cm to 21.6cm) |
| PDF 417: 6.7 mil | Trigger Mode: 2.3 in to 9.9 in (5.8cm to 25.1cm) Presentation: 2.3 in to 8.9 in (5.8cm to 22.6cm) |
| UPC: 13 mil (100%) | Trigger Mode: 1.6 in to 24.7 in (4.1cm to 62.7cm) Presentation: 1.6 in to 14 in (4.1 cm to 35.6cm) |
| Data Matrix: 10 mil | Trigger Mode: 1.9 in to 10.8 in (4.8cm to 27.4cm) Presentation: 1.9 in to 9.5 in (4.8cm to 24.1cm) |
| QR: 20 mil | Trigger Mode: 0.9 in to 17.3 in (2.3cm to 43.9cm) Presentation: 0.9 in to 14.0 in (2.3cm to 35.6cm) |
Accessories

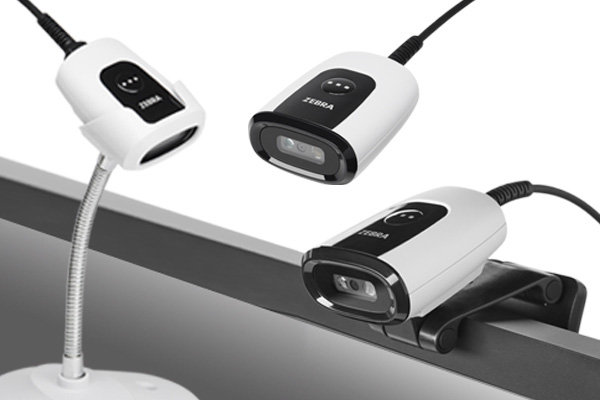

Gooseneck Intellistand; 3-1 Mount (PC display mount, Presentation stand, Wall mount); supports third-party accessories that support a standard 1/4” - 20 mounting screw |
Regulatory
Environmental | RoHS - EN IEC 63000:2018 Amendment 2015/863 WEEE RECAST 2012/19/EU China RoHS - SJ/T 11364 REACH - EC 1907/2006 |
| Electrical Safety | EN 62368-1:2014/AC:2015 EN 62368-1:2014/A11:2017 IEC 62368-1:2014 EN IEC 62368-1:2020+A11:2020 IEC 62368-1:2018 UL 62368-1, third edition CAN/CSA-C22.2 No. 62368-1-19 |
| LED Safety | EN 62471, IEC 62471 plus all amendments and all national deviations |
| EMI/RFI | FCC 47 CFR Part 15B, ICES-003, EN55032, EN55035, EN61000-6-2, EN60601-1-2, IEC60601-1-2, VCCI, and SABS |
Utilities and Management
| 123Scan | Programs scanner parameters, upgrades firmware, displays scanned barcode data, scanning statistics, battery health, asset data and prints reports. www.zebra.com/123scan |
| Scanner SDK | Generates a fully-featured scanner application, including documentation, drivers, test utilities and sample source code. www.zebra.com/scannersdkforwindows |
| Scanner Management Service (SMS) | Remotely manages your Zebra scanner and queries its asset information. www.zebra.com/sms |
Warranty
| Subject to the terms of Zebra’s hardware warranty statement, the DS5502 is warranted against defects in workmanship and materials for a period of Three Years from the date of shipment. Complete Zebra hardware product warranty statement: www.zebra.com/warranty |
Recommended Services
| Zebra OneCare Select; Zebra OneCare Essential |
Footnotes
| 1. Distance dependent on symbology type and size. Specifications are subject to change without notice. |
