A game changing increase in individual productivity. Get a Game Changing Increase in Individual Productivity Supercharge the EC50/EC55 with Zebra DNA for Mobile Computers Get Unmatched Total Benefits of Ownership Built-in Scanner & 13 MP Camera for barcode capture and documentation. Rugged Design: Waterproof, drop-proof, and dust-proof with Corning Gorilla® Glass®. Instant Communication with Workforce Connect PTT Express and PTT Pro for outdoor use. PBX Handset functionality with Workforce Connect Voice. Adaptable Accessories: Workstation cradle, holster, and hand strap. Efficiency Tools: DataWedge, Multi-Barcode Scanning, and Enterprise Keyboard. Advanced Security with Mobility Extensions (Mx) and LifeGuard™ for Android™ updates. Simple Device Configuration with StageNow and PowerPrecision Console for battery monitoring. 4-Year Sales Period & 8 Years of Support for long-term reliability. Consistent Android Platform across Zebra’s devices for simplified management. Eight Years of Security Updates via LifeGuard for Android. Reduce TCO by 50% with long lifecycles and simplified management. Read more

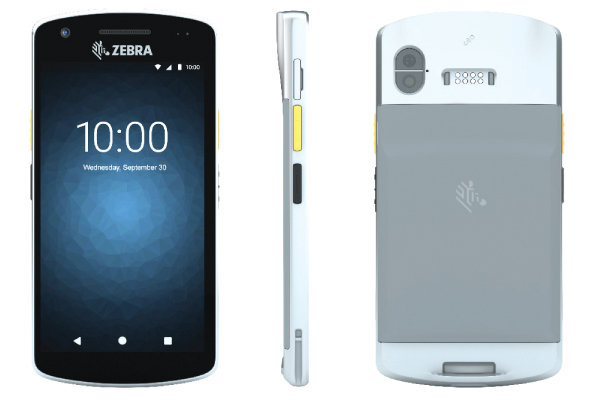

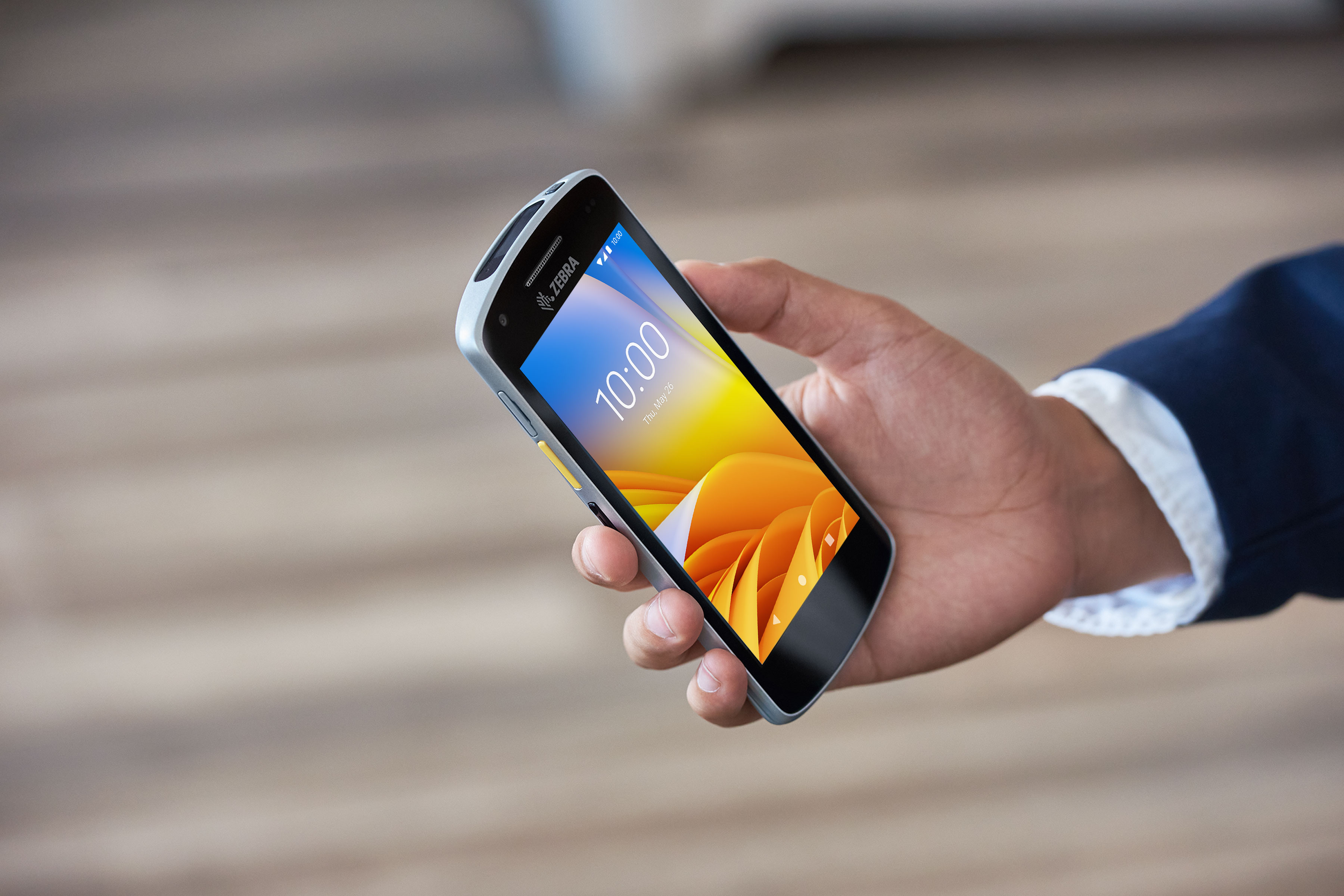

Compact and Ergonomic Design: The EC50/EC55 features sleek, smartphone-style ergonomics, making it easy to carry in a pocket or wear with an accessory.
Always Accessible: Its portable design ensures the device is always within reach, ready to assist workers with whatever they need to complete their tasks efficiently.
Powerful Performance: The SD660 octa-core processor ensures smooth and quick voice and data application performance, offering efficient and reliable operation.
Familiar Android 10: With Android 10, employees can use the device with minimal learning, reducing the time needed for training and making adoption effortless.
Superior Connectivity: Equipped with advanced Wi-Fi features like Zebra’s Fusion, 2x2 MU-MIMO, and Worry Free Wi-Fi for fast, dependable connections. Bluetooth 5.0 offers twice the speed, four times the range, and reduced power consumption, ensuring better performance for peripherals.
Long-Lasting Battery: The device’s standard battery lasts for a full shift, and for extended hours, an optional extended battery is available, ensuring continuous productivity.
Enhanced Productivity: A large 5-inch HD screen offers ample space for easy viewing and interaction with applications, while multi-touch support enhances usability and efficiency for workers.
Enterprise-Class Data Capture: The optional built-in scanner captures virtually any barcode, including Digimarc, and the 13 MP rear camera enables detailed photos and videos for documentation.
Durable Design: The EC50/EC55 is waterproof, drop-proof, and dust-proof. Corning Gorilla® Glass® protects vulnerable components, and an optional protective case adds extra drop protection.
Ready-to-Use Voice Solutions: With Workforce Connect PTT Express, workers can instantly communicate via WiFi with no extra infrastructure. Activate PTT Pro for outdoor communication or use Workforce Connect Voice to turn the device into a PBX handset.
Flexible Accessories: Transform the EC50/EC55 into a full workstation with a powerful cradle or keep it handy with a holster or hand strap.
Enterprise-Ready Mobility DNA: With DataWedge, workers can easily capture barcodes, photos, and NFC data, automatically sending info to existing applications. Multi-Barcode Scanning and Swipe Assist improve efficiency, while Enterprise Keyboard offers five soft keyboards for faster data entry.
Enhanced Security Features: Mobility Extensions (Mx) add over 100 features to improve security. Use Enterprise Home Screen to control app access, and LifeGuard™ for Android™ to manage OS security updates. Device Tracker helps locate lost devices, even when powered off.
Efficient Device Management: StageNow simplifies device configuration and settings with a simple scan or NFC tap. PowerPrecision Console identifies aging batteries, and Device Diagnostics helps assess whether a device can be repaired on-site.
Unmatched Total Benefit of Ownership: The EC50/EC55 is purpose-built for work, with a guaranteed four-year sale period and an additional four years of product support. This long lifecycle helps reduce management complexities and costs.
Common Android Platform: Zebra’s Android platform simplifies device management, application portability, and IT support across various devices, unlike typical smartphones that change with every new model.
Industry-Leading Security: LifeGuard for Android provides up to eight years of security updates, ensuring your devices stay protected against emerging threats.
Lower Total Cost of Ownership (TCO): The EC50/EC55 offers long-term savings through simplified management, extended lifecycles, and productivity-boosting features, reducing your total cost of ownership by up to 50%.
Physical Characteristics
Dimensions | With standard battery: With extended battery: |
| Weight | 6.1 oz./173 g to 6.46 oz./183 g (SKU dependent with standard battery) |
| Display | 5 in.; HD (720x1280) |
| Imager Window | Corning® Gorilla® Glass |
| Touch Panel | Corning® Gorilla® Glass; capacitive touch panel; multi-touch |
| Backlight | 450 NITS, LED |
| Power | Standard battery: 3060 mAh Extended battery: 4180 mAh Charge times: 0 to ~25% in ~15 minutes; 0 to ~90% in less than two hours |
| Expansion Slot | One 128 GB micro SD slot |
| SIM Slots | EC55 only: 1x Nano SIM, 1x e-SIM (optional) |
| Network Connections | WWAN; WiFi, Ethernet cradle |
| Notifications | Audible tone; multi-color LEDs; vibration |
| Keypad | On-screen keypad and enterprise keyboard |
| Voice and Audio | 1 watt speaker, receiver, PTT, voice support, 3 digital microphones, USB Type-C headset support |
| Buttons | Programmable; scan on each side; volume up/down; power; push-to-talk (PTT)3 |

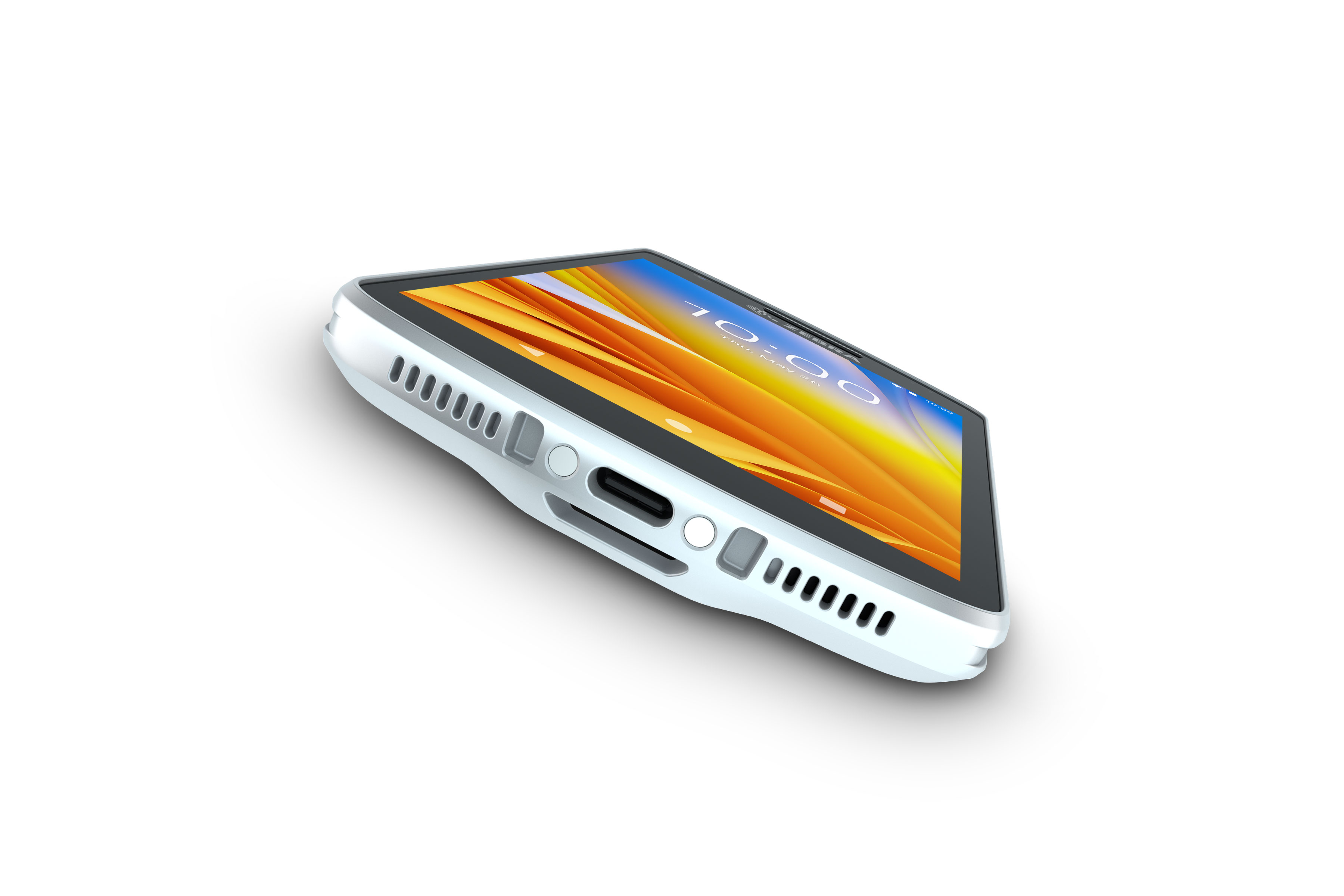

| Interface Ports | Bottom USB 2.0 OTG - host/client (Type-C), SKU dependent: 0, 2, or 8 pin rear connection |
Performance Characteristics
| CPU | Qualcomm SD660, 2.2 GHz Octa-core |
| Operating System | EC50: Upgradeable to Android 14 EC55: Upgradeable to Android 14 |
| Memory (RAM/Flash) | 3 GB/32 GB; 4 GB/64 GB |
User Environment
| Operating Temp. | 14° F to 122° F/-10° C to +50° C |
| Storage Temp. | -40° F to 158° F/-40° C to +70° C |
| Humidity | 5% to 95% non-condensing |
| Drop Specification | 4 ft./1.2 m per MIL-STD-810G. With protective boot: 5 ft./1.5 m per MIL-STD-810G to concrete across operating temperature range |
| Tumble Specification | 300 1.6 ft./0.5 meter tumbles at room temperature without protective boot 500 1.6 ft./0.5 meter tumbles at room temperature with protective boot |
| Sealing | IP67 |
| Vibration | 4 g’s PK Sine (5 Hz to 2 kHz); 0.04 g 2/Hz Random (20 Hz to 2 kHz); 60 minute duration per axis, 3 axis |
| Electrostatic Discharge (ESD) | +/-15 kV air discharge, +/-8 kV direct discharge; +/-8 kV indirect discharge |
Interactive Sensor Technology (IST)
| Light Sensor | Automatically adjusts display backlight brightness |
| Magnetometer | EC55 only: e-Compass |
| Motion Sensor | 3-axis gyroscope, 3-axis accelerometer |
| Proximity Sensor | Automatically disables touch panel and turns off display in Handset mode (voice calls) |
Data Capture

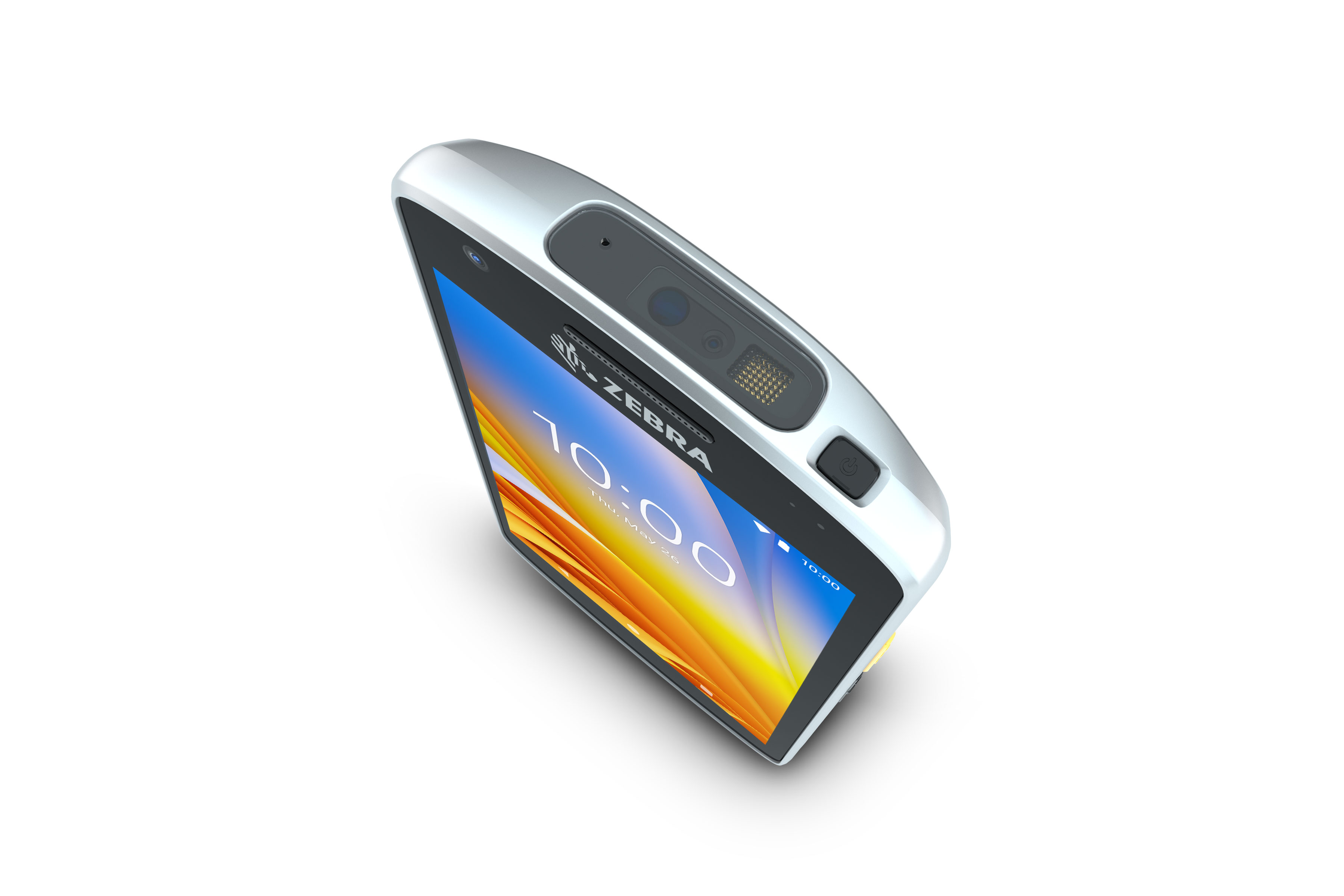

| Scanning | SE4100; 1D/2D omnidirectional imager |
| Camera | Front — 5 MP fixed focus; f/2.0 aperture Rear — 13 MP autofocus; f/2.0 aperture; flash LED |
| NFC | Integrated; High RF output power; MIFARE, ISO 14443 A&B, FeliCa , ISO 15693 and NFC Forum supported cards |
Wireless WAN, Data and Voice Communications
| WAN Radio Frequency Band (EC55 only) | LTE Category 11 EC55 Rest of World: EC55 North America: EC55 China: |
| GPS (EC55 only) | GPS with A-GPS: Glonass; BeiDou; Galileo |
Wireless LAN
Radio | IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v/w/mc; Wi-Fi™ certified; IPv4, IPv6, 2x2 MU-MIMO; soft AP |
| Data Rates | 5 GHz: 802.11a/n/ac — up to 866.7 Mbps 2.4 GHz: 802.11b/g/n — up to 300 Mbps |
| Operating Channels | Channel 1-13 (2412-2472 MHz); Channel 36-165 (5180-5825 MHz) Channel Bandwidth: 20, 40, 80 MHz Actual operating channels/ frequencies and bandwidths depend on regulatory rules and certification agency |
| Security and Encryption | WEP (40 or 104 bit); WPA/WPA2 Personal (TKIP, and AES); WPA/WPA2 Enterprise (TKIP and AES) — EAP-TTLS (PAP, MSCHAP, MSCHAPv2), EAP-TLS, PEAPv0-MSCHAPv2, PEAPv1-EAP-GTC and LEAP.EAP-PWD |
| Certifications | Wi-Fi™ certified |
| Fast Roam | PMKID caching; Cisco CCKM; 802.11r; OKC |
| Multimedia | Wi-Fi Multimedia™ (WMM) and WMM-PS |
Wireless PAN
Bluetooth | Class 2, Bluetooth v5.0, Bluetooth Low Energy (BLE); secondary Bluetooth BLE beacon for finding lost (powered off) devices |
Environmental Compliance
| • RoHS Directive 2011/65/EU; Amendment 2015/863 • REACH SVHC 1907/2006 For a complete list of product and materials compliance, please visit www.zebra.com/environment Mobility DNA™ Professional Integrated Solutions |
