Models: TC72, TC77

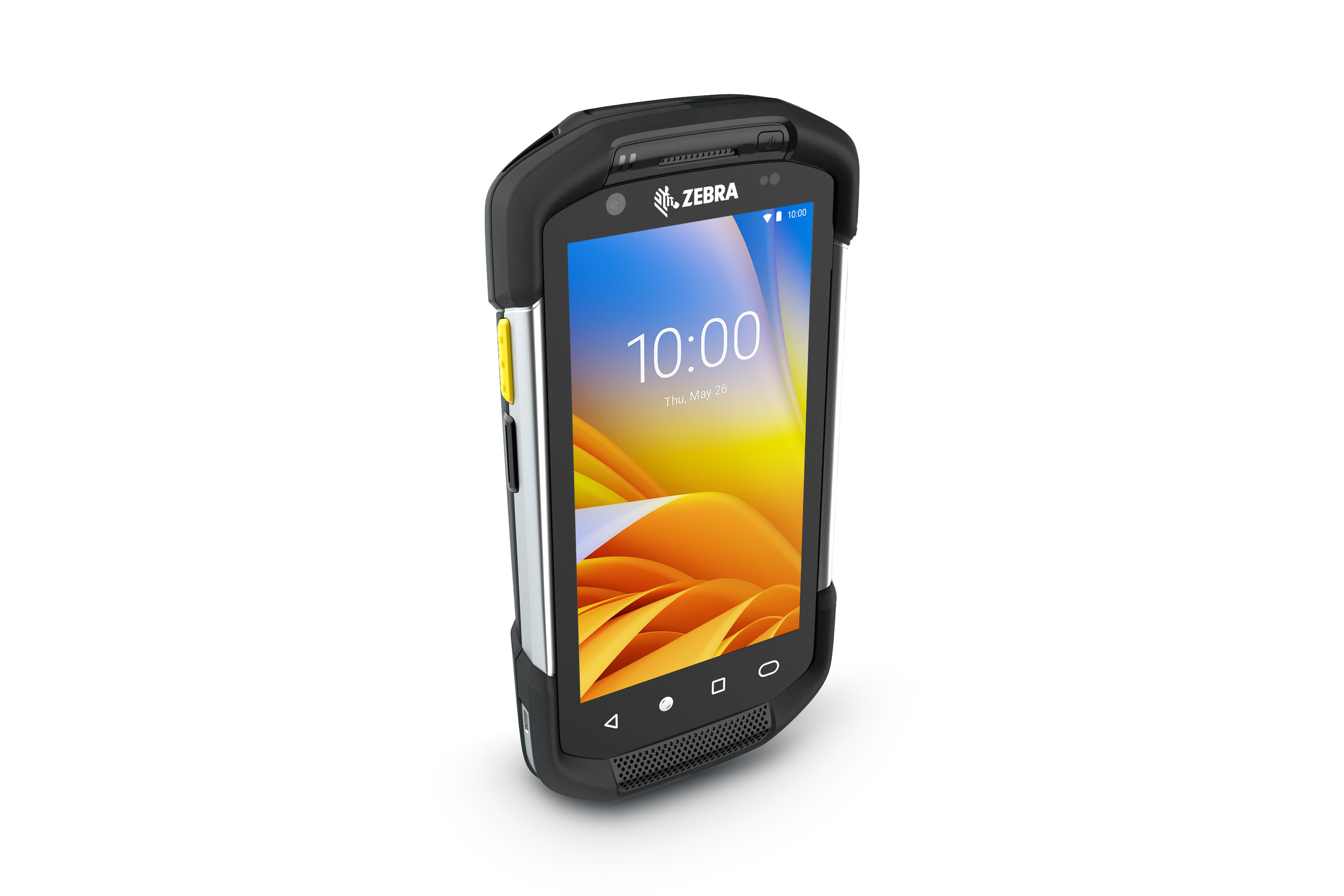

Ultra-Rugged Handheld Mobile Computers for the New Age of Mobility
The TC7X Series is designed for the toughest environments, offering ultimate ruggedness and top-tier performance. These devices are built to enhance process efficiency, productivity, and worker comfort. The TC73 (Wi-Fi 6E) and TC78 (Wi-Fi 6E/5G) provide the latest mobility technologies, while the TC72 (Wi-Fi 5) and TC77 (Wi-Fi 5/4G) offer reliable connectivity with slightly different specs. All models are engineered to handle demanding tasks in challenging conditions.
Simple Data Capture
With advanced scanning and PRZM Intelligent Imaging, capture 1D and 2D barcodes, including Digimarc, quickly and accurately—no matter the condition. The wide scanning range and omnidirectional feature allow for easy point-and-shoot scanning, even from different distances. You can also capture multiple barcodes or data on forms with a single press using Zebra’s SimulScan, a free Mobility DNA app.
Long-Lasting Battery
The PowerPrecision+ high-capacity battery offers up to 15 hours of power, covering an entire shift. With Warm Swap mode, you can quickly replace batteries without shutting down the device. Plus, fast charging ensures batteries are ready in no time.
Cellular Network Flexibility
Stay connected wherever your workers are. The TC77 supports two carriers simultaneously, ideal for workers in areas with different network coverage. It also offers aggregated carrier support for faster speeds. Certified for public safety networks like AT&T FirstNet and Verizon, the TC77 ensures reliable connectivity during emergencies.
Physical Characteristics
| Dimensions | 6.3 in. L x 3.3 in. W x 1.1 in. D 161 mm L x 84 mm W x 28 mm D |
| Weight | 13.3 oz / 376 g |
| Display | 4.7 in. High Definition (1280 x 720); exceptionally bright, outdoor viewable; optically bonded to touch panel |
| Imager Window | Corning Gorilla Glass |
| Touchpanel | Dual mode capacitive touch with stylus, finger or gloved fingertip input (conductive stylus sold separately); Screen Protector and Rain modes; Corning Gorilla Glass |
| Backlight | LED backlight |
| Power | Li-Ion 3.7 V, 4620 mAh. Power Precision/ PowerPrecision+: Improved battery technology for longer cycle times and real-time visibility into battery metrics for better battery management |
| Expansion Slot | User accessible MicroSD with 32 GB SDHC and up to 256 GB SDXC |
| SIM | TC77 only: 2 Nano SIM slots (Dual SIM, Dual Stand-by - EU Only) |
| Network Connections | TC72: WLAN, WPAN (Bluetooth) TC77: WWAN (cellular, WLAN (WiFi), WPAN (Bluetooth); USB 2.0 High Speed (host and client) |
| Notification | Audible tone; multi-color LEDs; vibration |
| Keypad | On-screen keypad and Enterprise Keyboard |
| Voice and Audio | Three microphone support with noise cancellation; vibrate alert; speaker; Bluetooth wireless headset support, high quality speaker phone; PTT headset support; cellular circuit switch voice; HD Voice |
Performance Characteristics
| CPU | Qualcomm Snapdragon™ 660 octa-core, 2.2 GHz |
| Operating System | TC72: Upgradeable to Android 14 TC77: Upgradeable to Android 14 |
| Memory | 4 GB RAM/32 GB Flash pSLC |
| Internet Protocol | IPv4 and IPv6 |
User Environment
| Operating Temp. | -4° F to 122° F/-20° C to 50° C |
| Storage Temp. | -40°F to 158°F/-40°C to 70°C |
| Humidity | 5% to 90% non-condensing |
| Drop Specifications | Multiple 6 ft./1.8 m drop to concrete across full operating temperature range, multiple 8 ft./2.4 m drop to concrete at room temperature per MIL-STD 810G |
| Tumble Specifications | 2,000 3.3 ft./1.0 m tumbles; meets and exceeds IEC tumble specifications |
| Sealing | IP65 and IP68 per applicable IEC sealing specifications |
| Vibration | 4 g’s PK Sine (5 Hz to 2 kHz); 0.04 g 2/Hz Random (20 Hz to 2 kHz); 60 minute duration per axis, 3 axis |
| Thermal Shock | -40° F to 158° F/-40° C to 70° C rapid transition |
| Electrostatic Discharge (ESD) | +/-15kVdc air discharge; +/-8kVdc direct discharge; +/-8kVdc indirect discharge |
Interactive Sensor Technology (IST)
| Light Sensor | Automatically adjusts display backlight brightness |
| Motion Sensor | eCompass, 3-axis Gyro, 3-axis accelerometer |
| Atmospheric Pressure Sensor | Yes, TC77 only |
Data Capture
| Scanning | SE4770: 1D/2D omnidirectional imager SE4750: 1D/2D omnidirectional imager Digimarc Symbology support |
| Camera | Front — 5MP fixed focus Rear — 13 MP autofocus; f/2.4 aperture; flash LED generates balanced white light; supports Torch mode; 4K video with image stabilization Camera supports barcode scanning |
| NFC | ISO 14443 Type A and B; F; FeliCa and ISO 15693 cards; P2P mode and Card Emulation via Host SAM support for Calypso, Felica and Mifare technology TC77 only: Dual SAM support on TC77 SAM SKU |
Wireless WAN Data and Voice Communications
| TC77 Only: Radio Frequency Band | Supports VoLTE , Carrier Aggregation up to 3DL CA AT&T FirstNet Ready certification Verizon PNTM certification LTE FDD: 700/800/850/900/1800/1900/AWS/2100/2600 (28,13,14,12,17/19,20/5,26/8/3/2,25/4,66/1/7); LTE TDD: 1900/2300/2500 (39/40/41,38); UMTS/HSPA/HSPA+: 850/900/AWS/1900/2100 (5/8/4/2/1); GSM/GPRS/EDGE: 850/900/1800/1900 |
| GPS | TC77 only: Autonomous, Assisted GPS (A-GPS); Navstar; GLONASS; Gallileo; BeiDou |
Wireless LAN
| Radio | IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v/w; Wi-Fi™ certified; IPv4, IPv6, 2x2 MU-MIMO |
| Data Rates | 5GHz: 802.11a/n/ac — up to 866.7 Mbps 2.4GHz: 802.11b/g/n — up to 300 Mbps |
| Operating Channels | Channel 1-13 (2412-2472 MHz); Channel 36-165 (5180-5825 MHz) Channel Bandwidth: 20, 40, 80 MHz Actual operating channels/ frequencies and bandwidths depend on regulatory rules and certification agency |
| Security and Encryption | WEP (40 or 104 bit); WPA/WPA2 Personal (TKIP, and AES); WPA/WPA2 Enterprise (TKIP and AES) — EAP-TTLS (PAP, MSCHAP, MSCHAPv2), EAP-TLS, PEAPv0-MSCHAPv2, PEAPv1-EAP-GTC and LEAP.EAP-PWD |
| Multimedia | Wi-Fi Multimedia™ (WMM) and WMM-PS |
| Features | Soft AP, 2x2 MU-MIMO, 256 QAM Modulation on 5G GHz radio; Maximum Ratio Combining (MRC), Tx/Rx Low-Density Parity Check (LDPC), Transmit Beamforming(TxBF) and Beamformee (BFee) capability, Full IEEE 802.11 a/b/g/n legacy compatibility |
| Certifications | WFA (802.11n, WMM-PS, 801.11ac, PMF) |
| Fast Roam | PMKID caching; Cisco CCKM; 802.11r; OKC |
Wireless PAN
| Bluetooth | Class 2, Bluetooth v5.0, Bluetooth Low Energy (BLE) |
Communication and Messaging
| Workforce Connect PTT Express (included) provides instant push-to-talk small group communications across Wi-Fi networks. Workforce Connect PTT Pro (supported) provides a scalable network agnostic push-to-talk solution which also includes messaging, location services and two-way radio integration. Workforce Connect Voice client (supported) enables the TC72/TC77 Series to function as a full featured mobile telephone with multi line capability across Wi-Fi networks. |
