The Ultimate Personal Shopper for Customers and Associates Engage Every Shopper on Every Shopping Trip Increase Basket Size and Shopper Satisfaction Reduce Operational Costs — and Shrink Read more

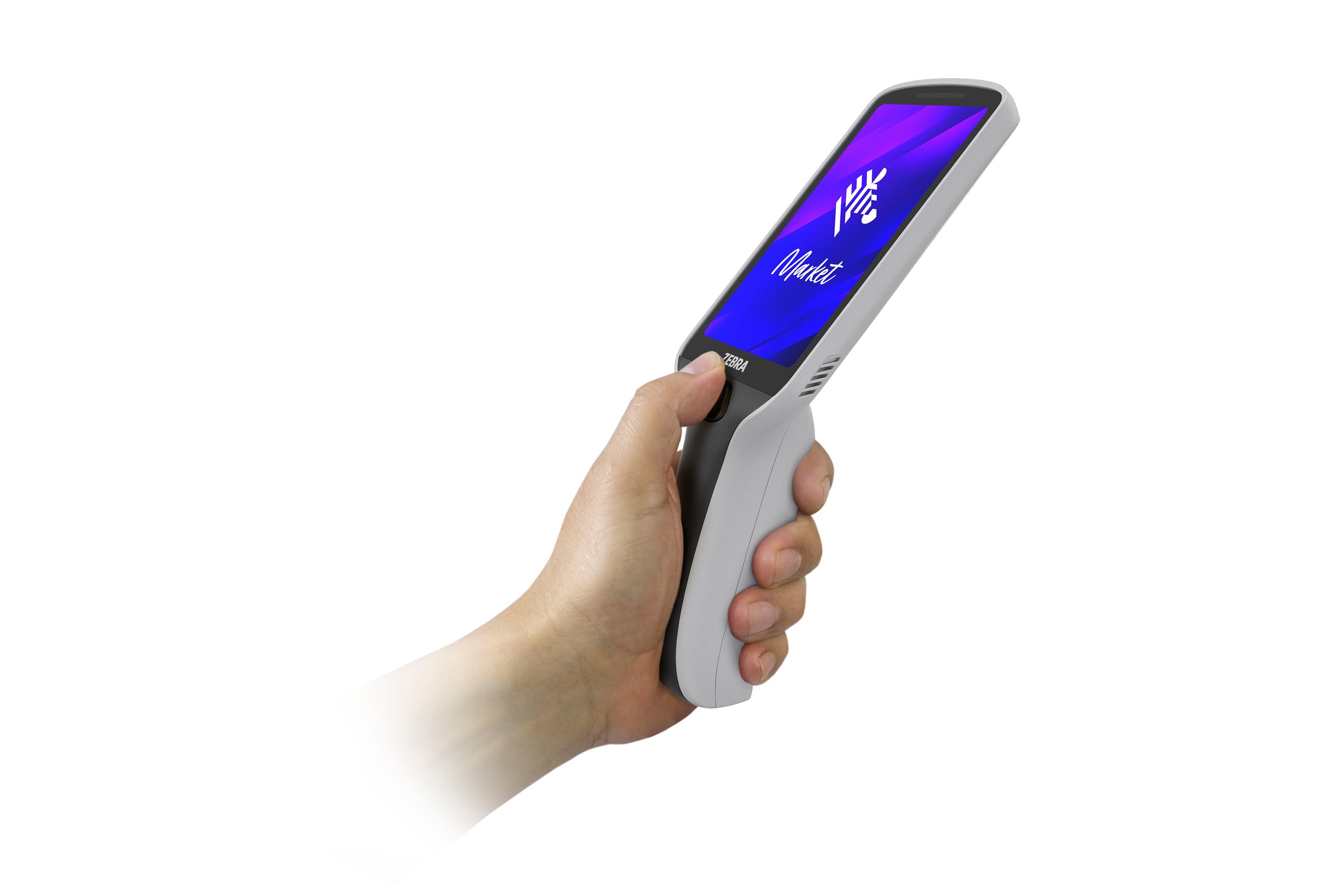

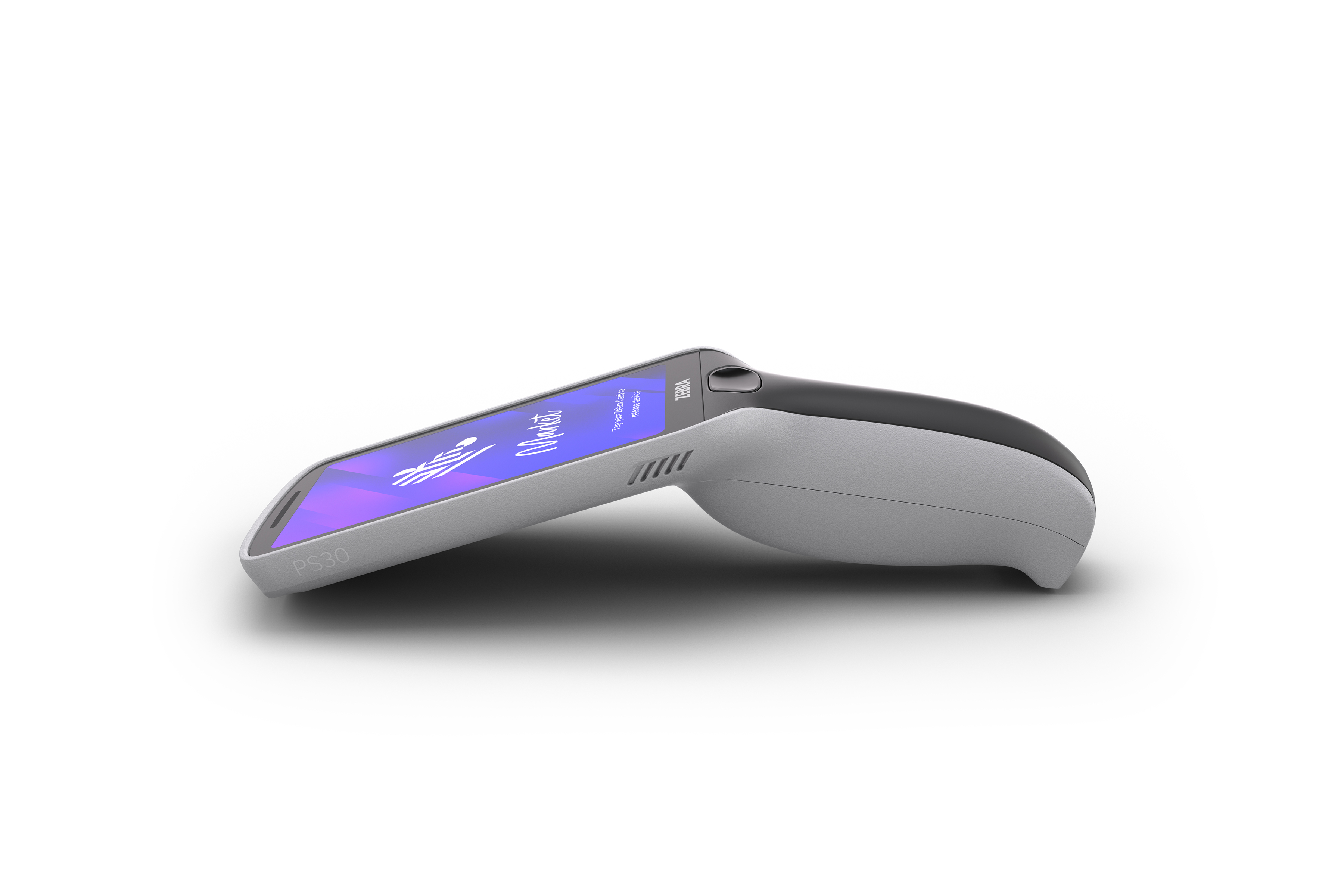

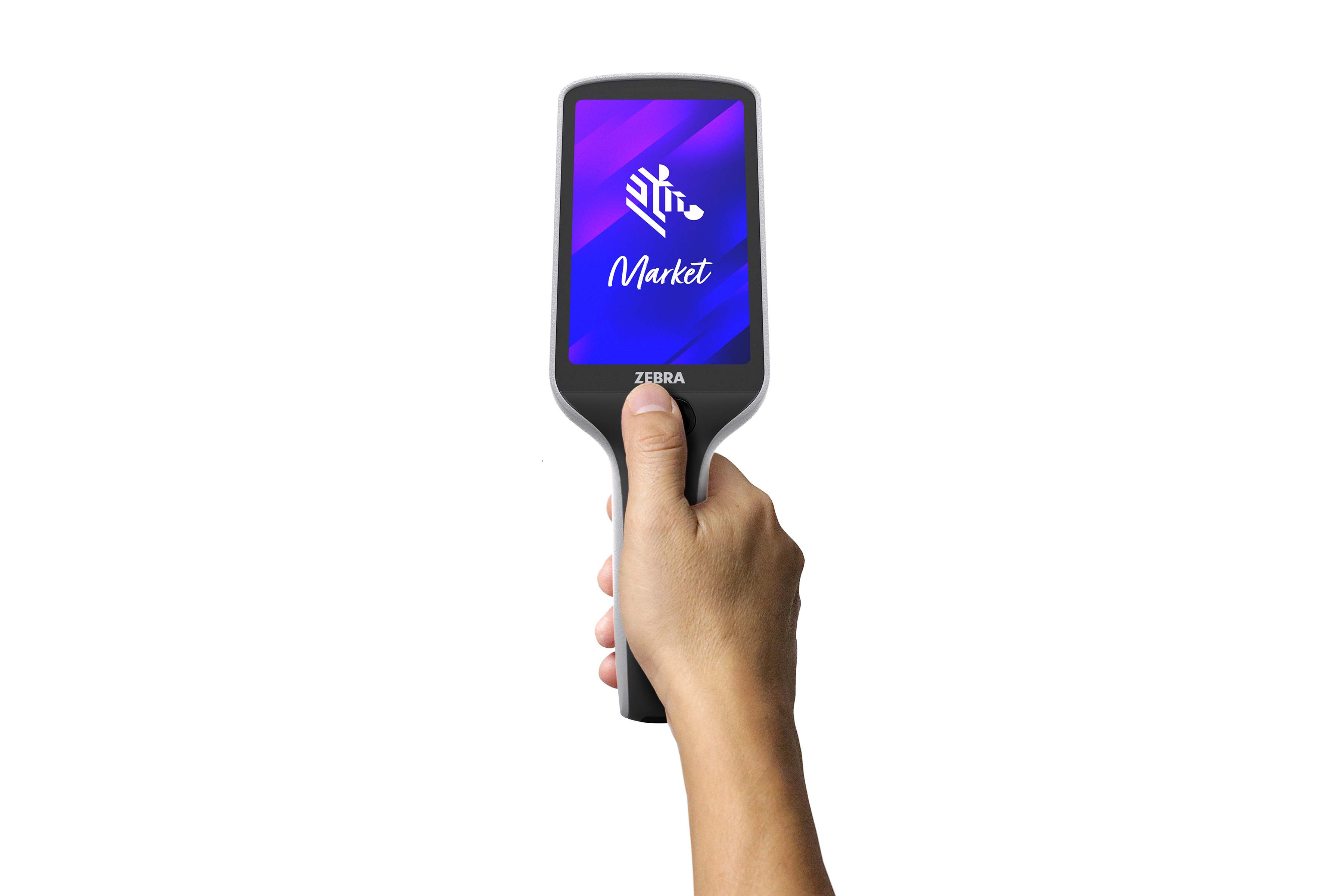

The PS20 Personal Shopper takes customer service to the next level with advanced features, building on the proven MC18. It’s the most rugged device in its class, designed for all-day, everyday use. The PS20 enhances the shopping experience, helping you provide personalized service and maximizing your return on investment. With Zebra Mobility DNA, it includes four powerful new apps for unmatched functionality, making it the best value for your store. Give your customers the ultimate shopping experience with the PS20, only from Zebra.
The Ultimate Personal Shopper for Customers and Associates
Engage Every Shopper on Every Shopping Trip
Increase Basket Size and Shopper Satisfaction
Reduce Operational Costs — and Shrink
The PS20 offers easy, fast barcode scanning with Zebra’s advanced technology, capturing 1D/2D barcodes instantly, even in poor condition. Hands-free scanning lets customers automatically scan items as they place them in their cart, and it supports electronic barcodes for coupons and loyalty cards.

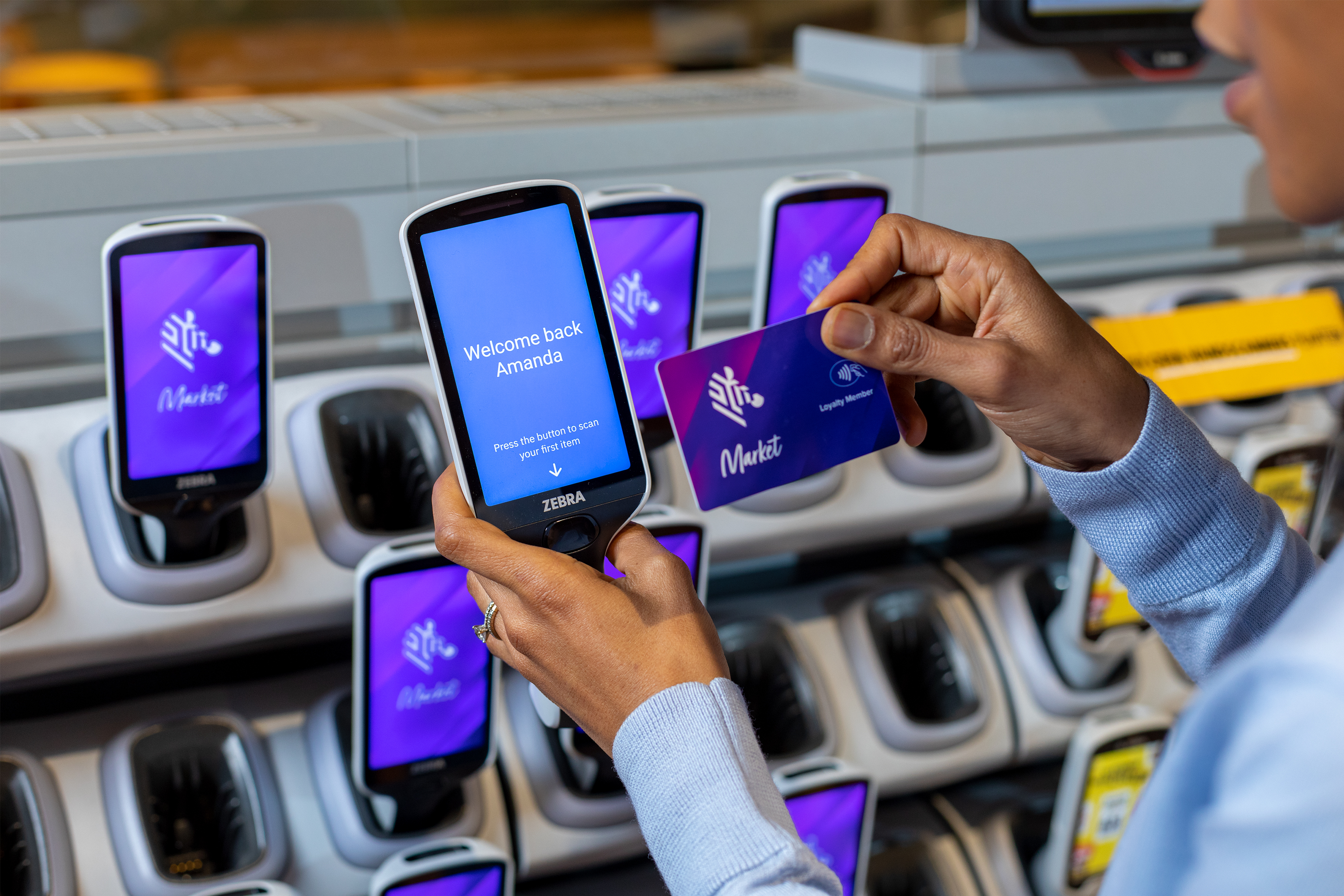

With the PowerPrecision+ Battery, the PS20 provides longer use, with just 15 minutes of charging giving 45 minutes of power.
It also supports the latest Wi-Fi enhancements, offering faster, more reliable connections with better range, speed, and less battery usage.
The PS20 runs on Android, making it easy for customers to use since they’re already familiar with the system. This helps eliminate learning curves and lets you offer the intuitive, interactive apps that today’s shoppers expect.
Physical Characteristics
| Dimensions | 2.95 in. H x 8.58 in. L x 3.09 in. W 7.50 cm H x 21.80 cm L x 7.86 cm |
| Weight | 290g |
| Display | 4.0 inch capacitive; WVGA; color |
| Touch Panel | Corning Gorilla Glass touch panel with air gap |
| Imager Window | Corning Gorilla Glass |
| Interface/Communications | USB 2.0 Client Cable for device maintenance |
| Voice | Push-to-Talk (PTT) voice support via internal speaker; Zebra Workforce Connect PTT Pro (optional) |
| Audio | Speaker; One (1) microphone (Plus configuration) |
| Buttons | 1 dedicated scan button |
Performance Characteristics
| Processor | Qualcomm Snapdragon™ 660 octa-core, 2.2 GHz |
| Operating System | Upgradeable to Android 13 |
| Memory | Base and Plus Configurations: 4GB RAM/16GB Flash |
| Power | Power Precision+ 3500 mah capacity Li Ion rechargeable battery |
| Security | Verified Boot; Secure Boot |
User Environment
| Operating Temp. | 14° F to 122° F/-10° C to 50° C |
| Storage Temp. | -4° F to 158° F/-20° C to 70° C |
| Humidity | Relative Humidity 5% to 95% non-condensing |
| Drop Specification | Multiple 4 ft./1.2 m drops to concrete over the entire operating temperature range |
| Tumble Specification | 1,000 1.64 ft./0.5 m tumbles at room temperature |
| Vibration | 2g peak, 5 Hz to 2 kHz, 1 hour duration per axis |
| Thermal Shock | -4° to 158° F/-20° to 70° C |
| Electrostatic Discharge (ESD) | (+/-15kV) air, (+/-8kV) contact discharge |
Data Capture

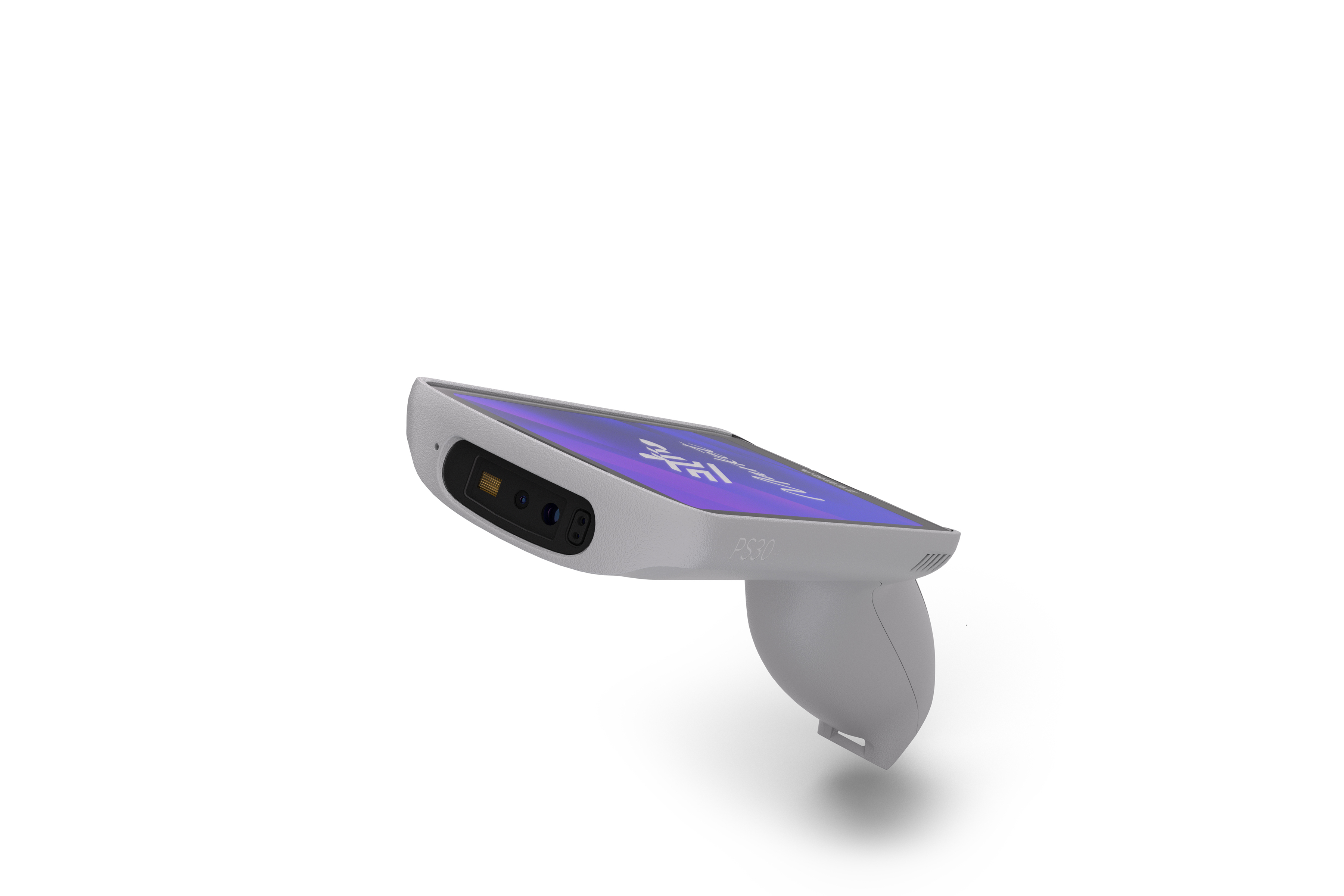

| Scanning | Base model: SE2100 1D/2D imager Plus model: SE4710 1D/2D imager + Digimarc support |
| Light Source | Base model: White LED Illumination Plus model: Red LED Illumination with LED dot aim pattern |
| Camera — Front Facing | Plus model only: 5 MP fixed focus |
Interactive Sensor Technology
Plus configurations only: 3-axis accelerometer, gyroscope, scanning proximity sensor |
WLAN
| Radio | IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v3/w; Wi-Fi™ certified; IPv4, IPv6, 2x2 MU-MIMO |
| Data Rates | 5GHz: 802.11a/n/ac — up to 866.7 Mbps 2.4GHz: 802.11b/g/n — up to 300 Mbps |
| Operating Channels (depending on Regulatory) | Channel 1-13 (2412-2472 MHz); Channel 36-165 (5180-5825 MHz) Channel Bandwidth: 20, 40, 80 MHz Actual operating channels/ frequencies and bandwidths depend on regulatory rules and certification agency |
| Security and Encryption | WEP (40 or 104 bit); WPA/WPA2 Personal (TKIP, and AES); WPA/WPA2 Enterprise (TKIP and AES) — EAP-TTLS (PAP, MSCHAP, MSCHAPv2), EAP-TLS, PEAPv0-MSCHAPv2, PEAPv1-EAP-GTC and LEAP. EAP-PWD |
| Certifications | WFA (802.11n, WMM-PS, 801.11ac, PMF) |
| Fast Roam | PMKID caching; Cisco CCKM; 802.11r; OKC |
WPAN
| Class 2, Bluetooth v5.0, Bluetooth Low Energy (BLE) |
Locationing
| Supports Zebra’s Device Tracker; SmartLens, SNAP and MPact Supports Visual Light Communication (VLC) |
