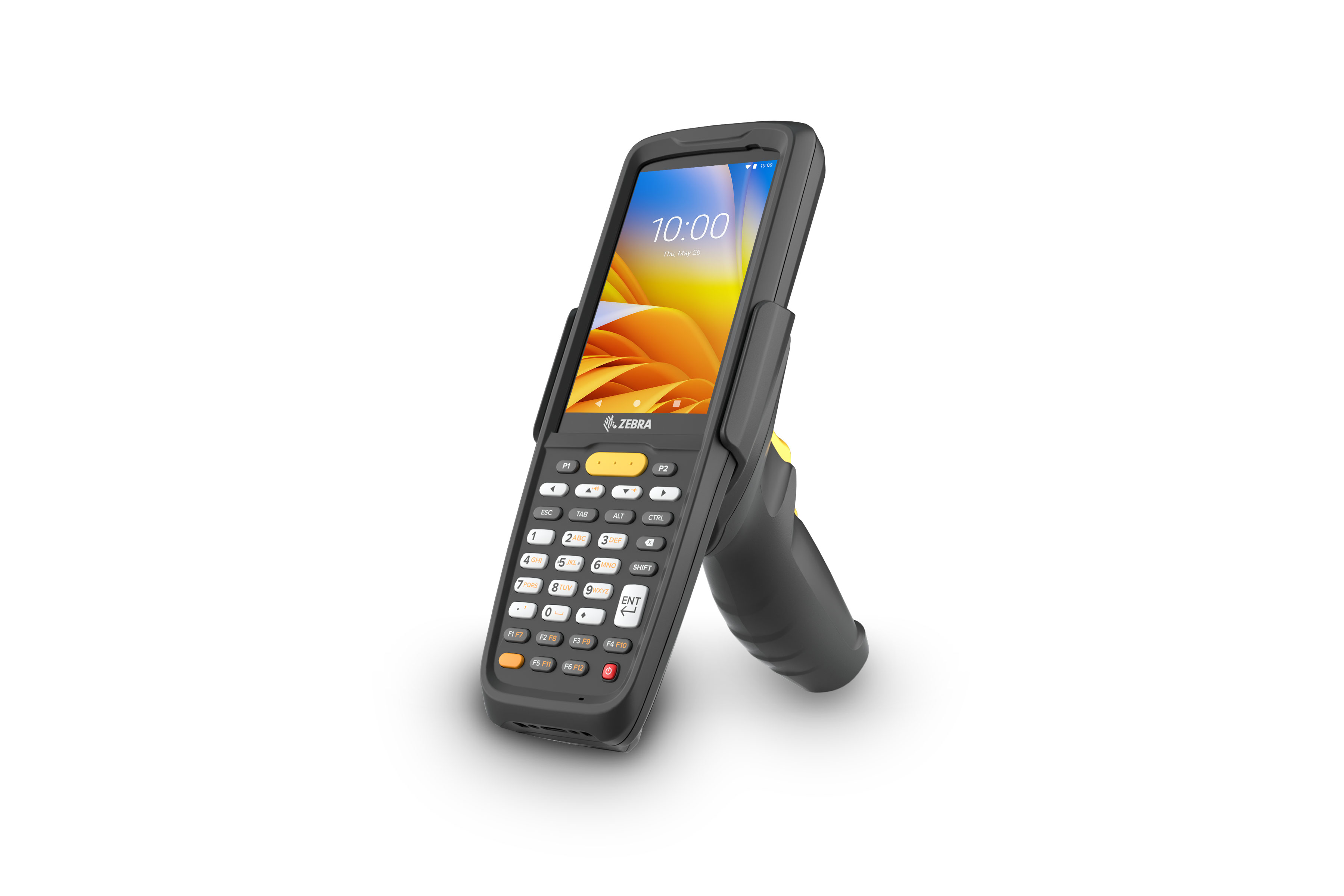

Affordable Mobility: Wi-Fi (MC2200) and Wi-Fi/cellular (MC2700) models for versatile connectivity. Ergonomics: Comfortable, easy-to-use design with large, visible keys and one-handed operation. Optional gun-style handle for scanning. Rugged & Durable: Water-resistant, dustproof, drop-resistant, with Gorilla Glass for added protection. Powerful Performance: Advanced processor, Android 11, long battery life, and future-proofing. Enterprise Data Capture: PRZM Intelligent Imaging for fast, reliable barcode scanning, and optional 13 MP camera. Disinfectant-Ready: Easy to clean with common disinfectants to prevent germ spread. Battery Life: Standard battery lasts two full shifts; extended battery supports 24/7 use with Warm Swap mode. Accessories: Chargers, holsters, and attachable handles for easy management. Mobility DNA Tools: StageNow, DataWedge, and Enterprise Home Screen for device management, app control, and barcode scanning. Security: LifeGuard for Android with security updates for up to 8 years. Additional Options: Optional Mobility DNA Enterprise License and compatibility with Terminal Emulation (TE) apps and Ivanti Velocity. Warehousing/Distribution Put away Receiving Inventory Asset tracking Yards/Ports Inventory Dock management Yard movement Manufacturing Replenishment Work-in-Process (WIP) Quality control Asset tracking Inventory Retail (Back of Store) Inventory Receiving/shipping Returns processing Retail (Front of Store) Price check Inventory and cycle counts Buy-online-pickup-in-store (BOPIS) Transportation and Logistics Delivery Proof of delivery Proof of condition Read more

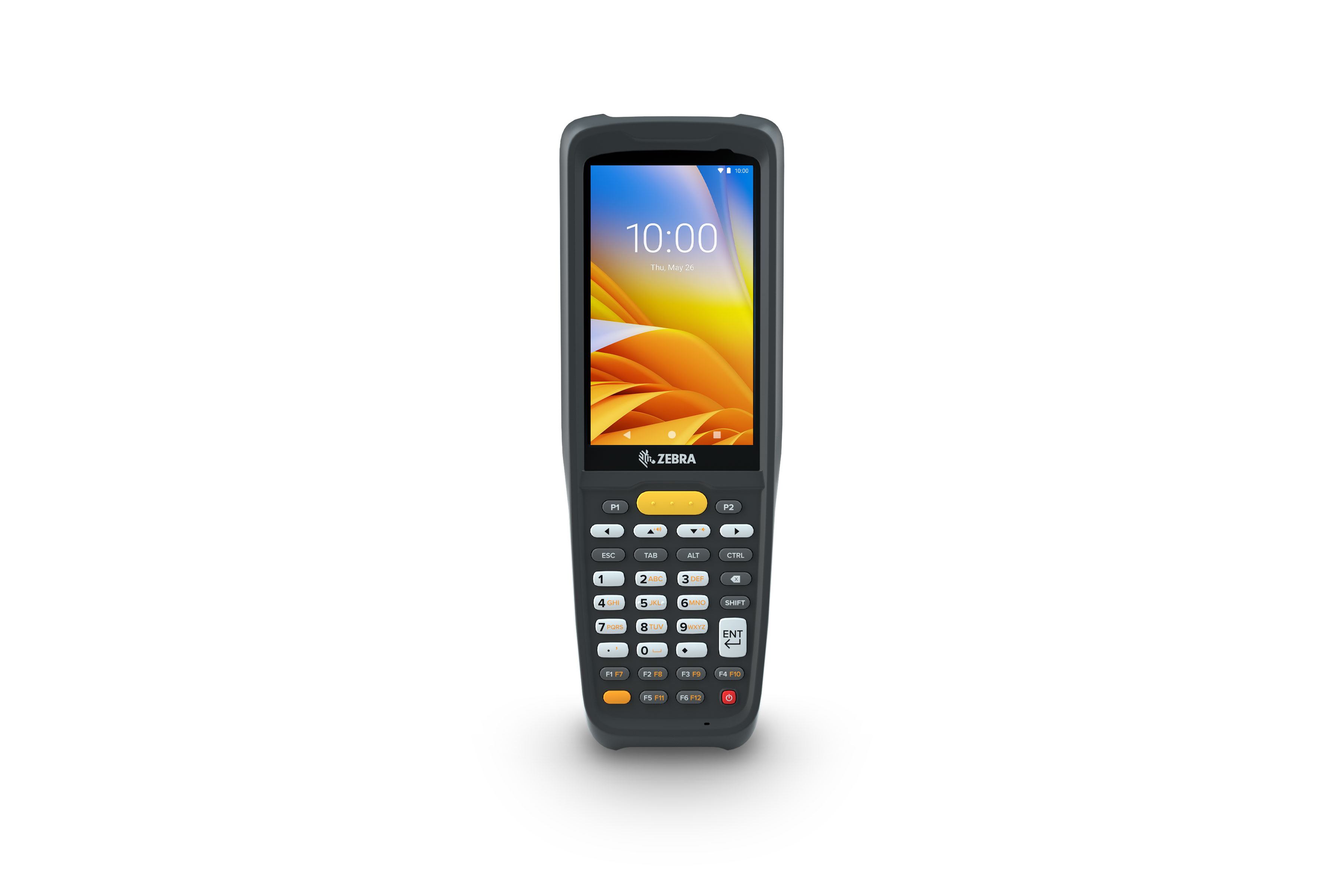

MC2200 & MC2700 Mobile Computers:
Additional Options: Optional Mobility DNA Enterprise License for advanced productivity tools, and the ability to run Terminal Emulation (TE) apps or migrate to touchscreen apps with Ivanti Velocity.
Physical Characteristics
Dimensions | 7.89 in. L x 2.76 in. W x 1.52 in. D 200.5 mm L x 70 mm W x 38.5 mm D |
| Weight | Standard battery: 10.4 oz./296 g Extended battery: 11.2 oz./316 g |
| Display | 4 in. WVGA (800 x 480), LED backlight; color display; optically bonded to touch panel |
| Touch Panel | Capacitive touch panel; multi-touch; Corning™ Gorilla™ Glass |
| Power | Standard capacity 3500 mAh/12.60 Wh Extended capacity 4900 mAh/17.64 Wh |
| Imager Window | Corning™ Gorilla™ Glass |
| Expansion Slot | User accessible MicroSD slot up to 128 GB SDXC |
| SIM | One Nano SIM slot; optional eSIM (MC2700 only) |
| Notifications | Audible tone; multi-color LEDs; haptic feedback (China SKU only) |
| Keypad | 34 key Numeric with FN keys; supports on-screen keypad |
| Voice and Audio | Internal speaker and microphone; Bluetooth wireless headset support; high quality speaker phone |
| Buttons | Physical scan, volume up/down; power |
| Network Connections | MC2200/MC2700: WLAN (WiFi), WPAN (Bluetooth), USB 2.0 High Speed (Host and Client) MC2700 only: WWAN (cellular) |
Performance Characteristics
| CPU | Qualcomm Snapdragon™ 660 octa-core, 1.8 GHz |
| Operating System | MC2200 and MC2700: 2GB/16GB—Upgradeable to A11 MC2200 and MC2700: 3GB/32GB—Upgradeable to A14 |
| Memory | 2 GB RAM/16 GB Flash memory 3 GB RAM/32 GB Flash memory |
| Security | Product is FIPS 140-2 validated. This security feature can be enabled on select configurations through a custom SKU request. Product supports Secure Boot, Verified Boot |
User Environment
| Operating Temp. | -4° F to 122° F/-20° C to 50° C |
| Storage Temp. | -40° F to 158° F/-40° C to 70° C |
| Humidity | 5%-95% non condensing |
| Drop Spec. | Multiple 5 ft./1.52 m drop to concrete from 14° F to 122° F/-10° C to 50° C per MIL-STD 810G |
| Tumble Spec. | 500 1.6 ft./0.5 m tumbles; meets and exceeds IEC tumble specifications |
| Sealing | IP65 per applicable IEC sealing specifications |
| Vibration | 4g’s PK Sine (5Hz to 2kHz); 0.04g 2/Hz Random (20 Hz to 2 kHz); 60 minutes duration per axis, 3 axis |
| Scanner Window | Corning™ Gorilla™ Glass |
| Electrostatic Discharge (ESD) | +/-15 kV air discharge, +/-8 kV direct/indirect discharge; |
Interactive Sensor Technology (IST)
| Motion Sensor | 3-axis accelerometer with MEMS Gyro |
Data Capture
| Scanning | SE4100 1D/2D standard range imager |
| Camera | Optional rear camera 13 MP Phase Detection Auto Focus, with Flash LED |
| NFC | ISO14443 Type A and B: FeliCa and ISO 15693 cards. P2P mode and Card Emulation via Host (HCE) support |
Wireless WAN, Data Communications Only
Radio Frequency Band | MC2700 North America MC2700 Rest of World MC2700 China |
| VoIP Communications | Optional Workforce Connect Voice3 turns MC2200/MC2700 devices into fully-featured PBX handsets with a custom interface that makes it easy to execute even the most complex telephony features — eliminating the need to purchase and manage additional voice-enabled devices. |
| GPS | MC2700 only: Autonomous, Concurrent GPS; GLONASS; Gallileo; BeiDou, and A-GPS. Supports IZAT (TM) XTRA |
Wireless LAN
WLAN Radio | IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v; Wi-Fi™ certified; IPv4, IPv6, 1x1 MU-MIMO |
| Data Rates | 2.4 GHz: 802.11b/g/n — 20 MHz, 40 MHz — up to 150 Mbps 5 GHz: 802.11a/g/n/ac – 20 MHz, 40 MHz, 80 MHz – up to 433 Mbp |
| Operating Channels | Channel 1-13 (2412-2472 MHz): 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13 Channel 36-165 (5180-5825MHz): 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140, 144, 149, 153, 157, 161, 165 Channel bandwidth: 20, 40, 80 MHz Actual operating channels/frequencies and bandwidths depend on regulatory rules and certification agency |
| Security and Encryption | WEP (40 or 104 bit); WPA/WPA2 Personal (TKIP, and AES); WPA3 Personal (SAE); WPA/WPA2 Enterprise (TKIP and AES); WPA3 Enterprise (AES) EAP-TTLS (PAP, MSCHAP, MSCHAPv2), EAP-TLS, PEAPv0-MSCHAPv2, PEAPv1-EAP-GTC, LEAP and EAP-PWD; WPA3 Enterprise 192-bit Mode (GCMP-256) EAP-TLS; Enhanced Open (OWE) |
| Certifications | WFA (802.11n, WPA2-Personal, WPA3-Personal, WPA2-Enterprise, WPA3-Enterprise) |
| Fast Roam | 802.11r (Over-The-Air); PMKID caching; Cisco CCKM; OKC |
Wireless PAN
| Bluetooth | Class 2, Bluetooth V5.0 with BR/EDR and Bluetooth Low Energy (BLE) support |
Environmental Compliance
Environment For a complete list of product and materials compliance, please visit |
Mobility DNA Professional Integrated Solutions
| DataWedge; Device Diagnostics; EMDK; Enterprise Home Screen; Mx Extensions; StageNow |
Mobility DNA
| Specifications | Descriptions |
|---|---|
| No Specifications | |
