Rugged Durability: Waterproof, dustproof, and drop-proof for extreme environments. Stable Connectivity: Bluetooth 5.1 & NFC for easy pairing and reliable connections. Effortless Scanning: Omni-directional scanner captures damaged, dirty, or poorly printed barcodes. Large 6.5” Display: Easy-to-read screen, even in sunlight, with glove and wet-use support. Long Battery Life: 5000 mAh battery for full-shift use and fast charging. Powerful Processor: Qualcomm octa-core 2.2 GHz for fast app performance. High-Resolution Camera: 13 MP autofocus for sharp, detailed photos. Instant Video Calls: Real-time troubleshooting for better customer service. Business-Class Accessories: Charging cradles, hand straps, and rugged boots for easy management. Advanced Mobility Tools: Secure, manage, and integrate with Zebra’s Mobility DNA and DataWedge. Easy Device Setup: StageNow and Device Diagnostics for quick device staging and on-site troubleshooting. Read more

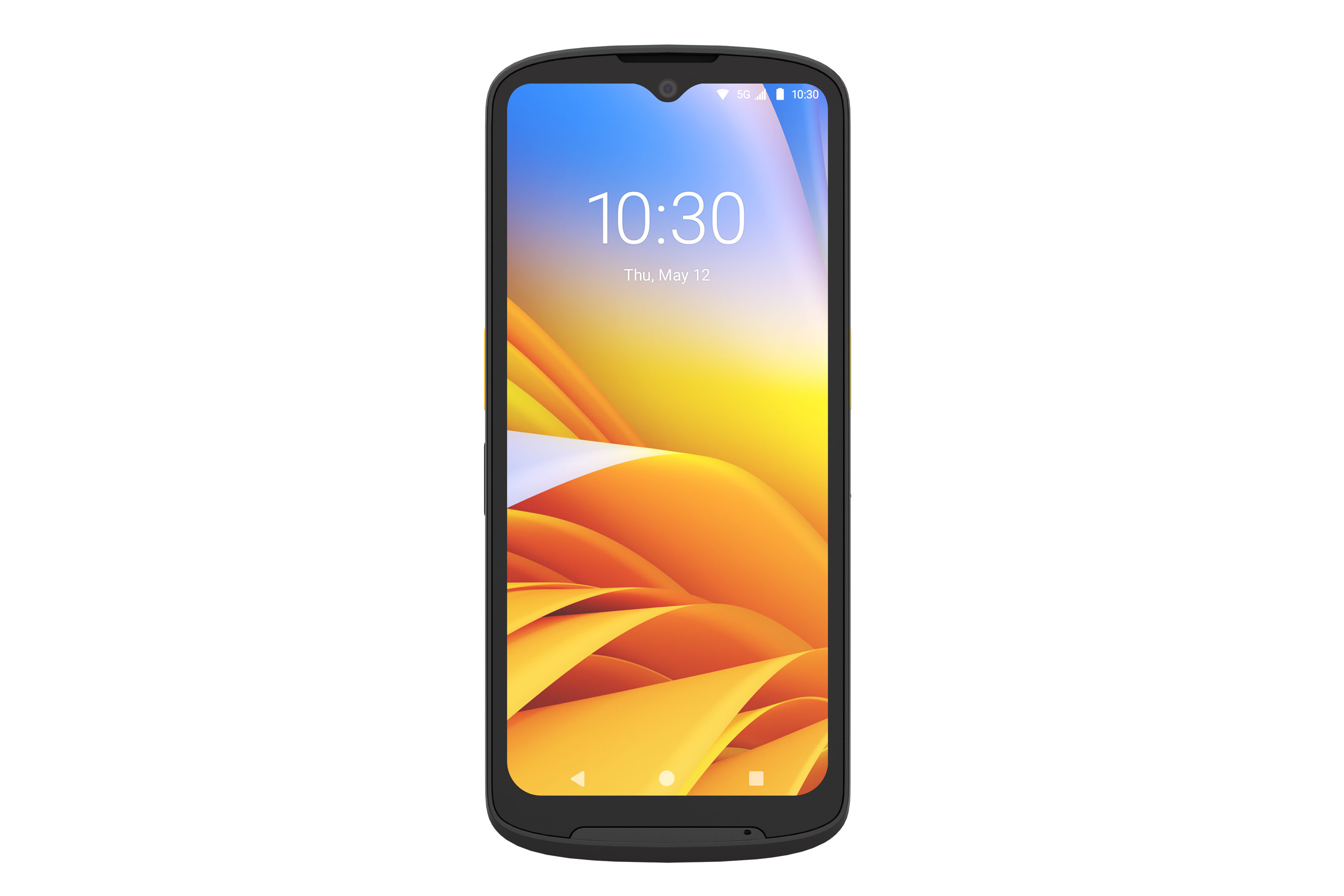

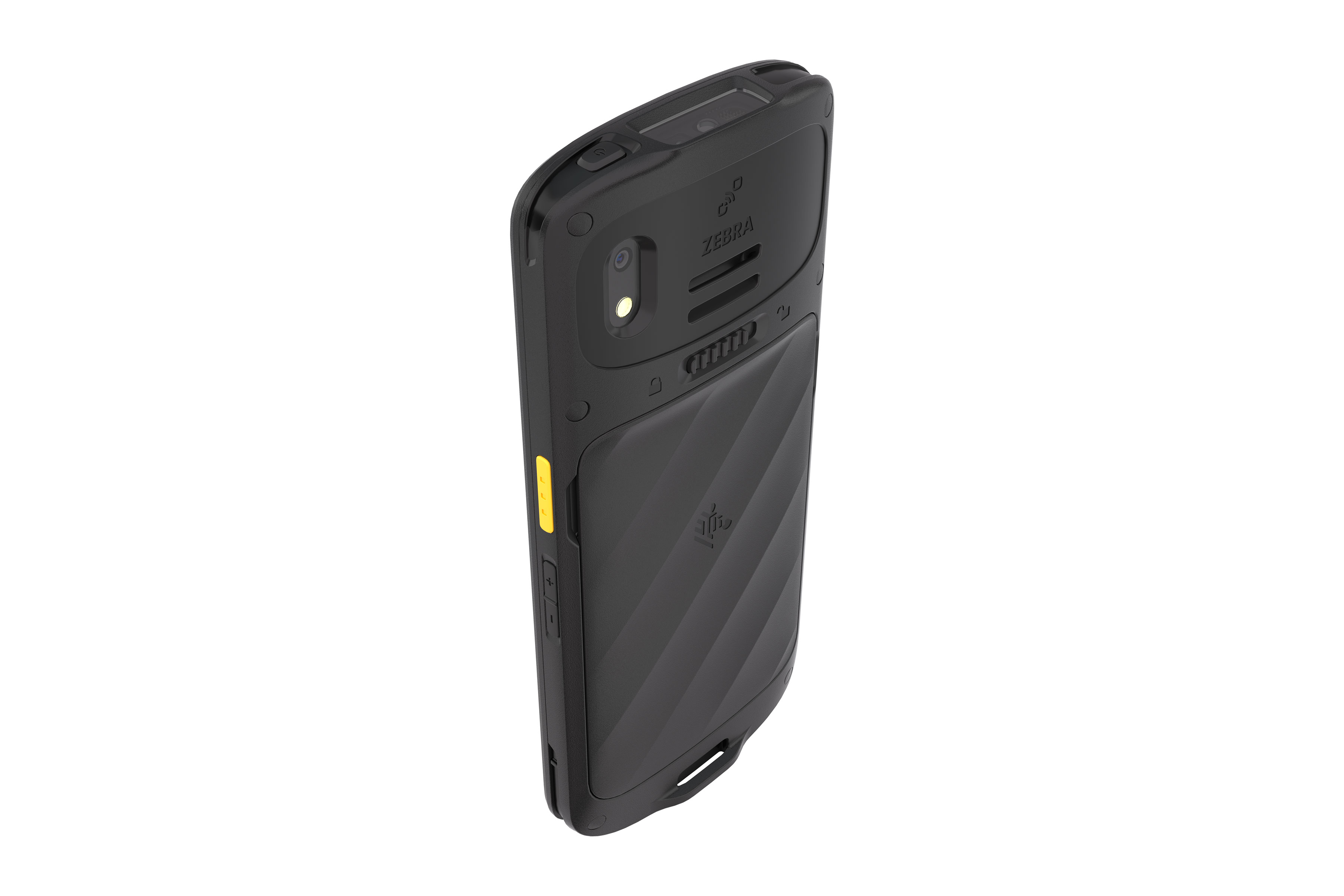

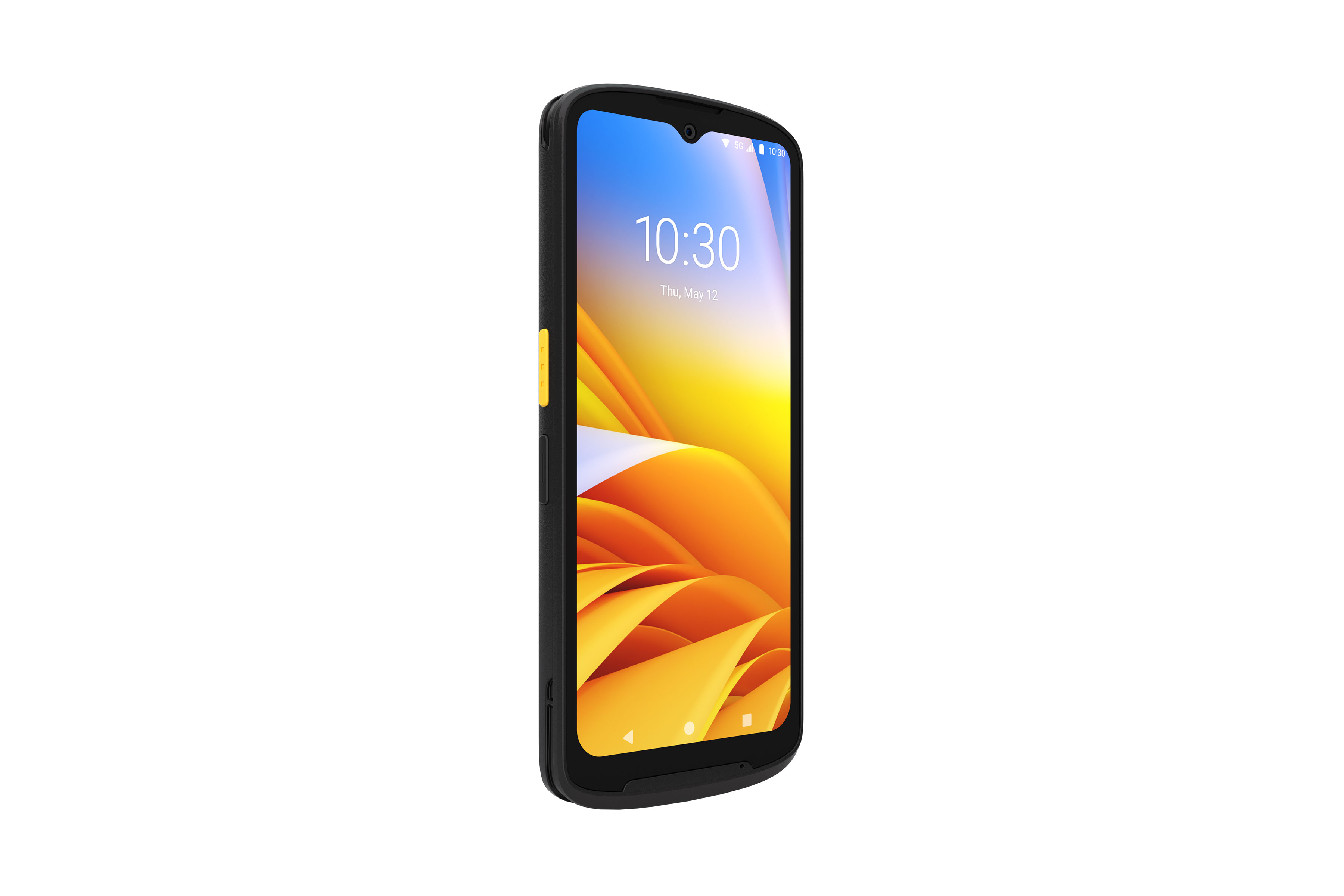

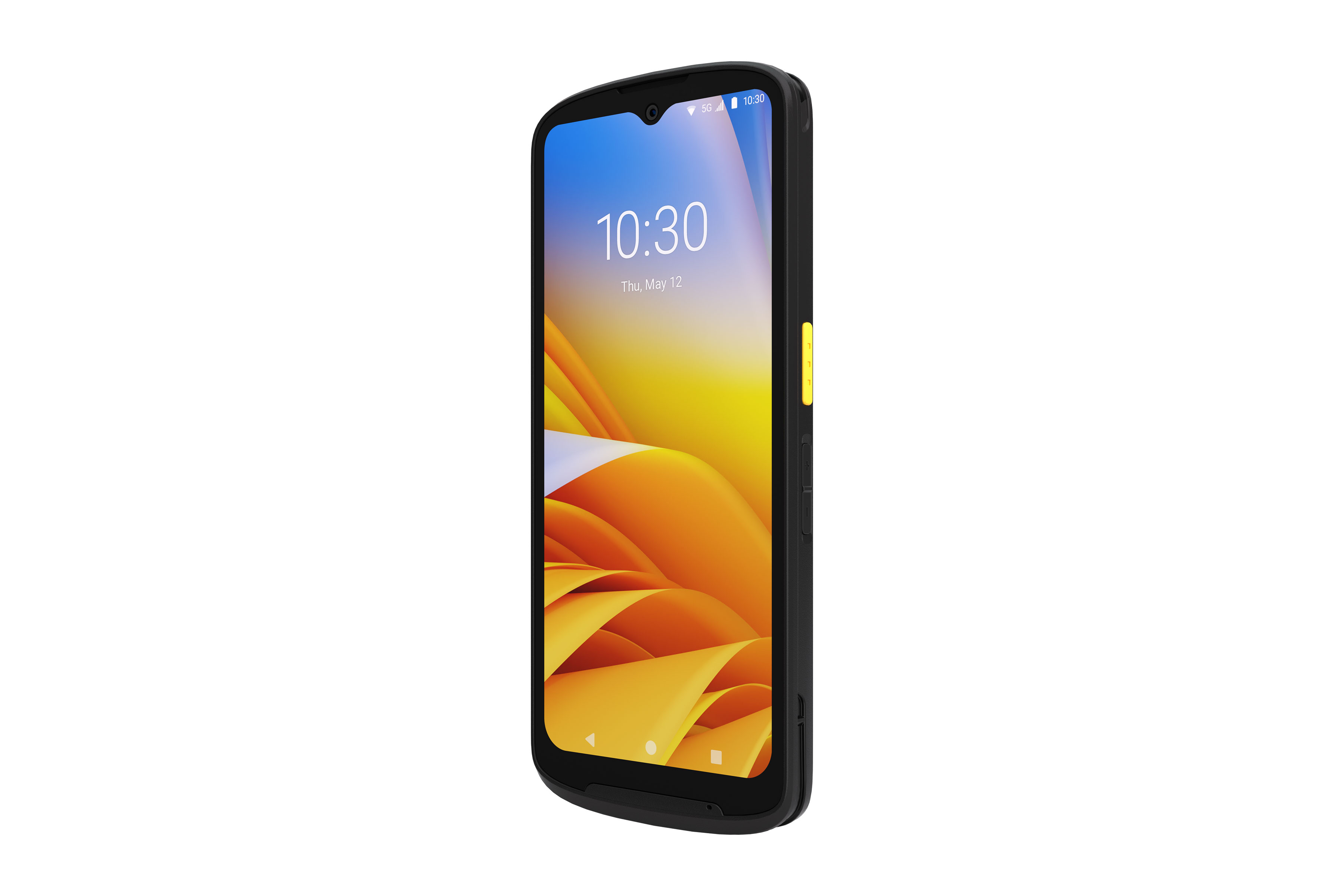

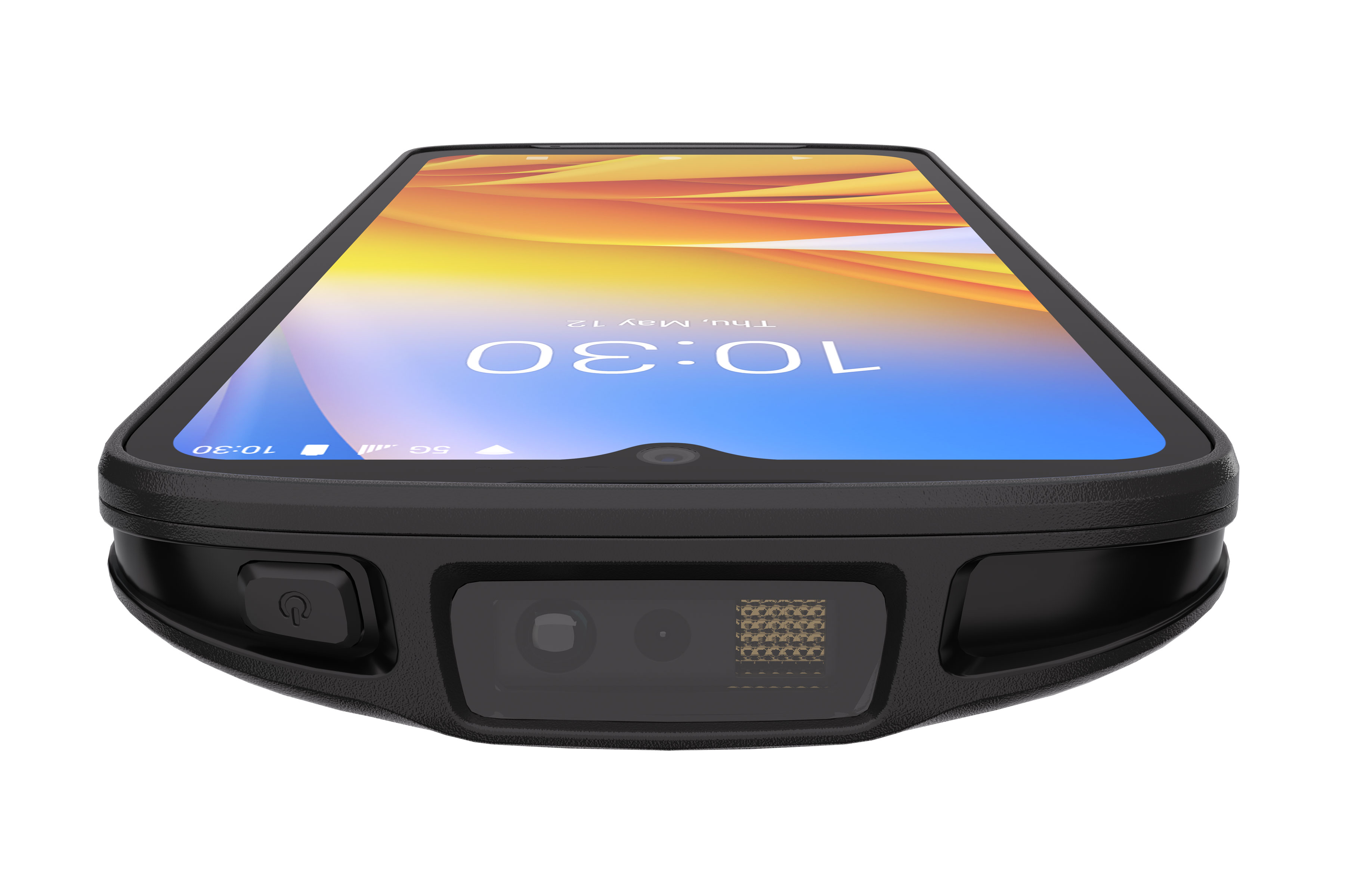

The TC15 mobile computer is designed to meet the growing demands of the on-demand economy, enabling fast, accurate order processing in various environments like transportation, logistics, and retail. Its rugged design ensures reliable performance both indoors and outdoors. The device features a large 6.5-inch screen for easier viewing and less scrolling, full shift battery power, and consistent, high-quality scanning. It supports multiple workflow applications and provides excellent ergonomics for users. Combining proven technology and affordability, the TC15 delivers the speed, accuracy, and reliability needed to keep up with the fast-paced, on-demand world.
Physical Characteristics
Dimensions | 6.92 in. L x 3.09 in. H x 0.56 in. D |
| Weight | 9.38 oz/266 g |
| Display | 6.5 inch/16.51 cm HD+, 720 x 1600, 450 NITS |
| Touch Panel | Capacitive multi-touch |
| Power | Removable, rechargeable Li-Ion battery, 5,000 mAh; 19.35Wh |
| SIM | Dual nano SIM or One NANO one Micro SD |
| Network Connections | WLAN, WWAN, WPAN, Type C USB 2.0 |
| Notifications | Audible tone; multi-color LEDs; vibration |
| Keypad | On-screen touch keypad |
| Voice and Audio | Speaker 1 Watt |
| Buttons | Scan button on each side; volume up/down button; power button; Programmable button |
Performance Characteristics
| CPU | Qualcomm Snapdragon™ SM6375 |
| Operating System | Upgradeable to Android 13 |
| Memory | 4 GB RAM/64 GB Flash |
| Security | Verified boot, secure boot |
User Environment
| Operating Temp. | 14°F to 122°F/-10°C to 50°C |
| Storage Temp. | -40°F to 158°F/-40°C to 70°C |
| Humidity | 5% to 95% non-condensing |
| Drop Specifications | 4 ft./1.2 m drop to concrete per MIL-STD 810G across operating temperature |
| Tumble Specification | 1,000 tumbles, 1.6 ft./0.5 m |
| Sealing | IP65 and IP67 |
| Vibration | Sine: 4 g’s peak, 5 Hz to 2 kHz, 1 hour duration per axis |
Electrostatic | +/-15 kV air discharge, +/- 8 kV direct discharge; +/- 8 kV indirect discharge |
Interactive Sensor Technology (IST)
| Light Sensor | Automatically adjusts display brightness, display backlight |
| Motion Sensor | 3-axis gyroscope; 3-axis accelerometer |
| Proximity Sensor | Automatically detects when the user places the handset against head during a phone call to disable display output and touch input |
Data Capture
| Scanning | SE4100 1D/2D Scan Engine, SE4710 1D/2D Scan Engine3 |
| Camera | Rear camera: 13 MP auto-focus camera with user controllable LED flash |
| NFC | Reader/Writer: ISO 14443 Type A and B, MIFARE, FeliCa®, ISO 15693, NFC Forum Tag Types 1 to 5; Host Card Emulation, NFC Forum compliant |
Wireless WAN Data
| Radio Frequency Band | Support for 3GPP Rel-15,SA&NSA,4x4 |
| GPS | GPS with A-GPS; Glonass; BeiDou; Galileo |
Wireless LAN
| Radio | Wi-Fi 5 |
| Data Rates | 2.4 GHz: 802.11b/g/n — 20 MHz, 40 MHz — up to 150 Mbps |
| Operating Channels | Bands Of Operation: 2.4 GHz: |
Security and | WEP Encryption |
| Fast Roam | 802.11r (Over-The-Air) |
| Certifications | WFA 802.11ac; WFA 802.11n; WFA WMM; WFA WPA and WPA2 certification in Personal & Enterprise modes; WFA WPA3; WFA Wi-Fi Direct |
Wireless PAN
Bluetooth | Bluetooth 5.1 BLE, Class 2 |
Warranty
Subject to the terms of Zebra’s hardware warranty statement, the TC15 is warranted against defects in workmanship and materials for a period of one (1) year from the date of shipment. For complete warranty statement, please visit |
Environmental Compliance
RoHS Directive 2011/65/EU; Amendment 2015/863; REACH SVHC 1907/2006 |
