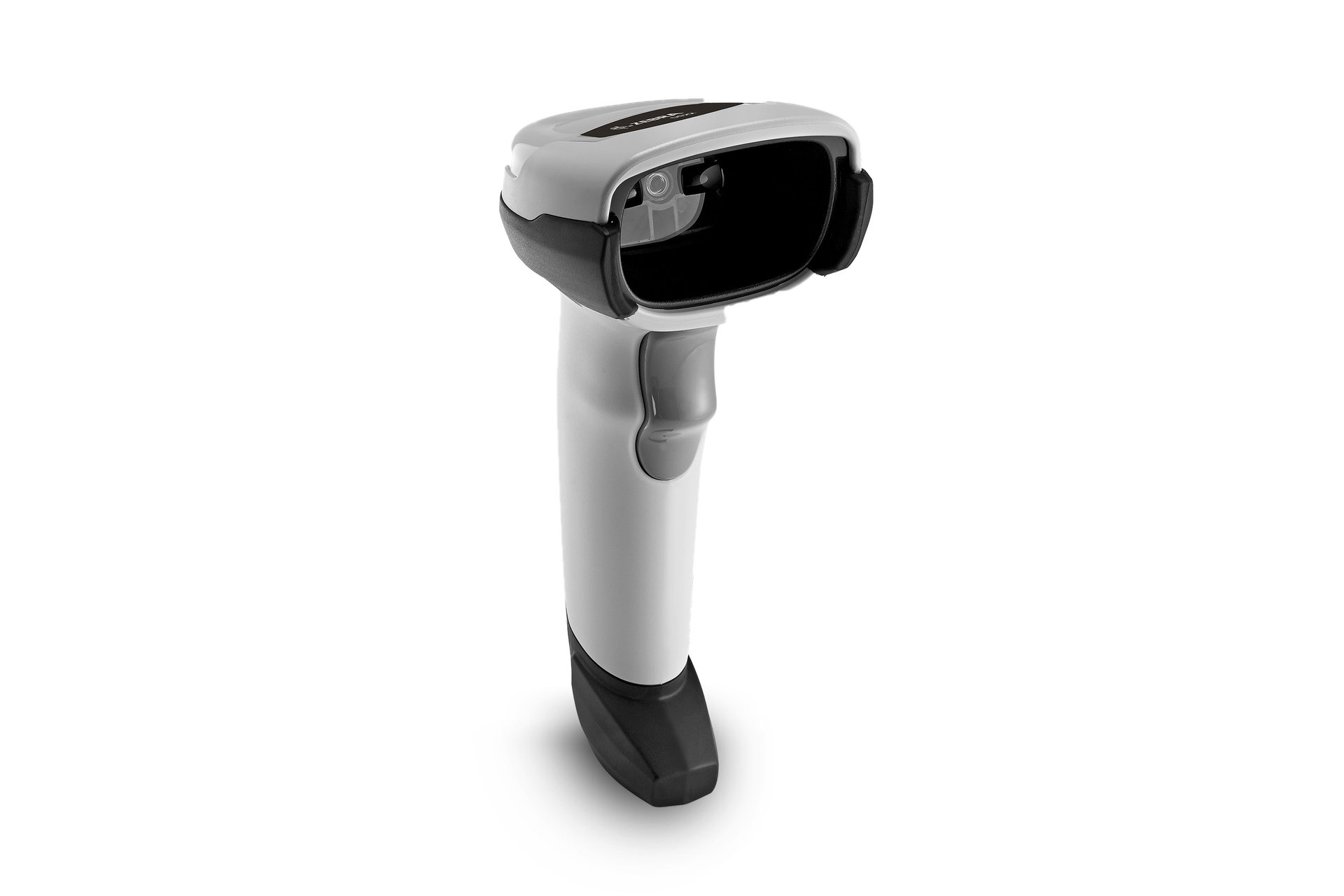

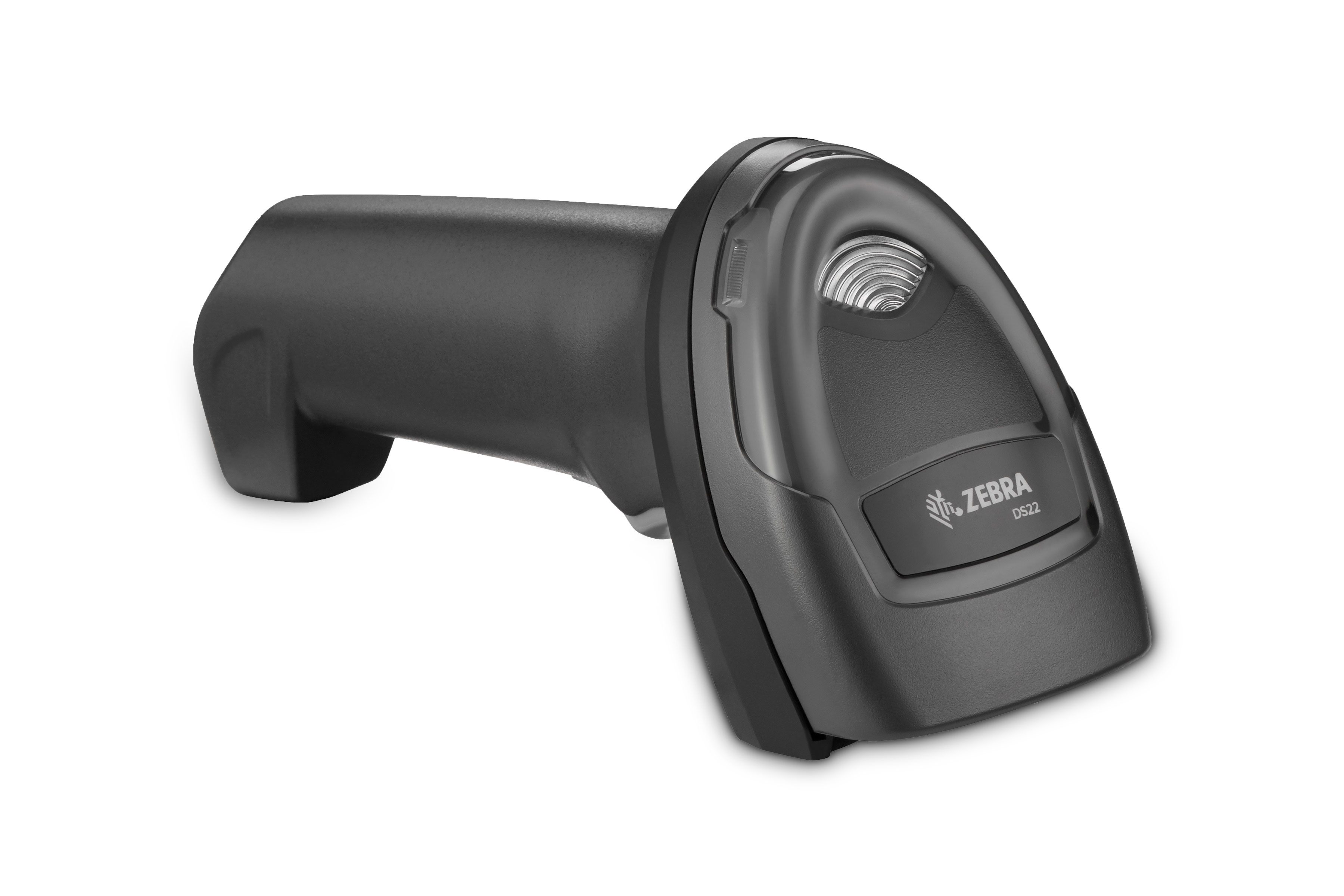

The Zebra DS2200 Series comprises two models: the corded DS2208 and the cordless DS2278. Both are 1D/2D handheld imagers designed to deliver high-performance scanning at an affordable price point. They are ideal for retail, light manufacturing, and other high-demand environments.
Key Features:

• High-Performance Scanning: Capable of reading 1D and 2D barcodes, including those displayed on mobile devices.
• Ergonomic Design: Lightweight and balanced for comfortable, all-day use.
• Durable Construction: Built to withstand the rigors of daily operations.
• Flexible Connectivity: The DS2208 offers corded connectivity, while the DS2278 provides cordless Bluetooth connectivity.
• Easy Deployment: Compatible with Zebra's LS2208 series cables, simplifying upgrades.

Primary Uses:

• Retail Checkout: Streamlining the checkout process by quickly scanning a variety of barcodes.
• Inventory Management: Efficiently tracking and managing stock levels.
• Asset Tracking: Monitoring the location and status of assets within an organization.
• Order Fulfillment: Speeding up the picking and packing process in warehouses.
• Shipping and Receiving: Ensuring accurate processing of shipments and deliveries.


  Quick Look

  Description	The DS2208 corded scanner adds the benefits of essential 2D imaging at an outstanding value to businesses with minimal investment.	The DS2278 cordless scanner adds the benefits of essential 2D imaging at an outstanding value to businesses with minimal investment.
  Positioning	Value	Value
  Applications	Coupons and Loyalty, Point of Sale Checkout, Mobile Barcode Scanning	Restock and Replenishment, Coupons and Loyalty, Mobile Point-of-Sale, Point of Sale Checkout, Mobile Barcode Scanning
  Industries	Retail, Transportation and Logistics, Hospitality	Transportation and Logistics, Hospitality, Retail
  Key Product Features	1D/2D Corded Easy migration from top-selling 1D LS2208 to 2D DS2208	1D/2D Cordless Flexible charging options with presentation cradle or micro USB cable Long-lasting battery will likely never need to be replaced

  Physical Characteristics

  Corded/Cordless	Corded	Cordless
  Dimensions	DS2208: 6.5 in. x 2.6 in. x 3.9 in. 16.5 cm x 6.6 cm x 9.9 cm	DS2278: 6.9 in. x 2.6 in. x 3.5 in. 17.5 cm x 6.6 cm x 9.0 cm Presentation Cradle: 2.8 in. x 3.7 in. x 4.8 in. 7.2 cm x 9.4 cm x 12.2 cm
  Weight	DS2208: 5.7 oz./161.6 g	DS2278: 7.5 oz./214 g Presentation Cradle: 5.2 oz./151 g
  Color	White, Black	White, Black
  Connectivity		Standard Bluetooth Version 4.0 with BLE: Direct line of sight in open air: Class 2: Minimum 30 ft. (10.0 m) and up to 300 ft. (100.0 m) when paired with CR2278 cradle. Environmental factors may impact results. Serial Port and HID Profiles; output power adjustable down from 2.0 dBm in 8 Steps

  Power

  Battery Capacity/Type		2,400 mAh Li-Ion Battery
  Battery Operating Time Per Full Charge		84.0 Hours
  Input Power / Input Voltage	DS2208: 4.5 to 5.5 VDC Host Powered; 4.5 to 5.5 VDC External Power Supply	DS2278 and Cradle: 4.5 to 5.5 VDC Host Powered; 4.5 to 5.5 VDC External Power Supply

  Performance Characteristics

  Scan Technology	Array imager	Array imager
  Scan Range	Standard Range	Standard Range
  Illumination	(2) 645nm Super-Red LEDs	(2) 645nm Super-Red LEDs
  Image Sensor	640 x 480 pixels	640 x 480 pixels

  Decode Capabilities

  Decode Capability	2D, 1D	2D, 1D

  Environment

  Drop Specifications	Designed to withstand multiple drops at 5.0 ft./1.5 m to concrete	Designed to withstand multiple drops at 5.0 ft./1.5 m to concrete
  Tumble Specifications	Designed to withstand 250 tumbles in 1.5 ft./.5 m tumbler	Designed to withstand 250 tumbles in 1.5 ft./.5 m tumbler
  IP Sealing	IP52	IP52
  Operating Temperature	DS2208: 32.0° F to 122.0° F / 0.0° C to 50.0° C	DS2278: 32.0° to 122.0° F / 0.0° to 50.0° C Presentation Cradle: 32.0° F to 104.0° F / 0.0° C to 40.0° C
