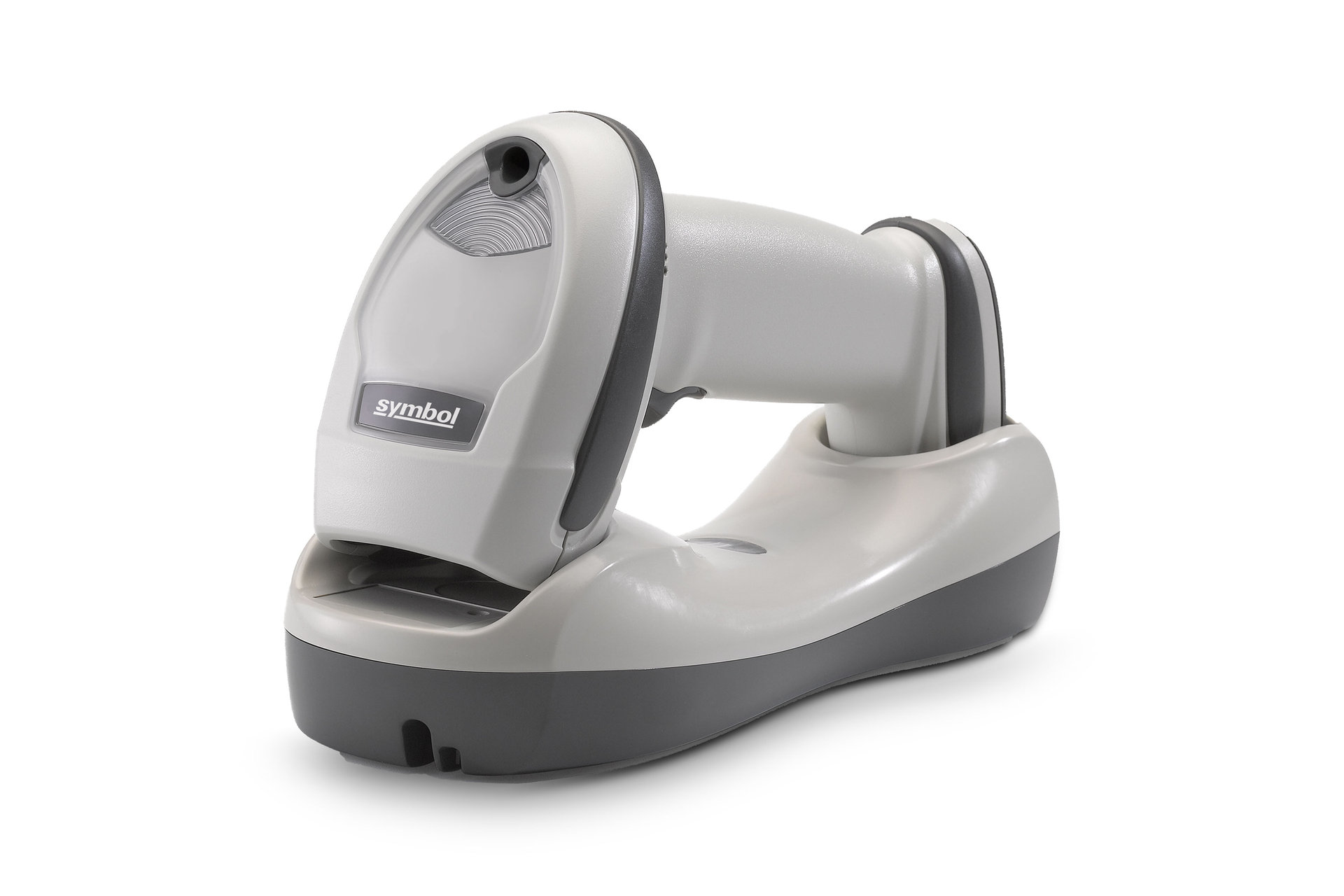

The Zebra LI4278 is a high-performance cordless 1D barcode scanner designed to enhance productivity in various environments, including retail, warehousing, and light industrial settings. It utilizes Bluetooth v2.1 with Enhanced Data Rate (EDR) technology, providing a wireless range of up to 100 meters (328 feet) from the base, allowing workers to move freely without being tethered to a workstation. The scanner is capable of reading 1D barcodes from near contact up to 1.5 meters (5 feet) away, accommodating a wide range of scanning needs. Its rugged design ensures durability, withstanding drops from up to 1.8 meters (6 feet) onto concrete surfaces. Additionally, the LI4278 is equipped with a long-lasting battery that supports up to 14 hours of continuous use, reducing downtime and the need for frequent charging.

Key Features:

• High-Performance Scanning: Capable of reading 1D barcodes from near contact up to 1.5 meters (5 feet) away.
• Cordless Freedom: Utilizes Bluetooth v2.1 with EDR technology, providing a wireless range of up to 100 meters (328 feet) from the base.
• Durable Design: Withstands drops from up to 1.8 meters (6 feet) onto concrete surfaces.
• Long-Lasting Battery: Supports up to 14 hours of continuous use on a single charge.
• Flexible Connectivity: Compatible with various interfaces, including USB, RS-232, and keyboard wedge.

Primary Uses:

• Retail Checkout: Streamlining the checkout process by quickly scanning a variety of 1D barcodes.
• Inventory Management: Efficiently tracking and managing stock levels in warehouses and retail environments.
• Asset Tracking: Monitoring the location and status of assets within an organization.
• Order Fulfillment: Speeding up the picking and packing process in warehouses.
• Shipping and Receiving: Ensuring accurate processing of shipments and deliveries



  Specifications

  Performance Characteristics

  Skew Tolerance	±65°
  Pitch Tolerance	±65°
  Roll Tolerance	±45°
  Scan Pattern	Single bright aiming line
  Scan Angle	Horizontal 35°
  Scan Speed	547 scans per second
  Motion Tolerance	25 in./ 63.5 cm per second
  Light Source	LED Class 1 device 617nm (amber)
  Min. Print Contrast	15% MRD
  Scans Per Charge	Up to 57,000
  Hours of Operation	Per full charge: 72 hours

  Utilities

  123Scan, Remote Scanner Management (RSM), Scanner Management Services (SMA), Zebra Scanner SDK

  User Environment

  Ambient Light Immunity	Max 108,000 lux
  Operating Temp.	32° F to 122° F/ 0° C to 50°C
  Storage Temperature	-40° F to 158° F/-40° C to 70° C
  Humidity	5% to 85% RH, non-condensing
  Drop Specification	Over 100 drops at 5 ft./1.5 m at room temperature; survives 6ft./1.8 m drops to concrete
  Environmental Sealing	IP53; Gasket sealed housing withstands dust and can be sprayed clean
  Bar Code Symbologies	UPC/EAN: UPC-A, UPC-E, UPC-E1, EAN-8/JAN 8, EAN-13/JAN 13, Bookland EAN, Bookland ISBN Format, UCC Coupon Extended Code, ISSN EAN Code 128 Including GS1-128, ISBT 128, ISBT Concatenation, Code 39 including Trioptic Code 39, Convert Code 39 to Code 32 (Italian Pharmacy Code), Code 39 Full ASCII Conversion Code 93 Code 11 Matrix 2 of 5 Interleaved 2 of 5 (ITF) Discrete 2 of 5 (DTF) Codabar (NW - 7) Chinese 2 of 5 IATA Inverse 1-D (except all GS1 DataBars) GS1 DataBar including GS1 DataBar-14, GS1 DataBar Limited, GS1 DataBar Expanded

  Wireless Connectivity

  Radio	Bluetooth v2.1 Class 2 Radio
  Data Rate	3.0 Mbit/s (2.1 Mbit/s) Bluetooth v2.1
  Radio Range*	330 ft./100 m (line of sight)
  	*Using presentation cradle configuration

  Physical Characteristics

  Dimensions	3.84 in. H x 2.75 in. W x 7.34 in. L 9.8 cm H x 7 cm W x 18.6 cm L
  Weight	7.9 oz./224 grams
  Cradle Interface	RS232, RS485 (IBM), USB, Keyboard Wedge

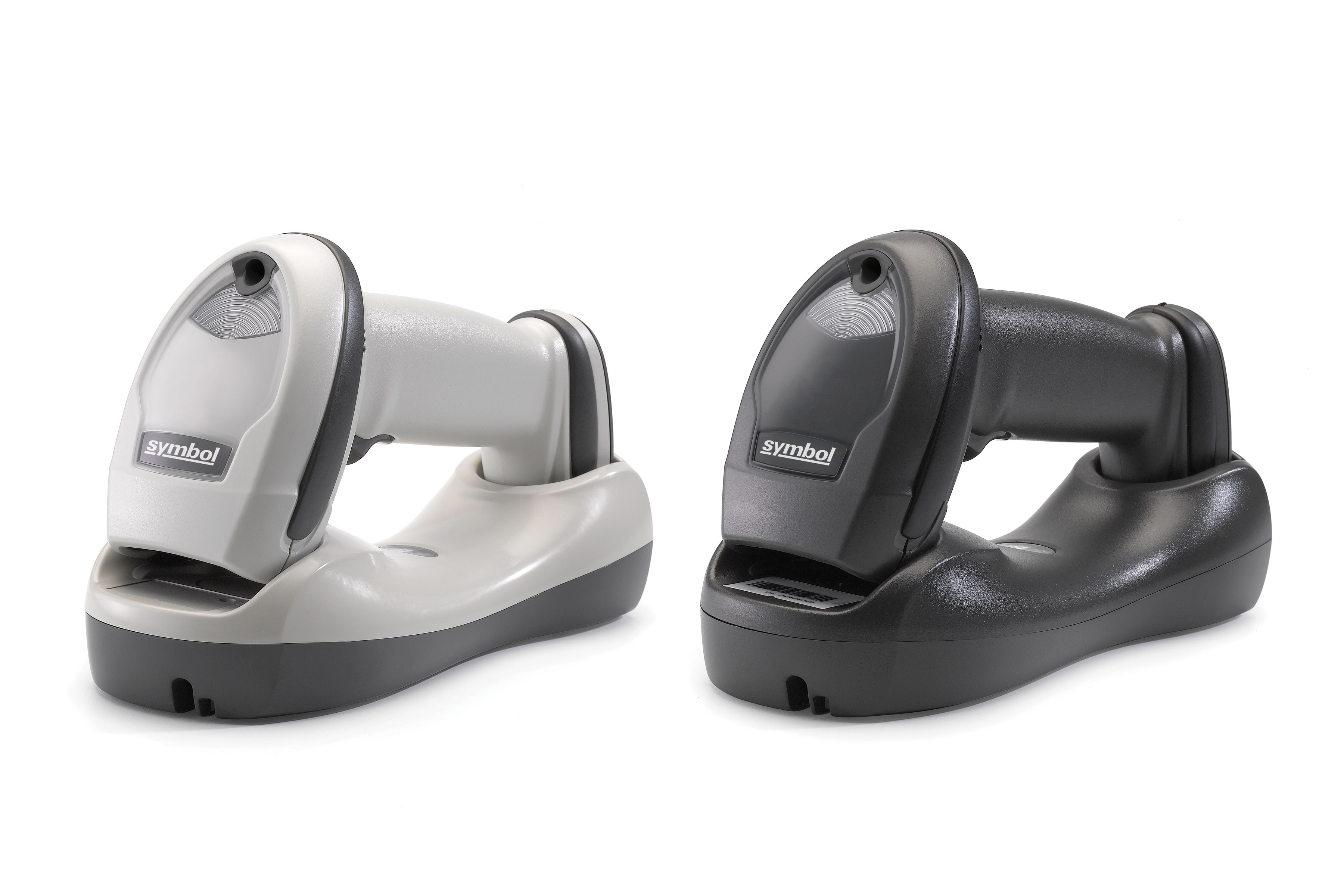

  Color	Black; White
  Battery	Rechargeable replaceable battery with ‘green sustainability’

  Decode Ranges (Typical Working Ranges**)

  3 mil	Minimum resolution
  4 mil	4-10 in./10.2-25.4 cm
  5 mil	3-13 in./7.6-33 cm
  7.5 mil	1.5-19 in./ 3.8-48.3 cm
  13 mil (100% UPC-A)	1-31 in./2.5-78.7 cm
  20 mil	1-42 in./2.5-106.7 cm
  26 mil (200% UPC-A)	3-55 in./7.6-140 cm
  100 mil (paper)	>20 ft./6 m
  	** Ranges are calculated on Code 39 unless otherwise noted

  Regulatory

  Technical Requirements	EMC FCC Part 15 Class B, ICES 003 Class B, IEC 60601-1-2 Environmental RoHS Directive 2002/95/EEC Electrical Safety C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, UL 60950- 1 LED Class 1
  Environmental	RoHS Compliant

  Warranty

  Subject to the terms of Zebra’s hardware warranty statement, the LI4278 is warranted against defects in workmanship and materials for a period of: Scanner: thirty-six (36) months, Battery: one (1) month. For the complete Zebra hardware product warranty statement, go to: https://www.zebra.com/warranty

  Specifications subject to change without notice.
