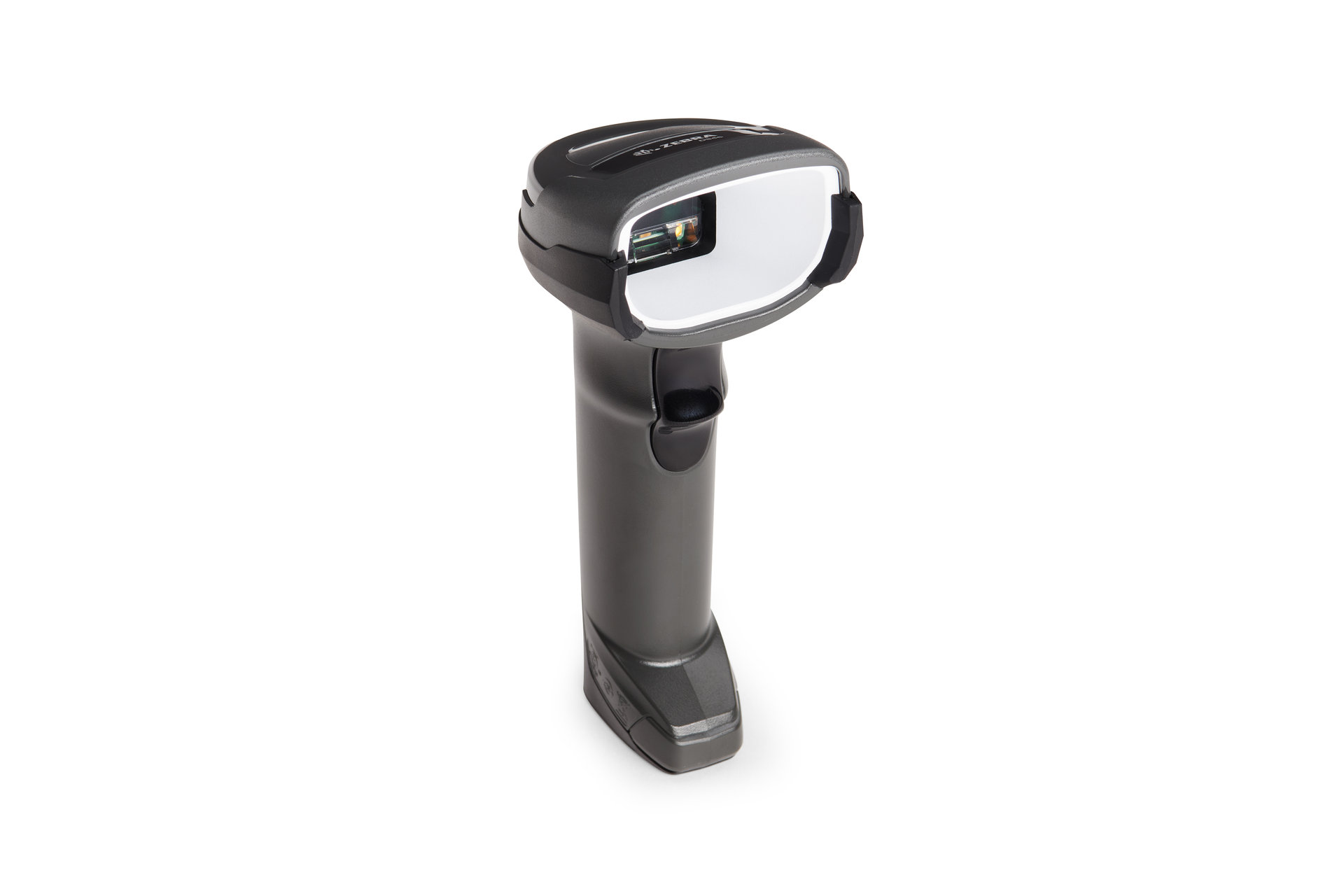

The Zebra DS4678-DPE is a cordless barcode scanner engineered for electronics and light industrial manufacturing. It offers advanced 2D imaging capabilities, rugged durability, and long battery life, making it ideal for capturing a wide range of barcodes in demanding environments. Read more

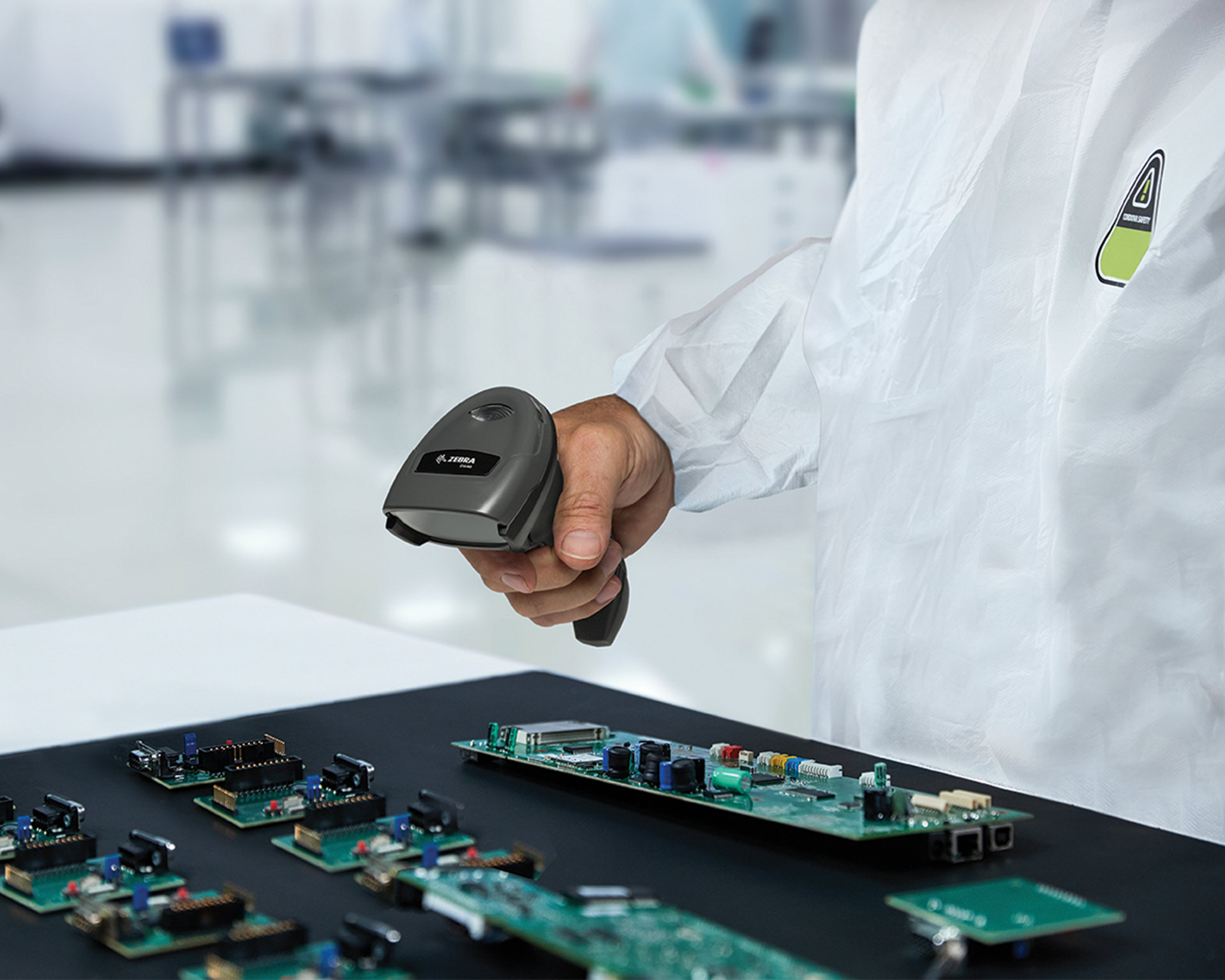

The Zebra DS4678-DPE is a cordless barcode scanner specifically designed for electronics and light industrial manufacturing environments. It excels in capturing a wide range of barcodes, including tiny and dense laser-etched direct part marks (DPMs) on plastic and metal subcomponents, as well as ink mark, chemical etch, inkjet mold, and thermal spray codes. Additionally, it can read 4-inch-wide barcodes found on carton labels and packages.
Key Features:
Primary Uses:
Dimensions
| Corded DS4608-DPE: 6.5 in H x 2.6 in W x 3.9 in D 16.5cm H x 6.7cm W x 9.8cm D Cordless DS4678-DPE: 6.6 in H x 2.6 in W x 4.2 in D 16.8cm H x 6.6cm W x 10.7cm D Standard Cradle: 2.8 in H x 3.3 in W x 8.3 in D 7.1cm H x 8.4cm W x 21.1cm D Presentation Cradle: 2.8 in H x 3.3 in W x 8.3 in D 7.1cm H x 8.4cm W x 21.1cm D |
| Weight | Corded: 5.7 oz (161.9g) Cordless: 7.9 oz (225g) Standard Cradle: 7.1 oz (201.3g) Presentation Cradle: 6.5 oz (184.3g) |
| Input Voltage Range | Corded: 4.5 to 5.5 VDC Host Powered; 4.5 to 5.5 VDC External Power Supply Standard/Presentation Cradle: 4.7 to 5.5 VDC Host Powered; 10.8 to 13.2 VDC External Power Supply |
| Operating Current at Nominal Voltage (5.0V) | Corded: 340 mA (typical) Standard/Presentation Cradle: 470 mA (typical) Standard USB; 743mA (typical) 12V |
| Standby Current (Idle) at Nominal Voltage (5.0V) | Corded: 150 mA (typical) |
| Color | Twilight Black |
| Supported Host Interfaces | USB, RS232, TGCS (IBM) 46XX over RS485 |
| Keyboard Support | Supports over 90 international keyboards |
| User Indicators | Direct Decode Indicator, Good Decode LEDs, Rear view LEDs, Beeper (adjustable tone and volume), haptic/vibration |
Performance Characteristics
| Light Source | Aiming Pattern: circular 528nm true green LED |
| Illumination | (2) warm white LEDs |
| Imager Field of View | 34° H x 21.6° V nominal |
| Image Sensor | 1280 x 800 pixels |
| Minimum Print Contrast | 15% minimum reflective difference |
| Skew/Pitch/Roll Tolerance | +/- 60°, +/- 60°, 0°–360° |
Imaging Characteristics
| Graphics Format Support | Images can be exported as Bitmap, JPEG or TIFF |
Symbol Decode Capability1
| 1D | Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma) |
| 2D | PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, DotCode, Dotted DataMatrix, MaxiCode, QR Code, Micro QR, Han Xin, Postal Codes, SecurPharm |
| Minimum Element Resolution | Code 39 – 2.0 mil DataMatrix – 4.0 mil |
User Environment
| Operating Temp. | +32.0F to +122.0F (0.0C to +50.0C) |
| Storage Temp. | -40.0F to +158.0F (-40.0C to +70.0C) |
| Humidity | 5% to 95% RH, non-condensing |
| Drop Specification | Designed to withstand multiple drops at 6.0 ft (1.8m) to concrete |
| Tumble Specification | Designed to withstand 2,000 tumbles in 1.5 ft (0.5m) tumbler |
| Sealing | IP52 |
| ESD | Scanner/Standard Cradle/Presentation Cradle: ESD per EN61000-4-2, +/-15 KV Air, +/-8 KV Direct, +/-8 KV Indirect |
| Ambient Light Immunity | 0 to 10,000 foot candles/0 to 107,000 Lux |
Radio Specifications (DS4678-DPE)
| Bluetooth Radio | Standard Bluetooth Version 5.2 with BLE: Class 1 330ft (100m) and Class 2 33ft (10m), Serial Port and HID Profiles; adjustable power: Class 1: output power adjustable down from 2dbm in 8 steps; Class 2: output power adjustable down from 0dbm in 8 steps |
Battery (DS4678-DPE)
Battery | Type: Li-Ion with asset reporting Capacity: 2,500 mAh Number of scans from full charge: 50,0003 Charge times from empty to full: 2 hours 15 minutes over external 12V 4 hours 30 minutes over external 5V 3 hours over BC1.2 USB 7 hours 45 minutes over standard USB |
Decode Ranges (Typical)2
Symbology/Resolution | Near/Far |
| Code 128: 2 mil | 0.3 in to 2.3 in (0.8cm to 5.8cm) |
| Code 128: 3 mil | 0 in to 3.5 in (0cm to 8.8cm) |
| Code 128: 15 mil | 4.2 in to 8.6 in (10.7cm to 21.8cm) |
| Code 39: 2 mil | 0.2 in to 3.0 in (0.5cm to 7.6cm) |
| Code 39: 3 mil | 0 in to 3.8 in (0cm to 9.6cm) |
| Code 39: 5 mil | 0 in to 5.2 in (0cm to 13.2cm) |
| PDF 417: 4 mil | 0 in to 3.3 in (0cm to 8.4cm) |
| PDF 417: 5 mil | 0 in to 3.8 in (0cm to 9.6cm) |
| PDF 417: 6.6 mil | 0 in to 4.5 in (0cm to 11.4cm) |
| UPC: 13 mil (100%) | 0 in to 8.5 in (0cm to 21.5cm) |
| DataMatrix: 4 mil | 0.2 in to 2.8 in (0.5cm to 7.1cm) |
| DataMatrix: 5 mil | 0 in to 3.4 in (0cm to 8.6cm) |
| DataMatrix: 10 mil | 0 in to 4.8 in (0cm to 12.2cm) |
| QR Code: 10 mil | 0 in to 4.5 in (0cm to 11.4cm) |
Utilities and Maintenance
| 123Scan | Programs scanner parameters, upgrades firmware, provides scanned barcode data and prints reports. www.zebra.com/123Scan |
| Scanner SDK | Generates a fully-featured scanner application, including documentation, drivers, test utilities and sample source code. www.zebra.com/windowssdk |
| Scanner Management Service (SMS) | Remotely manages your Zebra scanner and queries its asset information. www.zebra.com/sms |
Regulatory
| Environmental | 2011/65/EU and EN 50581:2012 and EN IEC 63000:2018 |
| Electrical Safety | UL 60950-1, second edition, CAN/CSA-C22.2 No. 60950-1-07. EN 60950-1:2006/A2:2013 IEC 60950-1:2005/A2:2013 IEC 62368-1 (ed.2); EN 62368-1:2014 |
| LED Safety | IEC 62471:2006 (Ed.1.0); EN 62471:2008 |
| EMI/RFI | FCC: 47 CFR Part 15, Subpart B, Class B ICES-003 Issue 6, Class B EN 55032, Class B EN 55024 EN 55035 EN 60601-1-2:2015, IEC 60601-1-2:2014 |
Accessories
| Gooseneck Intellistand, Cup, Standard Cradle, Presentation Cradle |
Warranty
| Subject to the terms of Zebra’s hardware warranty statement, the DS4678 and the CR8178 are warranted against defects in workmanship and materials for a period of three years from the date of shipment. The DS4608 is warranted against defects in workmanship and materials for a period of five years from the date of shipment. For the complete Zebra hardware product warranty statement, please visit: www.zebra.com/warranty |
Recommended Services
| Zebra OneCare Select; Zebra OneCare Essential; Zebra OneCare Battery Maintenance |
