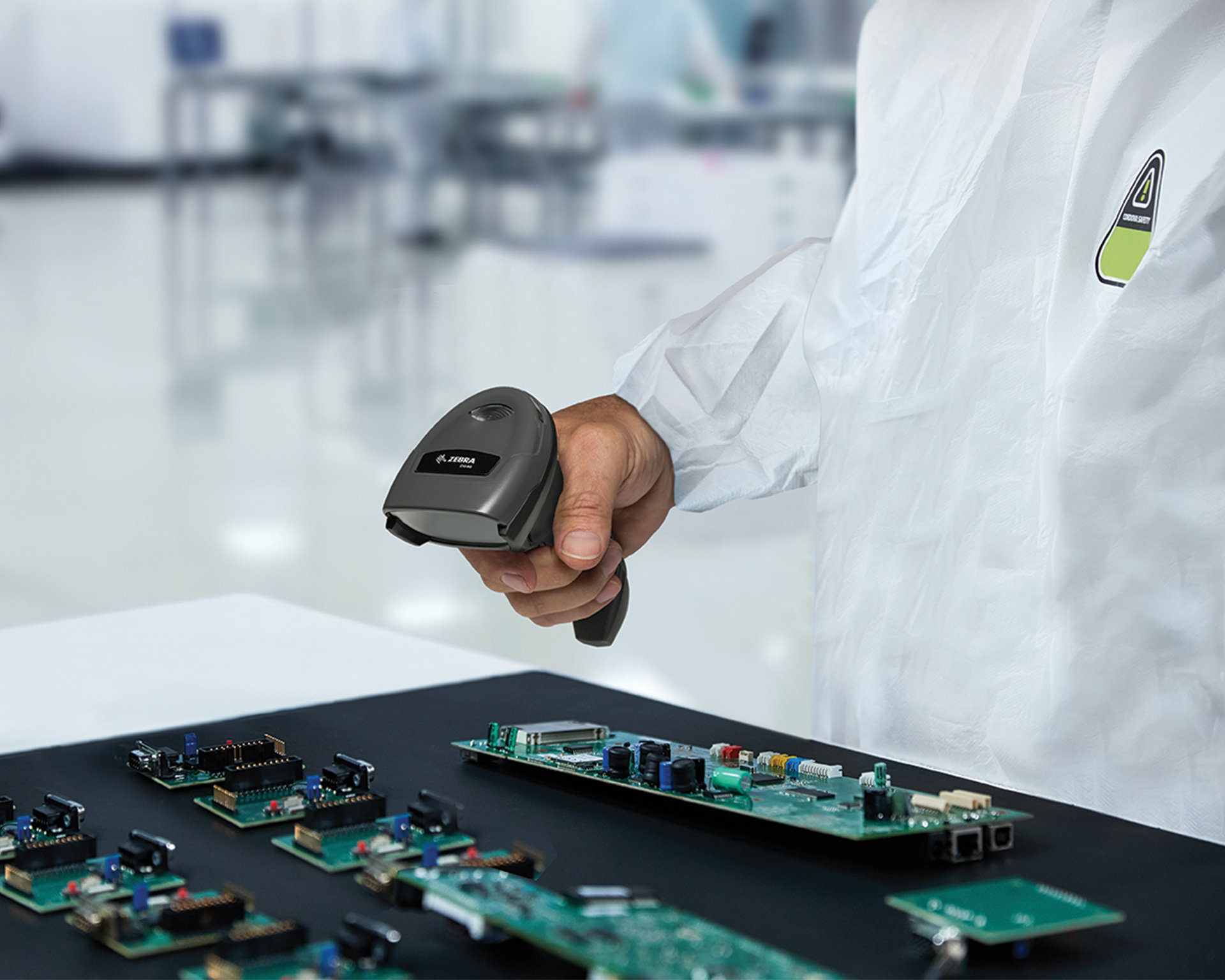

The Zebra DS4678-DPE is a cordless barcode scanner engineered for electronics and light industrial manufacturing. It offers advanced 2D imaging capabilities, rugged durability, and long battery life, making it ideal for capturing a wide range of barcodes in demanding environments. Read more

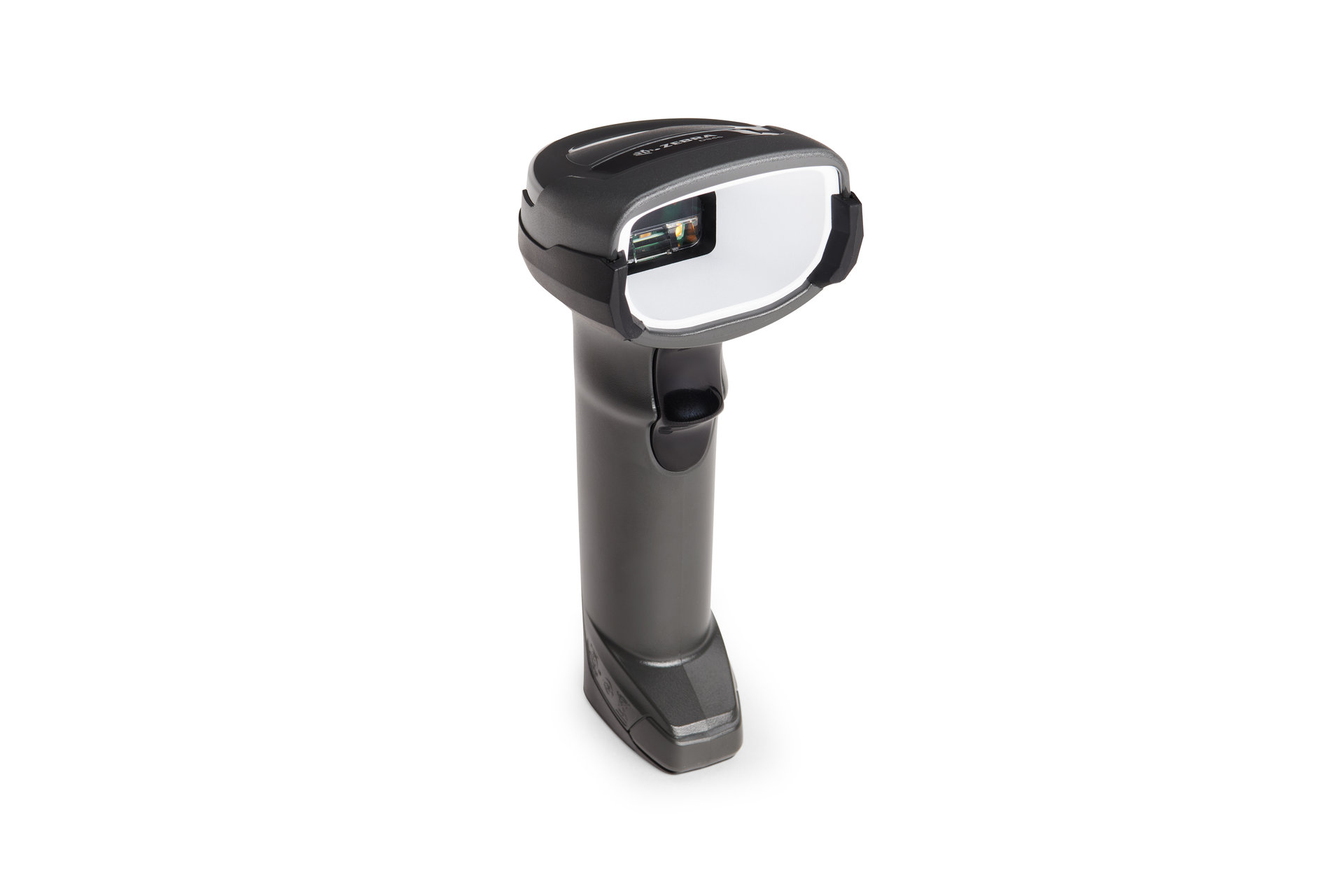

The Zebra DS4608-DPE is a high-performance barcode scanner engineered for precision scanning of direct part marks (DPMs) and standard barcodes in demanding industrial environments. It features an advanced 2D imaging engine capable of capturing 1D, 2D, and DPMs with rapid speed and accuracy on various surfaces. The scanner's rugged design includes an IP52-rated housing that is resistant to dust and water splashes, and it can withstand drops from up to 1.8 meters. Connectivity options include USB, RS-232, and Bluetooth, providing flexibility for integration into various systems.
Key Features:
Primary Uses:
Physical Characteristics
Dimensions
| Corded DS4608-DPE: 6.5 in H x 2.6 in W x 3.9 in D 16.5cm H x 6.7cm W x 9.8cm D Cordless DS4678-DPE: 6.6 in H x 2.6 in W x 4.2 in D 16.8cm H x 6.6cm W x 10.7cm D Standard Cradle: 2.8 in H x 3.3 in W x 8.3 in D 7.1cm H x 8.4cm W x 21.1cm D Presentation Cradle: 2.8 in H x 3.3 in W x 8.3 in D 7.1cm H x 8.4cm W x 21.1cm D |
| Weight | Corded: 5.7 oz (161.9g) Cordless: 7.9 oz (225g) Standard Cradle: 7.1 oz (201.3g) Presentation Cradle: 6.5 oz (184.3g) |
| Input Voltage Range | Corded: 4.5 to 5.5 VDC Host Powered; 4.5 to 5.5 VDC External Power Supply Standard/Presentation Cradle: 4.7 to 5.5 VDC Host Powered; 10.8 to 13.2 VDC External Power Supply |
| Operating Current at Nominal Voltage (5.0V) | Corded: 340 mA (typical) Standard/Presentation Cradle: 470 mA (typical) Standard USB; 743mA (typical) 12V |
| Standby Current (Idle) at Nominal Voltage (5.0V) | Corded: 150 mA (typical) |
| Color | Twilight Black |
| Supported Host Interfaces | USB, RS232, TGCS (IBM) 46XX over RS485 |
| Keyboard Support | Supports over 90 international keyboards |
| User Indicators | Direct Decode Indicator, Good Decode LEDs, Rear view LEDs, Beeper (adjustable tone and volume), haptic/vibration |
Performance Characteristics
| Light Source | Aiming Pattern: circular 528nm true green LED |
| Illumination | (2) warm white LEDs |
| Imager Field of View | 34° H x 21.6° V nominal |
| Image Sensor | 1280 x 800 pixels |
| Minimum Print Contrast | 15% minimum reflective difference |
| Skew/Pitch/Roll Tolerance | +/- 60°, +/- 60°, 0°–360° |
Imaging Characteristics
| Graphics Format Support | Images can be exported as Bitmap, JPEG or TIFF |
Symbol Decode Capability1
| 1D | Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma) |
| 2D | PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, DotCode, Dotted DataMatrix, MaxiCode, QR Code, Micro QR, Han Xin, Postal Codes, SecurPharm |
| Minimum Element Resolution | Code 39 – 2.0 mil DataMatrix – 4.0 mil |
User Environment
| Operating Temp. | +32.0F to +122.0F (0.0C to +50.0C) |
| Storage Temp. | -40.0F to +158.0F (-40.0C to +70.0C) |
| Humidity | 5% to 95% RH, non-condensing |
| Drop Specification | Designed to withstand multiple drops at 6.0 ft (1.8m) to concrete |
| Tumble Specification | Designed to withstand 2,000 tumbles in 1.5 ft (0.5m) tumbler |
| Sealing | IP52 |
| ESD | Scanner/Standard Cradle/Presentation Cradle: ESD per EN61000-4-2, +/-15 KV Air, +/-8 KV Direct, +/-8 KV Indirect |
| Ambient Light Immunity | 0 to 10,000 foot candles/0 to 107,000 Lux |
Radio Specifications (DS4678-DPE)
| Bluetooth Radio | Standard Bluetooth Version 5.2 with BLE: Class 1 330ft (100m) and Class 2 33ft (10m), Serial Port and HID Profiles; adjustable power: Class 1: output power adjustable down from 2dbm in 8 steps; Class 2: output power adjustable down from 0dbm in 8 steps |
Battery (DS4678-DPE)
Battery | Type: Li-Ion with asset reporting Capacity: 2,500 mAh Number of scans from full charge: 50,0003 Charge times from empty to full: 2 hours 15 minutes over external 12V 4 hours 30 minutes over external 5V 3 hours over BC1.2 USB 7 hours 45 minutes over standard USB |
Decode Ranges (Typical)2
Symbology/Resolution | Near/Far |
| Code 128: 2 mil | 0.3 in to 2.3 in (0.8cm to 5.8cm) |
| Code 128: 3 mil | 0 in to 3.5 in (0cm to 8.8cm) |
| Code 128: 15 mil | 4.2 in to 8.6 in (10.7cm to 21.8cm) |
| Code 39: 2 mil | 0.2 in to 3.0 in (0.5cm to 7.6cm) |
| Code 39: 3 mil | 0 in to 3.8 in (0cm to 9.6cm) |
| Code 39: 5 mil | 0 in to 5.2 in (0cm to 13.2cm) |
| PDF 417: 4 mil | 0 in to 3.3 in (0cm to 8.4cm) |
| PDF 417: 5 mil | 0 in to 3.8 in (0cm to 9.6cm) |
| PDF 417: 6.6 mil | 0 in to 4.5 in (0cm to 11.4cm) |
| UPC: 13 mil (100%) | 0 in to 8.5 in (0cm to 21.5cm) |
| DataMatrix: 4 mil | 0.2 in to 2.8 in (0.5cm to 7.1cm) |
| DataMatrix: 5 mil | 0 in to 3.4 in (0cm to 8.6cm) |
| DataMatrix: 10 mil | 0 in to 4.8 in (0cm to 12.2cm) |
| QR Code: 10 mil | 0 in to 4.5 in (0cm to 11.4cm) |
Utilities and Maintenance
| 123Scan | Programs scanner parameters, upgrades firmware, provides scanned barcode data and prints reports. www.zebra.com/123Scan |
| Scanner SDK | Generates a fully-featured scanner application, including documentation, drivers, test utilities and sample source code. www.zebra.com/windowssdk |
| Scanner Management Service (SMS) | Remotely manages your Zebra scanner and queries its asset information. www.zebra.com/sms |
Regulatory
| Environmental | 2011/65/EU and EN 50581:2012 and EN IEC 63000:2018 |
| Electrical Safety | UL 60950-1, second edition, CAN/CSA-C22.2 No. 60950-1-07. EN 60950-1:2006/A2:2013 IEC 60950-1:2005/A2:2013 IEC 62368-1 (ed.2); EN 62368-1:2014 |
| LED Safety | IEC 62471:2006 (Ed.1.0); EN 62471:2008 |
| EMI/RFI | FCC: 47 CFR Part 15, Subpart B, Class B ICES-003 Issue 6, Class B EN 55032, Class B EN 55024 EN 55035 EN 60601-1-2:2015, IEC 60601-1-2:2014 |
Accessories
| Gooseneck Intellistand, Cup, Standard Cradle, Presentation Cradle |
Warranty
| Subject to the terms of Zebra’s hardware warranty statement, the DS4678 and the CR8178 are warranted against defects in workmanship and materials for a period of three years from the date of shipment. The DS4608 is warranted against defects in workmanship and materials for a period of five years from the date of shipment. For the complete Zebra hardware product warranty statement, please visit: www.zebra.com/warranty |
