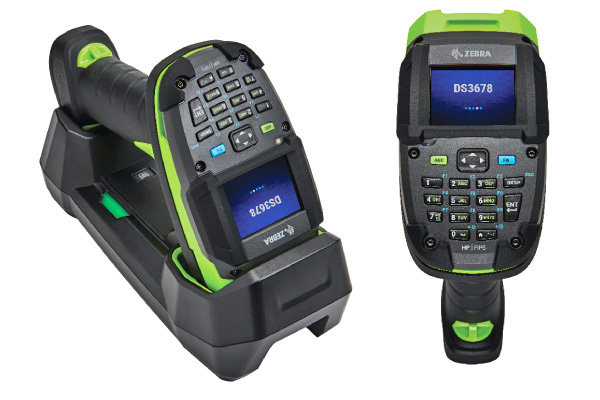

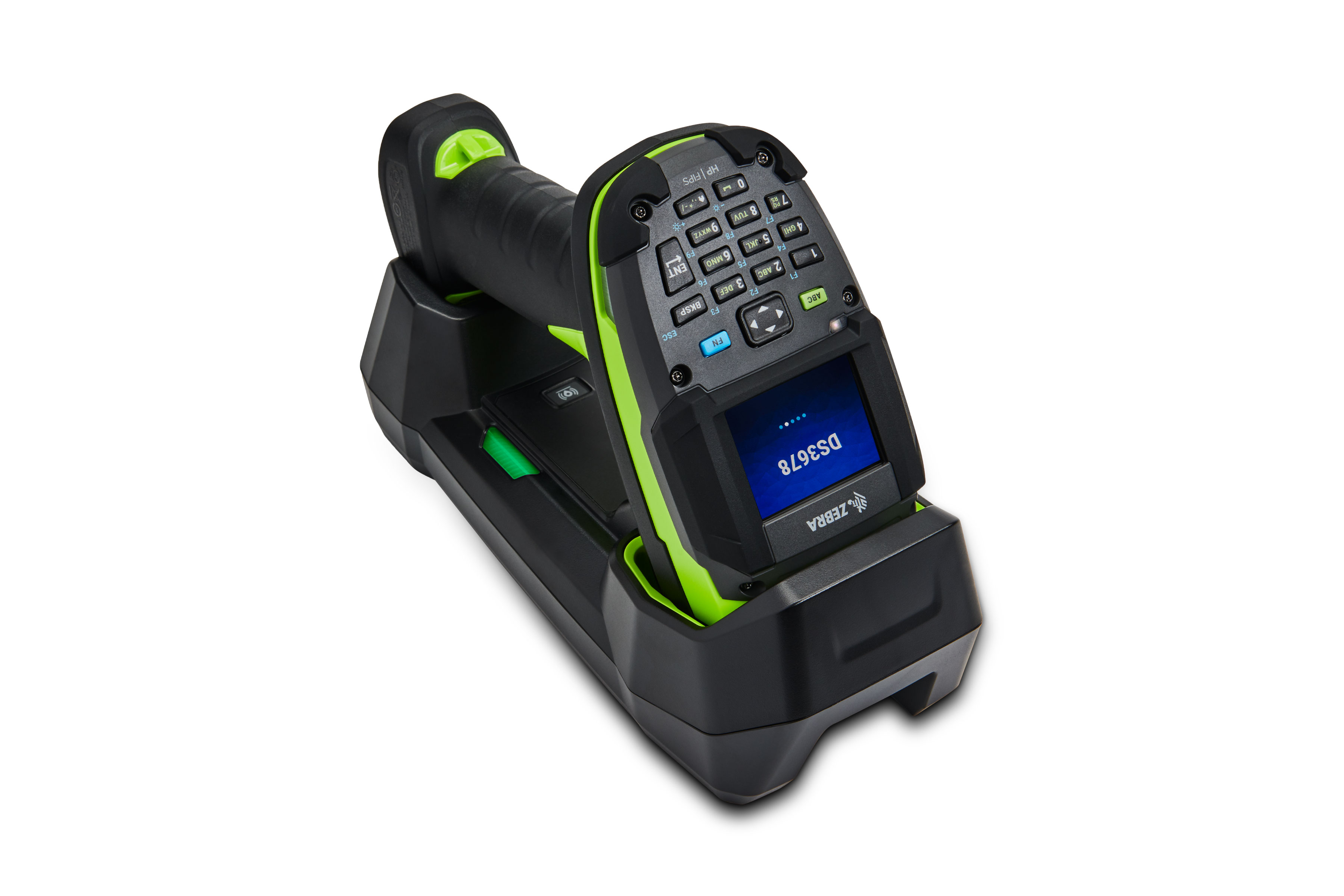

The DS3600-KD is another variant in Zebra's DS3600 series of ultra-rugged barcode scanners. The "KD" typically stands for Keypad Display, and this model comes equipped with a keypad and display for added functionality, often used in applications requiring more advanced input options, like manual data entry or custom actions.

1. Information with Features and Uses

Key Features:

• Keypad and Display Integration: The DS3600-KD features an integrated keypad and display, providing more control for users. This allows for additional functions, such as manual data entry, direct scanning results viewing, and customizable actions through the display and keypad.
• Ultra-Rugged Construction: Like other models in the DS3600 series, the DS3600-KD is built to withstand tough conditions, including drops, extreme temperatures, dust, and moisture. It's typically rated IP65 or higher for water and dust resistance.
• 1D and 2D Barcode Scanning: Capable of reading both 1D barcodes (such as UPC, EAN) and 2D barcodes (QR codes, DataMatrix, PDF417), making it versatile for various industries.
• Performance on Damaged or Poorly Printed Barcodes: Like other DS3600 models, the DS3600-KD can scan damaged, poorly printed, or low-contrast barcodes, reducing scanning errors and ensuring productivity.
• Extended Range Scanning: It is capable of scanning at extended ranges, particularly useful for reading barcodes on items stored on high shelves or from a distance.
• Multi-Connectivity Options: Includes Bluetooth, USB, and other connectivity options to integrate seamlessly with existing systems, ensuring easy setup.
• Long Battery Life: Designed for full-shift operation, the DS3600-KD offers extended battery life, allowing users to scan for long periods without needing to recharge.
• Customizable Display: The display can show scanning results, help screens, or data input fields, and the keypad allows users to make selections or enter additional information directly on the device.

Uses:

• Warehouse and Logistics: This scanner is particularly useful in environments where manual data entry is required in addition to barcode scanning, such as inventory management, picking, and packing tasks.
• Field Service: Ideal for service technicians or field workers who need both barcode scanning and the ability to enter additional information on-site, such as job codes, notes, or status updates.
• Retail and Distribution: Helps with inventory management, customer returns, or receiving and shipping processes, providing flexibility for users to scan, enter information, and view data directly on the device.
• Manufacturing and Production: Used for tracking parts or components in production lines or warehouses, where both barcode scanning and manual inputs are needed.



  Specifications

  Physical Characteristics

  Dimensions	7.5 in. H x 3.1 in. W x 5.6 in. D 19 cm H x 7.8 cm W x 14.3 cm D
  Weight	18 oz./510 g (includes battery pack)
  Input Voltage Range	Host powered: 4.5 VDC min., 5.5 VDC max. External power supply: 11.4 VDC min., 12.6 VDC max.
  Color	Industrial Green
  Display	2.0 in. QVGA (320 x 240) color display; Corning Gorilla Glass
  Backlight	LED backlit display
  Keypad	Backlit 19-key alpha-numeric, with blue and green shift-key functions
  Ambient Light Sensor	Automatically adjusts display and keypad backlight brightness
  Supported Host Interfaces	USB, RS232, Keyboard Wedge  Industrial Ethernet: EtherNet/IP, Profinet, Modbus TCP and Std TCP/IP
  Battery	PowerPrecision+ 3100 mAh Li-Ion rechargeable battery
  User Indicators	Direct decode indicator; LEDs; beeper; vibration

  Performance Characteristics

  Scans per Full Charge	60,000+
  Illumination	Two (2) warm white light LEDs
  Aimer	655 nm laser
  Imager Field of View	Horizontal: 31°, Vertical: 23°
  Image Sensor	1,280 x 960 pixels
  Min. Print Contrast	15% minimum reflective difference
  Skew/Pitch Roll Tolerance	+/- 60°; +/- 60°; 0-360°

  Decode Capabilities3

  1D	Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma)
  2D	PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Chinese Sensible (Han Xin), Postal Codes
  OCR	OCR-A/B, MICR-E13B, US Currency Serial Number
  IUID Support	Supports IUID parsing, the ability to read and separate IUID fields per application requirements

  User Environment

  Operating Temperature	-4° F to 122° F/-20° C to 50° C
  Storage Temperature	-40° F to 158° F/-40° C to 70° C
  Humidity	5% to 95% RH, non-condensing
  Drop Specification	Withstands multiple 10.0 ft./3.0 m drops to concrete at room temperature Withstands multiple 8.0 ft./2.4 m drops to concrete at -4° F to 122° F/-20° C to 50° C
  Tumble Specification	7500 3.3 ft./1.0 m tumbles
  Environmental Sealing	Scanner: IP65 and IP68 per applicable IEC sealing specifications FLB cradle: IP65
  Electrostatic Discharge (ESD)	Per EN61000-4-2, ±25 KV air discharge, ±10 KV direct discharge, ±10 KV indirect discharge
  Ambient Light Immunity	0 to 10,037 Foot Candles/0 to 108,000 Lux (direct sunlight)

  Wireless Connectivity

  Bluetooth RadioBluetooth Radio	Bluetooth Class 1, Version 4.0 (LE), serial port (SPP)
  Data Rate	3 Mbit/s (2.1 Mbit/s) for Classic Bluetooth 1 Mbit/s (0.27 Mbit/s) for Low Energy
  Radio Range	Direct line of sight in open air: Class 1: Minimum 300 ft. (100.0 m); Class 2: Minimum 30 ft. (10.0 m)

  Decode Ranges (Typical)4

  Symbology/Resolution	Near/Far
  Code 128: 5 mil	6.0-14.0 in./15.2-35.6 cm
  Code 128: 20 mil	5.0-45.0 in./12.7-114.3 cm
  Code 128: 40 mil	2.8-80 in./7.1-203.2 cm
  Datamatrix: 7.5 mil	7.0-11.0 in./17.8-27.9 cm
  Datamatrix: 10.0 mil	6.0-15.0 in./15.2-38.1 cm

  Regulatory

  Environmental	RoHS EN 50581: 2012
  Electrical Safety	EU Safety: EN 60950-1: 2006 + A11: 2009 + A1: 2010 + A12: 2011 + AC 2011 + A2: 2013; International Safety: IEC 60950-1: 2005 + A1: 2009 + A2: 2013 US/Canada Safety: UL 60950-1, second edition, CAN/CSA-C22.2 No. 60950-1-07
  Laser/LED Safety	International LED Safety: IEC 62471: 2006 (Ed.1.0); EN 62471: 2008 (LED); UL, VDE and CU recognized laser component
  EMI/RFI	IT Emissions: EN 55022: 2010/AC: 2011 (Class B); IT Immunity: EN 55024: 2010; Heavy Industrial: EN 61000-6-2: 2005/AC:2005; Harmonic Current Emissions: EN 61000-3-2: 2006 + A1: 2009 + A2: 2009 (Class B); Voltage Fluctuation and Flicker: EN 61000-3-3: 2013; Medical Electrical Equipment: EN 60601-1-2: 2007/ AC: 2010, IEC 60601-1-2: 2007 (Modified); Radio Frequency Devices: 47 CFR Part 15, Subpart B, Class B Digital Apparatus: ICES-003 Issue 5, Class B

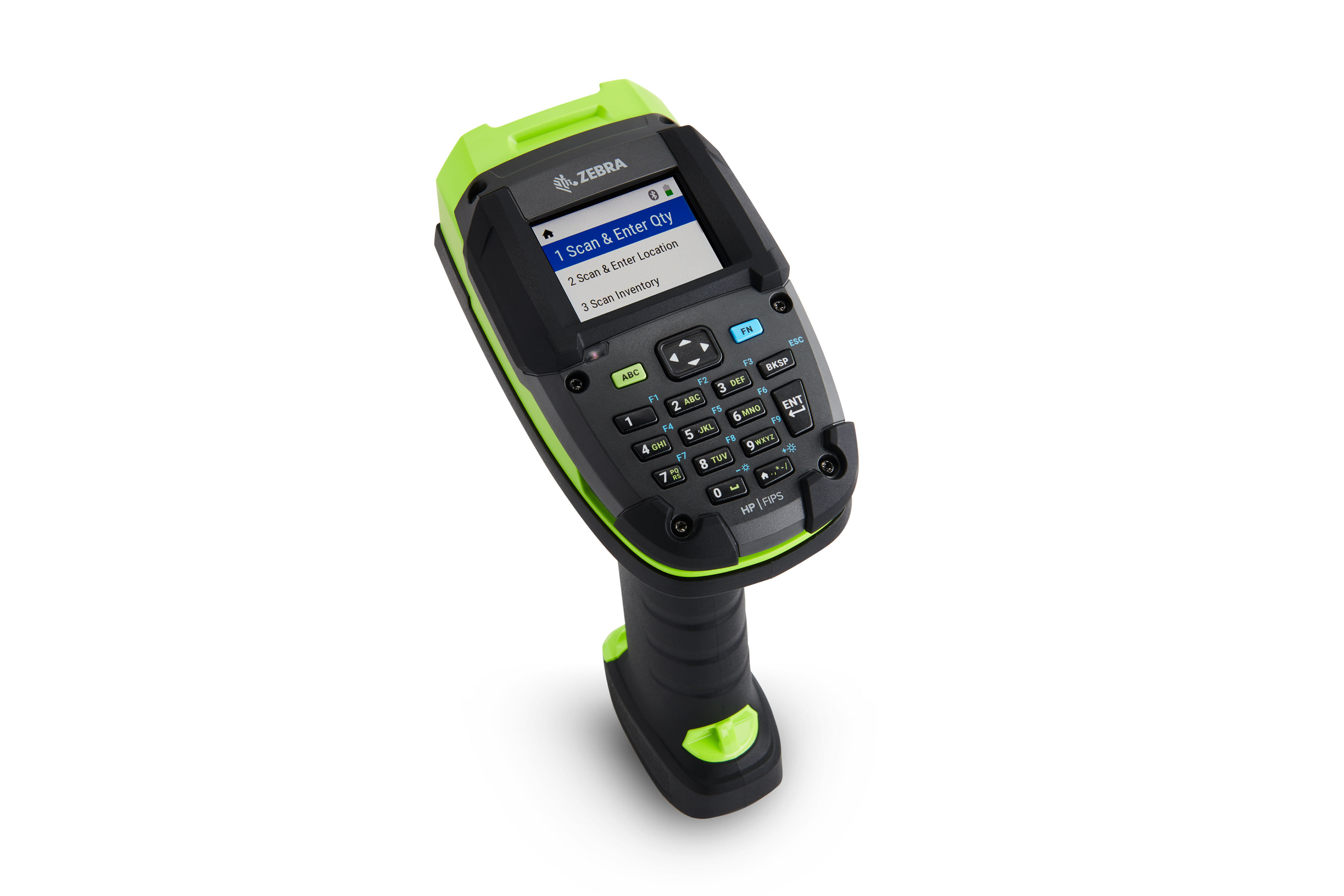

  Pre-built Applications

  Scan and Enter Quantity	Scan an item, then key in the quantity
  Scan and Enter Quantity/Location	Scan an item, then key in the quantity and location
  Inventory Scan	Key in data after scans while roaming from the host
  Match Scan	Verify that barcodes listed on the outside of a container match the barcodes on the items inside
  Image Viewer	Preview a captured image before sending it to the host

  Utilities and Management

  123Scan

  Programs scanner parameters, upgrades firmware, displays scanned barcode data, scanning statistics, battery health, asset data and prints reports. www.zebra.com/123scan

  Scanner SDK
