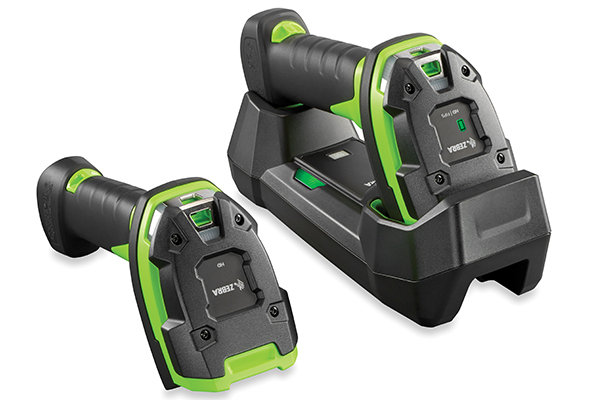

The LI3600-ER is an ultra-rugged barcode scanner from Zebra, built for extended-range scanning of both 1D and 2D barcodes. Its rugged design makes it suitable for use in tough environments such as warehouses, manufacturing, and field services. The scanner's ability to read barcodes from a distance and perform well on damaged barcodes ensures reliable performance in demanding applications. Its long battery life, high-speed scanning, and durability make it a reliable choice for industries requiring flexibility and high performance. Read more
The LI3600-ER is a model from Zebra Technologies and is part of their LI3600 series of ultra-rugged barcode scanners. The "ER" stands for Extended Range, meaning this model is designed for reading barcodes at longer distances than typical standard-range scanners.
Physical Characteristics
| Dimensions | Corded: 7.3 in. H x 3.0 in. W x 5.2 in. D |
| Weight | Corded: 11.5 oz./327 g |
| Input Voltage Range | Host powered: 4.5 VDC min., 12.6 VDC max. |
| Operating Current | LI3608-ER (corded): 250 mA (RMS typical) |
| Standby Current | LI3608-ER (corded): 110 mA (RMS typical) |
| Color | Industrial Green |
| Supported Host Interfaces | USB, RS232, Keyboard Wedge |
| Battery | PowerPrecision+ 3100 mAh Li-Ion rechargeable battery |
| User Indicators | Direct decode indicator; LEDs; beeper; vibration |
Performance Characteristics
| Scans per Full Charge | 100,000+ |
| Illumination | 660 nm LED |
| Aimer | 655 nm laser |
| Imager Field of View | 30.7° (H) |
| Image Sensor | 2,496 pixels |
| Minimum Print Contrast | 25% minimum reflective difference |
| Skew/Pitch/Roll | Skew: ± 65° |
Decode Capabilities2
| 1D | Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma) |
User Environment
| Operating Temp. | Corded: -22° F to 122° F/-30° C to 50° C |
| Storage Temp. | -40° F to 158° F/-40° C to 70° C |
| Humidity | 5% to 95% non-condensing |
| Drop Specification | LI36X8: Withstands multiple 10.0 ft/3.0 m drops to concrete at room temperature |
| Tumble Specification | 7500 3.3 ft./1.0 m tumbles |
| Sealing | Scanner: IP65 and IP68 per applicable IEC sealing specifications |
| ESD | Per EN61000-4-2, ±25 KV air discharge, ±10 KV direct discharge, ±10 KV indirect discharge |
| Ambient Light Immunity | 0 to 10,000 Foot Candles/0 to 107639 Lux (direct sunlight) |
Utilities and Maintenance
| 123Scan | Programs scanner parameters, upgrades firmware, provides scanned barcode data and prints reports. For more information, visit www.zebra.com/123Scan |
| Scanner SDK | Generates a fully-featured scanner application, including documentation, drivers, test utilities and sample source code. For more information, visit www.zebra.com/windowsSDK |
| Scanner Management Service (SMS) | Remotely manages your Zebra scanner and queries its asset information. For more information, visit www.zebra.com/sms |
| Network Connect | Seamlessly connects 3600 Series scanners directly to your Industrial Ethernet network with no additional conversion equipment. For more information, visit www.zebra.com/NetworkConnect |
| Bluetooth Radio | Bluetooth Class 1, Version 4.0 (LE), serial port (SPP)and HID profiles |
| Data Rate | 3 Mbit/s (2.1 Mbit/s) for Classic Bluetooth 1 Mbit/s (0.27 Mbit/s) for Low Energy |
| Radio Range | Direct line of sight in open air: Class 1: Minimum300 ft. (100.0 m); Class 2: Minimum 30 ft. (10.0 m) |
Regulatory
| Environmental | RoHS EN 50581: 2012 |
| Electrical Safety | EU Safety: EN 60950-1: 2006 + A11: 2009 + A1: 2010 + A12: 2011 + AC 2011 + A2: 2013; International Safety: IEC 60950-1: 2005 + A1: 2009 + A2: 2013US/Canada Safety: UL 60950-1, second edition, CAN/CSA-C22.2 No. 60950-1-07 |
| Laser/LED Safety | Complies with 21 CFR1040.10 and 1040.11 except for deviations pursuant to Laser Notice NO. 50, dated June 24, 2007 and IEC/EN 60825-1:2007 and/or IEC/EN 60825-1:2014 |
| EMI/RFI | IT Emissions: EN 55022: 2010/AC: 2011 (Class B);IT Immunity: EN 55024: 2010; Heavy Industrial: EN 61000-6-2: 2005/AC:2005; Harmonic Current Emissions: EN 61000-3-2: 2006 + A1: 2009 + A2: 2009 (Class B); Voltage Fluctuation and Flicker:EN 61000-3-3: 2013; Medical Electrical Equipment: EN 60601-1-2: 2007/AC: 2010, IEC 60601-1-2: 2007 (Modified); Radio Frequency Devices: 47 CFR Part 15, Subpart B, Class B Digital Apparatus: ICES-003 Issue 5, Class B |
Decode Ranges (Typical)3
| Symbology/Resolution | Near/Far |
| Code 39: 7.5 mil | 3 to 28 in./7.6 to 71.2 cm |
| Code 39: 10 mil | 2 to 70 in./5.1 to 177.8 cm |
| Code 128: 15 mil | 5 to 85 in./12.7 to 215.9 cm |
| Code 39: 20 mil | 3 to 140 in./7.62 to 355.6 cm |
| Code 39: 55 mil | 6 to 350 in./15.24 to 889.0 cm |
| Code 39: 100 mil | 20 to 680 in./50.8 to 1727.2 cm |
| Code 39: 100 mil Reflective | 30 to 780 in./76.2 to 1981.2 cm |
Warranty
| Subject to the terms of Zebra’s hardware warranty statement, the LI3608-ER/LI3678-ER is warranted against defects in workmanship and materials for a period of three (3) years from the date of shipment. For complete warranty statement, go to: http://www.zebra.com/warranty |
Recommended Services
| Zebra OneCare™ Select; Zebra OneCare Essentials |
Footnotes
| 1. Heated scanner holder accessory recommended to reduce condensation on the outside of scan window when moving in and out of freezers. 2. Refer to Product Reference Guide for complete list of symbologies. Specifications are subject to change without notice. 3. Printing resolution, contrast, and ambient light dependent. |
DataCapture DNA
| For more information about DataCapture DNA and its applications, please visit www.zebra.com/datacapturedna |
