The Zebra LS2208 is a high-performance corded 1D laser barcode scanner designed to enhance productivity across various industries, including retail, warehousing, and light manufacturing. It offers fast and reliable scanning in an ergonomic, lightweight form, making it ideal for environments where space is limited and efficiency is crucial. The LS2208 can capture virtually any 1D barcode, including high-density ones, ensuring versatility for modern business needs.
Key Features:
Primary Uses:
Physical Characteristics
| Dimensions | 6.0 in. H x 2.5 in. W x 3.3 in. D 15.2 cm. H x 6.4 cm. W x 8.5 cm. D |
| Weight | 5.3 oz./150.0 g |
| Input Voltage Range | 4.5 to 5.5 VDC host powered; 4.5 to 5.5 VDC external power supply |
| Operating Current at Nominal Voltage (5.0V) | 175 mA (typical) |
| Standby Current (idle) at Nominal Voltage (5.0V) | 90 mA (typical) |

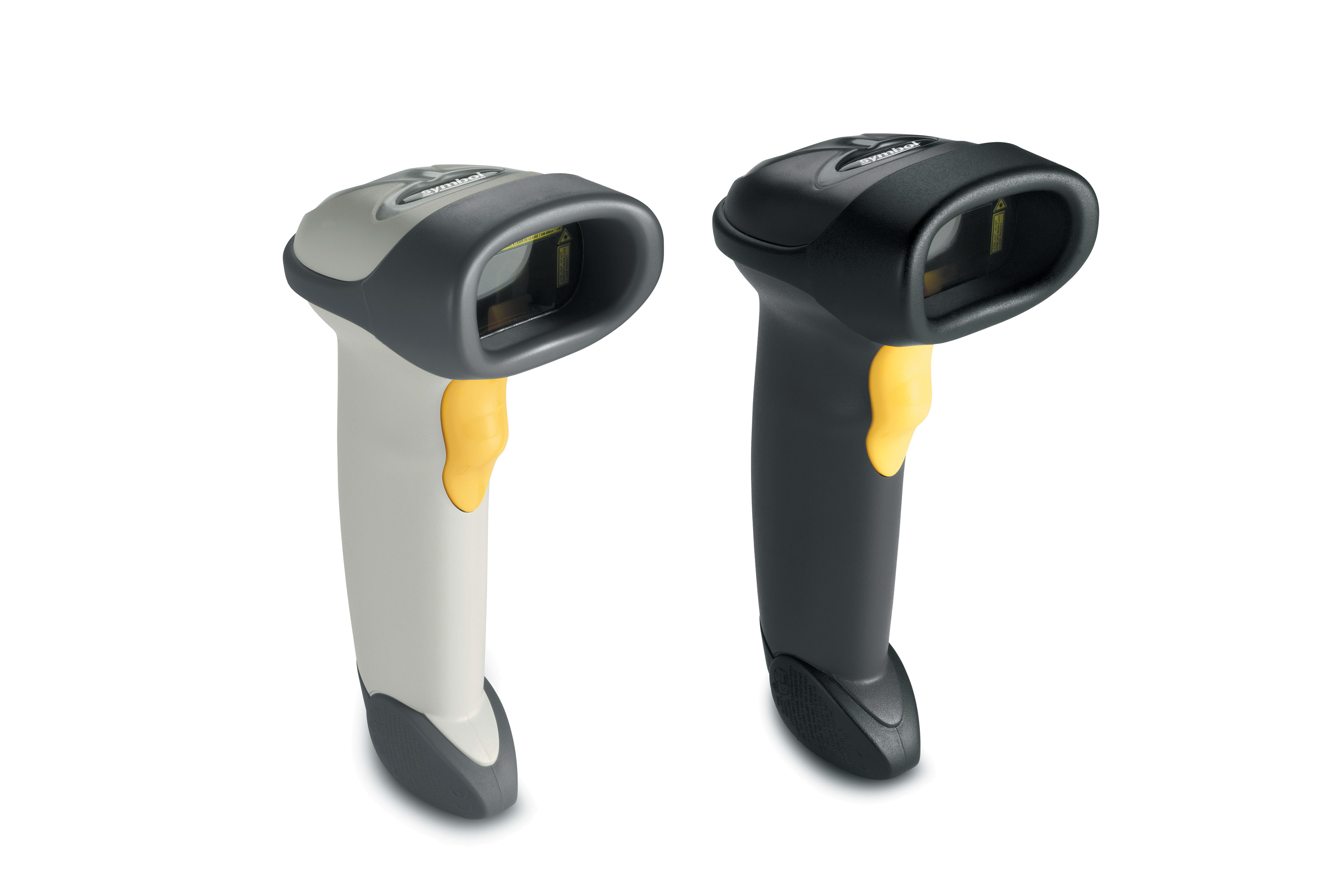

| Color | Cash Register White, Twilight Black |
| Supported Host Interfaces | USB, RS232, Keyboard Wedge, TGCS (IBM) 46XX over RS485 |
| Keyboard Support | Supports over 90 international keyboards |
| User Indicators | Direct decode indicator, good decode LEDs, beeper (adjustable tone/volume) |
Performance Characteristics
| Light Source | 650 nm Laser Diode Class 2 |
| Scan Pattern | Single line |
| Scan Speed | 100 scans per second |
| Scan Angle | 35° |
| Minimum Print Contrast | 20% minimum reflective difference |
| Skew Tolerance | ± 10° |
| Pitch Tolerance | ± 65° |
| Roll Tolerance | ± 60° |
User Environment
| Operating Temperature | 32° to 122° F/0° to 50° C |
| Storage Temperature | -40° to 158° F/-40° to 70° C |
| Humidity | 5% - 95% RH, non-condensing |
| Drop Specification | Designed to withstand multiple drops at 5.0 ft./1.5 m to concrete |
| Tumble Specification | Designed to withstand 500 tumbles in 1.64 ft./0.5 m tumbler |
| Environmental Sealing | IP30 |
| Electrostatic Discharge (ESD) | ESD per EN61000-4-2, +/-15 KV Air, +/-8 KV Direct, +/-8 KV Indirect |
| Ambient Light Immunity | 0 to 8,000 Foot Candles / 0 to 86,080 Lux; tolerant to typical artificial indoor and natural outdoor (direct sunlight) lighting conditions; Fluorescent, Incandescent, Mercury Vapor, Sodium Vapor, LED4: 450 Ft. Candles (4,844 Lux) Sunlight: 8000 Ft. Candles (86,111 Lux) |
Symbol Decode Capability
| Scanning Technology | Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma). Refer to Product Reference Guide for complete list of symbologies. |
| Minimum Element Resolution | Code 39: 3.0 mil |
Accessories

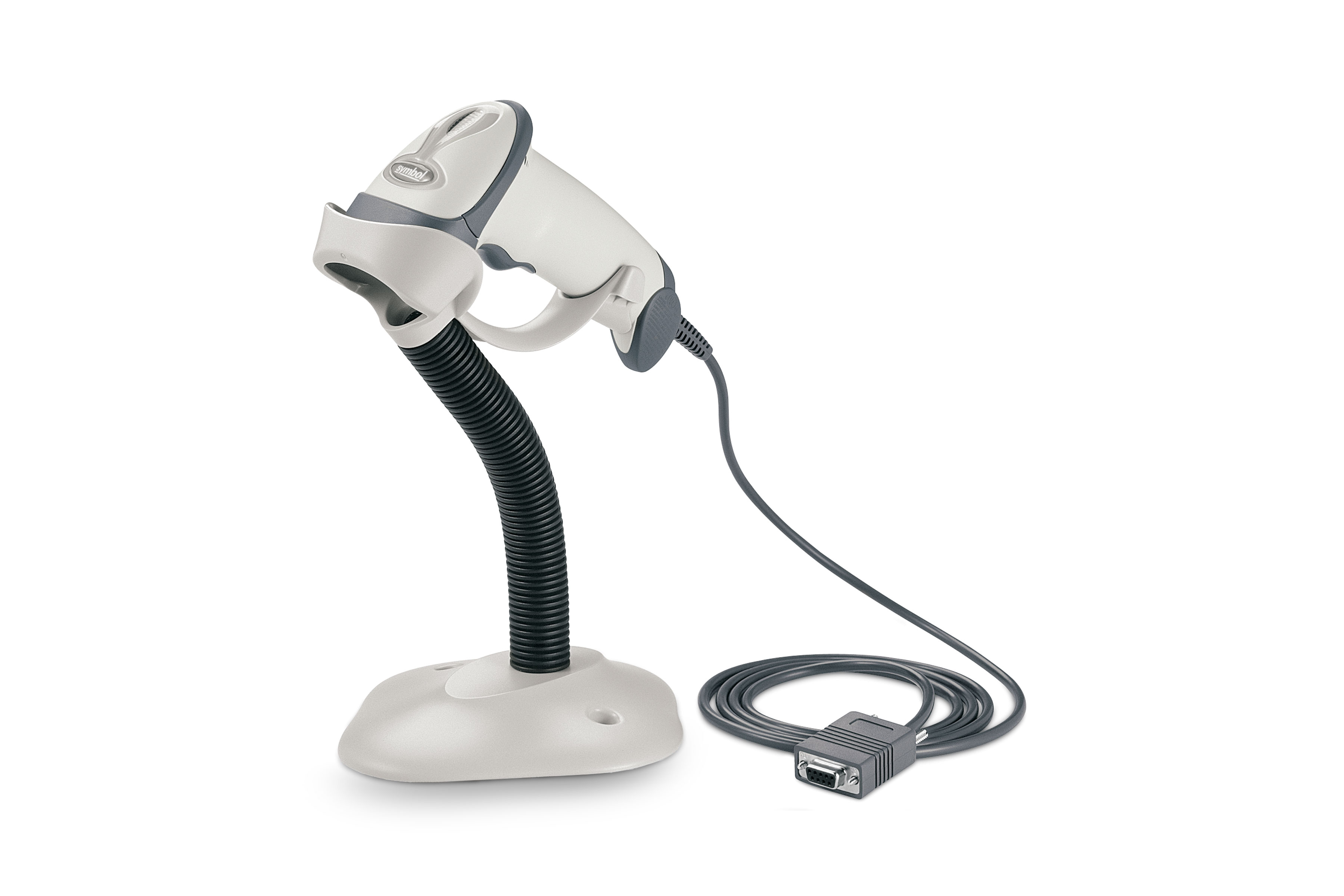

| Gooseneck Intellistand |
Regulatory
| Electrical Safety | EN 60950-1: 2006 + A11: 2009 + A1: 2010 + A12: 2011 + AC 2011; IEC 60950-1: 2005 + A1: 2009; UL 60950-1, second edition; CAN/CSA-C22.2 No. 60950-1-07 |
| EMI/RFI | FCC 47 CFR Part 15, Subpart B, Class B; ICES-003 Issue 4, Class B; Compliant with EMC Directive 2004/108/EC |
| Laser Safety | CDRH Class II; IEC Class 2 |
| Environmental | Compliant with RoHS Directive 2011/65/EU; EN 50581: 2012 |
| Visit www.zebra.com/ls2208 for complete regulatory information. For countries outside USA, Canada, European Economic Area or Australia, consult your local Zebra representative. |
Utilities And Management
| 123Scan | Programs scanner parameters, upgrades firmware, provides scanned bar code data and prints reports. For more information, visit www.zebra.com/123Scan |
| Symbol Scanner SDK | Generates a fully-featured scanner application, including documentation, drivers, test utilities and sample source code. For more information, visit www.zebra.com/windowsSDK |
| Scanner Management Service (SMS) | Remotely manages your Zebra scanner and queries its asset information. For more information, visit www.zebra.com/sms |
Warranty
| Subject to the terms of Zebra’s hardware warranty statement, the LS2208, is warranted against defects in workmanship and materials for a period of five years from the date of shipment. Limited lifetime warranty on the scan element. Complete Zebra hardware product warranty statement: www.zebra.com/warranty |
Recommended Services
| Zebra OneCare Select; Zebra OneCare Service Center Select |
Decode Ranges (Typical*)
| Symbology/Resolution | Near/Far |
| Code 39: 3 mil | 1.6 - 4.8 in./4.1 - 12.2 cm |
| Code 39: 4 mil | 1.3 - 8.7 in./3.3 - 22.1 cm |
| Code 39: 5 mil | 0.9 - 11.7 in./2.3 - 29.7 cm |
| Code 39: 7.5 mil | 0.1 - 19.1 in./0.3 - 48.5 cm |
| Code 39: 20 mil | 0 - 33.8 in./0 - 85.9 cm |
| Code 39: 40 mil | 1 - 43.1 in./2.5 - 109.5 cm |
| UPC: 13 mil (100%) | 0 - 25.1 in./0 - 63.8 cm |
| * Printing resolution, contrast and ambient light dependent. |
