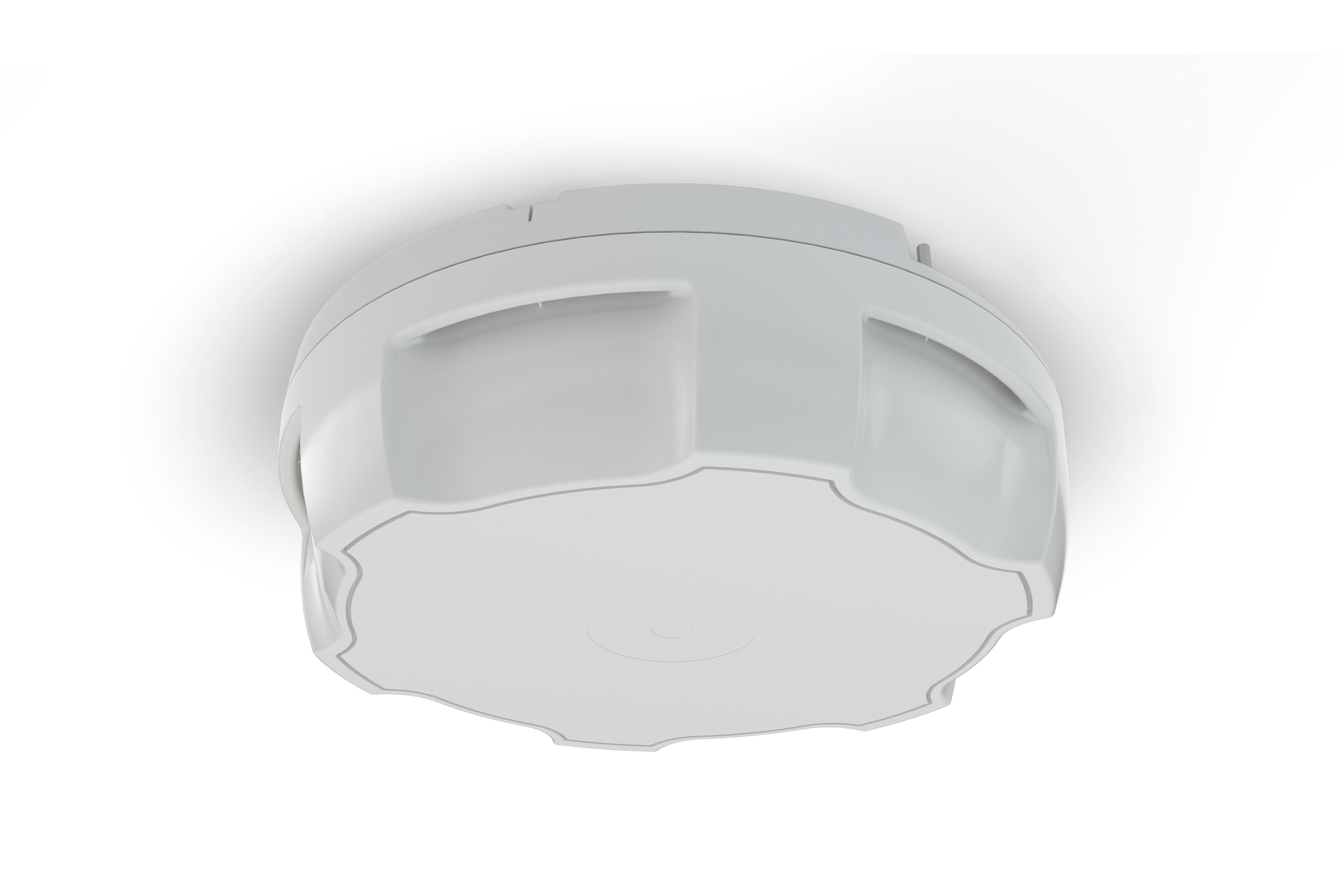

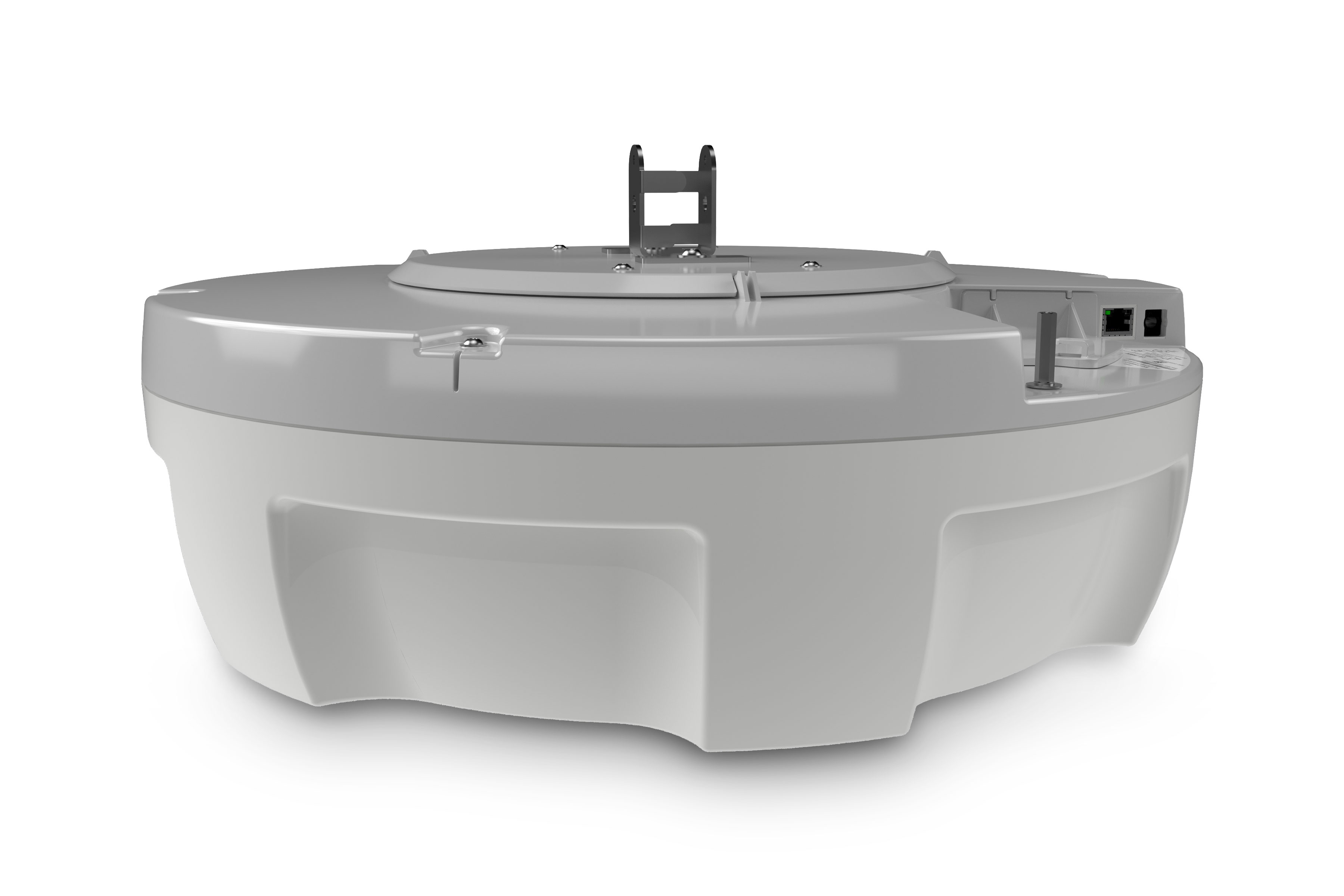

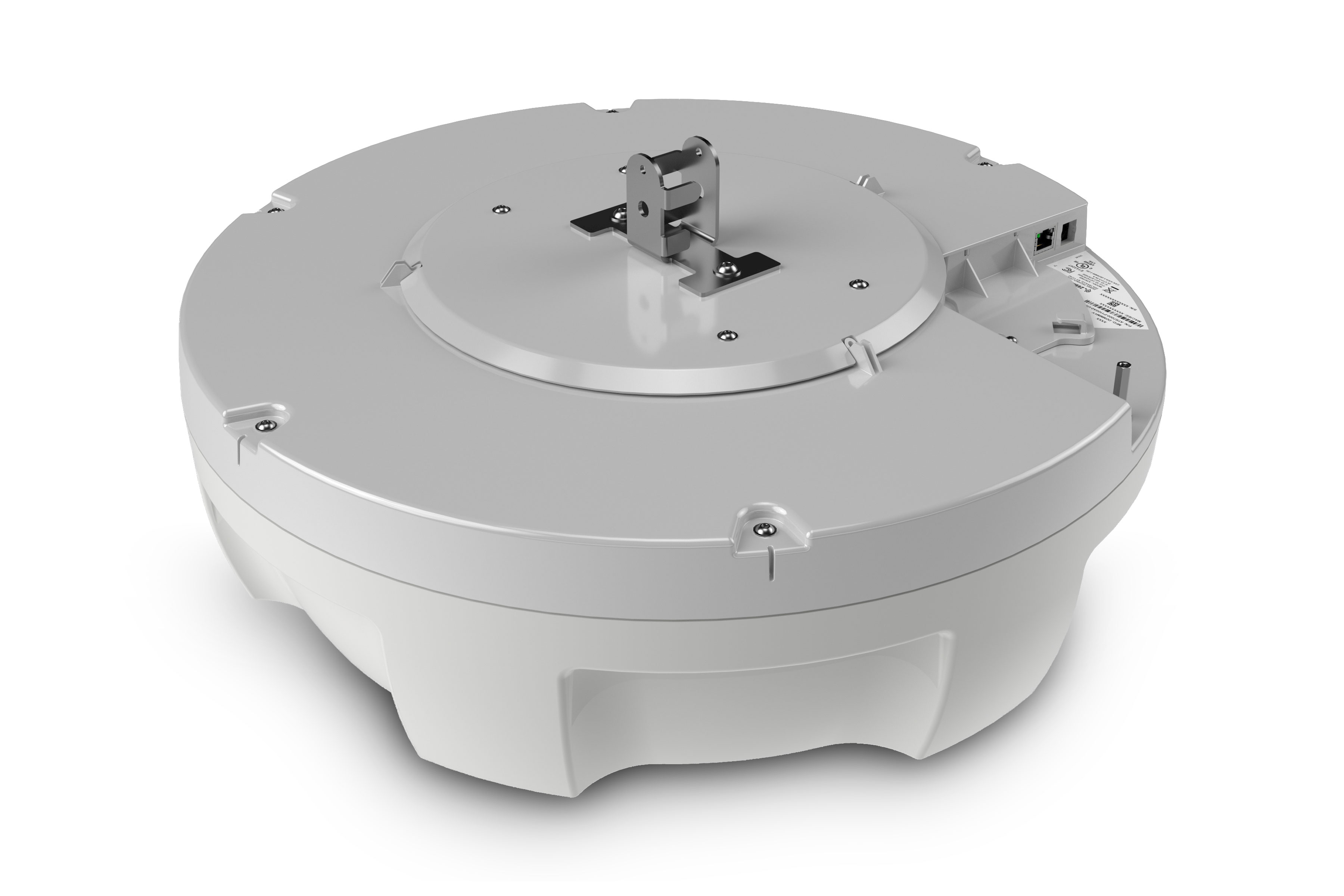

The ATR7000 RTLS Reader is a real-time location system (RTLS) solution from Zebra Technologies designed to provide highly accurate and efficient tracking of assets, people, and inventory within a defined area. It combines UHF RFID and RTLS technology to offer real-time visibility and tracking capabilities that help organizations improve operational efficiency, reduce losses, and enhance workflow management.

Key Features of the ATR7000 RTLS Reader:

• UHF RFID and RTLS Integration:

  • The ATR7000 integrates UHF RFID technology with RTLS capabilities, allowing it to track assets in real time within a facility. It can accurately pinpoint the location of tagged assets, employees, or inventory within a building, warehouse, or other defined area.

• Long Range and High Sensitivity:

  • The ATR7000 is capable of reading RFID tags over long distances, with the ability to detect and track tags up to 30 meters (100 feet) or more, depending on environmental factors and the type of tag used.
  • It can maintain a high level of sensitivity even in environments with challenging conditions, such as dense metal areas or high-tag populations.

• Real-Time Location Tracking:

  • The ATR7000 provides real-time location data that can be used to accurately track and monitor assets and personnel. This capability helps improve operational visibility, minimize asset loss, and optimize workflows.
  • The system is ideal for industries such as manufacturing, warehousing, logistics, healthcare, and retail, where tracking items in real time is crucial for operational success.

• Multi-Tag Reading:

  • It supports multi-tag reading, allowing the ATR7000 to track and read multiple RFID tags simultaneously. This feature is useful for environments where many items are in motion or located in close proximity to one another.

• High-Performance Processing:

  • The ATR7000 is equipped with high-performance processors that enable fast and efficient processing of RFID signals. This helps ensure that location data is captured quickly and accurately, even in environments with high traffic or large amounts of data.

• Integrated Software and Analytics:

  • The ATR7000 works seamlessly with Zebra's RTLS software suite, providing advanced location tracking and analytics capabilities. This allows businesses to gain deeper insights into their operations and make data-driven decisions for better asset management and process optimization.

• Flexible Deployment:

  • The ATR7000 can be installed in a variety of settings, such as ceilings, walls, or other strategic locations within a facility. It provides flexibility in deployment, making it adaptable to a range of different facility layouts.
  • It is designed for ease of installation and integration into existing infrastructure, allowing for minimal disruption during setup.

• Rugged Design:

  • The ATR7000 is built to withstand the demands of industrial environments. It is durable, with a high level of protection against dust, water, and other environmental factors, making it suitable for use in warehouses, factories, and outdoor areas.

• Network Connectivity:

  • The ATR7000 supports standard network protocols such as Ethernet and Wi-Fi, enabling easy integration with existing network systems. This connectivity ensures that real-time data captured by the reader can be transmitted to backend systems or cloud-based platforms for analysis and reporting.

• Security and Privacy:

  • With built-in security protocols, the ATR7000 ensures that RFID data is transmitted securely, safeguarding sensitive information and protecting against unauthorized access.

Use Cases:

• Asset Tracking:

  • The ATR7000 is commonly used in industries like manufacturing, warehousing, and logistics to track and monitor assets such as machinery, equipment, pallets, and tools. It helps businesses reduce asset loss and improve inventory management.

• Personnel Tracking:

  • In healthcare or large facilities, the ATR7000 can be used for tracking personnel and ensuring safety by monitoring the location of workers, ensuring they are within safe zones or following specific workflow paths.

• Supply Chain and Logistics:

  • In supply chain operations, the ATR7000 can track shipments, pallets, and packages as they move through various stages of the supply chain, enhancing visibility and improving operational efficiency.

• Retail and Inventory Management:

  • In retail environments, the ATR7000 can provide real-time inventory tracking, reducing the risk of stockouts, loss, or theft and improving supply chain management.

• Manufacturing:

  • The ATR7000 enables real-time monitoring of inventory and production assets in manufacturing environments, helping businesses improve operational efficiency and reduce downtime.



    Specifications

    Physical Characteristics

    Dimensions	Diameter 19.0 in. (482.6 mm) , height 6.34 in. (161 mm)
    Weight	11.1 lbs ( 5.03 kg)
    Visual Status Indicator	Multi-Color LED (Power, Status)

    RFID Characteristics

    Antenna	Steerable phase-array
    Air Interface Protocol	EPCglobal UHF RFID Class 1 Gen2/ISO 18000-63
    Max Receive Sensitivity	- 88 dBm
    Beam Scanning Range	Azimuth 0-360°, Elevation 0-60°
    Frequency (UHF Band)	902-928 MHz (US and Canada) 865-868 MHz (EMEA and India)

    Connectivity

    Network Connectivity	10/100 BaseT Ethernet (RJ45)
    General Purpose I/O	Reserved, two (2) inputs, three (3) outputs (Opto-isolated)

    Environmental Characteristics

    Operating Temp	-4° F to +131° F / -20° C to +55° C
    Storage Temp	-40° F to +158° F / -40° C to +70° C
    Humidity	5-95% non-condensing
    Sealing	IEC IP51
    ESD	± 15 KVdc air discharge; ± 8 KVdc direct/indirect discharge
    Vibration	MIL STD 810F, 0.04g2/Hz, Random (20 Hz to 2 kHz), 6G rms.

    Management Interface

    Operating System	Linux
    Standard API Support	Host Application .Net, C and Java EMDK
    Management Protocols	RM1.01 (with XML over HTTP/HTTPS and SNMP binding); RDMP specification in ISO 24791-3
    Firmware Upgrade	Web-based and remote firmware upgrade capabilities
    Network Services	DHCP, HTTPS, FTPS, SFTP, SCP, SSH, HTTP, FTP, SNMP and NTP
    Network Stack	IPv4, IPv6
    Security	Transport Layer Security Ver. 1.2, FIPS 140-2 Level 1
    Host Interface Protocol	LLRP v1.0.1

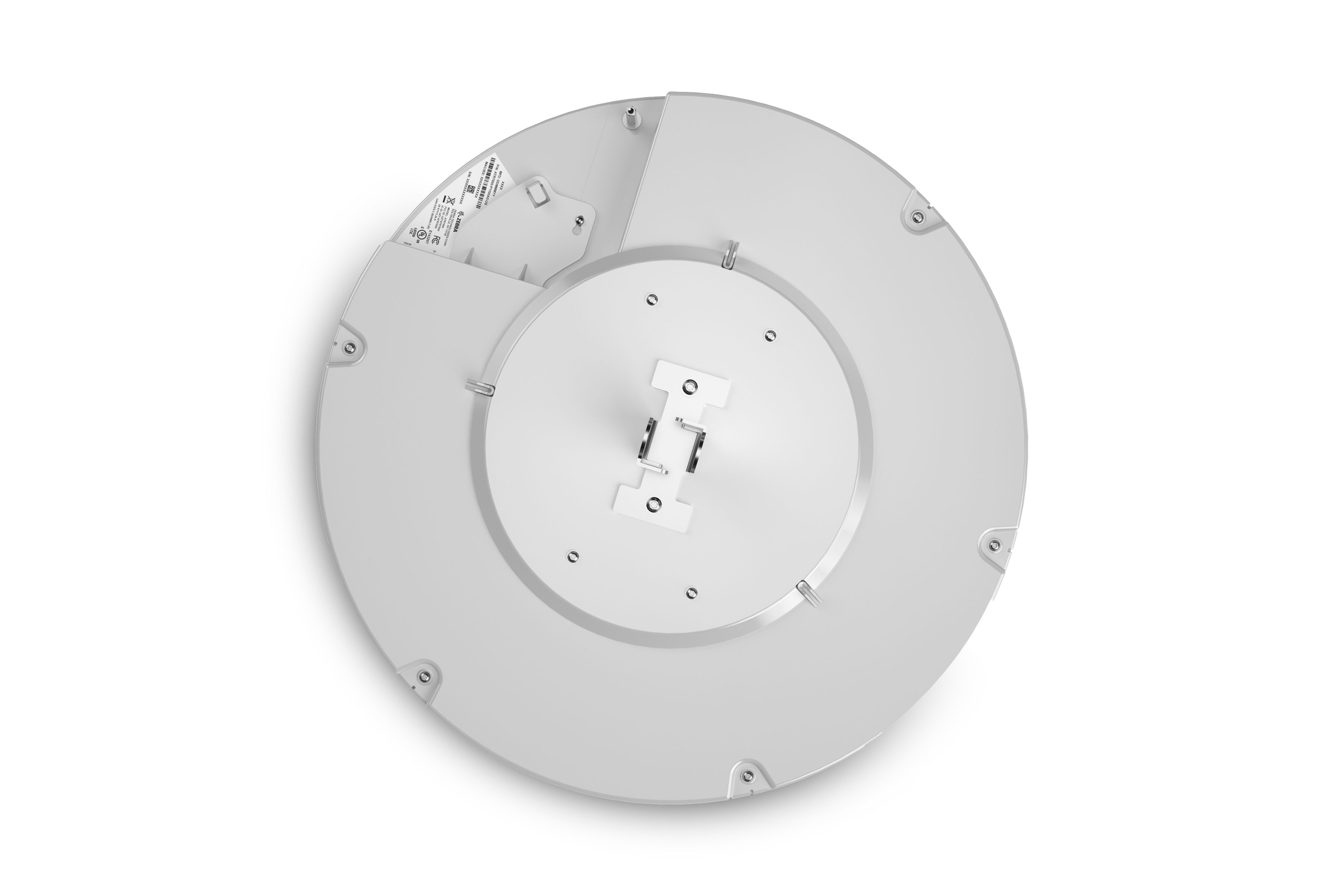

    Mounting

    Direct attach (pole mount) or VESA 75 or VESA 100

    Power Sources

    POE+ (802.3at) or AC-DC power supply rated for +24Vdc, 3.25 A

    Power Consumption

    Maximum Power	24 W
    Idle Power	<4 W

    Configuration and Location Analytics Software (CLAS) (Licensed)

    RTLS Config	Server software responsible for Initialization, management and monitoring
    Location Analytics	Estimates bearings of RFID tags using advanced parallel processing techniques, computes (triangulates) location estimates from tags observed from one or more readers, and publishes tag ID and location on a KAFKA interface.
    Location Accuracy	2 ft. / 0.6 m, R50 4 ft. / 1.2 m, R95

    Regulatory Compliance

    Safety	UL 60950-01, IEC 62368-1, IEC-60950-1, EN 60950-1
    RF/EMI/EMC	FCC Part 15, RSS 210, EN 302 208, ICES-003 Class B, EN 301 489-1/3
    Other	ROHS, WEEE

    Product Warranty

    Subject to the terms of Zebra Technology’s hardware warranty statement, the ATR7000 is warranted against defects in workmanship and materials for a period of 1 (one) year from the date of shipment. For complete warranty statement, please visit: www.zebra.com/warranty

    Recommended Services

    Support services	Zebra OneCare, On-site System Support
    Advanced Services	RFID Design and Deployment Services

    Markets and Applications

    Warehousing and Manufacturing

    • Area monitoring
    • Overhead portal
    • Dock doors
    • Entry/exit areas
    • Large area monitoring
    • Item location, transition and direction
    • Industrial automation
    • Asset tracking
