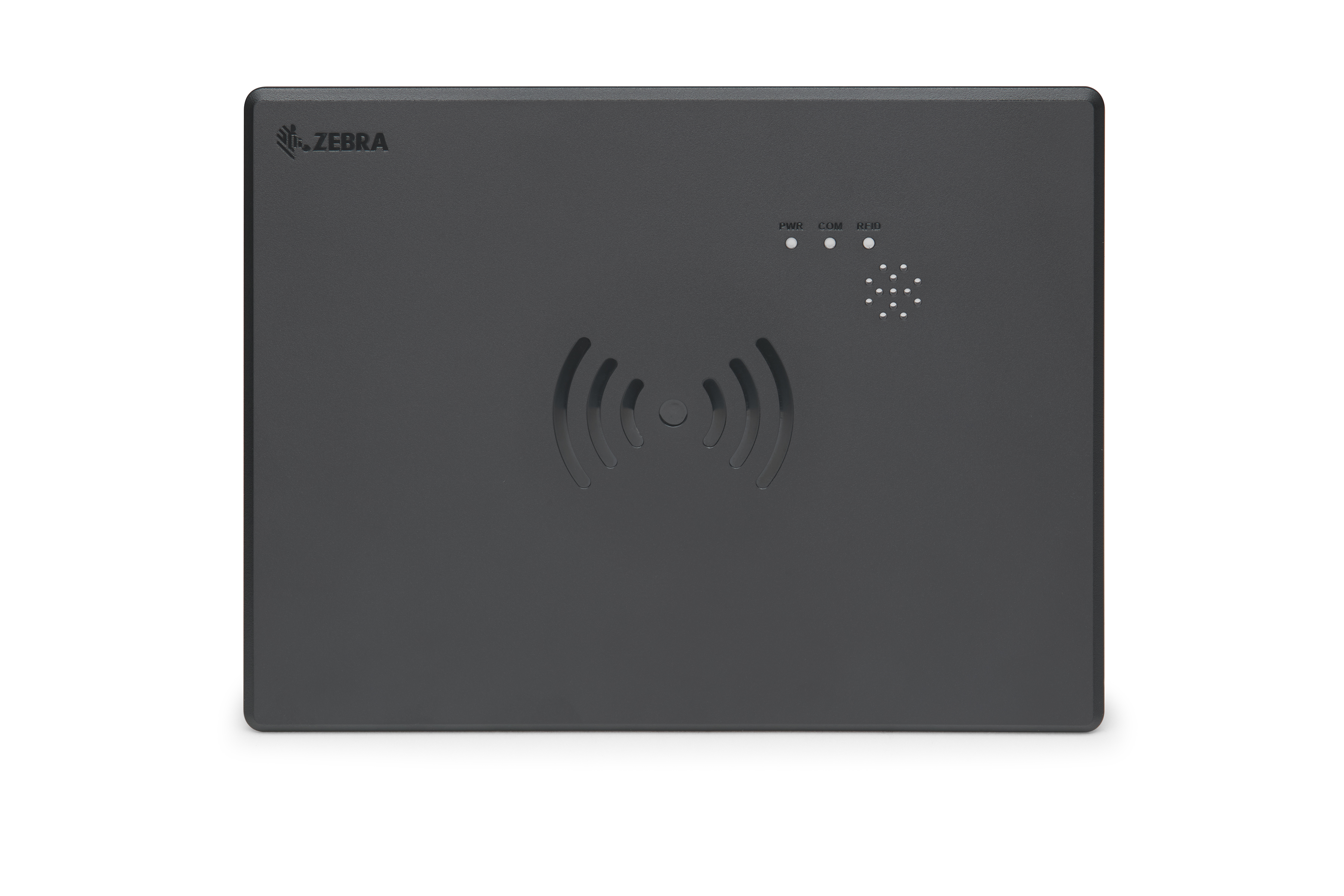

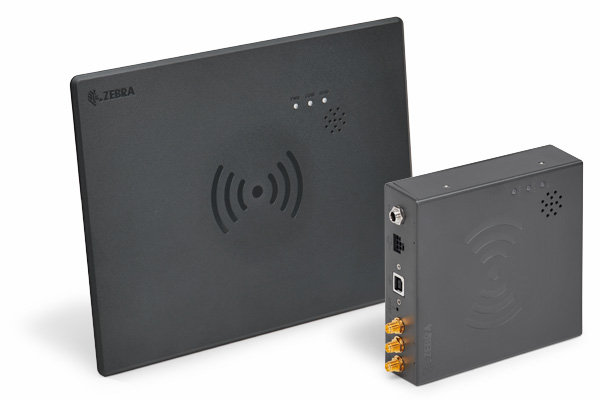

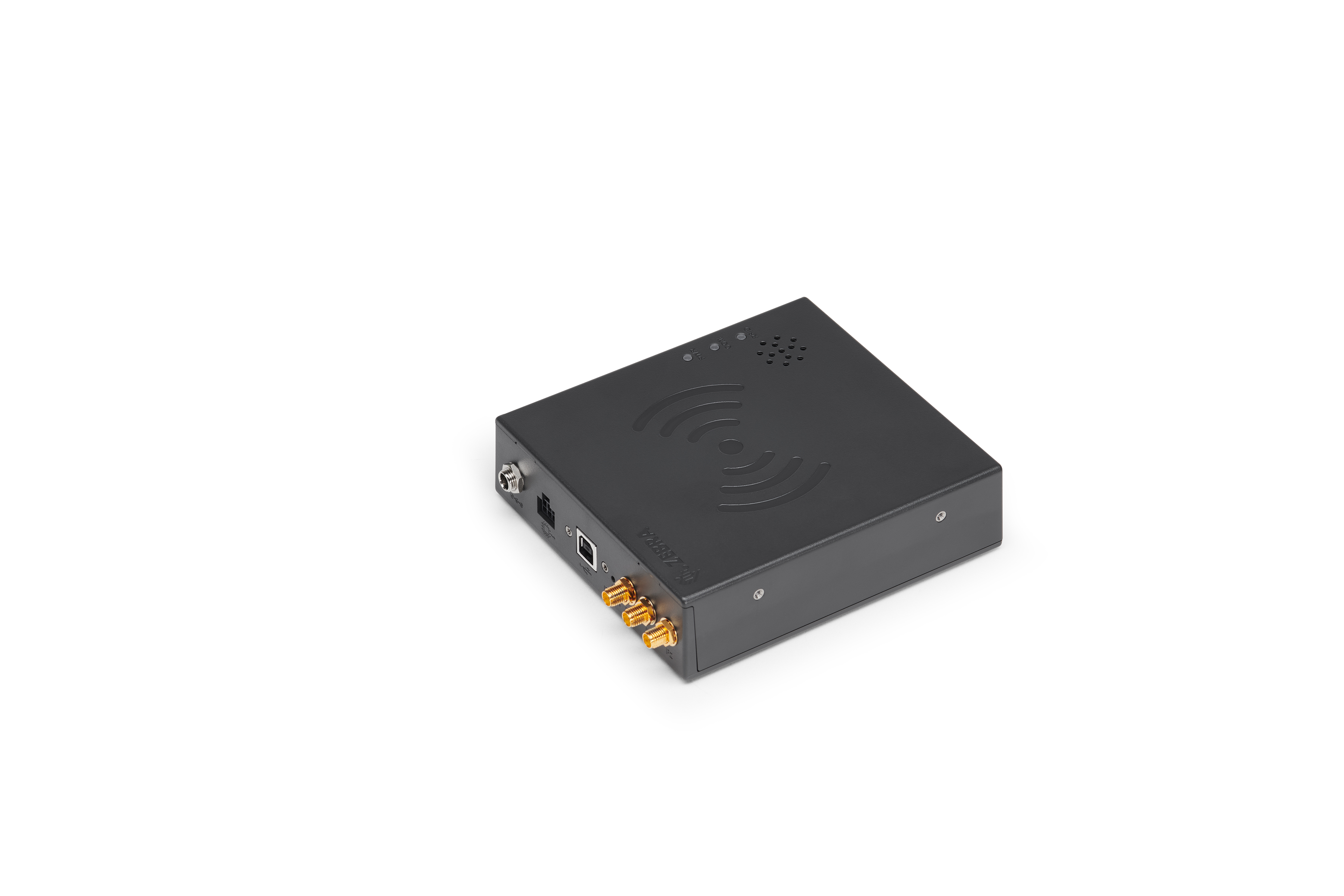

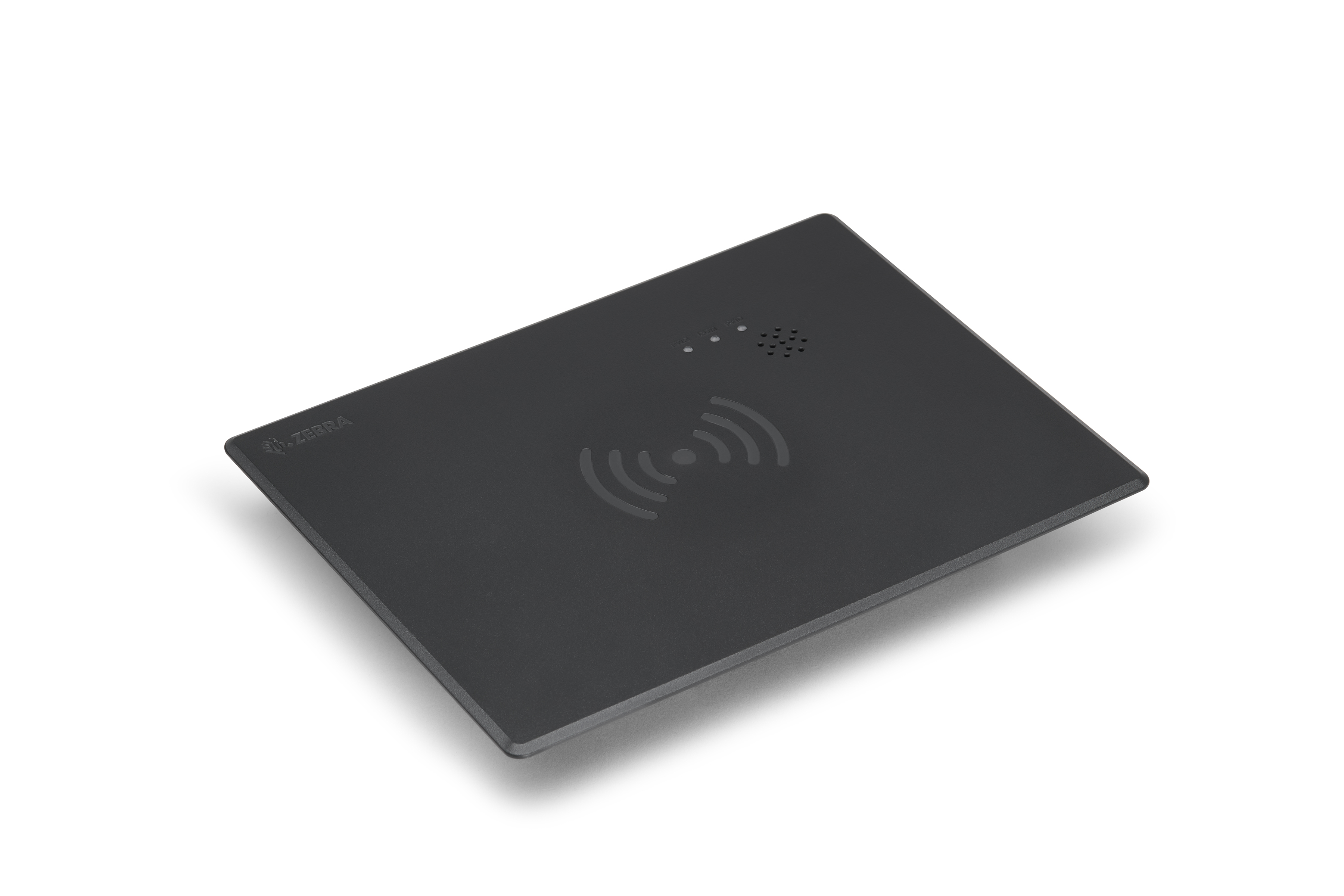

The FXP20 POS RFID Reader is a compact and efficient RFID solution designed for retail Point of Sale (POS) environments. It offers a seamless integration of RFID technology with existing POS systems, allowing businesses to enhance their inventory management, reduce checkout times, and improve overall customer experience.

Key Features:

• UHF RFID Technology:

  • The FXP20 supports UHF RFID technology, which enables the reading of RFID tags from a distance, offering quick and efficient tag identification.
  • It is capable of reading multiple RFID tags simultaneously, making it highly efficient for environments with high tag density (e.g., retail stores).

• Compact Design:

  • Designed specifically for POS applications, the FXP20 has a compact and space-efficient form factor, easily fitting into a standard POS setup without taking up too much counter space.

• Fast and Accurate Scanning:

  • The reader offers fast RFID scanning, which helps reduce checkout times and enhances the customer experience by speeding up the purchase process.
  • It can read tags on a variety of items, including clothing, electronics, and other retail products.

• Ease of Integration:

  • The FXP20 is designed for easy integration with existing POS systems, making it an ideal choice for businesses that want to upgrade their system with RFID without a complete overhaul.
  • It connects via USB and supports standard protocols for easy setup and operation.

• Durability:

  • Built to withstand the demands of retail environments, the FXP20 is durable and capable of handling frequent use at checkout counters.

• Multi-tag Reading:

  • The FXP20 can read multiple RFID tags at once, which is a significant advantage in retail environments where many items are processed simultaneously.

• Low Maintenance:

  • The FXP20 is designed for minimal maintenance, ensuring that businesses can rely on it for extended periods without frequent repairs or replacements.

Use Cases:

• Retail POS Systems:

  • Perfect for upgrading traditional POS systems with RFID functionality, allowing for faster checkout processes and more accurate inventory tracking.

• Inventory Management:

  • Used for real-time tracking of goods in stores, ensuring that the inventory is always up to date and that stock levels are accurately recorded.

• Loss Prevention:

  • RFID-enabled POS systems can help reduce theft and inventory loss by providing greater visibility into inventory and product movement.

• Customer Experience:

  • By speeding up checkout times and enabling fast, accurate scans, the FXP20 enhances the overall shopping experience for customers.


    Specifications

    Physical Characteristics

    Dimensions	RFID Pad: 5.3 in. x 4.6 in. x 1.4 in. 136 mm x 117 mm x 36 mm  Adapter Plate: 7.3 in. x 9.7 in. x 1.3 in. 185 mm x 245 mm x 34 mm
    Weight	266 grams
    Power	12VDC, 2A with DC Connector Lockable
    Visual Status Indicators	3 LED indicator multicolor lights (green, blue, orange)
    Audible Status Indicators	3 sound levels (low, medium, and high) manageable by SDK
    Connectivity	1 x USB Host Type-B LOCKABLE

    RF Characteristics

    Operating Frequency (UHF)	865- 928 MHz band for worldwide support
    Transmit Power	10 to 27 dBm (SDK Restriction)
    Receiver Sensitivity	-78 dBm
    Antenna	Circular Polarized
    Antenna Gain	-1 dBic (867 MHz) 1 dBic (915 MHz)

    Environment

    Operating Temperature	32° F to 104° F / 0°C to 40 °C
    Storage Temperature	-40° to +158° F / -40° to +70° C
    Humidity	5–95% non-condensing

    Regulatory Compliance

    Safety	EN 62368-1, IEC 62368-1, UL 62368-1
    RF/EMI/EMC	FCC Pt.15 Subparts B & C, ICES-003, RSS-247, EN 302 208, EN 301 489-1/3
    SAR/MPE	47 CFR Part2.1091, RSS-102, EN 50364
    Other	RoHS, WEEE
    Markets and Applications

    Retail

    • Staffed Checkout
    • Self-Checkout
    • Inventory Control
    • Loss Detection
