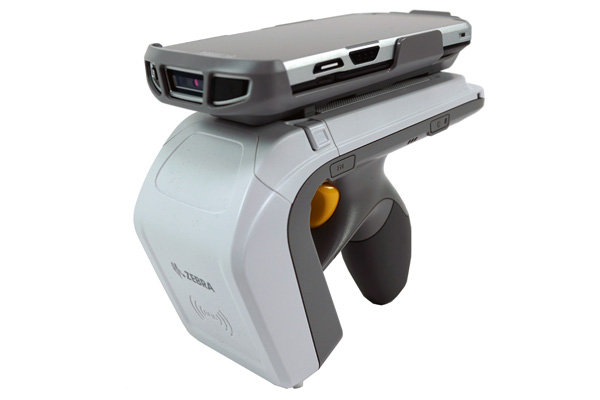

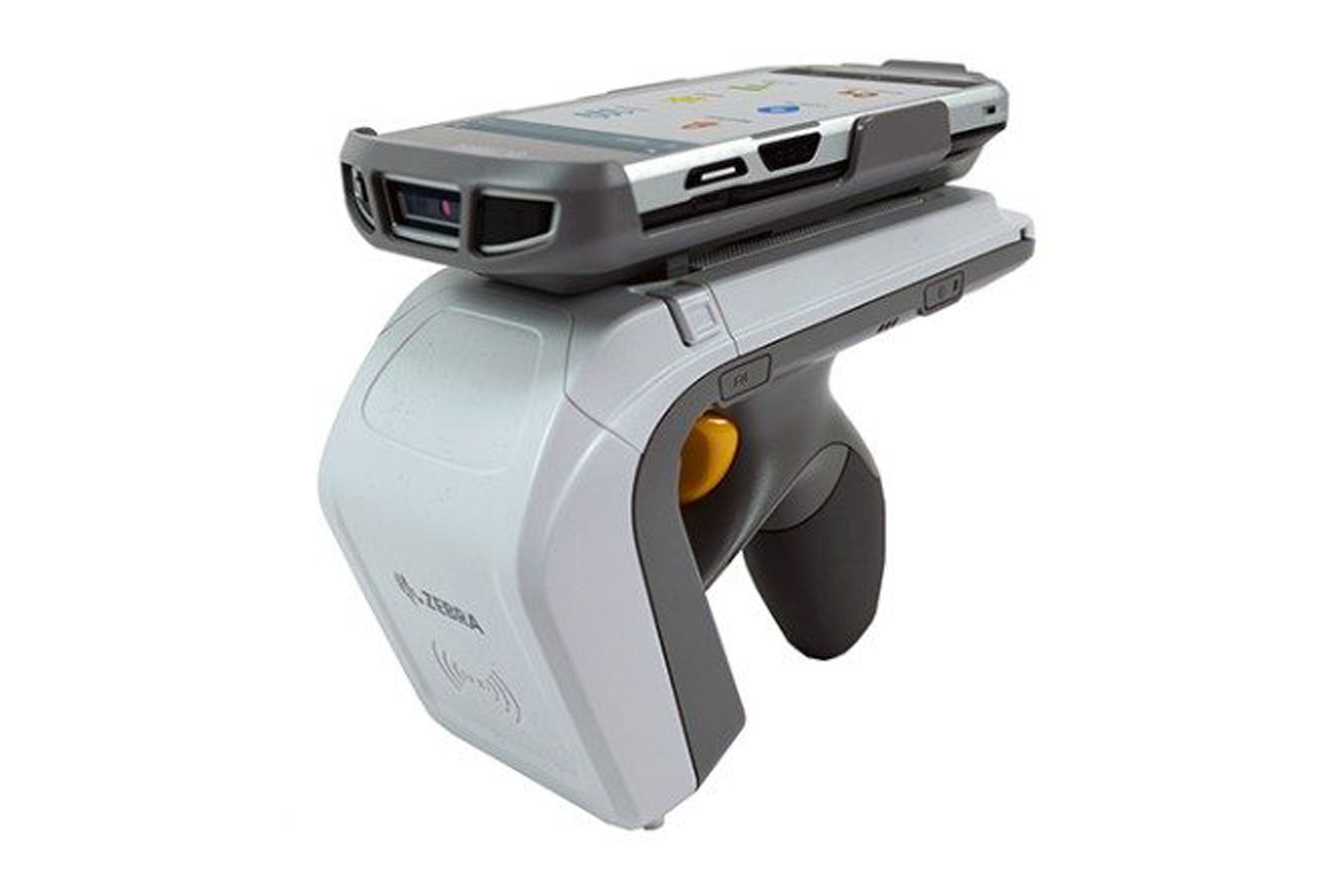

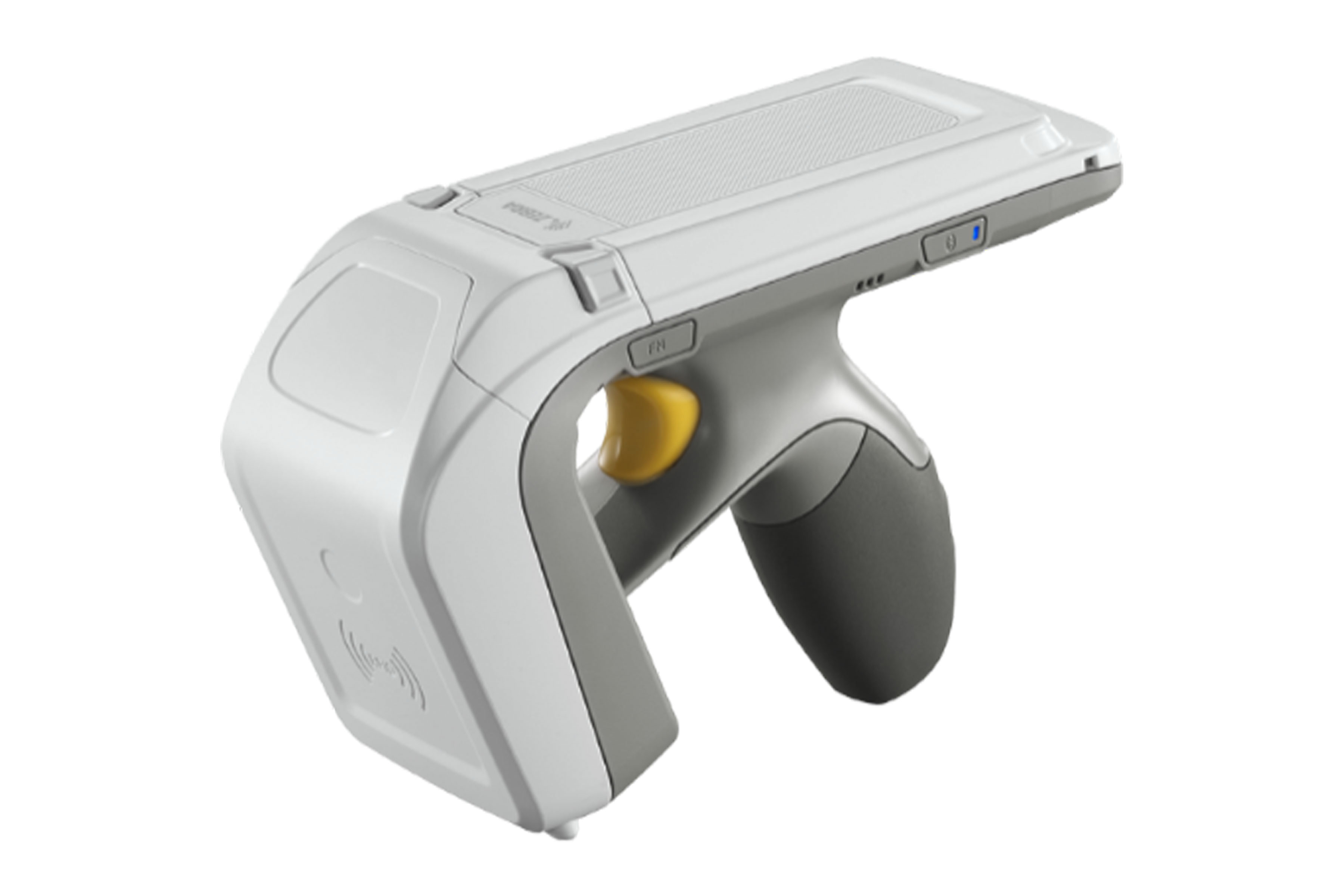

The RFD8500 Handheld RFID/1D/2D Sled from Zebra Technologies is a versatile and rugged device designed to extend the barcode and RFID capabilities of mobile computers. It provides users with the ability to capture 1D, 2D, and UHF RFID tags in a single device, making it an essential tool for operations requiring fast, efficient data capture in industries such as retail, logistics, warehousing, and inventory management.

Key Features:

• Multi-Technology Support (RFID, 1D, and 2D):

  • The RFD8500 combines UHF RFID and 1D/2D barcode scanning in one device, offering great flexibility for users who need to scan various types of tags and barcodes in different environments.
  • The UHF RFID module enables fast reading of RFID tags, while the 1D/2D barcode scanner supports reading both traditional barcodes (like UPC or EAN) and complex 2D codes (such as QR codes, DataMatrix, and PDF417).

• Advanced RFID Performance:

  • The device features high-performance RFID scanning, capable of reading RFID tags at a range of up to 12 meters (depending on conditions and tag types).
  • It can handle dense tag environments, reading multiple tags at once, which enhances productivity in operations that involve bulk item scanning.

• Compatibility:

  • The RFD8500 is compatible with a range of Zebra mobile computers, including the TC55, TC56, TC70, TC75, and other Zebra devices, extending their RFID scanning capabilities. This allows businesses to use existing mobile computers while adding advanced scanning capabilities.

• Ergonomic and Rugged Design:

  • The sled is designed to be lightweight and ergonomic, making it comfortable for users to operate for extended periods.
  • Built to withstand tough working environments, the RFD8500 features a IP54 rating, meaning it is resistant to dust and water splashes. It can also endure drops from up to 1.5 meters (about 5 feet), ensuring reliability in rugged settings like warehouses, retail stores, and outdoor locations.

• Connectivity:

  • The RFD8500 features Bluetooth connectivity, enabling it to wirelessly connect to mobile computers, streamlining data capture without the need for cables. It also ensures smooth data transmission and synchronization with back-end systems.

• Battery Life:

  • The sled comes with an integrated high-capacity battery that provides up to 15 hours of continuous use, ensuring that it can last through long shifts without requiring a recharge.

• Intuitive User Interface:

  • The sled is equipped with an easy-to-use trigger button, which makes it straightforward to start scanning with minimal user training. The LED indicators and audible feedback provide clear status information, enhancing the user experience.

Use Cases:

1. Retail:

   • The RFD8500 is ideal for inventory management, stock taking, and price verification in retail environments. It helps improve efficiency in the store, speeding up operations like shelf scanning and asset tracking.

2. Warehousing and Logistics:

   • In warehouses, the RFD8500 can be used for order picking, receiving shipments, and inventory control. Its ability to scan RFID tags from a distance makes it perfect for large storage areas or high shelves where traditional barcode scanning may not be as efficient.

3. Asset Tracking:

   • The sled’s RFID capabilities are great for tracking valuable assets and equipment, ensuring better visibility and security.

4. Field Operations:

   • For field operations where workers need to scan RFID tags and barcodes on the go, the sled allows users to scan quickly and efficiently while collecting accurate data in real time.



     Specifications

     Physical Characteristics

     Dimensions	5.1 in. H x 3.1 in. W x 7.3 in. L 13 cm H x 8 cm W x 18.5 cm L
     Weight	Imager Version: 15.3 oz./~435 grams; Non-Imager version: 15.3 oz./~430 grams
     Power	PowerPrecision Li-Ion battery, 4410 mAh
     Configurations	RFID-only or RFID with SE4710 Imager
     Notification	LED and audible tone
     User Input	Trigger, 3 push button switch

     RFID Performance

     Standards Supported	EPC Class 1 Gen 2; EPC Gen2 V2
     RFID Engine	Zebra Proprietary Radio Technology
     Fastest Read Rate	900+ tags/sec
     Nominal Read Range	20+ ft./6+ m
     Frequency Range/RF Output	US: 4.5 – 34.5 dBm EU: 4.5 – 34.5 dBm JP (LBT): 4.5 – 33 dBm JP: 4.5 – 27.5 dBm
     Batch Mode Memory	Store 40,000+ RFID Tags, 500 barcode

     User Environment

     Drop Specification	Multiple 4 ft./1.2 m drops to concrete (0° to 40° C)
     Tumble Specification	1000 drops (500 tumbles, 1.6 ft./0.5 m) at room temperature
     Operating Temp.	-10°C to 40°C/14°F to 104°F
     Storage Temp.	-40°C to 70°C/-40°F to 158°F
     Charging Temp.	0°C to 40°C/14°F to 104°F
     Humidity	5-85% non-condensing
     Electrostatic Discharge	+/-15kV air discharge +/-8kV direct discharge +/-8kVdc indirect discharge
     Sealing	IP52

     Communication

     Bluetooth	Bluetooth Version 2.1 SPP profile HID Profile Apple iAP2/MFi
     Bluetooth Class	2
     Bluetooth Pairing	Secure Simple Pairing ‘just works’ method
     Compatible Host Devices (Bluetooth)	Devices with Android 4.4 or iOS 8 OS

     Accessories

     External Interface	MicroUSB Connector and Charging Cradle-based charging
     Other Accessories	Adapter mounts for Enterprise Zebra Mobile Computers; Quad lock adapter for variety of smart phones

     Regulatory

     EMI/EMC	FCC Part 15 Subpart B Class B; ICES 003 Class B; EN 301 489-1; EN 301 489-3; EN 301 489-17; EN 55022 Class B; EN55024; EN 55032 Class B
     Electrical Safety	UL 60950-1, CAN/CSA C22.2 No. 60950-1, IEC 60950-1, EN 60950-1
     RF Exposure	EU: EN 50364, EN 62479; USA: FCC Part 2 (Section 2.1091), OET Bulletin 65 Supplement C; Canada: RSS-102
     RFID/Bluetooth	EU: EN 300 328, FCC Part 15 Subpart C; Canada: RSS-247

     Warranty

     Subject to the terms of Zebra’s hardware warranty statement, the RFD8500 is warranted against defects in workmanship and materials for a period of 1 (one) year from the date of shipment. For complete warranty statement, go to: www.zebra.com/warranty

     Footnotes

     1. AutoMac is a self-optimizing radio feature that automatically adapts to fast tag reading in various environments.
