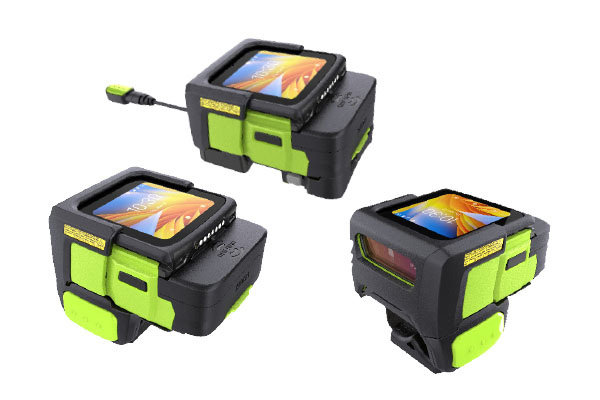

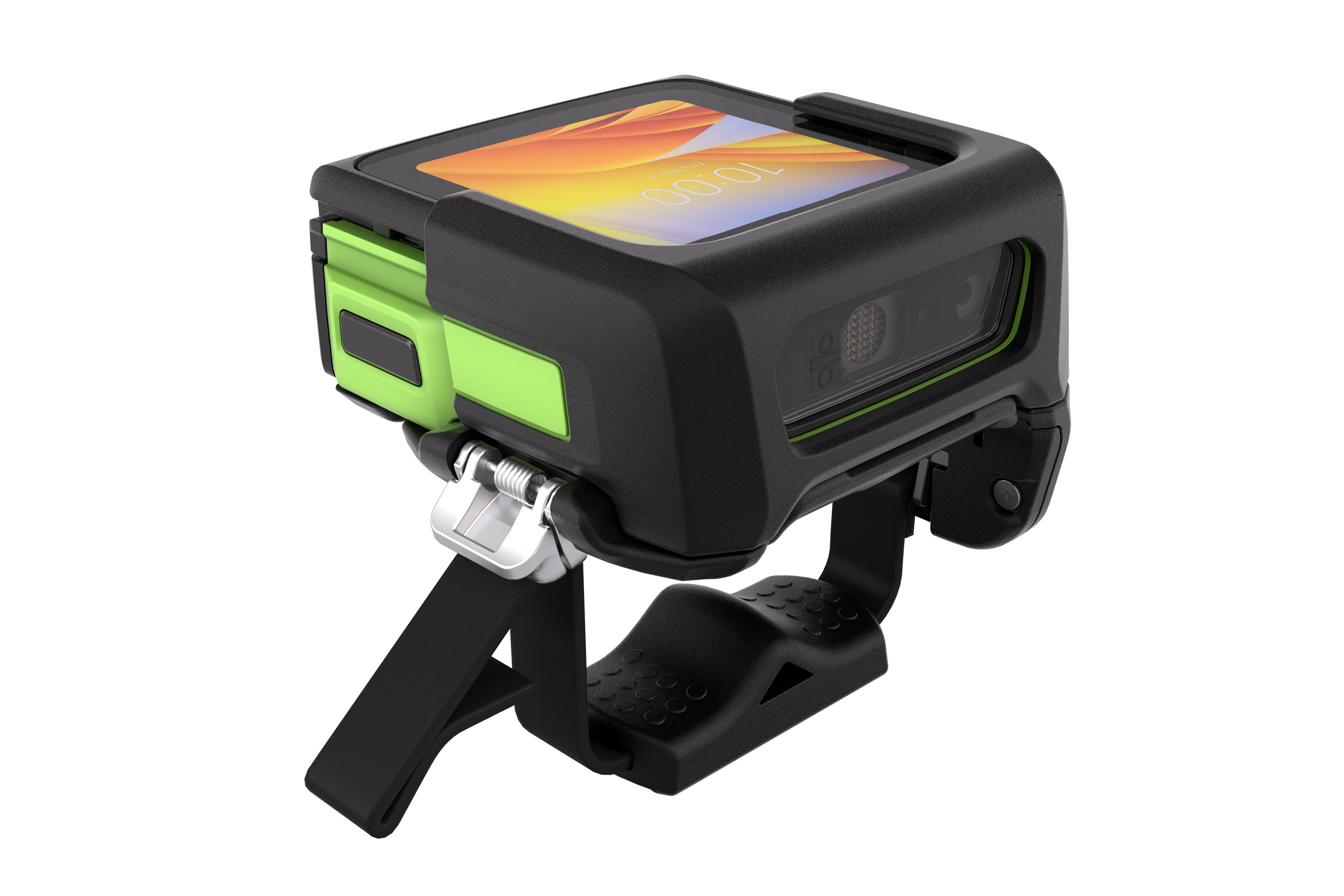

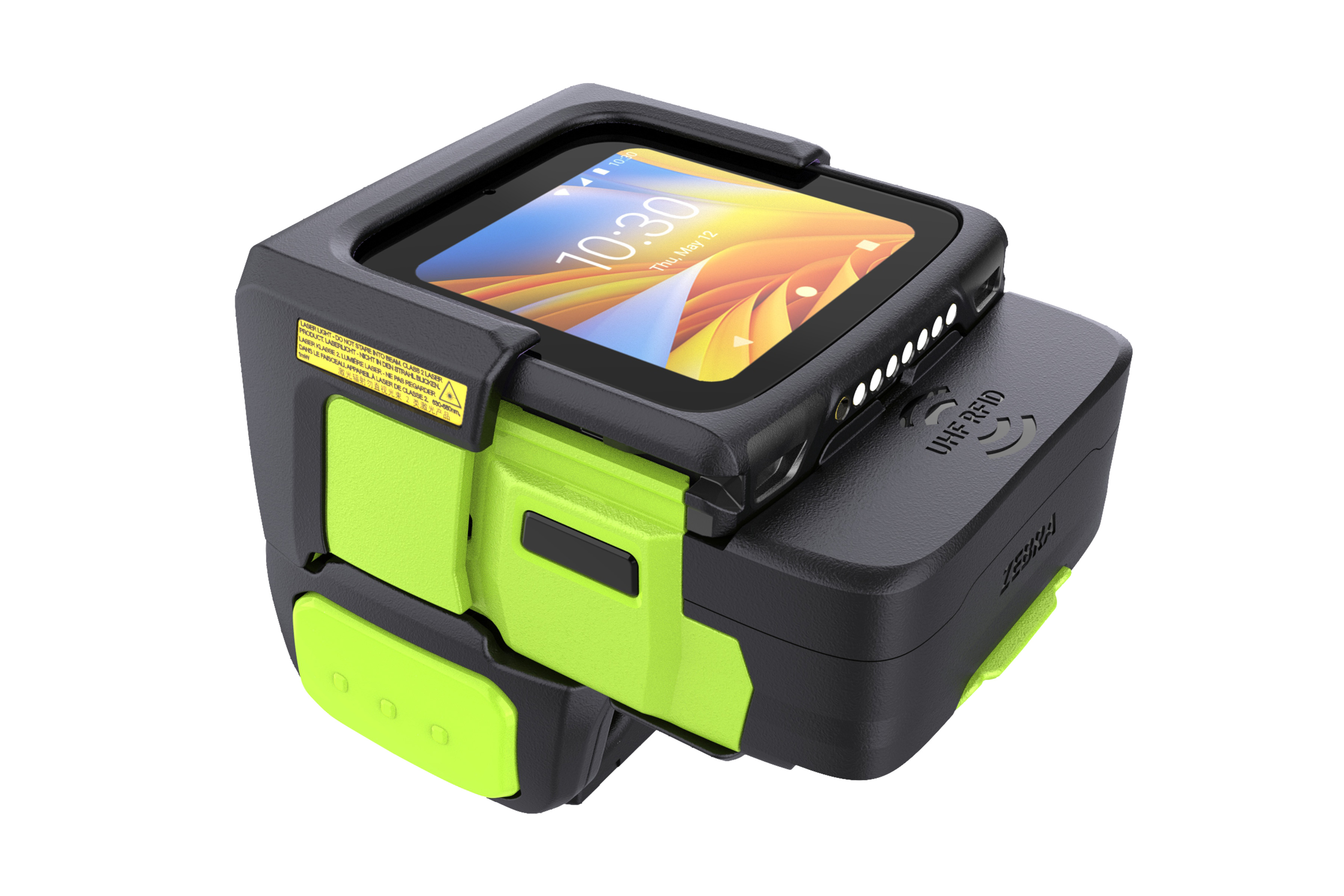

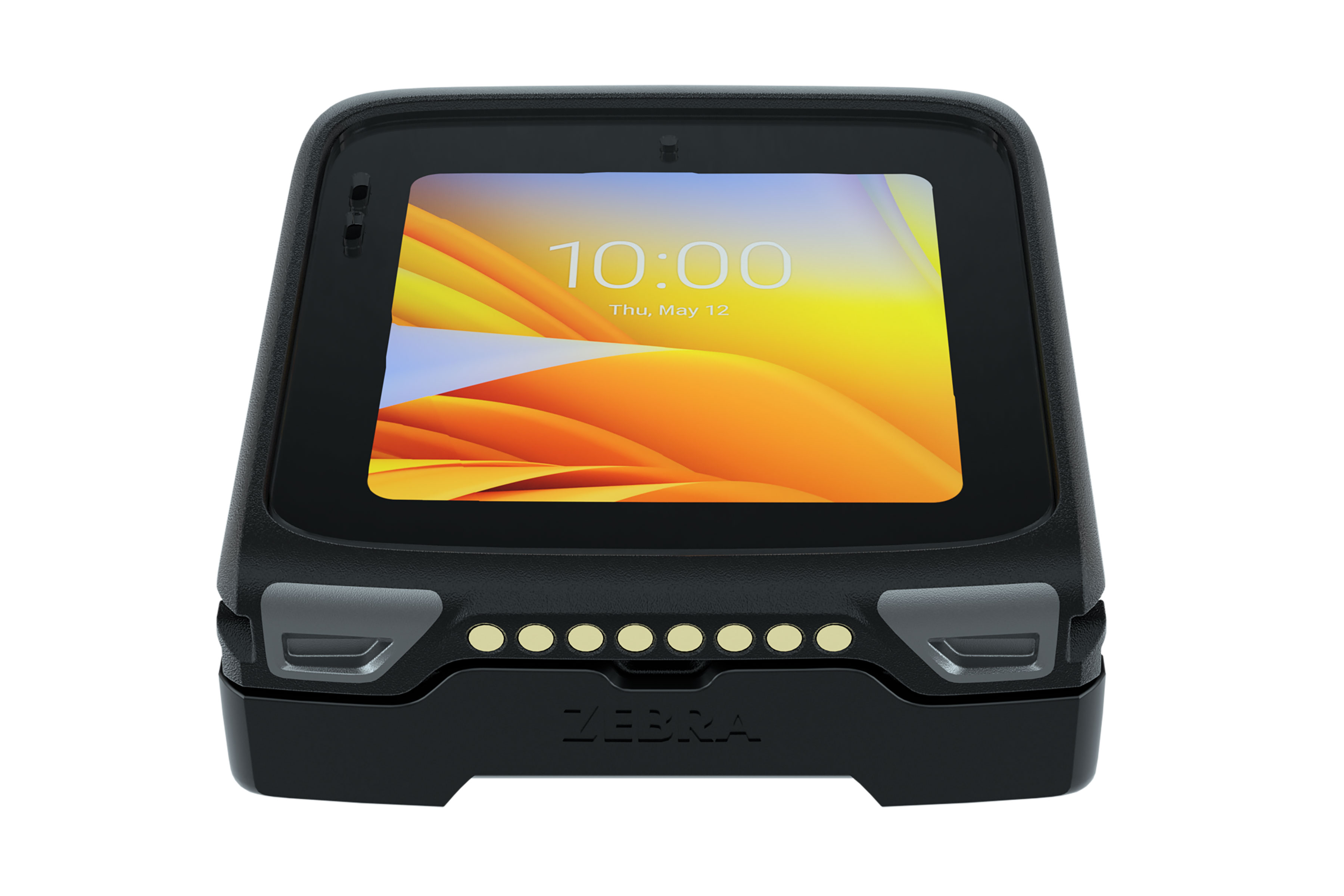

The WS50 RFID Android Wearable Computer is a compact, rugged, and highly efficient device designed to streamline mobile workflows and enhance efficiency in industries that require hands-free operations, particularly in environments such as warehousing, retail, logistics, and inventory management.

Features:

• Android OS: The WS50 operates on the Android platform, allowing users to leverage a familiar and customizable interface, along with the ability to install a wide variety of Android apps.
• RFID Technology: Equipped with a built-in RFID reader, the WS50 supports both HF (High Frequency) and UHF (Ultra High Frequency) RFID tags, enabling quick, hands-free scanning of tags for asset tracking, inventory management, and logistics.
• Wearable Design: The device is designed to be worn on the wrist, making it easy for users to keep their hands free for other tasks, increasing productivity in operations where mobility is key.
• Durability: Built to withstand tough working conditions, the WS50 is rugged, with an IP65 rating, meaning it is resistant to dust and water. It also passes various drop tests, making it suitable for demanding environments.
• Display: The device features a clear, user-friendly display, typically a 2.8-inch color touchscreen, for easy operation and data reading.
• Battery Life: It typically offers long battery life, ensuring that it can handle full shifts without needing a recharge.
• Connectivity: The device supports Wi-Fi, Bluetooth, and sometimes cellular options, allowing real-time data synchronization, remote access, and communication.
• Customizable and Scalable: The device can be easily integrated with other enterprise systems and software for seamless workflow automation.
• Data Collection & Analytics: It enables the efficient collection of data through RFID, barcode scanning, and touch input, helping in inventory tracking, management, and reporting.

Uses:

• Inventory Management: RFID-based scanning helps streamline stocktaking and inventory management.
• Asset Tracking: Businesses can easily track the movement of equipment, products, and assets.
• Warehouse Operations: Workers can scan and update the status of goods quickly and accurately, improving workflow efficiency in warehouses.
• Logistics & Distribution: Improves accuracy and reduces the chances of error in sorting and shipping.
• Retail: Helps in inventory monitoring and can assist with product availability checks on the shop floor.



  Specifications

  Physical Characteristics

  Dimensions	3.18 in. L x 2.4 in. W x 1.49 in. D 81 mm L x 61 mm W x 38 mm D
  Weight	6.9 oz./196 g (finger mount)
  Display	2 in. AMOLED 460 x 460 color display; optically bonded to touch panel
  Imager Window	Corning® Gorilla® Glass
  Touch Panel	Capacitive touch panel; fingertip and glove support; Corning® Gorilla® Glass
  Power	9.24 Watt Hours; 2400mAh PowerPrecision; Hot Swap (2 minutes, memory persistent)
  Network Connections	USB 2.0 High Speed (host and client), WLAN and Bluetooth
  Notifications	Audible tone; charge LED; OS notification LED; multi-color Application LEDs (2); haptic feedback
  Voice and Audio	Speaker (90dBA); internal mic; PTT ready; Bluetooth headset support
  Buttons	Trigger; 2 buttons (programmable)
  Interfaces	Docking contacts; Via interface cables: USB-C (USB 2.0) host/client and charging

  Scanner Performance

  Optical Resolution	1280 x 800 pixels
  Roll	360°
  Pitch	±60°
  Skew	±60°
  Aiming Element	655 nm Laser
  Illumination Element	1 Hyper Red 660 nm LED or 1 Warm-White LED
  Field of View	Horizontal: 48°, Vertical: 30°
  Ambient Light Immunity (from total darkness)	Maximum 107,639 lux (direct sunlight)
  Supported 1D Symbologies	Code 39, Code 128, Code 93, Codebar/NW7, Code 11, MSI, UPC/EAN, I 2 of 5, Korean 3 of 5, GSI DataBar, Base 32 (Italian Pharma)
  Supported 2D Symbologies	PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Chinese Sensible (Han Xin), Postal Codes
  Supported OCR Symbologies	OCR-A, OCR-B
  Scan Triggering	Manual ambidextrous trigger or automatic via Proximity Sensor technology

  Performance Characteristics

  CPU	Snapdragon Wear™ 4100 Platform/SDW429w, quad-core, 2.0 GHZ
  Operating System	Android 11 AOSP
  Memory	1 GB RAM/8 GB Flash

  User Environment

  Operating Temperature	14° F to 122° F/-10° C to +50° C
  Storage Temperature	-40° F to 158° F/-40° C to +70° C
  Humidity	5% - 95% non condensing
  Drop Specification	5 ft./1.5 m drop to concrete per MIL-STD 810G across operating temperature
  Tumble Specification	2,000 tumbles @ 1.6 ft./0.5 m Meets and exceeds IEC tumble specifications
  Sealing	IP65
  Vibration	4 g’s PK Sine, 5hz to 2khz, 1 hour duration per axis; 0.04 g2/Hz Random (20 Hz to 2 kHz), 1 hour duration per axis.
  Electrostatic Discharge (ESD)	+/-15 kV air discharge, +/-8 kV direct/indirect discharge

  Interactive Sensor Technology (IST)

  Light Sensor	Automatically adjusts display backlight brightness
  Motion Sensor	6-axis accelerometer with MEMS Gyro

  Data Capture

  Scanning	SE4770 1D/2D standard range omni-directional imager
  NFC	Tap to Pair, ISO 14443 Type A and B, Felica and ISO 15693 cards, and Card Emulation via Host (HCE) support

  RFID

  Standards Supported	EPC Class 1 Gen 2; EPC Gen 2 V2
  RFID Engine	Zebra proprietary radio technology
  Nominal Read Range	~5 ft./~1.5 m
  Frequency Range and RF System Output	US: 917-928 MHz; 0-24 dBm EU: 865-868 MHz; 0-24 dBm

  Wireless LAN

  Radio	IEEE 802.11 a/b/g/n/ac/d/h/i/r; Wi-Fi™ certified; IPv4, IPv6, 1x1 SISO
  Data Rates	2.4 GHz: 802.11b/g/n/ac—20 MHz, 40 MHz—up to 200 Mbps 5 GHz: 802.11a/g/n/ac—20 MHz, 40 MHz, 80 MHz—up to 433 Mbps
  Operating Channels	Channel 1-13 (2412-2472 MHz); Channel 36-165 (5180-5825 MHz) Channel Bandwidth: 20, 40, 80 MHz Actual operating channels/frequencies and bandwidths depend on regulatory rules and certification agency
  Security and Encryption	WEP (40 or 104 bit); WPA/WPA2 Personal (TKIP andAES); WPA3 Personal (SAE); WPA/WPA2 Enterprise (TKIP and AES); EAP-TTLS (PAP, MSCHAP, MSCHAPv2), EAP-TLS, PEAPv0-MSCHAPv2, PEAPv1-EAP-GTC, EAP-PWD
  Certifications	WFA (802.11n, 80211ac, WPA2-Personal, WPA3-Personal, WPA2-Enterprise, PMF)
  Fast Roam	PMKID caching; 802.11r (Over-The-Air); OKC

  Wireless PAN

  Bluetooth

  Bluetooth 4.2; Bluetooth Low Energy (BLE) support; Class 1

  Warranty

  Subject to the terms of Zebra’s hardware warranty statement, the WS50 RFID is warranted against defects in workmanship and materials for a period of one (1) year from the date of shipment. For complete warranty statement, please visit www.zebra.com/warranty
