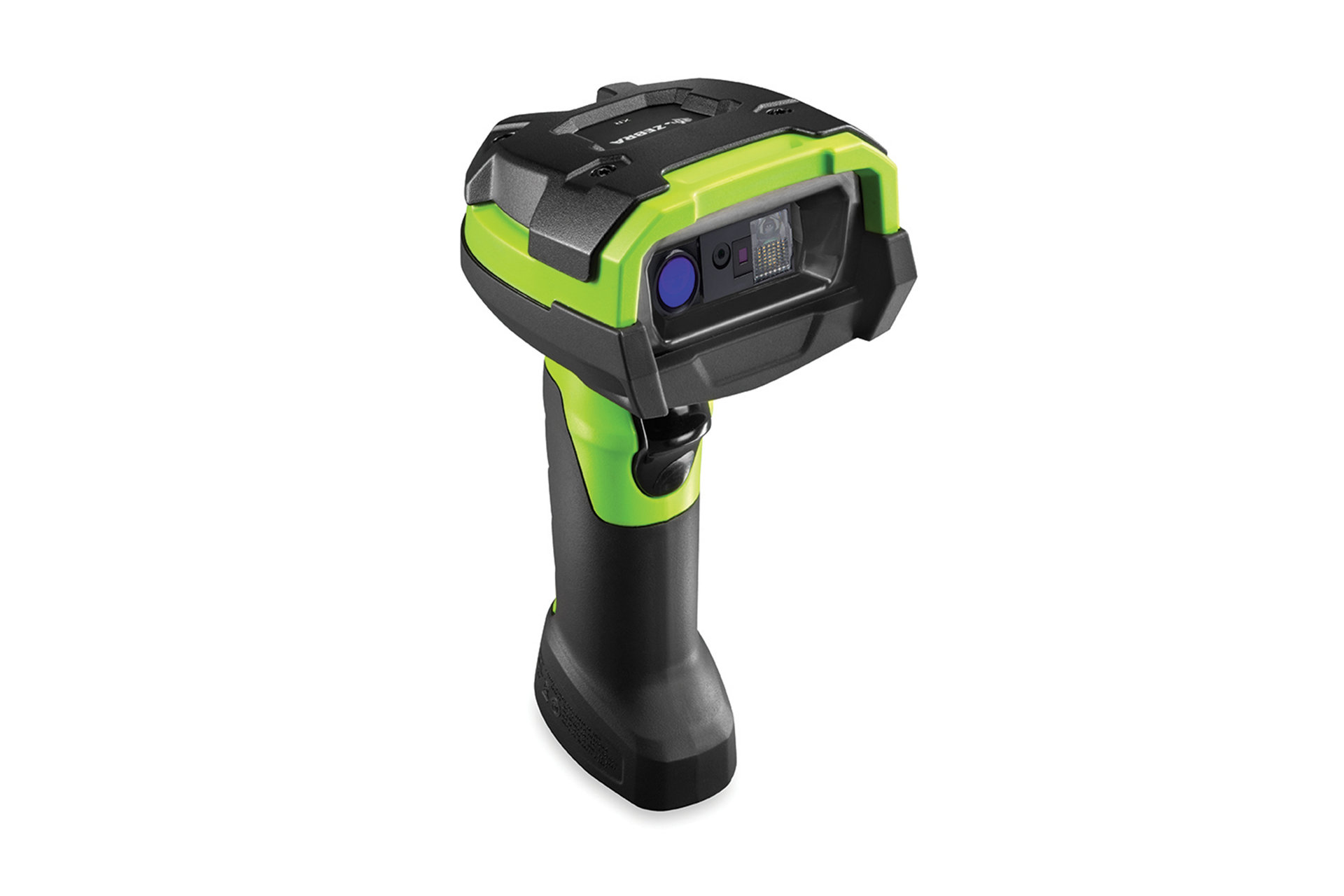

The Zebra DS3600P is part of Zebra Technologies' DS3600 series, designed to deliver reliable and efficient scanning in demanding environments. It is built with performance in mind, offering versatility for businesses across various industries. The "P" in the model refers to its Premium version, providing a mix of performance, durability, and additional functionality.

Key Features:

• All-In-One Scanning: The DS3600P can read a wide variety of barcodes, including 1D, 2D, and QR codes. It can also scan barcodes from printed labels or digital screens, making it versatile for modern business needs.
• Rugged and Durable: This scanner is designed for the toughest environments, with IP67 rating for water and dust resistance, ensuring it can withstand drops, vibrations, and exposure to harsh elements.
• Superior Range: With its extended range scanning, the DS3600P allows you to read barcodes from near contact to over 70 feet, offering flexibility in handling items at different distances.
• Advanced Imaging Technology: Zebra's PRZM Intelligent Imaging Technology ensures fast, accurate scanning even on damaged or poorly printed barcodes. This technology minimizes errors and boosts productivity.
• Multi-Barcode Scanning: It can capture multiple barcodes in a single scan, making it ideal for applications like order fulfillment and inventory management where multiple items are processed at once.
• Ergonomic and Comfortable: The DS3600P is designed with ergonomics in mind, offering comfortable use during prolonged scanning sessions, helping to reduce operator fatigue.

Common Uses:

• Retail: Efficiently manage high-volume checkout processes, ensuring quick scanning of a wide range of products.
• Warehouse and Logistics: Perfect for managing inventory, order picking, and shipments with its ability to scan from a distance.
• Healthcare: Quickly and accurately scan barcodes on medical records, prescriptions, and equipment.
• Manufacturing: Ideal for tracking production items, parts, and inventory in fast-paced factory settings.



  Specifications

  Physical Characteristics

  Dimensions	Corded: 7.3 in. H x 3.0 in. W x 5.2 in. D 18.5 cm H x 7.7 cm W x 13.2 cm D Cordless: 7.3 in. H x 3.0 in. W x 5.6 in. D 18.5 cm H x 7.7 cm W x 14.3 cm D
  Weight	Corded: 10.72 oz./304 g Cordless: 14.18 oz./402 g
  Input Voltage Range	Host powered: 4.5 VDC min., 5.5 VDC max. External power supply: 11.4 VDC min., 12.6 VDC max.
  Operating Current	DS3608-DP (corded): 360 mA (RMS typical)
  Standby Current	DS3608-DP (corded): 100 mA (RMS typical)
  Color	Industrial Green
  Supported Host Interfaces	USB, RS232, Keyboard Wedge Industrial Ethernet: EtherNet/IP, Profinet, Modbus TCP & Std TCP/IP
  Battery	PowerPrecision+ 3100 mAh Li-Ion rechargeable battery
  User Indicators	Direct decode indicator; LEDs; beeper; vibration

  Performance Characteristics

  Scans per Full Charge	100,000+
  Image Capture	Basic
  Illumination	Direct: Two (2) warm white light LED ; Diffuse: Ring of red 634 nm LEDs
  Aimer	655 nm laser
  Imager Field of View	Horizontal: 31°, Vertical: 23°
  Image Sensor	1,280 x 960 pixels
  Minimum Print Contrast	15% minimum reflective difference
  Skew/Pitch/Roll	Skew: ± 60° Pitch: ± 60° Roll: ± 360°

  Decode Capabilities2

  1D	Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma)
  2D	PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Chinese Sensible (Han Xin), Postal Codes
  IUID Support	Supports IUID parsing, the ability to read and separate IUID fields per application requirements

  User Environment

  Operating Temp.	Corded: -22° F to 122° F/-30° C to 50° C Cordless: -4° F to 122° F/-20° C to 50° C
  Storage Temp.	-40° F to 158° F/-40° C to 70° C
  Humidity	5% to 95% non-condensing
  Drop Specification	DS36X8: Withstands multiple 10.0 ft/3.0 m drops to concrete at room temperature DS3678: Withstands multiple 8.0 ft/2.4 m drops to concrete at -20° C to 50° C DS3608: Withstands multiple 8.0 ft/2.4 m drops to concrete at -30° C to 50° C
  Tumble Specification	7500 3.3 ft./1.0 m tumbles
  Sealing	Scanner: IP65 and IP68 per applicable IEC sealing specifications FLB cradle: IP65
  ESD	Per EN61000-4-2, ±20 KV air discharge, ±10 KV direct discharge, ±10 KV indirect discharge
  Ambient Light Immunity	0 to 10,037 Foot Candles/0 to 108,000 Lux (direct sunlight)

  Utilities and Maintenance

  123Scan	Programs scanner parameters, upgrades firmware, provides scanned barcode data and prints reports. For more information, visit www.zebra.com/123Scan
  Scanner SDK	Generates a fully-featured scanner application, including documentation, drivers, test utilities and sample source code. For more information, visit www.zebra.com/windowsSDK
  Scanner Management Service (SMS)	Remotely manages your Zebra scanner and queries its asset information. For more information, visit www.zebra.com/sms
  Network Connect	Seamlessly connects 3600 Series scanners directly to your Industrial Ethernet network with no additional conversion equipment. For more information, visit www.zebra.com/NetworkConnect

  Wireless Connectivity

  Bluetooth Radio	Bluetooth Class 1, Version 4.0 (LE), serial port (SPP)and HID profiles
  Data Rate	3 Mbit/s (2.1 Mbit/s) for Classic Bluetooth 1 Mbit/s (0.27 Mbit/s) for Low Energy
  Radio Range	Direct line of sight in open air: Class 1: Minimum 300 ft. (100.0 m); Class 2: Minimum 30 ft. (10.0 m)

  Regulatory

  Environmental	RoHS EN 50581: 2012
  Electrical Safety	EU Safety: EN 60950-1: 2006 + A11: 2009 + A1: 2010 + A12: 2011 + AC 2011 + A2: 2013; International Safety: IEC 60950-1: 2005 + A1: 2009 + A2: 2013 US/Canada Safety: UL 60950-1, second edition, CAN/CSA-C22.2 No. 60950-1-07
  Laser/LED Safety	Exempt Risk Group LED per IEC/EN 62471 (Ed 1) Class 2 Laser per IEC/EN 60825-1 (Ed 3) Complies with 21CFR1040.10
  EMI/RFI	IT Emissions: EN 55022: 2010/AC: 2011 (Class B); IT Immunity: EN 55024: 2010; Heavy Industrial: EN 61000-6-2: 2005/AC:2005; Harmonic Current Emissions: EN 61000-3-2: 2006 + A1: 2009 + A2: 2009 (Class B); Voltage Fluctuation and Flicker: EN 61000-3-3: 2013; Medical Electrical Equipment: EN 60601-1-2: 2007/AC: 2010, IEC 60601-1-2: 2007 (Modified); Radio Frequency Devices: 47 CFR Part 15, Subpart B, Class B Digital Apparatus: ICES-003 Issue 5, Class B

  Decode Range (Typical)3

  Symbology/Resolution	Near/Far
  Code 39: 3.0 mil	0.2-2.8 in./0.5-7.1 cm
  Code 39: 5.0 mil	0.2-2.8 in./0.5-7.1 cm
  PDF417: 6.6 mil	40.2-3.2 in./40.5-8.1 cm
  Datamatrix: 5.0 mil	0.4-2.5 in./1.0-6.3 cm
  Datamatrix: 10.0 mil	0.0-3.4 in./0.0-8.6 cm
  QR: 5.0 mil	0.4-2.5 in./1.0-6.3 cm
  QR: 10.0 mil	0.0-3.4 in./0.0-8.1 cm
