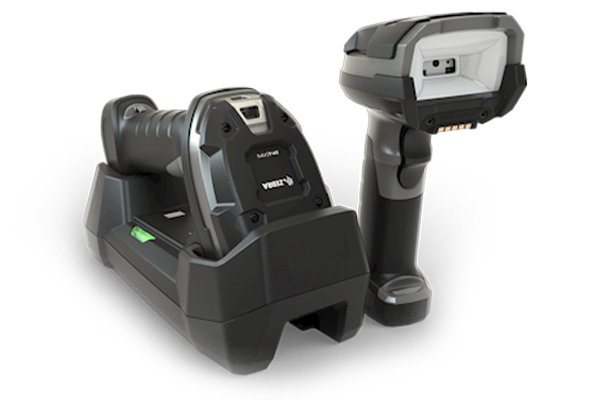

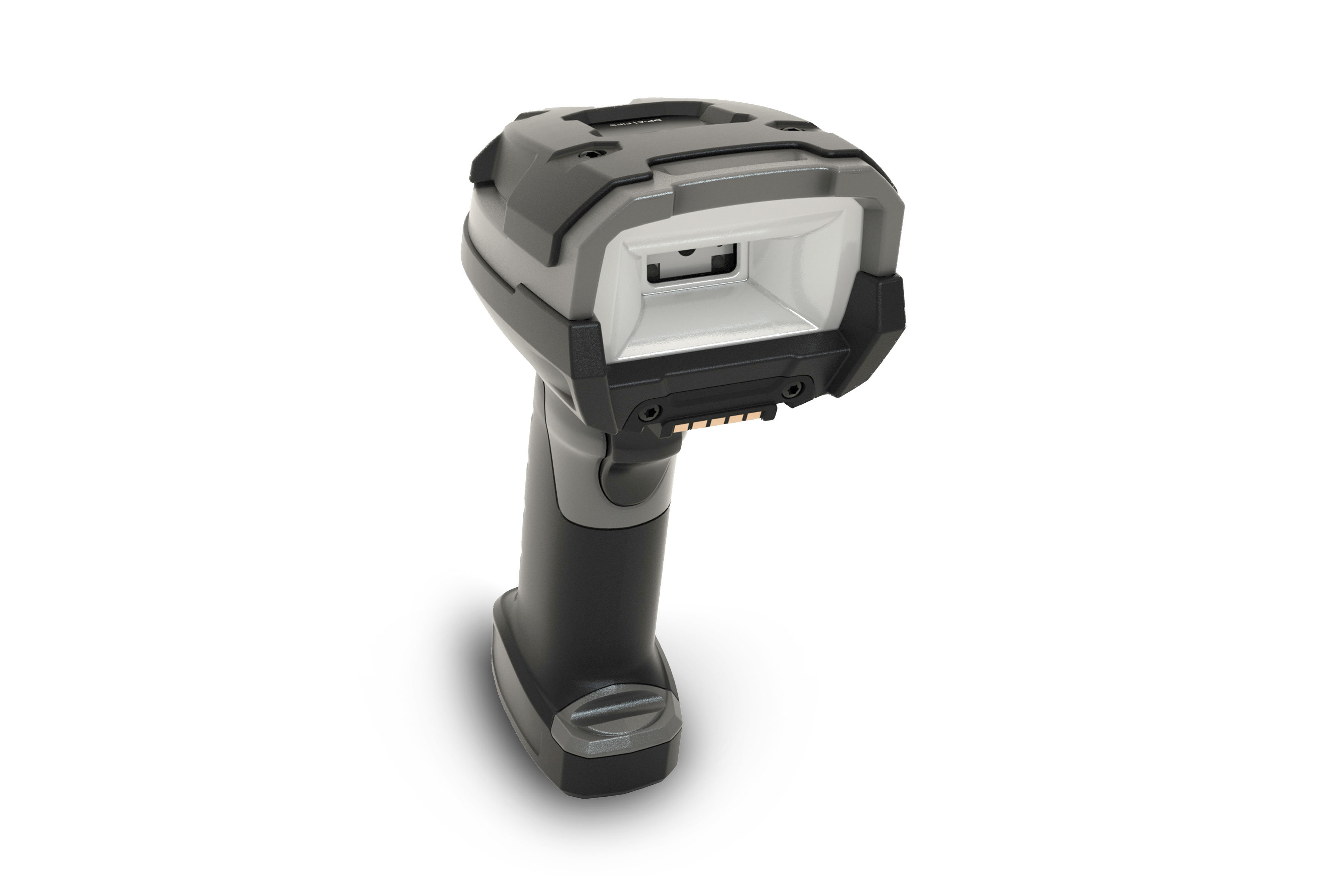

The Zebra DS3600-DPA is a part of the Zebra DS3600 series, and it stands out as a premium, durable barcode scanner designed to meet the needs of businesses requiring high-performance scanning in demanding environments. The "DPA" model specifically is optimized for ruggedness and versatility, making it ideal for use in a variety of sectors like retail, logistics, manufacturing, and healthcare.

Key Features:

• Durability & Rugged Design: The DS3600-DPA is built for tough environments. With an IP67 rating for water and dust resistance, it’s drop-resistant and can withstand harsh conditions, such as drops from up to 8 feet onto concrete.
• All-In-One Barcode Scanning: It scans 1D, 2D, and QR codes, whether they are printed on labels or displayed on digital screens, giving it unmatched versatility across various use cases.
• Exceptional Range: This scanner excels in scanning barcodes from close up to up to 70 feet away, which makes it perfect for tasks where scanning from various distances is necessary (e.g., high shelves in a warehouse).
• Advanced Imaging Technology: The DS3600-DPA utilizes PRZM Intelligent Imaging Technology, which ensures fast, accurate scanning even for damaged, poorly printed, or low-quality barcodes, minimizing errors and increasing productivity.
• Multi-Barcode Capability: The scanner can capture multiple barcodes in a single scan, making it ideal for order picking, inventory management, and other applications that require scanning several items at once.
• Ergonomic and Comfortable to Use: The design is lightweight and comfortable to hold for long periods, which makes it suitable for high-volume scanning environments where employees work for extended hours.

Common Uses:

• Retail: Used for scanning items quickly and efficiently at checkout counters or in stockrooms.
• Warehousing & Distribution: Great for inventory management, shipment scanning, and order fulfillment, especially in environments with high shelves or long-range scanning needs.
• Healthcare: Can scan patient ID bracelets, medical records, and medication barcodes, improving accuracy in a clinical setting.
• Manufacturing: Perfect for tracking parts and components in production lines and managing inventory.



  Specifications

  Physical Characteristics

  Dimensions	Corded: 7.3 in. H x 3.0 in. W x 5.2 in. D 18.5 cm H x 7.7 cm W x 13.2 cm D Cordless: 7.3 in. H x 3.0 in. W x 5.6 in. D 18.5 cm H x 7.7 cm W x 14.3 cm D
  Weight	Corded: 10.72 oz./304 g Cordless: 14.18 oz./402 g
  Input Voltage Range	Host powered: 4.5 VDC min., 5.5 VDC max. External power supply: 11.4 VDC min., 12.6 VDC max.
  Operating Current	DS3608-DPA (corded): 360 mA (RMS typical)
  Standby Current	DS3608-DPA (corded): 100 mA (RMS typical)
  Color	Gray and Black
  Supported Host Interfaces	USB, RS232, Keyboard Wedge Industrial Ethernet: EtherNet/IP, Profinet, Modbus TCP & Std TCP/IP
  Battery	PowerPrecision+ 3100 mAh Li-Ion rechargeable battery
  User Indicators	Direct decode indicator; LEDs; beeper; vibration

  Performance Characteristics

  Scans per Full Charge	100,000+
  Image Capture	Basic
  Illumination	Direct: Two (2) warm white light LED; Diffuse: Ring of red 634 nm LEDs
  Aimer	655 nm laser
  Imager Field of View	Horizontal: 46°, Vertical: 30°
  Image Sensor	1,280 x 960 pixels
  Minimum Print Contrast	15% minimum reflective difference
  Skew/Pitch/Roll	Skew: ± 60° Pitch: ± 60° Roll: ± 360°

  Decode Capabilities2

  1D	Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma)
  2D	PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Chinese Sensible (Han Xin), Postal Codes
  IUID Support	Supports IUID parsing, the ability to read and separate IUID fields per application requirements

  User Environment

  Operating Temp.	Corded: -22° F to 122° F/-30° C to 50° C Cordless: -4° F to 122° F/-20° C to 50° C
  Storage Temp.	-40° F to 158° F/-40° C to 70° C
  Humidity	5% to 95% non-condensing
  Drop Specification	DS36X8: Withstands multiple 10.0 ft/3.0 m drops to concrete at room temperature DS3678: Withstands multiple 8.0 ft/2.4 m drops to concrete at -20° C to 50° C DS3608: Withstands multiple 8.0 ft/2.4 m drops to concrete at -30° C to 50° C
  Tumble Specification	7500 3.3 ft./1.0 m tumbles
  Sealing	Scanner: IP65 and IP68 per applicable IEC sealing specifications FLB cradle: IP65
  ESD	Per EN61000-4-2, ±20 KV air discharge, ±10 KV direct discharge, ±10 KV indirect discharge
  Ambient Light Immunity	0 to 10,037 Foot Candles/0 to 108,000 Lux (direct sunlight)

  Utilities and Maintenance

  123Scan	Programs scanner parameters, upgrades firmware, provides scanned barcode data and prints reports. For more information, visit www.zebra.com/123Scan
  Scanner SDK	Generates a fully-featured scanner application, including documentation, drivers, test utilities and sample source code. For more information, visit www.zebra.com/windowsSDK
  Scanner Management Service (SMS)	Remotely manages your Zebra scanner and queries its asset information. For more information, visit www.zebra.com/sms
  Network Connect	Seamlessly connects 3600 Series scanners directly to your Industrial Ethernet network with no additional conversion equipment. For more information, visit www.zebra.com/NetworkConnect

  Wireless Connectivity

  Bluetooth Radio	Bluetooth Class 1, Version 4.0 (LE), serial port (SPP)and HID profiles
  Data Rate	3 Mbit/s (2.1 Mbit/s) for Classic Bluetooth 1 Mbit/s (0.27 Mbit/s) for Low Energy
  Radio Range	Direct line of sight in open air: Class 1: Minimum 300 ft. (100.0 m); Class 2: Minimum 30 ft. (10.0 m)

  Regulatory

  Environmental	RoHS EN 50581: 2012
  Electrical Safety	EU Safety: EN 60950-1: 2006 + A11: 2009 + A1: 2010 + A12: 2011 + AC 2011 + A2: 2013; International Safety: IEC 60950-1: 2005 + A1: 2009 + A2: 2013 US/Canada Safety: UL 60950-1, second edition, CAN/CSA-C22.2 No. 60950-1-07
  Laser/LED Safety	Exempt Risk Group LED per IEC/EN 62471 (Ed 1) Class 2 Laser per IEC/EN 60825-1 (Ed 3) Complies with 21CFR1040.10
  EMI/RFI	IT Emissions: EN 55022: 2010/AC: 2011 (Class B); IT Immunity: EN 55024: 2010; Heavy Industrial: EN 61000-6-2: 2005/AC:2005; Harmonic Current Emissions: EN 61000-3-2: 2006 + A1: 2009 + A2: 2009 (Class B); Voltage Fluctuation and Flicker: EN 61000-3-3: 2013; Medical Electrical Equipment: EN 60601-1-2: 2007/AC: 2010, IEC 60601-1-2: 2007 (Modified); Radio Frequency Devices: 47 CFR Part 15, Subpart B, Class B Digital Apparatus: ICES-003 Issue 5, Class B

  Decode Ranges (Typical)3

  Symbology/Resolution	Near/Far
  Code 39: 3.0 mil	0.5-4.7 in./1.3-11.9 cm
  Code 39: 5.0 mil	0.2-5.6 in./0.5-14.2 cm
  PDF417: 6.6 mil	0.1-4.0 in./0.3-10.2 cm
  Datamatrix: 5.0 mil	1.2-2.9 in./3.0-7.4 cm
  Datamatrix: 10.0 mil	0.1-4.9 in./0.3-12.5 cm
  QR: 10.0 mil	0.1-4.8 in./0.3-12.2 cm
  100% UPC: 13.0 mil	⁴1.0-5.8 in./⁴2.5-14.7 cm
  C128: 15.0 mil	⁴3.3-10.0 in./⁴8.4-25.4 cm

  EA3600 Network Connect Industrial Ethernet

  Network Protocols Supported	Ethernet/IP, Profinet, Modbus TCP, TCP/IP
  Certification	ODVA EtherNet/IP, PROFIBUS
  Standards	Complies with IEEE 802.3af standard
  Power	12 VDC or 24 VDC, 1 amp
