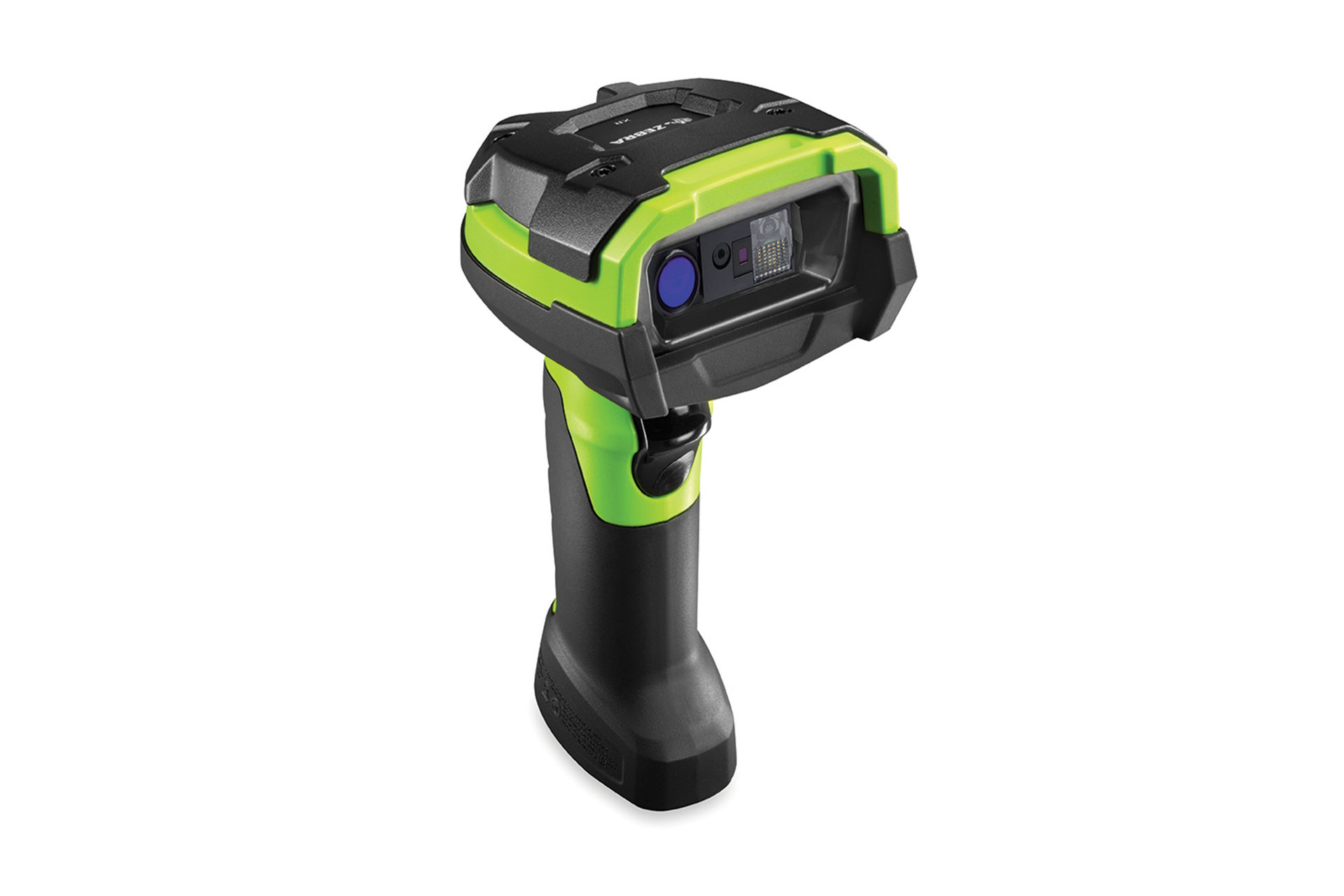

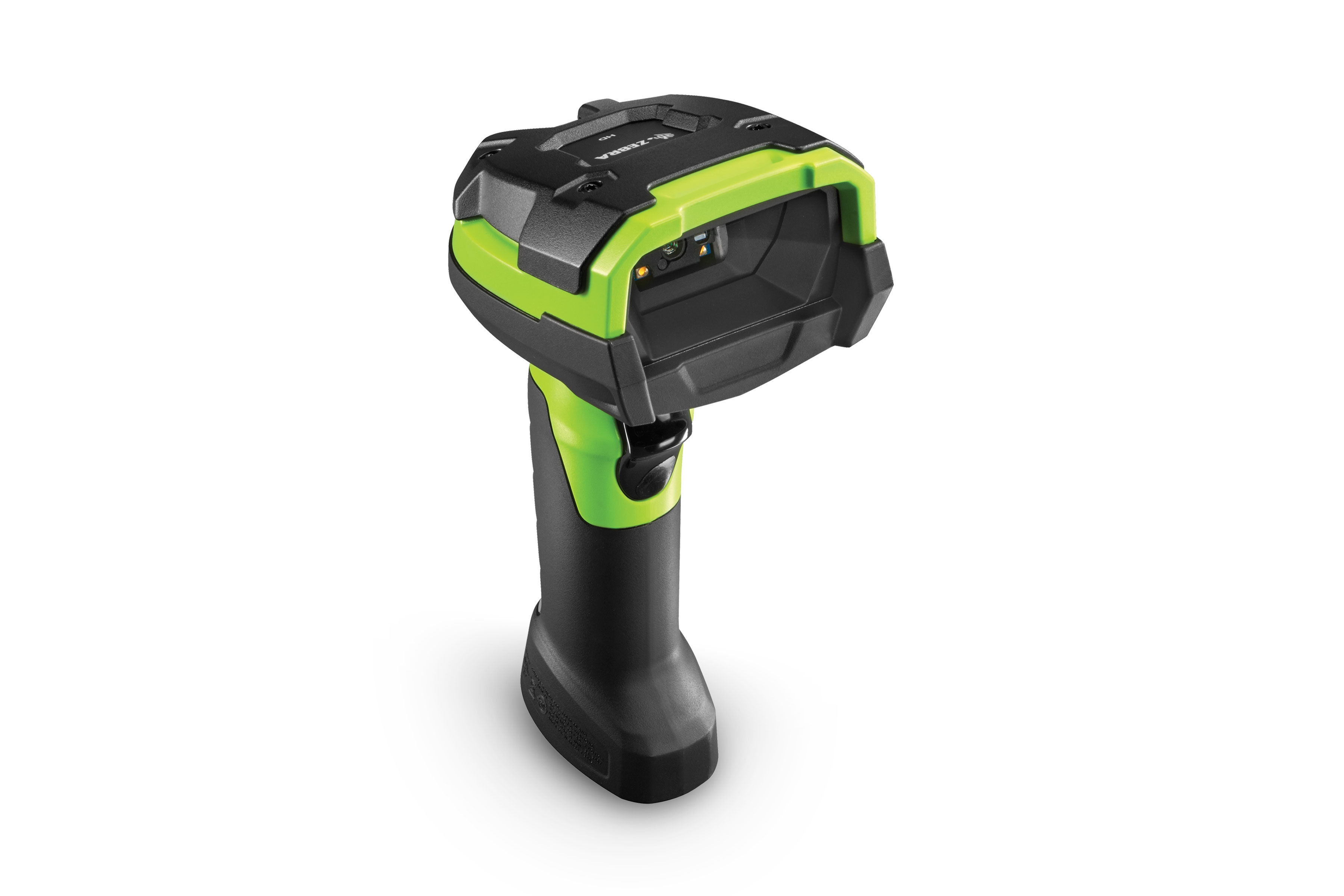

The DS3600-HP is another model in Zebra’s DS3600 series of ultra-rugged barcode scanners. The "HP" in this case stands for High Performance, and this model is designed to provide exceptional scanning capabilities for high-demand environments.

1. Information with Features and Uses

Key Features:

• High-Performance Scanning: The DS3600-HP offers industry-leading scanning performance. It is optimized for scanning 1D and 2D barcodes quickly and accurately, even on barcodes that are damaged, poorly printed, or have low contrast.
• Ultra-Rugged Construction: Like the other DS3600 models, the DS3600-HP is built for durability. It is designed to handle extreme conditions, such as drops, temperature fluctuations, dust, and exposure to moisture.
• Versatile Barcode Support: This scanner can read both 1D barcodes (like UPC/EAN) and 2D barcodes (QR codes, DataMatrix, PDF417, etc.), making it suitable for a wide range of applications.
• Superior Performance on Tough Barcodes: The DS3600-HP is particularly good at scanning barcodes that are damaged or faded, ensuring minimal downtime or errors.
• Extended Range Scanning: It provides extended-range capabilities, allowing users to scan barcodes from a distance—useful for applications where items are stored on high shelves or are located far away.
• Rugged, High-Impact Design: The DS3600-HP can withstand harsh environments, with the ability to endure drops from several feet, and it has an IP65 rating, meaning it is resistant to dust and water.
• High-Speed Scanning: Optimized to capture barcodes quickly, reducing wait times in busy environments, such as retail or warehouse operations.
• Flexible Connectivity Options: Offers Bluetooth and USB connectivity for easy integration into your existing infrastructure.
• Long Battery Life: Provides a full shift of battery life, making it ideal for environments that require long hours of operation.

Uses:

• Retail: Ideal for fast-paced retail environments where quick, high-performance scanning is required, including for high-density barcodes or items with damaged labels.
• Warehouse and Logistics: Efficient for scanning barcodes on products or shipments in a warehouse setting, especially for scanning from a distance or on high shelves.
• Healthcare: Useful for scanning 1D and 2D barcodes on medication or patient wristbands, particularly in busy hospitals or clinics.
• Field Services: In environments where employees are outdoors or in rough conditions, this scanner can handle rugged use, including scanning barcodes on large items or equipment.



  Specifications

  Physical Characteristics

  Dimensions	Corded: 7.3 in. H x 3.0 in. W x 5.2 in. D 18.5 cm H x 7.6 cm W x 13.2 cm D Cordless: 7.3 in. H x 3.0 in. W x 5.6 in. D 18.5 cm H x 7.6 cm W x 14.2 cm D
  Weight	Corded: 10.9 oz./309 g Cordless: 14.5 oz./411 g
  Input Voltage Range	Host powered: 4.5 VDC min., 5.5 VDC max. .External power supply: 11.4 VDC min., 12.6 VDC max.
  Operating Current	DS3608-HP (corded): 360 mA (RMS typical)
  Standby Current	DS3608-HP (corded): 100 mA (RMS typical)
  Color	Industrial Green
  Supported Host Interfaces	USB, RS232, Keyboard Wedge Industrial Ethernet: EtherNet/IP, Profinet, Modbus TCP & Std TCP/IP
  Battery	PowerPrecision+ 3100 mAh Li-Ion rechargeable battery
  User Indicators	Direct decode indicator; LEDs; beeper; vibration

  Performance Characteristics

  Scans per Full Charge	100,000+
  Illumination	Two (2) warm white light LEDs
  Aimer	655 nm laser
  Imager Field of View	Horizontal: 31°, Vertical: 23°
  Image Sensor	1,280 x 960 pixels
  Minimum Print Contrast	15% minimum reflective difference
  Skew/Pitch/Roll	Skew: ± 60° Pitch: ± 60° Roll: ± 360°

  Decode Capabilities2

  1D	Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma)
  2D	PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Chinese Sensible (Han Xin), Postal Codes
  OCR	OCR-A/B, MICR-E13B, US Currency Serial Number
  IUID Support	Supports IUID parsing, the ability to read and Separate IUID fields per application requirements

  User Environment

  Operating Temp.	0.79"/20 mm to 4.33"/110 mm
  Storage Temp.	-40° F to 158° F/-40° C to 70° C
  Humidity	5% to 95% non-condensing
  Drop Specification	DS36X8: Withstands multiple 10.0 ft/3.0 m drops to concrete at room temperature DS3678: Withstands multiple 8.0 ft/2.4 m drops to concrete at -20° C to 50° C DS3608: Withstands multiple 8.0 ft/2.4 m drops to concrete at -30° C to 50° C
  Tumble Specification	7500 3.3 ft./1.0 m tumbles
  Sealing	Scanner: IP65 and IP68 per applicable IEC sealing specifications FLB cradle: IP65
  ESD	Per EN61000-4-2, ±25 KV air discharge, ±10 KV direct discharge, ±10 KV indirect discharge
  Explosion Protection	Explosion-protected version available from BARTEC. For more information, visit www.Bartec.de/en
  Ambient Light Immunity	0 to 10,037 Foot Candles/0 to 108,000 Lux (direct sunlight)

  Utilities and Maintenance

  123Scan	Programs scanner parameters, upgrades firmware, provides scanned barcode data and prints reports. For more information, visit www.zebra.com/123Scan
  Scanner SDK	Generates a fully-featured scanner application, including documentation, drivers, test utilities and sample source code. For more information, visit www.zebra.com/windowsSDK
  Scanner Management Service (SMS)	Remotely manages your Zebra scanner and queries its asset information. For more information, visit www.zebra.com/sms
  Network Connect	Seamlessly connects 3600 Series scanners directly to your Industrial Ethernet network with no additional conversion equipment. For more information, visit www.zebra.com/NetworkConnect

  Wireless Connectivity

  Bluetooth Radio	Bluetooth Class 1, Version 4.0 (LE), serial port (SPP) and HID profiles
  Data Rate	3 Mbit/s (2.1 Mbit/s) for Classic Bluetooth 1 Mbit/s (0.27 Mbit/s) for Low Energy
  Radio Range	Direct line of sight in open air: Class 1: Minimum 300 ft. (100.0 m); Class 2: Minimum 30 ft. (10.0 m)

  Decode Ranges (Typical)3

  Symbology/Resolution	Near/Far
  Code 128: 5 mil	6.0-14.0 in./15.2-35.6 cm
  Code 128: 20 mil	5.0-45.0 in./12.7-114.3 cm
  Code 128: 40 mil	2.8-80 in./7.1-203.2 cm
  Datamatrix: 7.5 mil	7.0-11.0 in./17.8-27.9 cm
  Datamatrix: 10.0 mil	6.0-15.0 in./15.2-38.1 cm

  Regulatory

  Environmental	RoHS EN 50581: 2012
  Electrical Safety	EU Safety: EN 60950-1: 2006 + A11: 2009 + A1: 2010 + A12: 2011 + AC 2011 + A2: 2013; International Safety: IEC 60950-1: 2005 + A1: 2009 + A2: 2013 US/Canada Safety: UL 60950-1, second edition, CAN/CSA-C22.2 No. 60950-1-07
  Laser/LED Safety	International LED Safety: IEC 62471: 2006 (Ed.1.0); EN 62471: 2008 (LED); UL, VDE and CU recognized laser component
  EMI/RFI	IT Emissions: EN 55022: 2010/AC: 2011 (Class B); IT Immunity: EN 55024: 2010; Heavy Industrial: EN 61000-6-2: 2005/AC:2005; Harmonic Current Emissions: EN 61000-3-2: 2006 + A1: 2009 + A2: 2009 (Class B); Voltage Fluctuation and Flicker: EN 61000-3-3: 2013; Medical Electrical Equipment: EN 60601-1-2: 2007/AC: 2010, IEC 60601-1-2: 2007 (Modified); Radio Frequency Devices: 47 CFR Part 15, Subpart B, Class B Digital Apparatus: ICES-003 Issue 5, Class B

  Warranty

  Subject to the terms of Zebra’s hardware warranty statement, the DS3608-HP / DS3678-HP is warranted against defects in workmanship and materials for a period of: Scanner and Cradle: thirty-six (36) months, Battery: twelve (12) months from the date of shipment. For complete warranty statement, go to: Specifications Descriptions No Specifications Latest Reviews No Review 0 5 stars - 0 4 stars - 0 3 stars - 0 2 stars - 0 1 star - 0 Login You May Also Like Barcode Scanner DS4678 Codeless Barcode Scanner ₹39,131.00 Barcode Scanner DS4608 Barcode Scanner ₹89,999.00 Barcode Scanner DS4678-DPE Cordless Barcode Scanner ₹50,556.00 Barcode Scanner DS4608-DPE Barcode Scanner ₹50,835.00 Barcode Scanner CS60 Barcode Scanner ₹43,614.00 Barcode Scanner DS8108 Barcode Scanner ₹33,645.00 Barcode Scanner DS8178 Cordless Barcode Scanner ₹31,859.00 Barcode Scanner DS2208 and DS2278 Barcode Scanners ₹35,956.00 Get 50% Discount. Lorem, ipsum dolor sit amet consectetur adipisicing elit. Exercitationem, facere nesciunt doloremque nobis debitis sint? Subscribe Your experience on this site will be improved by allowing cookies. Allow cookies
