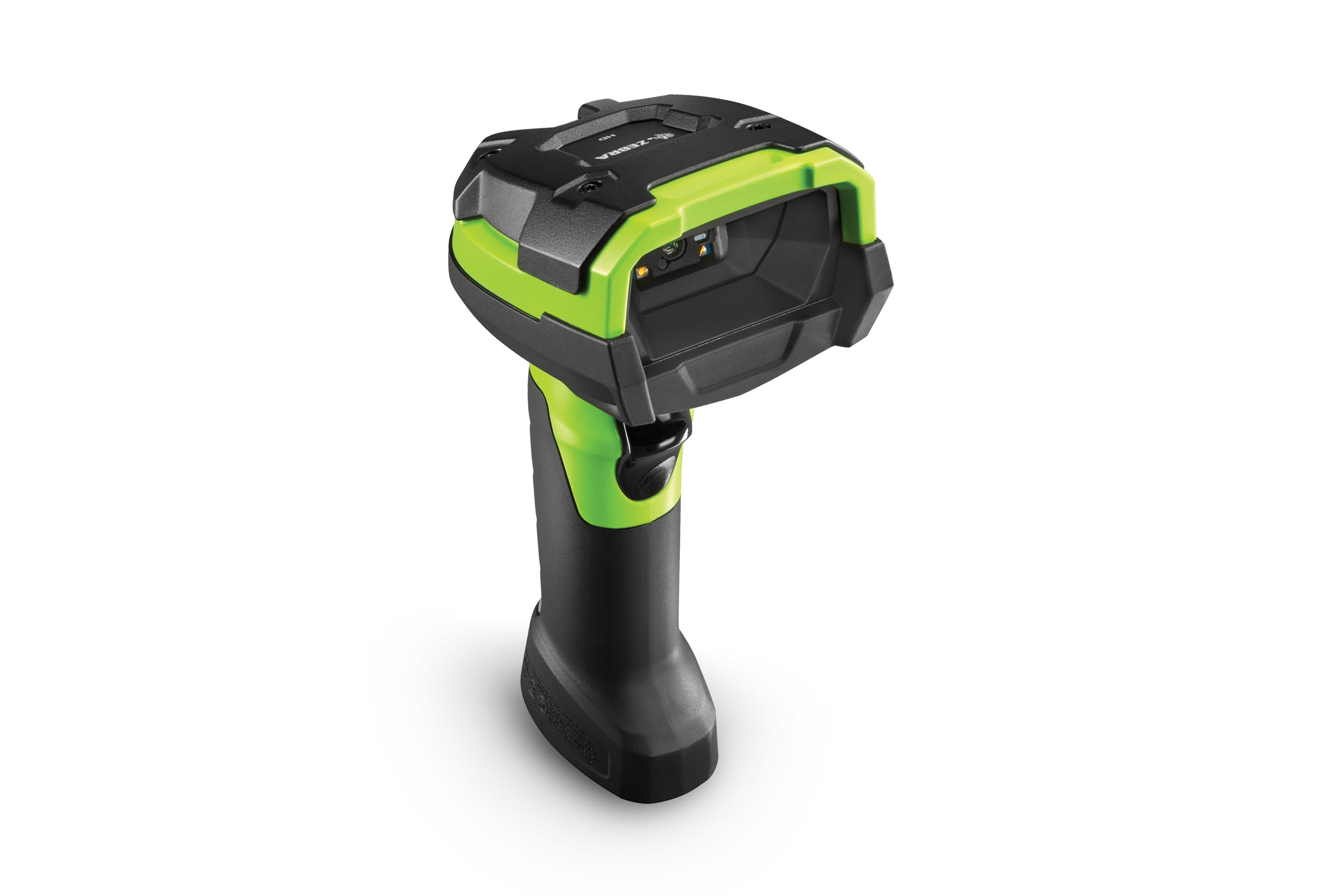

The DS3600-SR is another variant of Zebra's DS3600 series of ultra-rugged barcode scanners. The "SR" typically refers to Standard Range, indicating that this model is optimized for scanning at normal ranges (closer distances) compared to other DS3600 models that may have extended range capabilities.

1. Information with Features and Uses

Key Features:

• Standard Range Scanning: The DS3600-SR is optimized for scanning barcodes within a standard range (closer distances), making it ideal for tasks where items are within a typical working range, such as picking, packing, and inventory management in retail or warehouse settings.
• 1D and 2D Barcode Scanning: It can read both 1D (e.g., UPC, EAN) and 2D barcodes (QR codes, DataMatrix, PDF417), providing versatility for various applications across different industries.
• Rugged Design: Built to withstand tough environments, the DS3600-SR is ultra-rugged, able to handle drops, exposure to dust, and splashes of water. It usually has an IP65 rating for water and dust resistance.
• Superior Performance on Damaged Barcodes: The scanner is designed to perform well even on damaged, poorly printed, or low-contrast barcodes, ensuring accuracy and minimizing scanning errors in demanding environments.
• Fast and Accurate Scanning: It offers high-speed scanning to reduce wait times in busy settings, ensuring rapid processing of barcodes in environments like retail, warehousing, or field service.
• Multi-Connectivity Options: The DS3600-SR supports a range of connectivity options, including Bluetooth and USB, making it easy to integrate into your existing system.
• Long Battery Life: Optimized for extended use with long-lasting battery life, making it suitable for full-shift use in demanding work environments.
• Customizable and Easy to Use: Like other models in the DS3600 series, it features user-friendly controls and interfaces, and is designed for ease of use in high-demand environments.

Uses:

• Retail: The DS3600-SR is ideal for retail settings where items are typically scanned at standard distances, such as in checkout lanes or on the sales floor. It's great for scanning items quickly and accurately.
• Warehouse and Distribution Centers: Perfect for scanning barcodes on products stored at normal shelf heights or within easy reach, as well as for inventory management and shipment processing.
• Healthcare: Suitable for scanning 1D and 2D barcodes on medication labels, patient wristbands, and other items in healthcare settings where quick and accurate scans are necessary.
• Manufacturing and Logistics: Effective for tracking parts, components, or inventory in industrial or logistics environments, especially where barcodes are within easy reach for operators.



  Specifications

  Physical Characteristics

  Dimensions	Corded: 7.3 in. H x 3.0 in. W x 5.2 in. D  18.5 cm H x 7.6 cm W x 13.2 cm D Cordless: 7.3 in. H x 3.0 in. W x 5.6 in. D 18.5 cm H x 7.6 cm W x 14.2 cm D
  Weight	Corded: 10.76 oz./305 g Cordless: 14.34 oz./407 g
  Input Voltage Range	Host powered: 4.5 VDC min., 5.5 VDC max. External power supply: 11.4 VDC min., 12.6 VDC max.
  Operating Current	DS3608-SR (corded): 360 mA (RMS typical)
  Standby Current	DS3608-SR (corded): 100 mA (RMS typical)
  Color	Industrial Green
  Supported Host Interfaces	USB, RS232, Keyboard Wedge Industrial Ethernet: EtherNet/IP, Profinet, Modbus TCP & Std TCP/IP
  Battery	PowerPrecision+ 3100 mAh Li-Ion rechargeable battery
  User Indicators	Direct decode indicator; LEDs; beeper; vibration

  Performance Characteristics

  Scans per Full Charge	100,000+
  Image Capture	Basic
  Illumination	One (1) 660 nm LED
  Aimer	610 nm LED
  Imager Field of View	Horizontal: 42°, Vertical: 28°
  Image Sensor	1,280 x 800 pixels
  Minimum Print Contrast	15% minimum reflective difference
  Skew/Pitch/Roll	Skew: ± 60° Pitch: ± 60° Roll: ± 360°

  Decode Capabilities2

  1D	Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma)
  2D	PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Chinese Sensible (Han Xin), Postal Codes
  Digimarc	Digital watermark technology
  IUID Support	Supports IUID parsing, the ability to read and Separate IUID fields per application requirements

  User Environment

  Operating Temp.	Corded: -22° F to 122° F/-30° C to 50° C Cordless: -4° F to 122° F/-20° C to 50° C
  Storage Temp.	-40° F to 158° F/-40° C to 70° C
  Humidity	5% to 95% non-condensing
  Drop Specification	DS36X8: Withstands multiple 10.0 ft/3.0 m drops to concrete at room temperature DS3678: Withstands multiple 8.0 ft/2.4 m drops to concrete at -20° C to 50° C DS3608: Withstands multiple 8.0 ft/2.4 m drops to concrete at -30° C to 50° C
  Tumble Specification	7500 3.3 ft./1.0 m tumbles
  Sealing	Scanner: IP65 and IP68 per applicable IEC sealing specifications FLB cradle: IP65
  ESD	Per EN61000-4-2, ±25 KV air discharge, ±10 KV direct discharge, ±10 KV indirect discharge

  Utilities and Maintenance

  123Scan	Programs scanner parameters, upgrades firmware, provides scanned barcode data and prints reports. For more information, visit  www.zebra.com/123Scan
  Scanner SDK	Generates a fully-featured scanner application, including documentation, drivers, test utilities and sample source code. For more information, visit www.zebra.com/windowsSDK
  Scanner Management Service (SMS)	Remotely manages your Zebra scanner and queries its asset information. For more information, visit www.zebra.com/sms
  Network Connect	Seamlessly connects 3600 Series scanners directly to your Industrial Ethernet network without any third-party conversion equipment. For more information, visit www.zebra.com/NetworkConnect

  Wireless Connectivity

  Bluetooth Radio	Bluetooth Class 1, Version 4.0 (LE), serial port and HID profiles
  Data Rate	3 Mbit/s (2.1 Mbit/s) for Classic Bluetooth 1 Mbit/s (0.27 Mbit/s) for Low Energy
  Radio Range	Direct line of sight in open air: Class 1: Minimum 300 ft. (100.0 m); Class 2: Minimum 30 ft. (10.0 m)

  Decode Ranges (Typical)3

  Symbology/Resolution	Near/Far
  Code 128: 5 mil	1.3-6.7 in./3.3-17 cm
  Code 128: 20 mil	2.8-28.0 in./7.1-71.1 cm
  Code 128: 40 mil	1.7-60 in./4.4-152.4 cm
  Datamatrix: 7.5 mil	1.9-6.0 in./4.8-15.2 cm
  Datamatrix: 10.0 mil	1.4-8.6 in./3.5-21.8 cm

  Regulatory

  Environmental	RoHS EN 50581: 2012
  Electrical Safety	EU Safety: EN 60950-1: 2006 + A11: 2009 + A1: 2010 + A12: 2011 + AC 2011 + A2: 2013 International Safety: IEC 60950-1: 2005 + A1: 2009 + A2: 2013 US/Canada Safety: UL 60950-1, second edition, CAN/CSA-C22.2 No. 60950-1-07
  LED Safety	International LED Safety: IEC 62471: 2006 (Ed.1.0); EN 62471: 2008 (LED)
  EMI/RFI	IT Emissions: EN 55022: 2010/AC: 2011 (Class B) IT Immunity: EN 55024: 2010 Heavy Industrial: EN 61000-6-2: 2005/AC:2005 Harmonic Current Emissions: EN 61000-3-2: 2006 + A1: 2009 + A2: 2009 (Class B) Voltage Fluctuation and Flicker: EN 61000-3-3: 2013 Medical Electrical Equipment: EN 60601-1-2: 2007/AC: 2010, IEC 60601-1-2: 2007 (Modified) Radio Frequency Devices: 47 CFR Part 15, Subpart B, Class B Digital Apparatus: ICES-003 Issue 5, Class B
