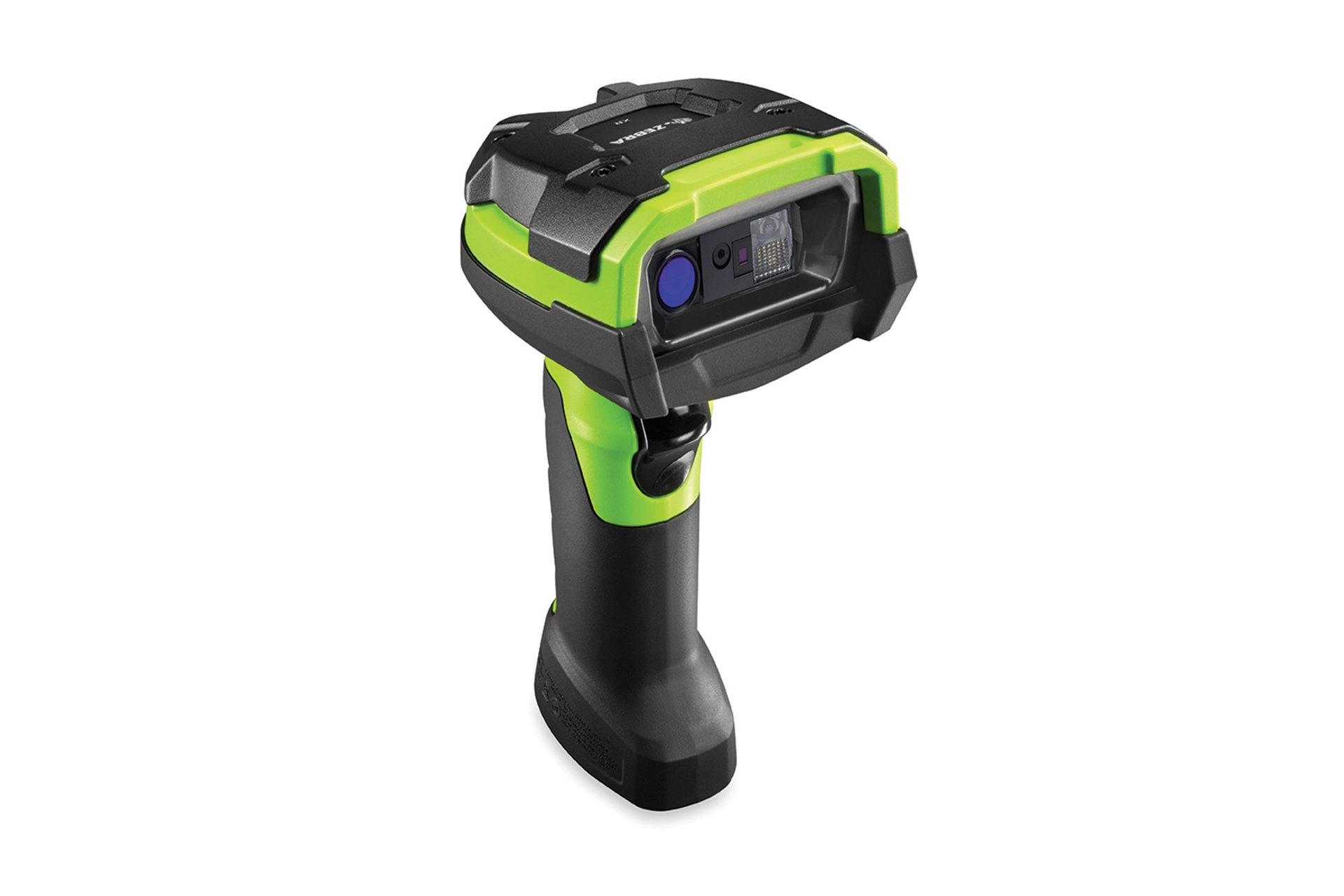

The Zebra DS3600-XR barcode scanner is a high-performance tool built for tough environments. Offering long-range scanning up to 70 feet, the DS3600-XR excels in industries like logistics, retail, and healthcare. It features advanced PRZM Imaging Technology for accurate scans of damaged barcodes and can handle 1D, 2D, and QR codes on various surfaces. With a rugged design and the ability to scan multiple barcodes simultaneously, it delivers both speed and efficiency in the most demanding settings. Read more
The Zebra DS3600-XR is a versatile and robust barcode scanner designed for industries that require both long-range and close-range scanning. Whether you are scanning barcodes on high shelves or handheld products, this scanner provides the flexibility and speed needed in a wide range of environments.
Key Features:
Common Uses:
Physical Characteristics
| Dimensions
| Corded: 7.3 in. H x 3.0 in. W x 5.2 in. D 18.5 cm H x 7.6 cm W x 13.2 cm D Cordless: 7.3 in. H x 3.0 in. W x 5.6 in. D 18.5 cm H x 7.7 cm W x 14.2 cm D |
| Weight | Corded: 10.86 oz./308 g Cordless: 14.46 oz./410 g |
| Input Voltage Range | Host powered: 4.5 VDC min., 5.5 VDC max. External power supply: 11.4 VDC min., 12.6 VDC max. |
| Operating Current | Corded: Near: 360mA (RMS typical) Far: 450mA (RMS typical) |
| Standby Current | Corded: 100 mA (RMS typical) |
| Color | Industrial Green |
| Supported Host Interfaces | USB, RS232, Keyboard Wedge Industrial Ethernet: EtherNet/IP, Profinet, Modbus TCP & Std TCP/IP |
| Battery | PowerPrecision+ 3100 mAh Li-Ion rechargeable battery |
| FIPS Security Certification and TAA Compliance | Certified Compliant with FIPS 140-3; Trade Agreement Act Compliant (specific configuration required) |
| User Indicators | Direct decode indicator; LEDs; beeper; vibration |
Performance Characteristics
| Scans per Full Charge (Cordless) | 80,000 |
| Image Capture | Basic |
| Aimer | 520 nm laser |
| Illumination | Two warm-white LEDs 2700K |
| Imager Field of View | Near: 42.1° (H) x 27° (V); Far: 14° (H) x 7.9° (V) |
| Image Sensor | Far: 1920 horizontal x 1080 vertical pixels Near: 1280 horizontal x 800 vertical pixels |
| Minimum Print Contrast | 25% minimum reflective difference |
| Skew/Pitch/Roll | Skew: ± 60°; Pitch: ± 60°; Roll: ± 360° |
Decode Capabilities2
| 1D | Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma) |
| 2D | PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Chinese Sensible (Han Xin), Postal Codes |
| Digimarc | Digital watermark technology |
| IUID | Supports IUID parsing, the ability to read and separate IUID fields per application requirements |
User Environment
| Operating Temp. | Corded: -22° F to 122° F/-30° C to 50° C Cordless: -4° F to 122° F/-20° C to 50° C |
| Storage Temp. | -40° F to 158° F/-40° C to 70° C |
| Humidity | 5% to 95% non-condensing |
| Drop Specification | DS36X8: Withstands multiple 10.0 ft/3.0 m drops to concrete at room temperature Cordless: Withstands multiple 8.0 ft/2.4 m drops to concrete at -20° C to 50° C Corded: Withstands multiple 8.0 ft/2.4 m drops to concrete at -30° C to 50° C |
| Tumble Specification | 7500 3.3 ft./1.0 m tumbles |
| Sealing | Scanner: IP65 and IP68 per applicable IEC sealing specifications FLB cradle: IP65 |
| ESD | Per EN61000-4-2, ±25 KV air discharge, ±10 KV direct discharge, ±10 KV indirect discharge |
| Ambient Light Immunity | 0 to 10,000 Foot Candles/0 to 107639 Lux (direct sunlight) |
Wireless Connectivity
| Bluetooth Radio | Bluetooth Class 1, Version 4.0 (LE), serial port (SPP) and HID profiles |
| Data Rate | 3 Mbit/s (2.1 Mbit/s) for Classic Bluetooth 1 Mbit/s (0.27 Mbit/s) for Low Energy |
| Radio Range | Direct line of sight in open air: Class 1: Minimum 300 ft. (100.0 m); Class 2: Minimum 30 ft. (10.0 m) |
Decode Ranges (Typical)3
| Symbology/Resolution | Near/Far |
| 100% UPCA: 13 mil | 1.3 in. to 12.1 ft./3.3 cm to 3.7 m |
| Code 128: 10 mil | 2.2 in. to 8.5 ft./5.6 cm to 2.6 m |
| Code 128: 15 mil | 2.1 in. to 13.6 ft./5.3 cm to 4.1 m |
| Code 128: 40 mil | *4 to 34.6 ft./*4 to 10.5 m |
| Code 128: 100 mil | *4 to 87.6 ft./*4 to 26.7 m |
| Code 39: 5 mil | 1.3 in. to 4.7 ft./3.3 cm to 1.4 m |
| Code 39: 7.5 mil | 1.3 in. to 7.4 ft./3.3 cm to 2.2 m |
| Code 39: 20 mil | 2.0 in. to 18.1 ft./5.1 cm to 5.5 m |
| Code 39: 40 mil | *4 to 41.1 ft./*4 to 12.5 m |
| Code 39: 55 mil Reflective | *4 to 61.1 ft./*4 to 18.6 m |
| Code 39: 100 mil | *4 to 105.1 ft./*4 to 32.0 m |
| Data Matrix: 10 mil | 1.3 in. to 5.5 ft./3.3 cm to 1.7 m |
| Data Matrix: 100 mil | *4 to 52.1 ft./*4 to 15.9 m |
| Data Matrix: 200 mil | *4 to 100.0 ft./*4 to 30.5 m |
| QR Code: 10 mil | 1.3 in. to 4.6 ft./3.3 cm to 1.4 m |
Utilities and Maintenance
123Scan | Programs scanner parameters, upgrades firmware, provides scanned barcode data and prints reports. For more information, visit www.zebra.com/123Scan |
| Scanner SDK | Generates a fully-featured scanner application, including documentation, drivers, test utilities and sample source code. For more information, visit www.zebra.com/windowssdk |
| Scanner Management Service (SMS) | Remotely manages your Zebra scanner and queries its asset information. For more information, visit www.zebra.com/sms |
| Network Connect | Seamlessly connects 3600 Series scanners directly to your Industrial Ethernet network without any third-party conversion equipment. For more information, visit www.zebra.com/NetworkConnect |
Regulatory
| Environmental | RoHS EN 50581: 2012 |
| Electrical Safety | EN 62368-1:2014/AC:2015 EN 62368-1:2014/A11:2017 IC 62368-1 (Ed.2) UL 60950-1, second edition, CAN/CSA-C22.2 N |
| Laser/LED Safety | 21CFR1040.10 (Laser) IC 60825-1:2014 (Ed.3.0): EN 60825-1:2014 (Laser) EN 60825-1:2014/A11:2021 IC 62471:2006 (Ed.1.0): EN 62471:2008 (LED) |
| EMI/RF | EN 55032:2015/A11:2020 (Class B) EN 55035:2017/A11:2020 EN 61000-6-2:2005/AC:2005 EN 61000-3-2:2014 (Class A) EN 61000-3-2:2019 (Class A) EN 61000-3-3:2013 EN 61000-3-3:2013/A1:2019 EN 60601-1-2:2015. IC 60601-1-2:2014 47 CFR Part 15, Subpart B, Class B ICES-003 Issue 7, Class B |
Warranty
| Subject to the terms of Zebra’s hardware warranty statement, the DS3608-XR/DS3678-XR are warranted against defects in workmanship and materials for a period of: Scanner and Cradle: thirty-six (36) months, Battery: twelve (12) months from the date of shipment. For complete warranty statement, go to: www.zebra.com/warranty |
Recommended Services
| Zebra OneCare Select; Zebra OneCare Essential; Zebra Battery Maintenance Services |
Footnotes
1. Heated scanner holder accessory recommended to reduce condensation on the outside of scan window when moving in and out of freezers.
2. Refer to Product Reference Guide for complete list of symbologies.
3. Printing resolution, contrast, and ambient light dependent.
4. Dependent on the width of the barcode (shorter barcodes can be read even closer, and wider barcodes farther)
Specifications are subject to change without notice.
