The Zebra DS457 Fixed Mount Scanner Series offers a compact and versatile solution for high-volume, hands-free barcode scanning. Its ability to read a wide range of barcode types and its space-saving design make it suitable for various applications, including retail, manufacturing, and kiosks. Read more

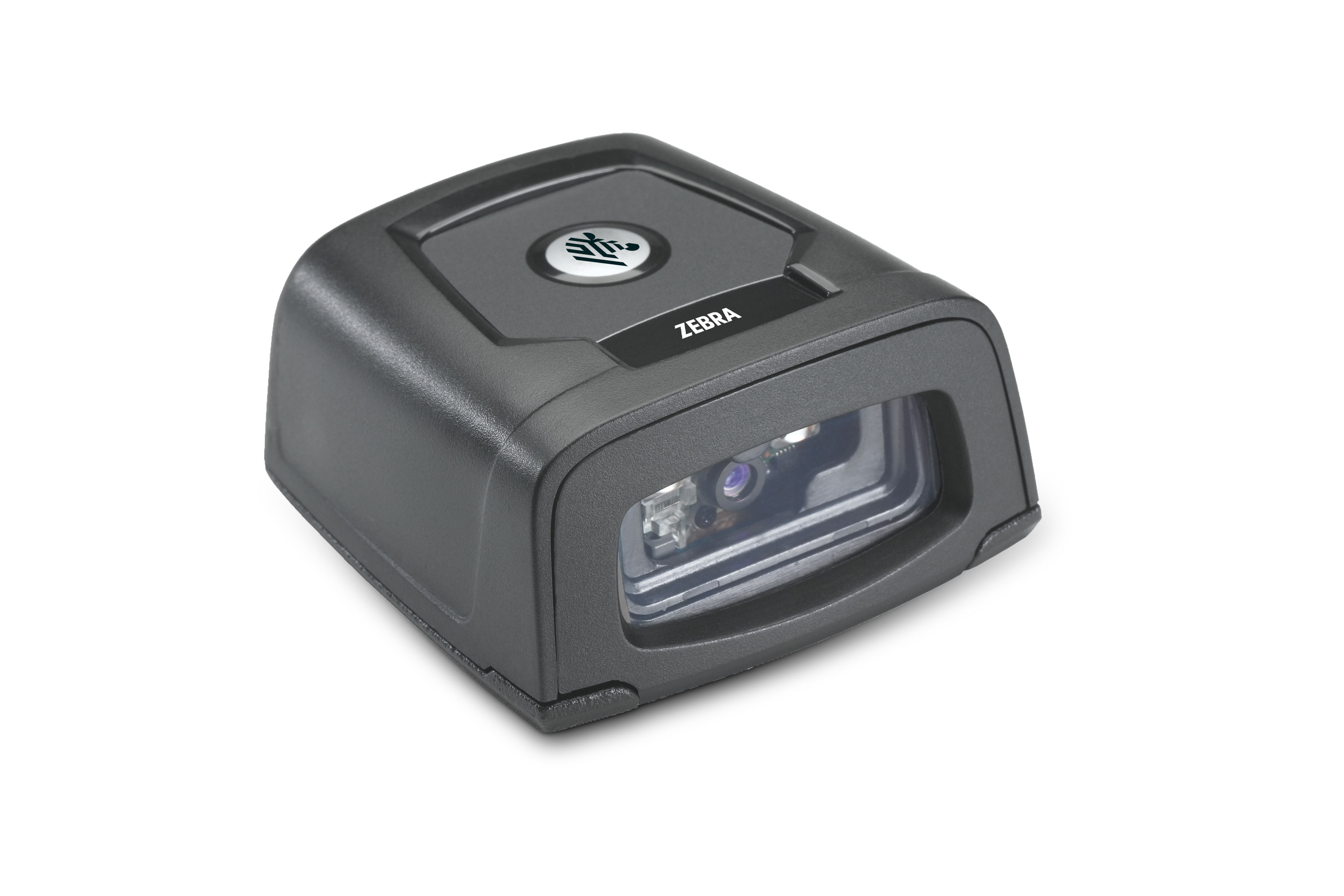

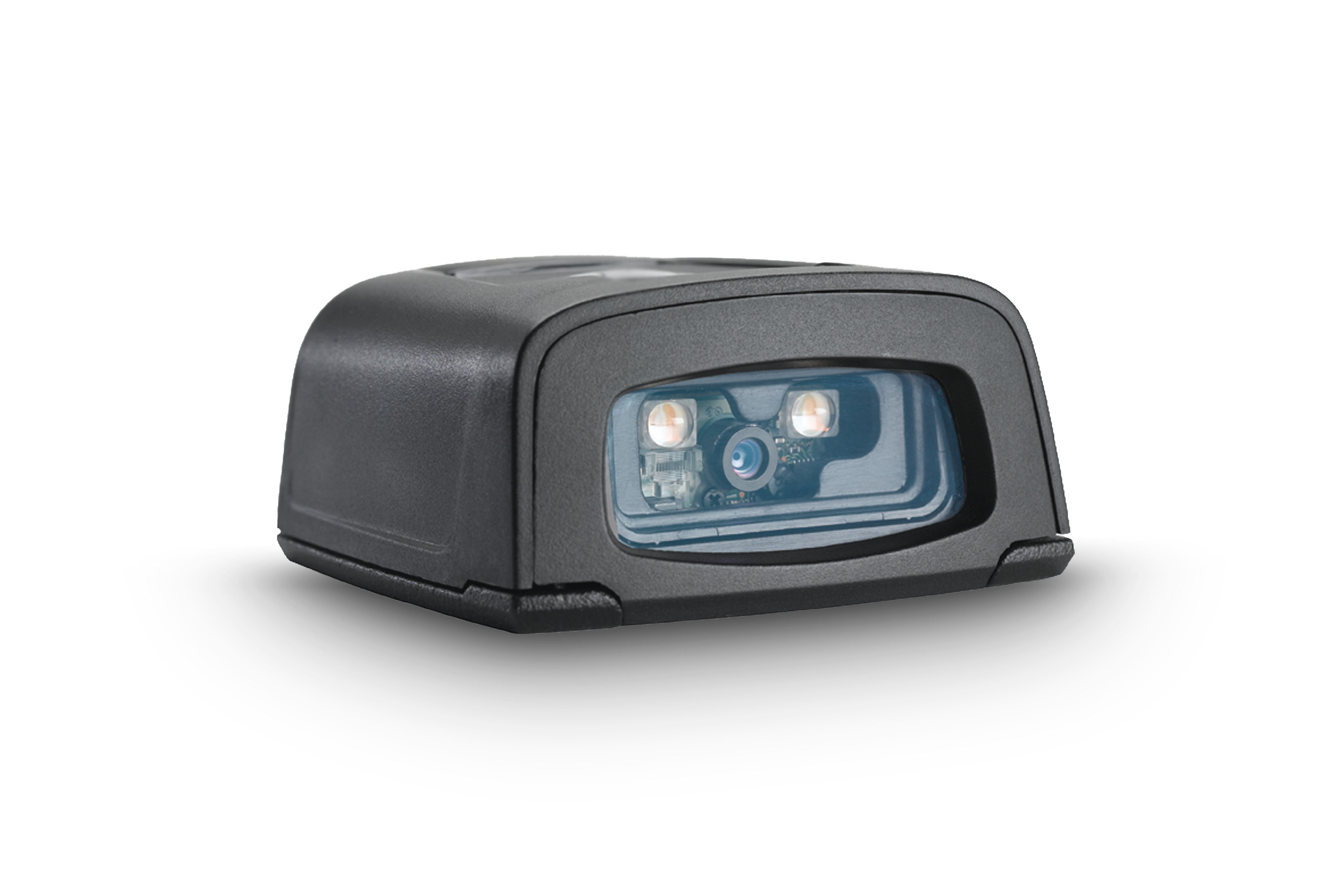

The Zebra DS457 Fixed Mount Scanner Series is engineered for high-volume, hands-free scanning of virtually any barcode, including 1D, 2D, and direct part marks (DPM). Its compact design allows it to fit into space-constrained areas, making it ideal for kiosks, retail checkouts, and manufacturing lines.
Key Features:
Versatile Scanning: Capable of reading 1D, 2D, and DPM barcodes, whether printed on paper, etched into products, or displayed on mobile screens.
Omni-Directional Scanning: Eliminates the need for precise barcode alignment, enhancing productivity and reducing training requirements.
Compact Design: Fits into the smallest spaces, making it suitable for various applications.
Durability: Built to withstand demanding environments, ensuring reliable performance.
Physical Characteristics
| Dimensions | 1.15 in. H x 2.3 in. L x 2.44 in. W 2.92 cm H x 5.84 cm L x 6.2 cm W |
| Weight | 3.9 oz./111 g |
| Power | Maximum: 5 VDC +/- 10% @ 450 mA |
| Models | DS457SR: 1-D and 2-D bar codes DS457HD: 1-D and 2-D bar codes, including high density codes DS457DL: 1-D and 2-D bar codes plus parsing of codes found on driver’s licenses and other identification documents DS457DP: 1-D and 2-D bar codes plus direct part marks |
Performance Characteristics
| Sensor Resolution | 752 (H) x 480 (V) gray scale |
| Imager Field of View | DS457 SR and DL: 39.6° horizontal, 25.7° vertical DS457 HD and DP: 38.4° horizontal, 24.9° vertical |
| Aiming Element | 655 ± 10 nm (VLD) |
| Illumination Element | 625 ± 5 nm (LED) |
| Minimum Print Contrast | Minimum 25% absolute dark/light reflectance |
Symbology Decode Capability
| 1-D | All major 1-D bar codes |
| 2-D | PDF417, DataMatrix, QR Code, Aztec, Composite Codes and MaxiCode |
| Postal | US Postnet, US Planet, UK Postal, Australian Postal, Japan Postal |
User Environment
| Operating Temp. | -4° to 122° F /-20° to 50° C* (NOTE: Laser aimer disabled above 113° F /45° C) * See integration guide |
| Storage Temp. | -40° to 158° F /-40° to 70° C |
| Humidity | Operating: 95% RH, non-condensing at 50°C Storage: 85% RH, non-condensing at 70°C |
| Sealing | IP54 |
| Drop Specification | Withstands multiple 30 in./176 cm drops to concrete |
| Ambient Light | Total darkness to 9000 ft. candles ( 96,900 Lux) |
| Programmable Parameters | Power mode, trigger mode, beeper tone, session time, camera control, image control, advanced data formatting, document capture, signature capture |
| Image File Formats | BMP, TIFF, JPG |
DS457 Series Decode Zone (Typical)
| Label Density/Paper Label | Depth of Field - DS457-SR / DS457-DL |
| Code 39 - 5 mil | 1.3 - 8.1 in. |
| Code 39 - 20 mil | 1.8 - 16.5 in. |
| UPC - 13 mil | 1.5 - 15.3 in. |
| Datamatrix - 7.5 mil | 2.0 - 6.0 in. |
| Datamatrix - 10 mil | 1.5 - 8.4 in. |
| Datamatrix - 15 mil | 1.6 - 10.9 in. |
| QR Code - 7.5 mil | 2.1 - 5.1 in. |
| QR Code - 10 mil | 1.5 - 7.0 in. |
| PDF417 - 6.67 mil | 1.8 - 7.1 in. |
| PDF417 - 10 mil | 1.2 - 10.2 in. |
| PDF417 - 15 mil | 1.5 - 13.0 in. |
| Label Density/Paper Label | Depth of Field - DS457-HD / DS457-DP |
| Code 39 - 3 mil | 1.2 - 4.8 in. |
| Code 39 - 5 mil | 1.1 - 5.7 in. |
| Code 39 - 20 mil | 1.9 - 9.7 in. |
| UPC - 13 mil | 1.7 - 8.3 in. |
| Datamatrix - 4 mil | 1.6 - 3.0 in. |
| Datamatrix - 5 mil | 1.4 - 3.7 in. |
| Datamatrix - 7.5 mil | 1.2 - 4.4 in. |
| QR Code - 5 mil | 1.5 - 3.1 in. |
| QR Code - 7.5 mil | 1.1 - 4.0 in. |
| QR Code - 10 mil | 1.1 - 4.6 in. |
| PDF417 - 4 mil | 1.4 - 3.8 in. |
| PDF417 - 6.67 mil | 1.0 - 4.8 in. |
Interfaces

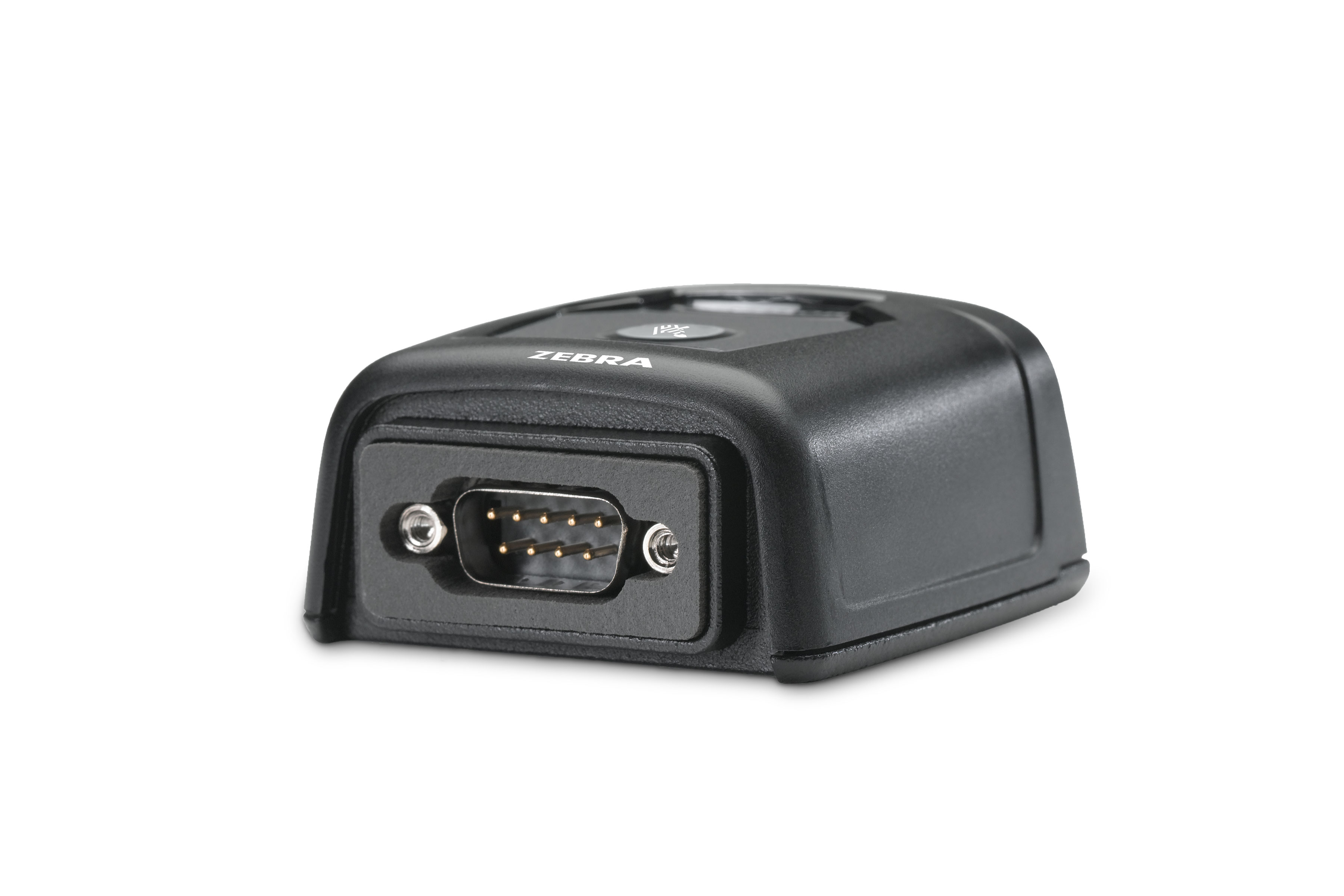

| Interfaces Supported | 9-pin male D-sub - USB (full speed) and TTL level RS232 with RTS and CTS |
Regulatory
| Electrical Safety | ETL, VDE, CETL, EN60950, Ctick, VCCI |
| Laser Classification | Intended for use in CDRH Class II/IEC 825 Class I devices |
| EMI/RFI | FCC Part 15 Class B, ICES-003 Class B, CISPR22 Class B |
| Environmental | RoHS compliant |
Warranty
| Subject to the terms of Zebra's hardware warranty statement, the DS457 is warranted against defects in workmanship and materials for a period of 3 years from the date of shipment. For the complete Zebra hardware product warranty statement, go to: https://www.zebra.com/warranty |
