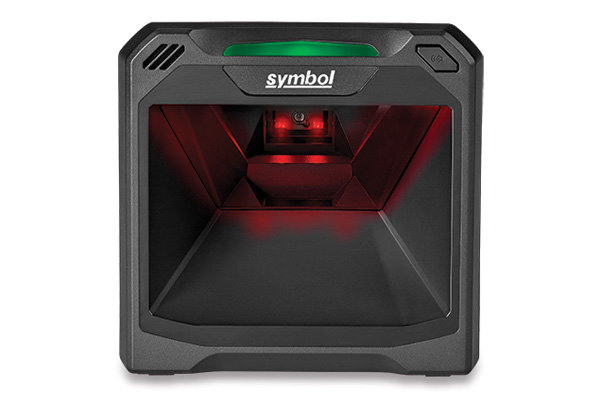

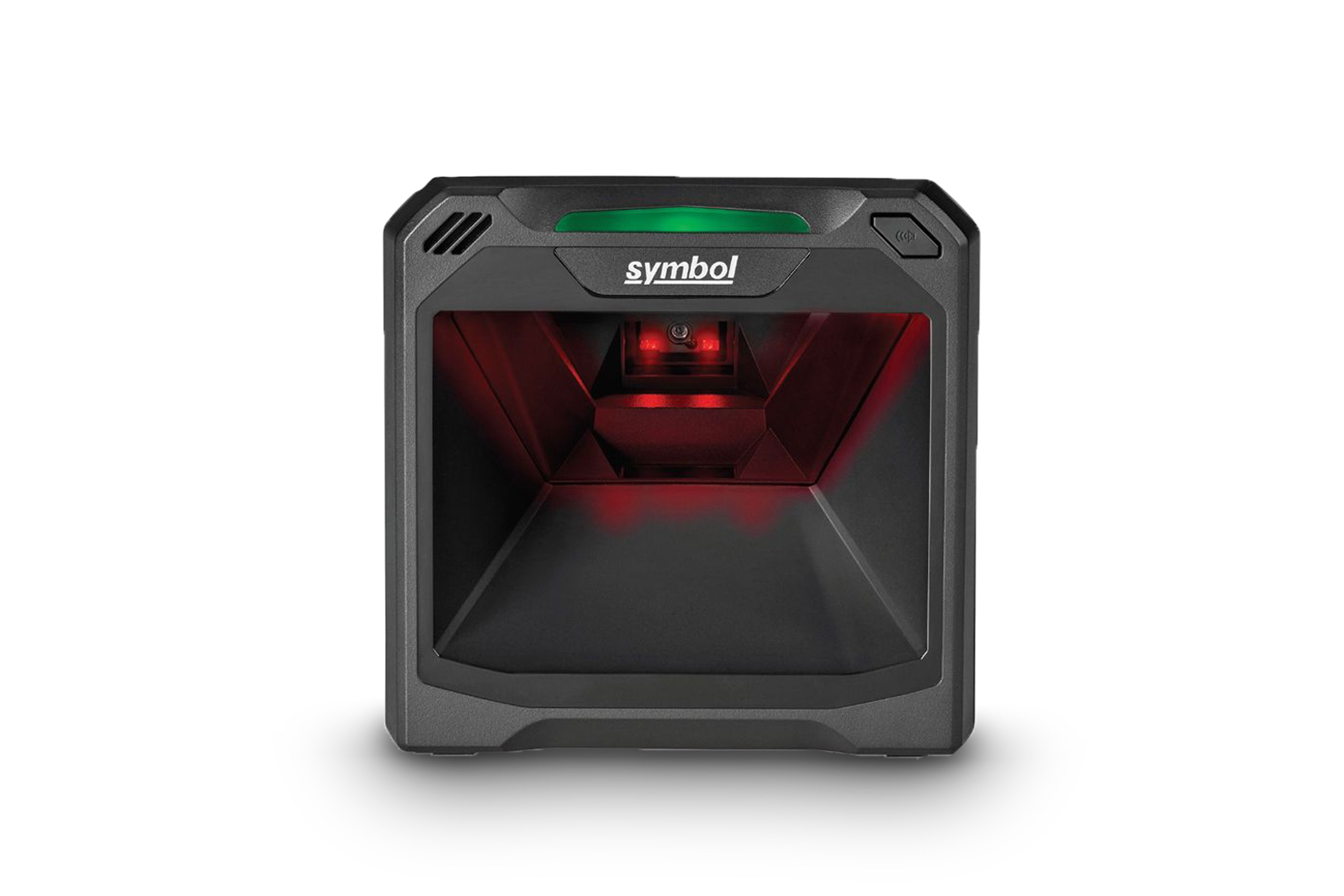

The DS7708 Vertical 1D/2D Scanner is a high-performance barcode scanner designed for retail, logistics, and warehouse environments. It features vertical scanning technology, allowing it to read both 1D (linear) and 2D (matrix) barcodes quickly and efficiently. The DS7708 offers a hands-free scanning experience with its vertical, fixed-position design, making it ideal for high-volume checkout and operations that require fast, accurate barcode scanning.

Key Features:

• 1D/2D Barcode Scanning: Capable of reading both 1D and 2D barcodes (such as QR codes, PDF417, DataMatrix, etc.), providing versatile barcode scanning options.
• Vertical Fixed Design: The scanner is designed to be used in a vertical position, allowing users to simply place barcoded items in front of the scanner for hands-free scanning.
• Fast and Accurate Scanning: Delivers rapid scanning performance with minimal errors, improving productivity in retail or logistics environments.
• Omnidirectional Scanning: This feature allows the scanner to read barcodes from any angle, improving scanning efficiency and reducing user frustration.
• Ergonomic Design: The vertical design allows for ease of use in busy environments like point-of-sale (POS) areas, warehouses, or distribution centers.
• Durability: Built to withstand harsh environments, the DS7708 is often designed with durability in mind, able to handle drops, dust, and rough handling.
• Connectivity Options: Can typically be connected to POS systems or other retail/warehouse management systems via USB, serial, or other communication protocols.
• High Throughput: Ideal for use in high-volume environments, handling many items quickly with minimal downtime.

Uses:

• Retail POS Systems: Commonly used in grocery stores, supermarkets, and other retail environments for fast and efficient checkout.
• Warehouse and Inventory Management: Used for quickly scanning products or inventory items to keep track of stock levels or for shipping and receiving operations.
• Logistics: Helps streamline operations by scanning barcodes on packages, shipments, or parcels for fast sorting and tracking.
• Self-Checkout Systems: It is ideal for self-checkout kiosks, where customers can scan items independently.
• Product Identification: Used in various environments where 1D and 2D barcodes are used for product identification and tracking.



  Specifications

  Physical Characteristics

  Dimensions	Scanner only: 5.63 in. H x 5.86 in. W x 3.81 in. D 14.3 cm H x 14.9 cm W x 9.7 cm D Scanner with Table Mount Kit: 6.06 in. H x 5.93 in. W x 3.85 in. D 15.4 cm H x 15.1 cm W x 9.8 cm D
  Weight	17.6 oz. / 500 g
  Voltage and Current	Without auxiliary scanner: Standby: 5 VDC +/-10% @ 125ma avg. Operating: 5 VDC +/-10% @ 480ma avg. With auxiliary scanner: Standby: 12 VDC +/-10% @ 100ma avg. Operating: 12 VDC +/-10% @ 400ma avg.
  Color	Midnight Black
  Supported Host Interfaces	USB, RS-232, Keyboard Wedge, TGCS (IBM) 46XX over RS485
  Keyboard Support	Supports over 90 international keyboards
  Auxiliary Scanner Interface	USB
  Electronic Article Surveillance	Compatible with Checkpoint EAS deactivation systems

  Performance Characteristics

  Swipe Speed	Up to 100 in./sec. (254 cm/sec.)
  Light Source	Two deep red LEDs (660nm)
  Imager Field of View	48.0° x 36.7° (bar-code reading) 48.0° x 33.7° (image capture)
  Image Sensor	1280 x 960 (bar-code reading) 1280 x 880 (image capture)
  Minimum Print Contrast	25% minimum reflective difference
  Roll / Pitch / Yaw (Skew)	360˚, ±70˚, ±70˚ typical

  User Environment

  Operating Temperature	32˚ to 104˚ F / 0˚ to 40˚ C
  Storage Temperature	-40˚ to 158˚ F / -40˚ to 70˚ C
  Humidity	5% to 85% RH, non-condensing
  Environmental Sealing	IP52
  Electrostatic Discharge (ESD)	ESD per EN61000-4-2; +/- 25 KV Air Direct; +/- 8 KV Indirect (without auxiliary scanner)
  Ambient Light Range	From darkness (0 fcd) to 450 fcd artificial light and 10,000 fcd direct sunlight

  Symbology Decode Capability

  Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma), PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Chinese Sensible (Han Xin), Postal Codes Refer to Product reference Guide for complete list of symbologies.

  Minimal Element Resolution

  Code 39 – 3 mil, UPC – 7.8 mil, PDF417 – 4 mil, Datamatrix – 7.5 mil, QR Code – 7.5 mil

  Decode Ranges (Typical)

  Code 39 – 5 mil:	0 – 7.2 in. (0 – 18.3 cm)
  UPC/EAN – 10 mil (80%):	0 – 10.0 in. (0 – 25.4 cm)
  UPC/EAN – 13 mil (100%):	0 – 10.3 in. (0 – 26.1 cm)
  PDF417 – 5 mil:	0 – 3.5 in. (0 – 8.9 cm)
  Datamatrix – 10 mil:	0 – 5.0 in. (0 – 12.7 cm)
  QR Code – 10 mil:	0 – 4.9 in. (0 – 12.4 cm)

  Complimentary Management Tools

  123Scan2 Programs scanner parameters, upgrades firmware, provides scanned bar code data and prints reports. www.zebra.com/123Scan

  Scanner Management Service (SMS) Remotely manages your Zebra scanner and queries its asset information. www.zebra.com/sms

  Scanner SDK Generates a fully-featured scanner application, including documentation, drivers, test utilities and sample source code. www.zebra.com/windowsSDK

  Warranty

  Subject to the terms of Zebra’s hardware warranty statement, the DS7708 is warranted against defects in workmanship and materials for a period of 3 years from the date of shipment. Complete Zebra hardware product warranty statement: www.zebra.com/warranty
