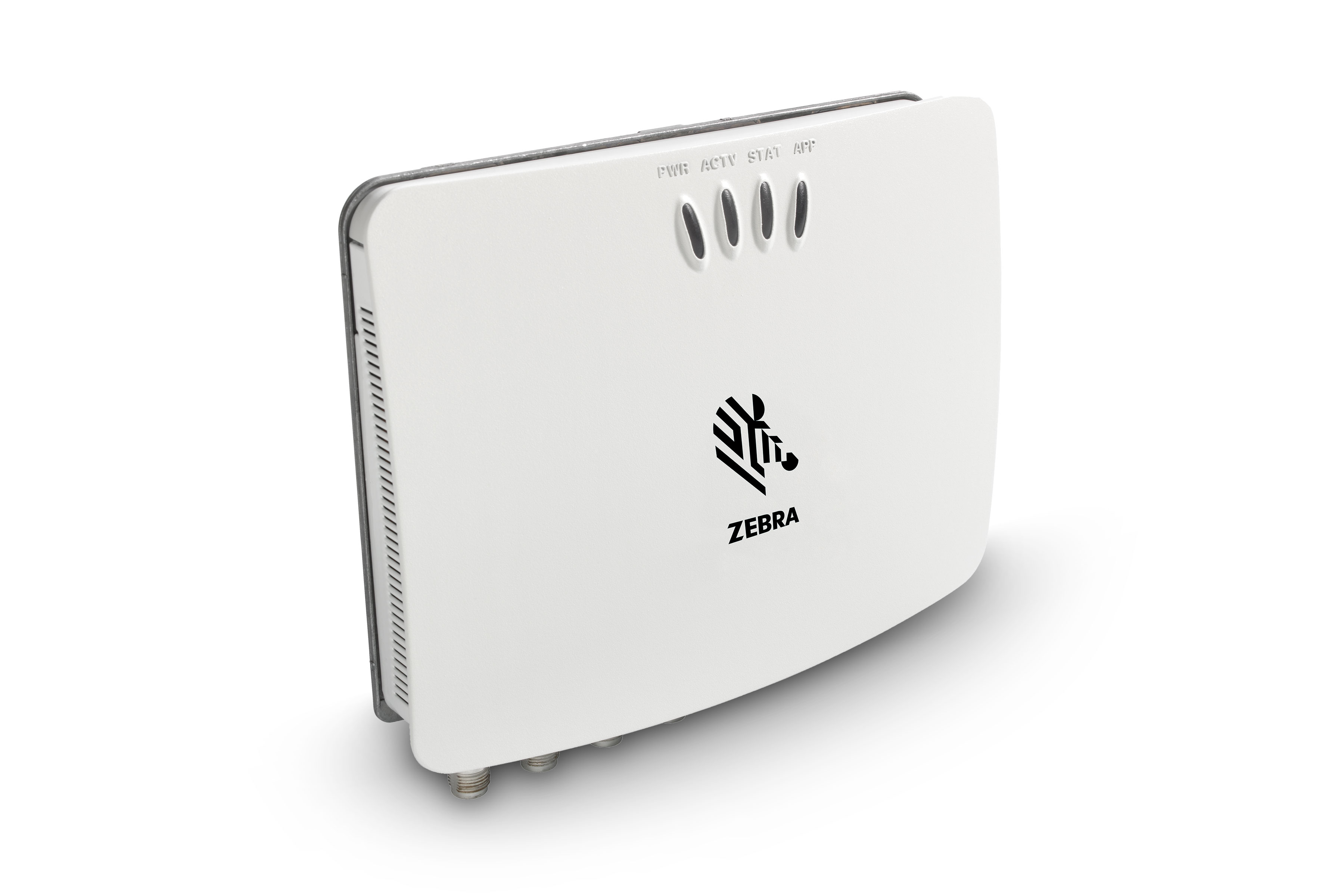

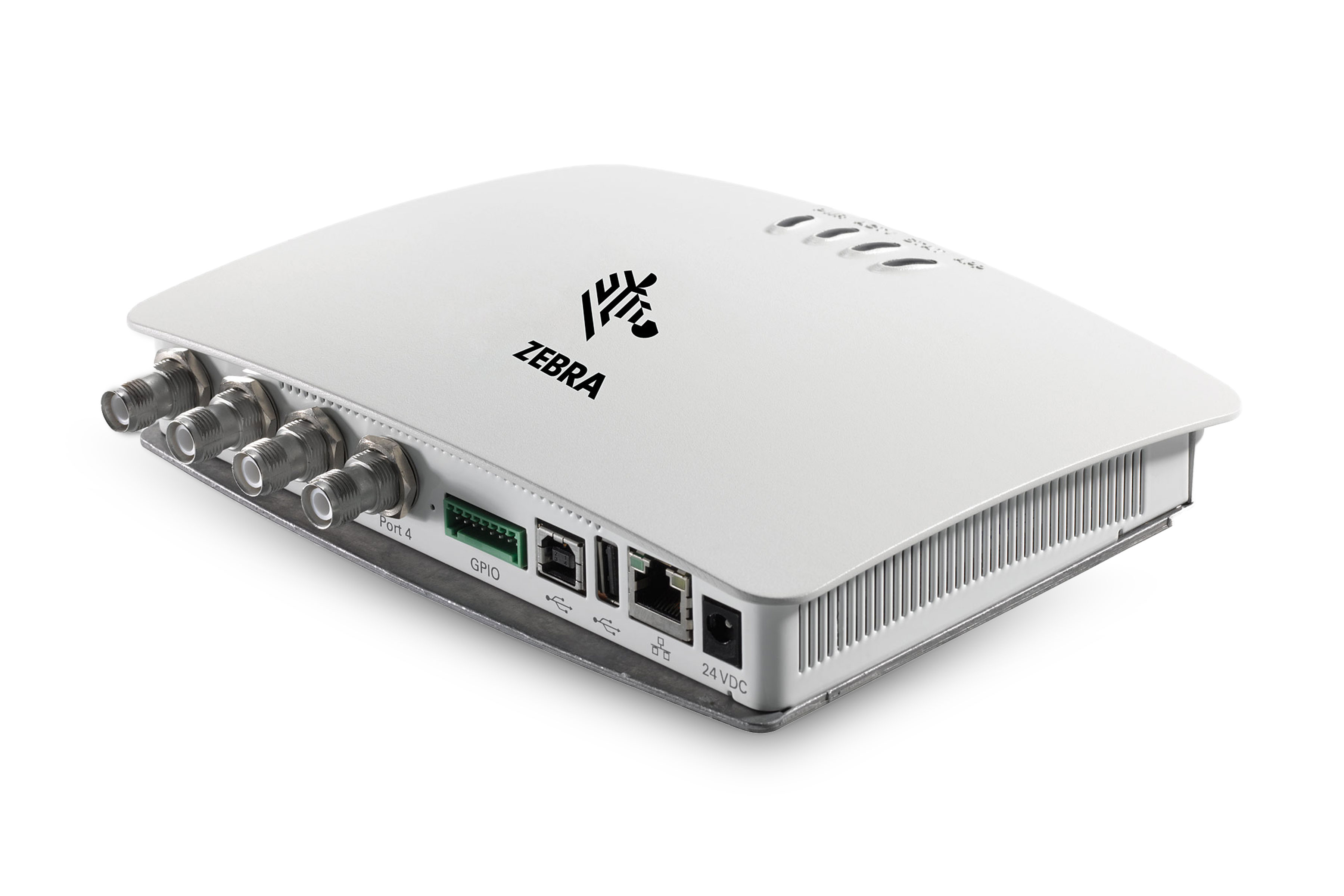

The FX7500 Fixed RFID Reader from Zebra Technologies is a powerful, high-performance UHF RFID reader designed to provide businesses with real-time visibility and accurate tracking of assets, inventory, and personnel. The FX7500 offers robust RFID reading capabilities for use in various industrial, warehouse, logistics, and supply chain applications.

Key Features of FX7500 Fixed RFID Reader:

• UHF RFID Technology:

  • The FX7500 utilizes UHF RFID technology, enabling fast and reliable tag reading over longer distances (up to 30 meters or more depending on the environment and tags used). This makes it ideal for applications such as asset tracking, inventory management, and supply chain visibility.

• High-Performance Processor:

  • The FX7500 is equipped with a high-performance processor that supports quick, efficient processing of RFID tag data. This helps businesses manage large volumes of tags in real-time, improving operational speed and accuracy.

• Advanced Tag Processing:

  • The reader supports advanced tag processing, including the ability to read a high volume of tags simultaneously. This is especially useful in environments where multiple items need to be scanned at once, such as warehouses or logistics hubs.

• Flexible Antenna Options:

  • The FX7500 can support up to 4 external antennas (via external ports), offering flexibility in deploying the device to cover large areas. Users can easily adjust the antenna configuration to meet specific operational needs, ensuring optimal coverage in the desired area.

• Compact and Rugged Design:

  • Designed for industrial environments, the FX7500 features a rugged, compact form factor. It is IP53-rated, meaning it is protected against dust and water splashes, and it can withstand drops from up to 1 meter (about 3.3 feet). This ensures reliability and durability in harsh conditions.

• Connectivity and Integration:

  • The FX7500 offers a variety of connectivity options such as Ethernet and Wi-Fi, allowing for seamless integration into existing infrastructure. It is compatible with a wide range of third-party software and hardware, making it easy to integrate with existing systems.

• Powerful Software Integration:

  • The FX7500 supports Zebra’s Software Development Kit (SDK) and software applications, providing users with the tools they need to integrate RFID data into their business systems. Additionally, it can work with Zebra's Visibility IQ and other tracking software to provide real-time data analytics.

• Enhanced RFID Read Performance:

  • The reader’s ability to handle dense tag environments means it can read tags even in challenging conditions where many tags are close together, ensuring that it delivers accurate data collection.

• Remote Management:

  • With Zebra’s Network Connect technology, users can easily manage the FX7500 remotely, which is useful for monitoring and maintaining multiple readers across large facilities or distributed locations.

• Security Features:

  • The FX7500 includes secure data transmission options and supports encrypted communication, making it ideal for businesses that need to ensure the security of their RFID data.

Use Cases:

• Warehouse and Inventory Management:

  • The FX7500 is ideal for warehouse operations, allowing businesses to quickly and efficiently manage inventory and assets across large areas. Its ability to read multiple tags simultaneously speeds up processes like receiving, picking, and shipping.

• Supply Chain Management:

  • In supply chain operations, the FX7500 can provide real-time tracking of shipments and inventory as they move through different stages of the supply chain, improving operational efficiency and visibility.

• Asset Tracking:

  • The FX7500 is well-suited for tracking valuable assets across large facilities. This could include tools, equipment, containers, or even personnel, helping organizations reduce asset loss and ensure better asset utilization.

• Logistics and Distribution Centers:

  • The FX7500 is a great solution for logistics environments where goods and packages need to be quickly tracked and moved. Its ability to handle multiple tags at once increases throughput and reduces bottlenecks at sorting or distribution points.

• Retail:

  • In retail operations, the FX7500 can be used for real-time inventory tracking, shelf replenishment, and loss prevention. It improves stock accuracy and helps reduce out-of-stock situations.



    Specifications

    Physical Characteristics

    Dimensions	7.7 in. L x 5.9 in. W x 1.7 in. D (19.56 cm L x 14.99 cm W x 4.32 cm D)
    Weight	1.9 lbs ± 0.1 lbs (0.86 kg ± 0.05 kg)
    Housing Material	Die-cast aluminum, sheet metal and plastic
    Visual Status Indicators	Multicolor LEDs: Power, Activity, Statusand Applications
    Mounting	Keyhole and standard VESA (75mm x 75mm)

    Environmental

    Operating Temp.	-4° to +131° F/-20° to +55° C
    Storage Temp.	-40° to +158° F/-40° to +70° C
    Humidity	5-95% non-condensing
    Shock/Vibration	MIL- STD-810G

    Regulatory Compliance

    Safety	UL 60950-01, UL 2043, IEC 60950-1, EN 60950-1
    RF/EMI/EMC	FCC Part 15, RSS 210, EN 302 208, ICES-003 Class B, EN 301 489-1/3
    SAR/MPE	FCC 47CFR2:OET Bulletin 65; EN 50364
    Other	ROHS, WEEE

    Recommended Services

    Support Services	Service from the Start Advance Exchange On-Site System Support
    Advanced Services	RFID Design and Deployment Services

    Connectivity

    Communications	10/100 BaseT Ethernet (RJ45) w/ POE support; USB Client (USB Type B)*, USB Host Port (Type A)*
    General Purpose I/O	2 inputs, 3 outputs, optically isolated (Terminal Block)
    Power Supply	POE, POE+ or +24V DC (UL Approved) 12V-48VDC operation can be supported
    Antenna Ports	FX 7500-2: 2 mono-static ports (Reverse Polarity TNC) FX 7500-4: 4 mono-static ports (Reverse Polarity TNC)

    Hardware, OS and Firmware Management

    Processor	Texas Instruments AM3505 (600 Mhz)
    Memory	Flash 512 MB; DRAM 256 MB
    Operating System	Linux
    Firmware Upgrade	Web-based and remote firmware upgrade capabilities
    Management Protocols	RM 1.0.1 (with XML over HTTP/HTTPS and SNMP binding); RDMP
    Network Services	DHCP, HTTPS, FTPS, SFPT, SSH, HTTP, FTP, SNMP and NTP
    Network Stack	IPv4 and IPv6
    Security	Transport Layer Security Ver 1.2, FIPS-140
    Air Protocols	EPCglobal UHF Class 1 Gen2, ISO 18000-6C
    Frequency (UHF Band)	Global Reader: 902 MHz–928 MHz (Maximum, supports countries that use a part of this band), 865 MHz–868 MHz US (only) Reader: 902 MHz–928 MHz
    Transmit Power Output	10 dBm to +31.5 dBm (POE+, 12V ~48V External DC, Universal 24V DC Power Supply); +10 dBm to +30.0 dBm (POE)
    Max. Receive Sensitivity	-82 dBm
    IP addressing	Static and Dynamic
    Host Interface Protocol	LLRP
    API Support	Host Applications–.NET, C and Java EMDK; Embedded Applications–C and Java SDK

    Warranty

    The FX7500-2 and FX7500-4 are warrantied against defects in workmanship and materials for a period of one year (12 months) from date of shipment, provided the product remains unmodified and is operated under normal and proper conditions.

    Footnotes

    *Configurations without a USB hub require an external USB hub for full USB functionality
