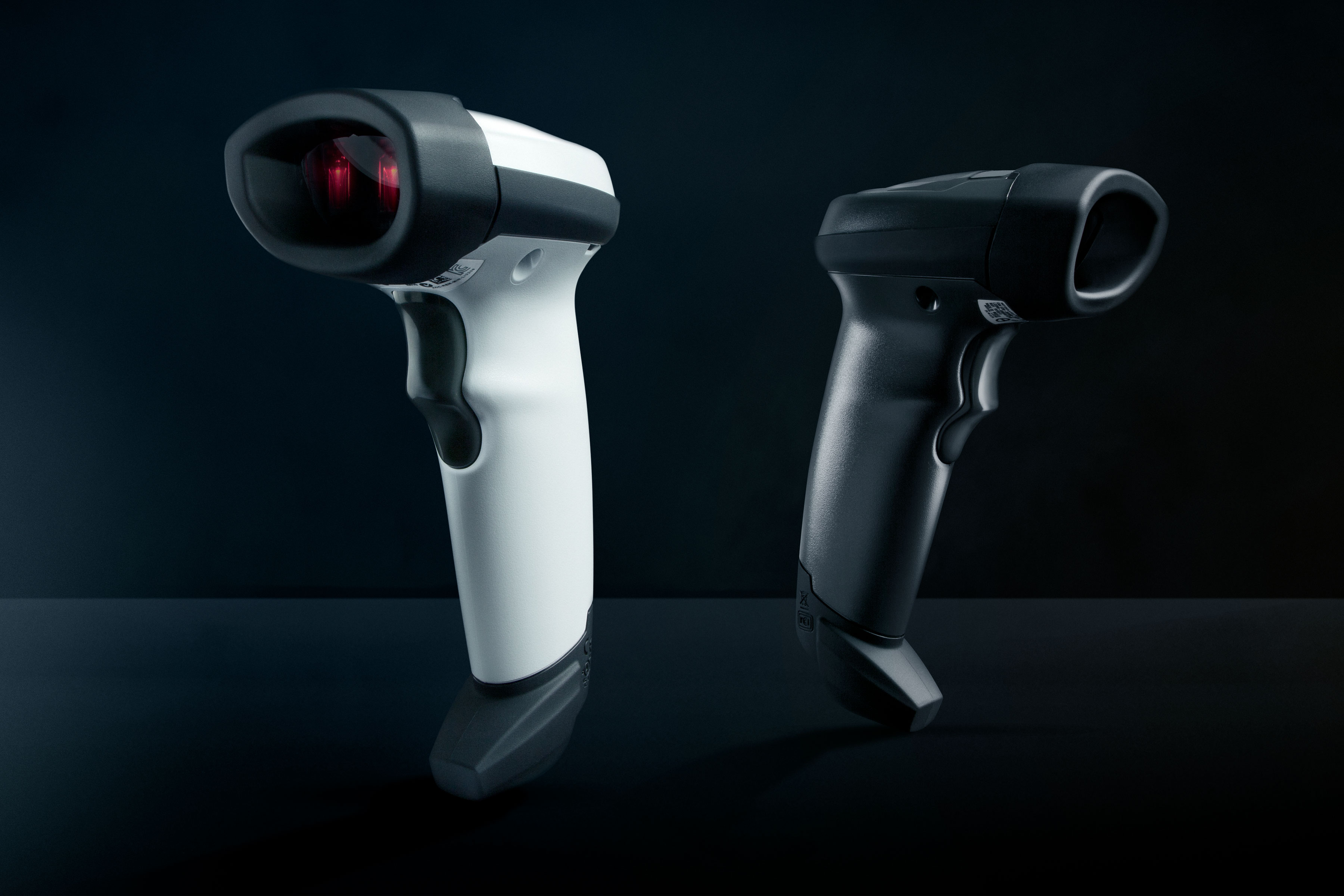

The Zebra LI2208 is a high-performance corded 1D barcode scanner designed to enhance productivity across various industries, including retail, warehousing, and light manufacturing. It builds upon the legacy of Zebra's LS2208 scanner, offering improved scanning capabilities and extended range. The LI2208 can capture virtually any 1D barcode, including those displayed on mobile devices, making it versatile for modern business needs.

Key Features:

• High-Performance Scanning: Capable of reading 1D barcodes from near contact up to 1.5 meters (5 feet) away.
• Mobile Device Compatibility: Reads electronic barcodes displayed on mobile phones, tablets, or computers.
• Durable Design: Built to withstand the rigors of daily operations, ensuring longevity and dependable performance.
• Ergonomic Design: Ensures comfortable use during long shifts, reducing operator fatigue.
• Flexible Connectivity: Compatible with various interfaces, including USB, RS-232, and keyboard wedge.

Primary Uses:

• Retail Checkout: Streamlining the checkout process by quickly scanning a variety of 1D barcodes.
• Inventory Management: Efficiently tracking and managing stock levels in warehouses and retail environments.
• Asset Tracking: Monitoring the location and status of assets within an organization.
• Order Fulfillment: Speeding up the picking and packing process in warehouses.
• Shipping and Receiving: Ensuring accurate processing of shipments and deliveries.



  LI2208 SPECIFICATIONS

  Physical Characteristics

  Dimensions	6.30 in. H x 2.64 in. W x 3.90 in. L 16 cm H x 6.7 cm W x 9.9 cm L
  Weight	4.95 oz./140 grams
  Voltage and Current	5VDC ± 10% <165 mA scanning <40 mA standby <2.5 mA USB suspend <4.0 mA low power mode (when enabled, RS232 and Keyboard Wedge only)
  Power Source	Host power or external power supply
  Color	Twilight Black; Nova White
  Supported host interfaces	USB, RS232, Keyboard Wedge and IBM RS485
  Keyboard Support	Supports over 90 international keyboards

  User Environment

  Ambient Light Immunity	Max 108,000 lux
  Operating Temp.	32° F to 122° F/ 0° C to 50° C
  Storage Temp.	-40° F to 158° F/-40° C to 70° C
  Humidity	5% to 95% RH, non-condensing
  Drop Specs	Over 100 drops at 5 ft./1.5 m at room temperature; survives 6 ft./1.8 m drops to concrete
  Tumble Testing	1,000 cycles (2000 drops) in 1/2 meter tumbler
  Environmental Sealing	IP42
  Bar Code Symbologies	UPC/EAN: UPC-A, UPC-E, UPC-E1, EAN-8/JAN 8, EAN-13/JAN 13, Bookland EAN, Bookland ISBN Format, UCC Coupon Extended Code, ISSN EAN Code 128 Including GS1-128, ISBT 128, ISBT Concatenation, Code 39 including Trioptic Code 39, Convert Code 39 to Code 32 (Italian Pharmacy Code), Code 39 Full ASCII Conversion Code 93 Code 11 Matrix 2 of 5 Interleaved 2 of 5 (ITF) Discrete 2 of 5 (DTF) Codabar (NW - 7) MSI Chinese 2 of 5 IATA Inverse 1D (except all GS1 DataBars) GS1 DataBar including GS1 DataBar-14, GS1 DataBar Limited, GS1 DataBar Expanded

  Decode Ranges (Typical Working Ranges*)

  3 mil	Minimum resolution
  4 mil	4-10 in./10.2-25.4 cm
  5 mil	3-13 in./7.6-33 cm
  7.5 mil	1.5-19 in./ 3.8-48.3 cm
  13 mil (100% UPC-A)	1-31 in./2.5-78.7 cm
  20 mil	1-42 in./2.5-106.7 cm
  26 mil (200% UPC-A)	3-55 in./7.6-140 cm
  100 mil reflective	>20 ft./6 m

  * The working ranges were tested under 30 ft.-cd of ambient illumination; ranges are calculated on Code 39 unless otherwise noted

  Performance Characteristics

  Skew Tolerance	±45°
  Pitch Tolerance	±45°
  Roll Tolerance	±45°
  Scan Pattern	Single bright aiming line
  Scan Angle	Horizontal 35°
  Scan Speed	547 scans per second
  Motion Tolerance	25 in./ 63.5 cm per second
  Light Source	LED Class 1 device 617mm (amber)
  Min. Print Contrast	15% MRD

  Utilities and Management

  123Scan(2) Scanner Management Services (SMS), Zebra Scanner SDK

  Accessories

  Hands-free (gooseneck) Intellistand; auto-host detect cables

  Regulatory

  Technical Requirements	EMC FCC Part 15 Class B, ICES 003 Class B, IEC 60601-1-2 Environmental RoHS Directive 2002/95/EEC Electrical Safety C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, UL 60950-1 LED Class 1
  Environmental	RoHS Compliant

  Warranty

  Subject to the terms of Zebra's hardware warranty statement, the LI2208 is warranted against defects in workmanship and materials for a period of 60 months from the date of shipment. For the complete Zebra hardware product warranty statement, go to: www.zebra.com/warranty

  SERVICES

  Service from the Start with Comprehensive Coverage; Advance Exchange; Enterprise Mobility Software Support
  Ideal For These Applications:

  Industries

  • Retail
  • Hospitality
