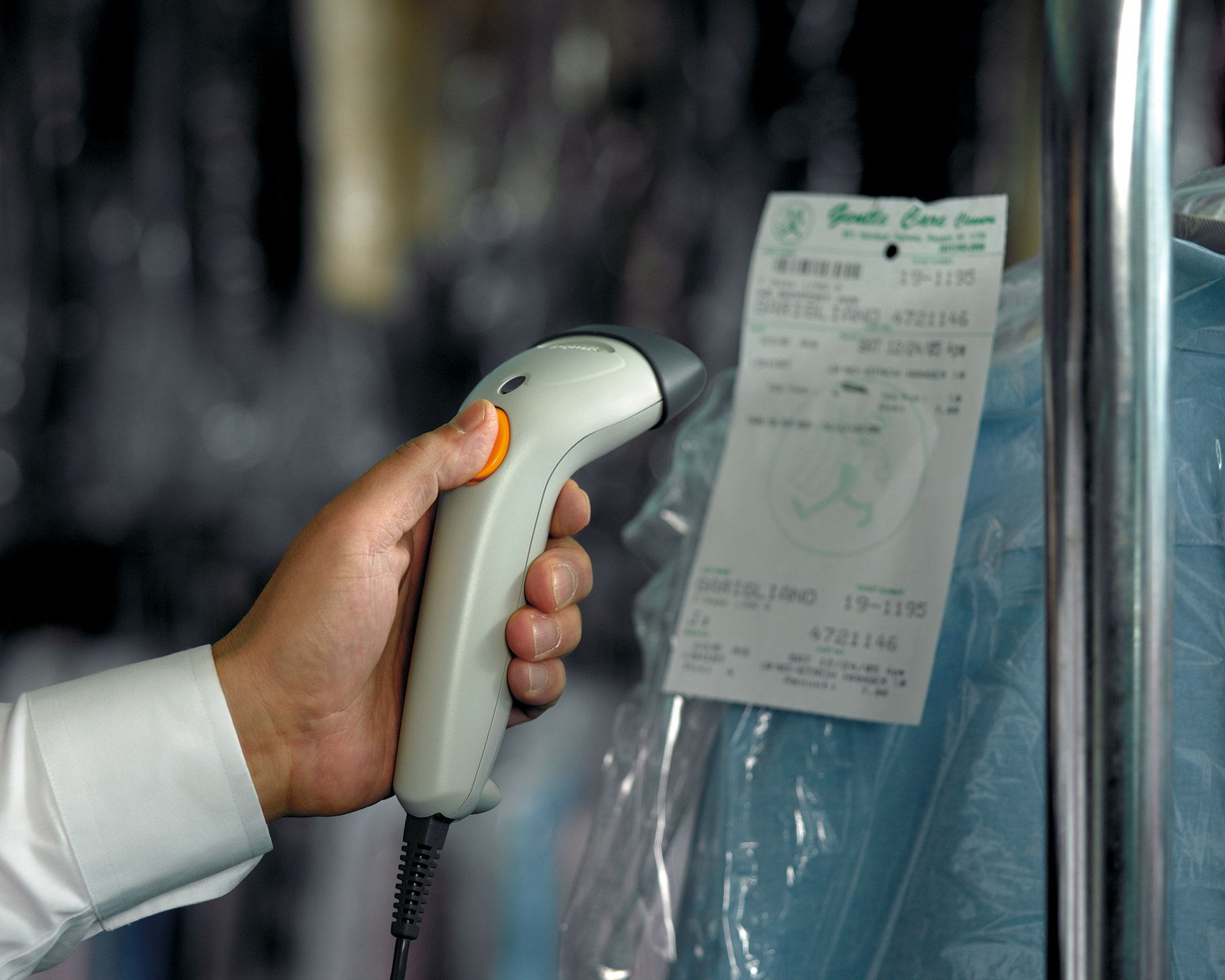

The Zebra LS1203 is an entry-level, corded 1D laser barcode scanner designed to meet the needs of small retailers. It offers high-quality laser scanning, user-friendly ergonomics, and durability at an affordable price point. This scanner is ideal for environments such as gift shops, boutiques, sporting goods stores, jewelry shops, video stores, florists, and other small local retailers.

Key Features:

• High-Quality 1D Laser Scanning: Provides accurate and efficient scanning of 1D barcodes, ensuring quick and reliable data capture.
• User-Friendly Ergonomics: Designed for comfortable use during extended periods, reducing operator fatigue.
• Durability: Built to withstand the rigors of daily operations, ensuring longevity and dependable performance.
• Affordable Pricing: Offers a cost-effective solution without compromising on performance or quality.

Primary Uses:

• Retail Checkout: Streamlining the checkout process by quickly scanning a variety of 1D barcodes.
• Inventory Management: Efficiently tracking and managing stock levels in retail environments.
• Asset Tracking: Monitoring the location and status of assets within an organization.
• Order Fulfillment: Speeding up the picking and packing process in warehouses.
• Shipping and Receiving: Ensuring accurate processing of shipments and deliveries.




  Specifications

  Physical Characteristics

  Dimensions	2.4 in. H x 7.1 in. L x 2.4 in. W 6.2 cm H x 18 cm L x 6 cm W
  Weight (w/o cable)	Approximately 4.3 oz. (122 g)
  Voltage & Current	5 +/-10%VDC @ 100 mA (Stand by: <35 mA)
  Power Source	Host power or external power supply
  Color	Cash Register White or Twilight Black

  User Environment

  Operating Temp.	32° to 122° F/0° to 50° C
  Storage Temp.	-40° to 158° F/-40° to 70° C
  Humidity	5% to 95% relative humidity, non-condensing
  Drop Specs	Withstands multiple 5 ft./1.524m drops to concrete
  Ambient Lighting Tolerance	Tolerant to typical artificial indoor and natural outdoor (direct sunli-ght) lighting conditions. Fluorescent, Incandescent, Mercury Vapor, Sodium Vapor, LED4: 450 Ft Candles (4,844 Lux) Sunlight: 8000 Ft Candles (86,111 Lux)
  Beeper Volume	User-selectable: three levels
  Beeper Tone	User-selectable: three tones
  ESD	Conforms to 15 kV air discharge and 8 kV of contact discharge

  Warranty

  The LS1203 is warranted against defects in workmanship and materials for a period of 3 years (36 months) from date of shipment, provided that the product remains unmodified and is operated under normal and proper conditions. See full warranty for details.

  Depth of Field

  Paper Label
  Code 39 - 5 mil	English: 0.25" - 5.00" Metric: 0.50 -12.50cm
  Code 39 - 7.5 mil	English: 0 - 7.75" Metric: 0 - 19.68cm
  Code 39 - 10 mil	English: 0 - 8.50" Metric: 0 - 21.50cm
  100% UPC - 13mil	English: 0 - 8.50" Metric: 0 - 21.50cm
  200% UPC - 26mil	English: 0 - 10.25" Metric: 0 - 26.00cm

  Performance Characteristics

  Scanner Type	Bi-directional
  Light Source (Laser)	650nm laser diode
  Scan Rate	100 scans per second
  Typical Working Distance	See chart below.
  Print Contrast Min.	30% minimum reflectance
  Roll (Tilt): 1	± 30° from normal
  Pitch: 2	± 65°
  Skew (Yaw): 3	± 60°
  Decode Capability	UPC/EAN, UPC/EAN with Supplementals, UPC/EAN 128, Code 39, Code 39 Full ASCII, Code 39 TriOptic, Code 128, Code 128 Full ASCII, Codabar, Interleaved 2 of 5, Discrete 2 of 5, Code 93, MSI, Code 11, IATA, GS1 DataBar (formerly RSS) variants, Chinese 2 of 5
  Interfaces Supported	USB, RS-232; Keyboard Wedge

  Regulatory

  Electrical Safety	UL1950, CSA C22.2 No. 950, EN60950/IEC950
  Laser Safety	IEC Class 1
  EMI/RFI	FCC Part 15 Class B, ICES-003 Class B, European Union EMC Directi-ve, Australian SMA, Taiwan EMC, Japan VCCI/MITI/Dentori

  Footnotes

  1 - Roll (Tilt): Controlled by rotating the wrist clockwise or counterclockwise 2 - Pitch: Controleed by dropping or raising the wrist 3 - Skew (Yaw): Controlled by rotating the wrist from left to right or vice versa 4 - LED lighting with high AC ripple content can impact scanning performance
  Markets and Applications

  Industries

  • Retail
