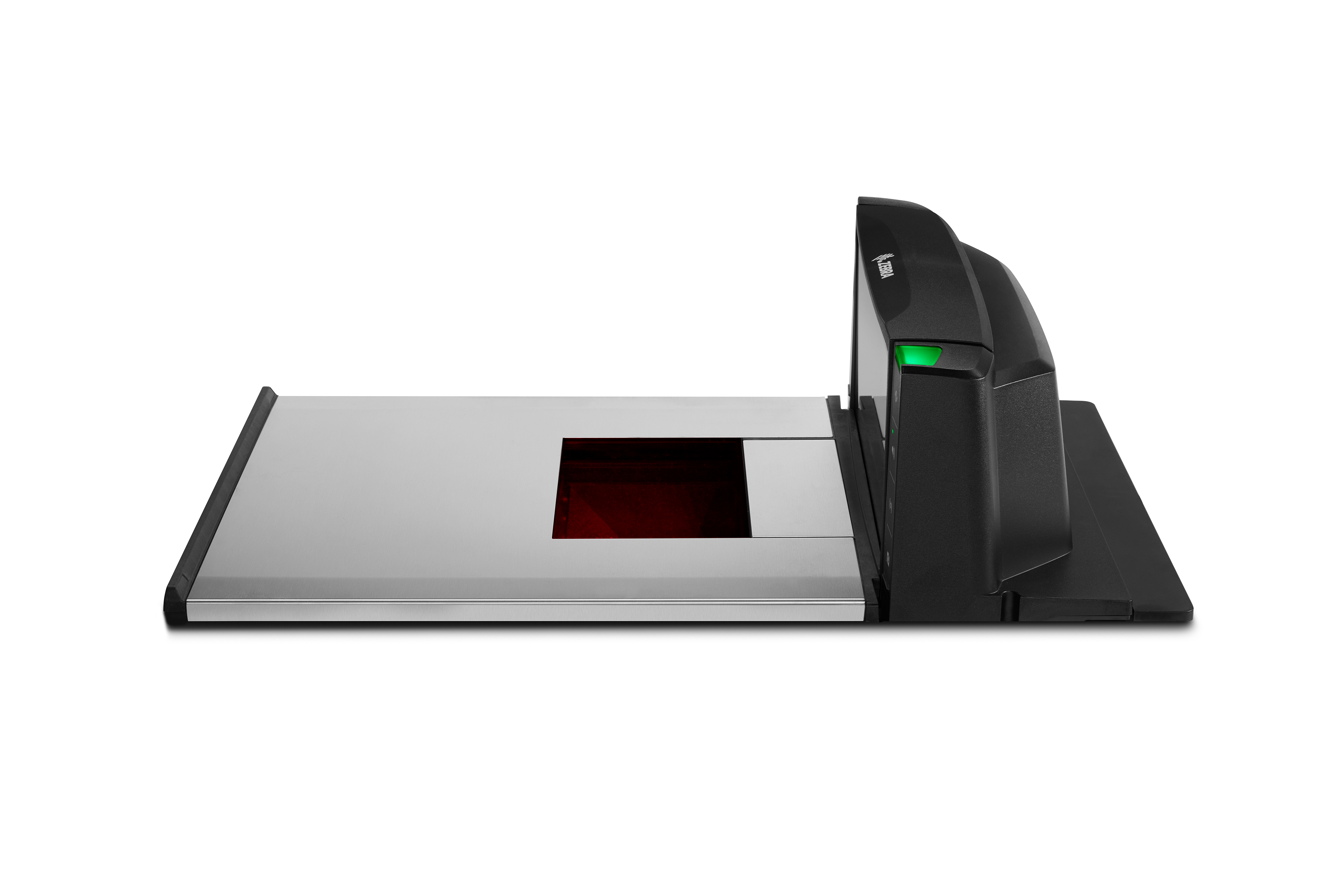

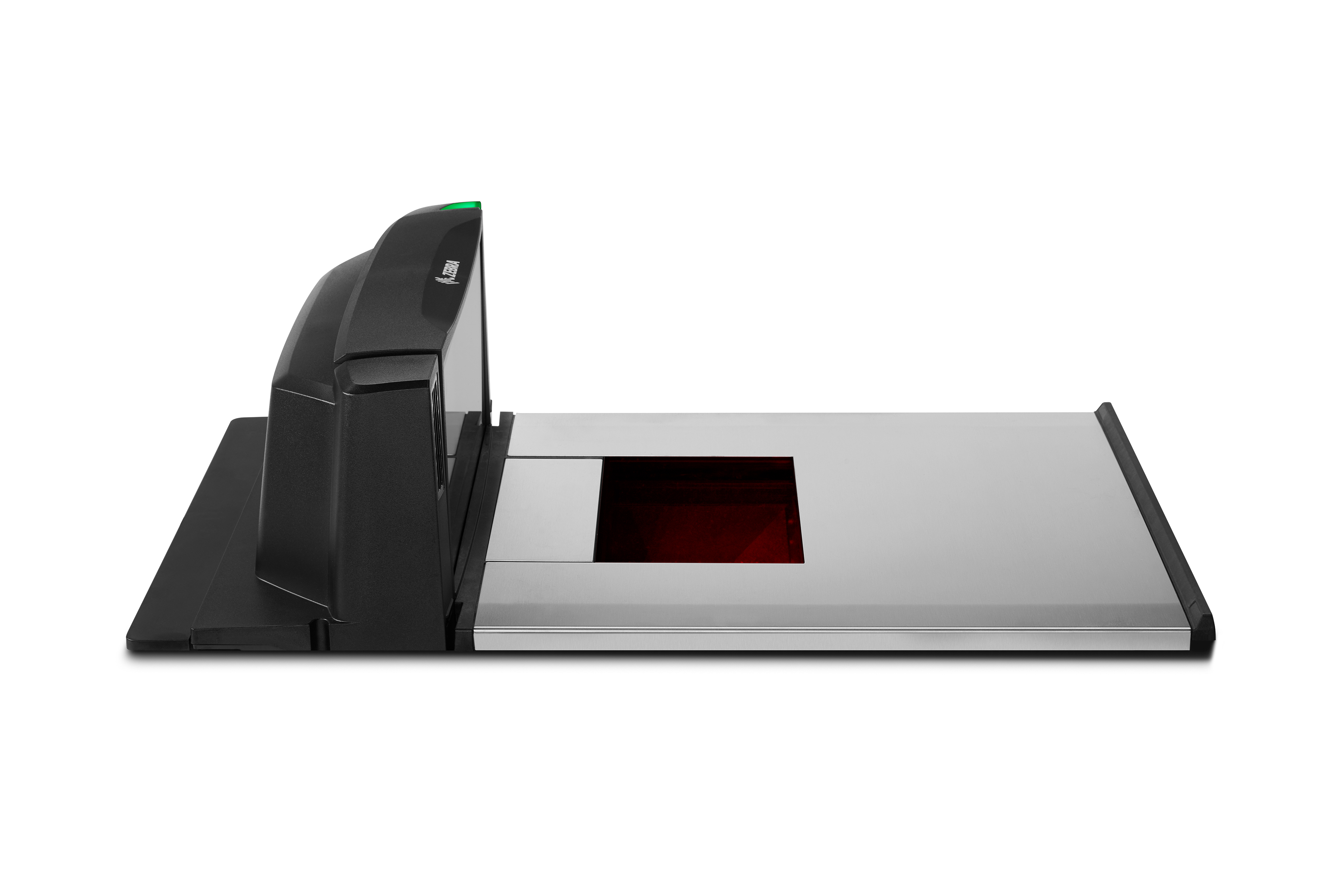

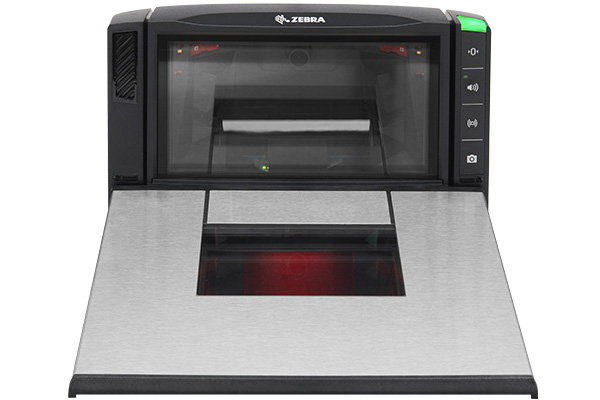

The MP72 Series Multi-Plane Scanner/Scale is a high-tech device used for dimensioning and weighing objects in logistics, warehouses, and sorting facilities. By utilizing multi-plane imaging, it captures the size and weight of objects from multiple angles in real-time, offering high-speed and accurate data for inventory management, sorting, and shipping. It's versatile, compact, and can handle a variety of shapes and sizes, making it ideal for industries that require efficient parcel processing. Read more
The MP72 Series Multi-Plane Scanner/Scale is a specialized device that combines a multi-plane scanner with an integrated weighing scale. This technology is widely used in logistics, warehouse management, shipping, and other industries requiring quick and accurate dimensioning and weight data. It automates the process of scanning objects, measuring their size, and weighing them, all in a single operation. It provides high-throughput scanning, enabling fast sorting, shipping, and inventory control.
Physical Characteristics
Dimensions

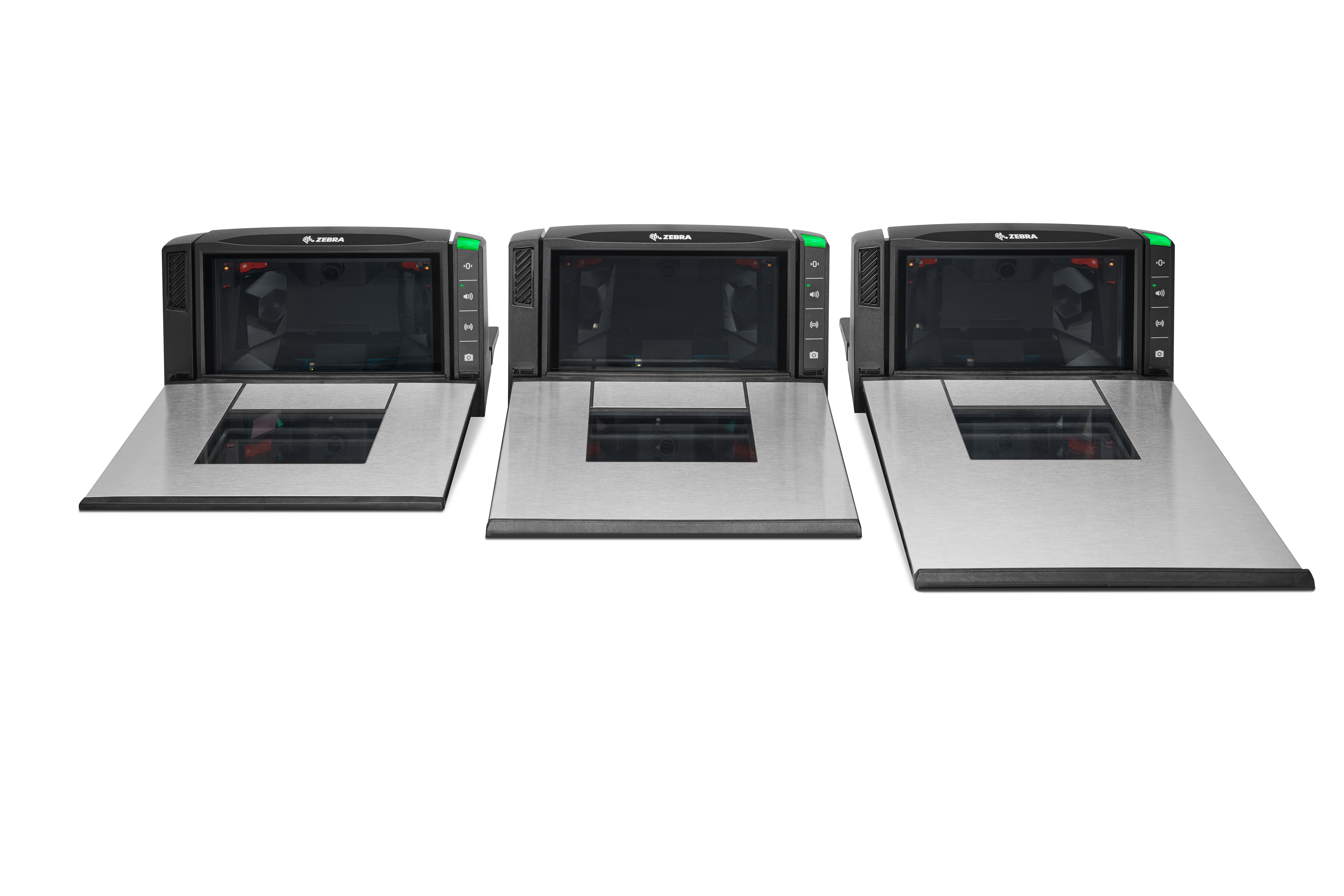

| Long scanner and scanner/scale: Medium scanner and scanner/scale: Short scanner: |
| Weight | Long scanner: 13.10 lb/5.94 kg Long scanner/scale: 17.85 lb/8.10 kg Medium scanner: 11.20 lb/5.06 kg Medium scanner/scale: 15.95 lb/7.22 kg Short scanner: 11.55 lb/5.22 kg |
| Scale | 30 lb in 0.01 lb increments/15 kg in 5 g increments Options: |
| Horizontal Glass | Sapphire and DLC coated; leek bar option for scale models |
| User Indicators | Soft touch capacitive pads (no buttons to break or wear out) Good Decode LED (Front and Top) Speaker (adjustable tone and volume) Four programmable buttons |
| Ports | One shared POS port for USB/RS-232/IBM RS-485 Three USB peripheral ports Two powered RS-232 peripheral ports Checkpoint Interlock port Remote scale display port Color Camera USB 3 type-C |
| Supported Host Interfaces | USB, RS232, IBM46XX over RS485, SNAPI |
| Electronic Article Surveillance | Compatible with Checkpoint and Sensormatic EAS deactivation system |
| Power | 12VDC from POS interface cable (USB PlusPower) Zebra PWR-BGA12V50W0WW power supply: 90-264 V (110-240 nominal), 47-63Hz (50-60 nominal) Idle Mode: 2.0 W (typical) Active Mode: 2.75 W (typical) |
User Environment
| Operating Temperature | 32.0° to 104.0° F/0.0° to 40.0° C |
| Storage Temperature | -40.0° to 158.0° F/-40.0° to 70.0° C |
| Humidity | 20% to 95%, non-condensing |
| Environmental Sealing | IP5X |
| Ambient Light Immunity (for scanning): | Artificial Light: 0 - 450 Foot Candles (4,842 LUX) Sunlight: 0 - 8,000 Foot Candles (86,080 LUX) |
Imaging Technology
| Type | CMOS Array Imager |
| Illumination | Intelligent illumination |
| Sides Read/Scan Zone | Reading of linear and 2D codes in all planes |
Color Camera
| Resolution | HD Camera |
| Interface | Industry standard USB 3 Type-C |
| Orientation | Landscape, upper (facing down) or lower (facing up) |
| Graphic Format | Bitmap, JPEG, RAW |
| Illumination | White LED |
Symbol Decode Capability
1D | All major 1D barcodes including Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma) |
| 2D | All major 2D barcodes including PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Han Xin, Postal Codes, SecurPharm and future GS1 Digital Link barcodes |
| Digimarc | Digimarc barcodes |
| Minimum Input Resolution | Code 39: 3.0 mil; Code 128: 3.0 mil; DataMatrix: 5.0 mil; QR Code: 5.0 mil |
| Refer to Product Reference Guide for complete list of symbologies. |
Accessories
| Customer Facing Scanner, Pole Displays, Single and Dual Head |
Regulatory
| Environmental | EN IEC 63000:2018 |
| Electrical Safety | UL 62368-1; CAN/CSA-C22.2 No. 62368-1-14; IEC 62368-1; EN 62368-1 |
| LED Safety | IEC 62471; EN 62471 |
| EMI/RFI | 47 CFR Part 15, Subpart B, Class B; ICES-003 Issue 7, Class B; EN55032, EN55024, EN55035; EN61000-3-2; EN61000-3-3 |
Utilities and Management
| 123Scan | Programs scanner parameters, upgrades firmware, displays scanned barcode data, scanning statistics, battery health, asset data and prints reports. www.zebra.com/123scan |
| Scanner SDK | Generates a fully-featured scanner application, including documentation, drivers, test utilities and sample source code. www.zebra.com/scannersdkforwindows |
| Scanner Management Service (SMS) | Remotely manages your Zebra scanner and queries its asset information. www.zebra.com/sms |
| Loss Prevention | EAS Checkpoint supported Checkpoint Interlock via optional cable Sensormatic supported Color camera for image/video transfer or live streaming (optional) Front and top “Good Decode” LED Non-Decode Event alerts Zebra Scale Platter: Integrated horizontal and vertical platter for increased weighing area Zebra Weight Guard |
Warranty
| Subject to the terms of Zebra’s hardware warranty statement, the MP72 Series, is warranted against defects in workmanship and materials for a period of One Year from the date of shipment. Complete Zebra hardware product warranty statement: www.zebra.com/warranty |
Recommended Services
| Zebra OneCare Select; Zebra OneCare Essential |
Footnotes
| 1. MP72 Series and accessories available Q2 2024 2. Depending on barcode location Specifications are subject to change without notice. |
DataCapture DNA
| DataCapture DNA is a suite of highly intelligent firmware, software, utilities and apps exclusively engineered to add functionality and simplify the deployment and management of Zebra scanners. For more information about DataCapture DNA and its applications, please visit www.zebra.com/datacapturedna |
Markets and Applications

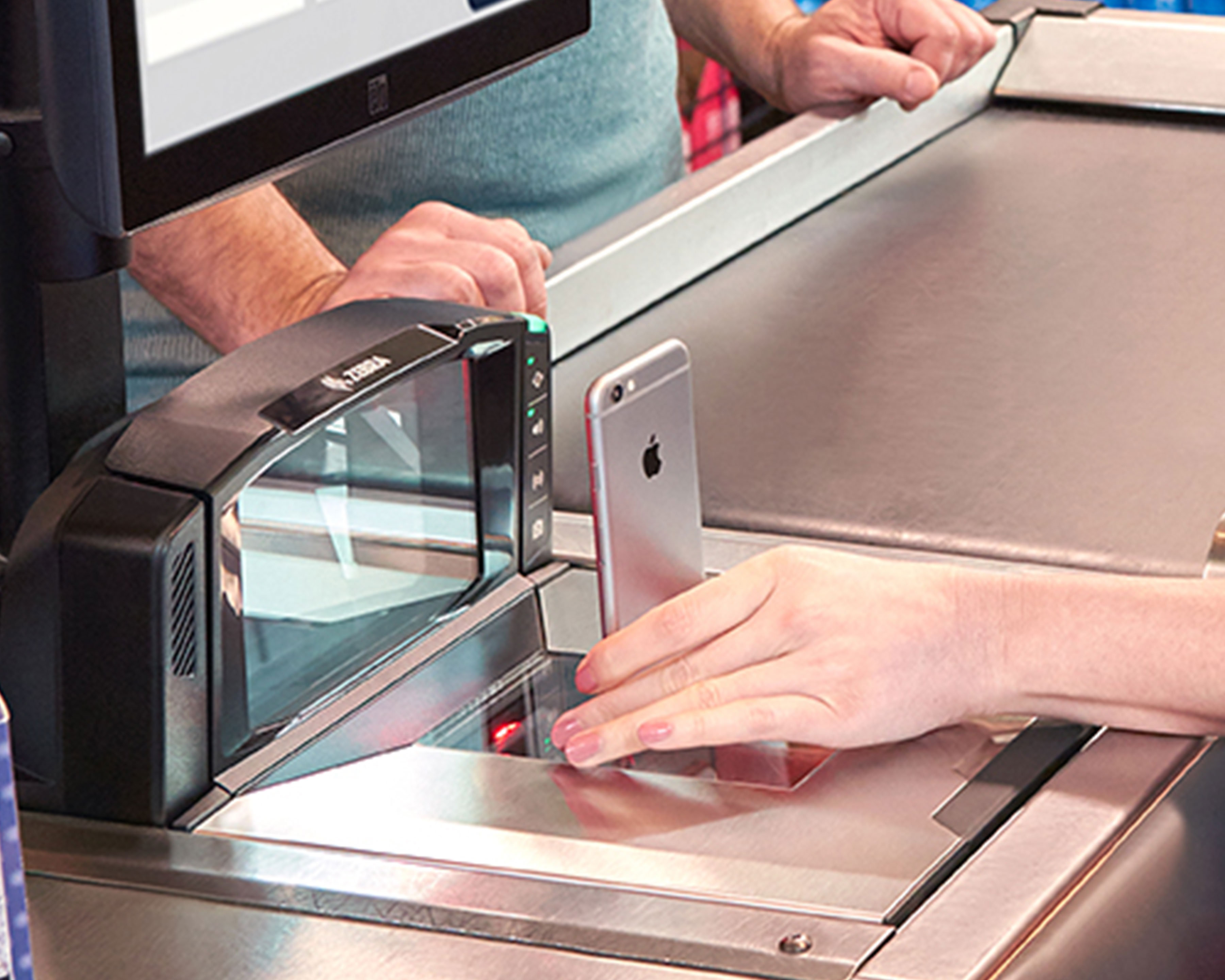

Retail
