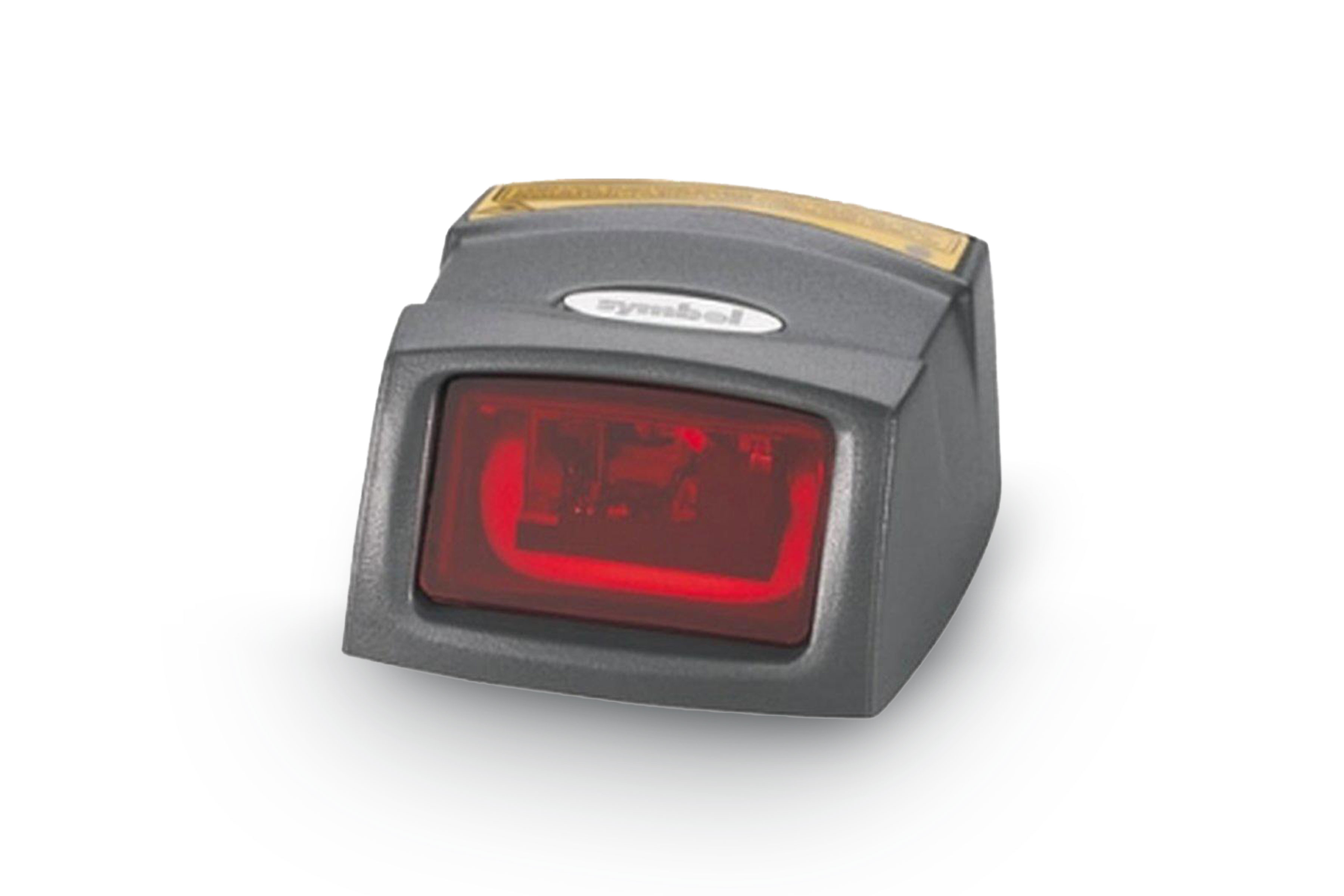

The Symbol MiniScan MS954 is a fixed-mount barcode scanner designed to provide reliable and accurate scanning performance in small, space-constrained environments. It is ideal for applications that require continuous, hands-free barcode scanning.

Key Features:

• Barcode Compatibility: Capable of reading 1D barcodes, including poorly printed or low-contrast symbols.
• Compact Design: Its small size and lightweight form factor make it easy to integrate into OEM devices like kiosks, ATMs, medical equipment, turnstiles, and other self-service systems.
• Configurable Scan Angles: Offers flexible scan angles of 47° or 35°, allowing users to choose the optimal scan range based on their application.
• Durability: Built to withstand heavy usage, featuring a durable housing designed for high-reliability performance.
• RS-232 Interface: Includes an RS-232 interface, making integration with various devices and systems simple.
• High Performance: Provides fast, accurate scanning for high-volume environments and ensures a consistent reading of barcodes, even those with damage or poor contrast.
• Flexible Mounting Options: Can be fixed-mount or used as a handheld scanner depending on your needs.

Common Uses:

• Self-service kiosks and ATMs where space is limited.
• Medical equipment for quick patient identification or lab tests.
• Access control and turnstile systems for secure entry points.
• Point-of-sale (POS) systems or gaming devices in confined spaces.



  Specifications

  Physical Characteristics

  Dimensions:	1.02H x 1.93W x 2.31D (in) 25.9H x 49.02W x 58.67D (mm)
  Weight:	1.67 oz./ 47.34 g
  Interface:	RS-232

  User Environment

  Ambient lighting tolerance:	Tolerant to typical artificial indoor and natural outdoor (direct sunlight ) lighting conditions. Fluorescent, Incandescent, Mercury Vapor, Sodium Vapor, LED1: 450 Ft Candles (4,844 Lux) Sunlight: 8000 Ft Candles (86,111 Lux)
  Operating temperature:	-4° to 140°F (-20° to 60°C)
  Storage temperature:	-40° to 158°F (-40° to 70°C)
  Humidity:	5% to 95% non-condensing
  Power:	Input voltage: 5 VDC ± 10%Scanning current: 95mA Standby current: 27mA Vcc noise level: 200mV peak-to-peak max
  Drop Rating:	Unit functions normally after multiple 30 in (76 cm) drops to concrete
  Symbologies:	All major 1-D bar codes
  Programmable parameters:	Laser On Time, Aim Duration, Power Mode, Trigger Mode, Bi-directional Redundancy, Symbology Types/Lengths, Data Formatting, Serial Parameters, Beeper Tone, Scan Angle

  Regulatory

  Laser classification:	CDRH Class II, IEC Class 2
  Electrical safety:	Certified to UL1950, CA C22-2 NO950 ENG60950/ IEC950
  Environmental:	RoHS compliant
  EMI/RFI:	FCC Part 15 Class B, ICES-003 Class B European Union ENC Directive, Australian SMAv

  Performance Characteristics

  Light source:	Visible laser diode 650 nm
  Scan rate:	104 ± 12 scans per second
  Scan angle:	47° ± 3° (typical) / 35° ± 3° (narrow )
  Scan pattern:	Linear
  Minimum print contrast:	Minimum 25% absolute dark/light reflectance measured at 650 nm
  Ranges - 1-D codes:	5 mil: Code 39; 2.5:1 - 0.7 - 7.3 (in) / 1.8 - 18.54 (cm) 7.5 mil: Code 39; 2.5:1 - 0.9 - 12.4 (in) / 2.29 - 31.24 (cm) 13 mil: 100% UPC - 80%MRD: 0.9 - 22 (in) / 2.29 - 55.88 (cm) 20 mil: Code 39; 2.2:1 - * - 27.5 (in ) / *- 69.85 (cm) 20 mil: Code 39; 2.2:1 - 80% MRD : 2 - 30 (in) / 5.08 - 76.2 (cm) 40 mil: Code 39; 2.2:1 - * - 28 (in) /*- 71.12 (cm) 55 mil: Code 39; 2.2:1 - * - 35 (in) /*- 88.90 (cm)
