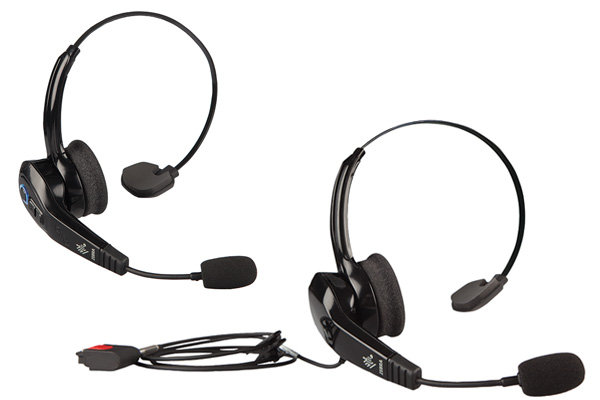

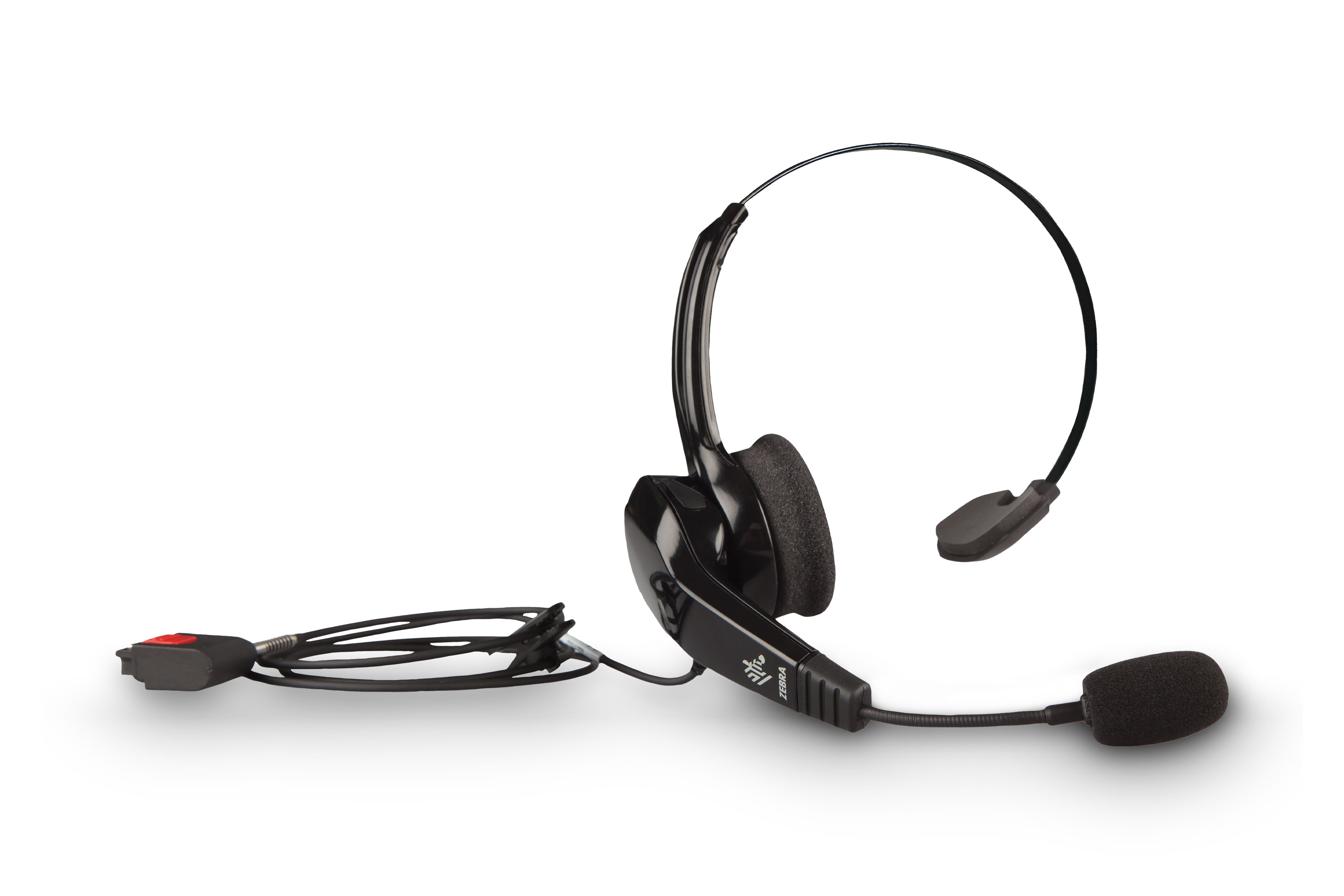

When it comes to enabling speech-driven applications and voice communications in warehouses, manufacturing plants, and outdoor yards, you need a headset that is specially designed for the job. The HS3100 Bluetooth and HS2100 corded headsets are loaded with features that offer everything you need in an industrial headset.
With Zebra’s multi-modal solutions, you can boost worker productivity by 15% - with 39% fewer errors than typical speech-only wearables. Pairing the WT6000 wearable computer with the RS6000 or RS4000 ring scanner, HS3100 or HS2100 headset, and our TekSpeech Pro 4 software gives your workers the hands-free mobility they need to boost productivity to a new level.
Physical Characteristics
| Weight | HS2100 corded model: 3.5 oz./98 g (without audio cable) HS3100 Bluetooth model: 4 oz./115 g (with battery) |
| Wearing Styles | • Over-the-head headband • Behind-the-neck headband |
| Field Replaceable Parts | HS2100: Headband, ear pad, windsock, headband pad, temple pad HS3100: Headband, battery, ear pad, windsock, headband pad, temple pad |
| Power | Applies to HS3100 only: Li-Ion 220 mAh, 3.7V with up to 15 hours of continuous speech use on a single charge using a battery with ≤ 100 charge/discharge cycles |
Performance Characteristics
| Speech-Directed Applications | Can work with all Zebra devices running speech recognition and text-to-speech engines for speech-directed applications |
| Audio | High performance sealed noise canceling microphone with noise immunity grater than 10 dB for high noise environments |
| Send Frequency Response | 50 Hz to 8 kHz |
| Microphone Sensitivity | -53dB @ 1kHz, 1Pa |
| Receive Frequency Response | 300 Hz to 6 kHz |
| Speaker Sensitivity | 89 dB SPL with 1.0Vrms @1 kHz |
| Bluetooth | Applies to HS3100 only: Bluetooth Class II, v 3.0; Bluetooth Hands-free Profile (HFP 1.6), HSP 1.2, A2DP profile |
| NFC | Applies to HS3100 only: NFC tag used for Tap-to-Pair |
User Environment
| Zebra Mobile Computers Compatibility | Please visit www.zebra.com/hsheadsets for the most current list of compatible mobile computers. |
| User Interfaces | HS2100: Two 3.5 mm audio jack sockets HS3100: LED: Bi-color LED for headset status Buttons: Three functional buttons |
| Operating Temp. | -30°C (-22°F) to +50°C (+122°F) |
| Storage Temp. | HS2100: -40°C (-40°F) to +70°C (+158°F) HS3100: -40°C (-40°F) to +60°C (+140°F) incl. battery -40°C (-40°F) to +70°C (+158°F) excl. battery |
| Sealing Rating | IEC 60529: IP67 |
| Humidity | 5% to 95% non-condensing |
| Drop Rating | 6 ft. /1.8 m drop to concrete (36 drops, over operating temperature range) |
| Tumble Rating | 1,000 tumbles @ 0.5 m (room temperature) |
| Vibration | Sine 5-2000Hz, 4g peak, 1 hour per axis; Random 20-2000Hz, 6g RMS or 0.04g2/Hz, 1 hour per axis |
| Electrostatic Discharge (ESD) | +/-20kV air discharge, +/-10kV contact discharge, +/-10kVdc indirect discharge |
Software Compatibility
| TekSpeech Pro 4, Android EMDK |
Recommended Services
| Zebra OneCare |
Warranty
| HS2100: Subject to the terms of Zebra’s hardware warranty statement, the HS2100 is warranted against defects in workmanship and materials for a period of 1 (one) year from the date of shipment. For complete warranty statement, please visit: https://www.zebra.com/warranty HS3100: Subject to the terms of Zebra’s hardware warranty statement, the HS3100 is warranted against defects in workmanship and materials for a period of 1 (one) year from the date of shipment. For complete warranty statement, please visit: https://www.zebra.com/warranty |
Footnotes
| Specifications subject to change without notice. |
