The Zebra WT5400 Wearable Computer is designed to boost productivity and comfort for retail workers by providing a compact, hands-free solution that can be worn on the wrist. This lightweight, low-profile device allows employees to easily access tight spaces and efficiently complete tasks such as order picking, inventory management, and restocking shelves.

1. Ergonomic Design: Specifically engineered to reduce arm fatigue with a low center of gravity, and comes with adjustable wrist straps for a personalized fit.

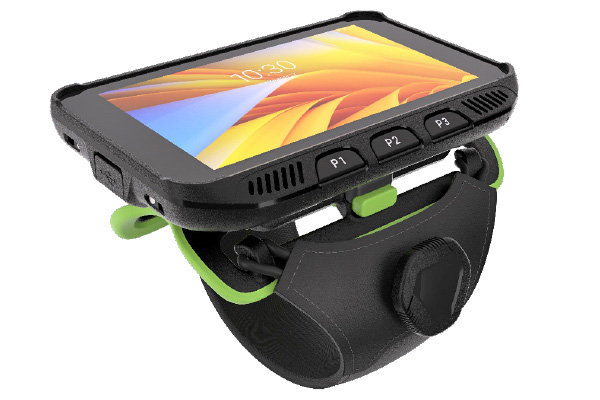

2. Customizable Fit: Choose from Velcro straps, a micro-adjustable dial strap, or a dual dial strap to meet different preferences. A single button makes it easy to attach and remove the device.
3. Simple Battery Replacement: Designed for easy battery swapping with a natural hand movement, without needing to remove the device.
4. NFC Pairing: Effortless Bluetooth pairing for scanners or headsets with an NFC feature that’s clearly marked for quick tap-to-pair.

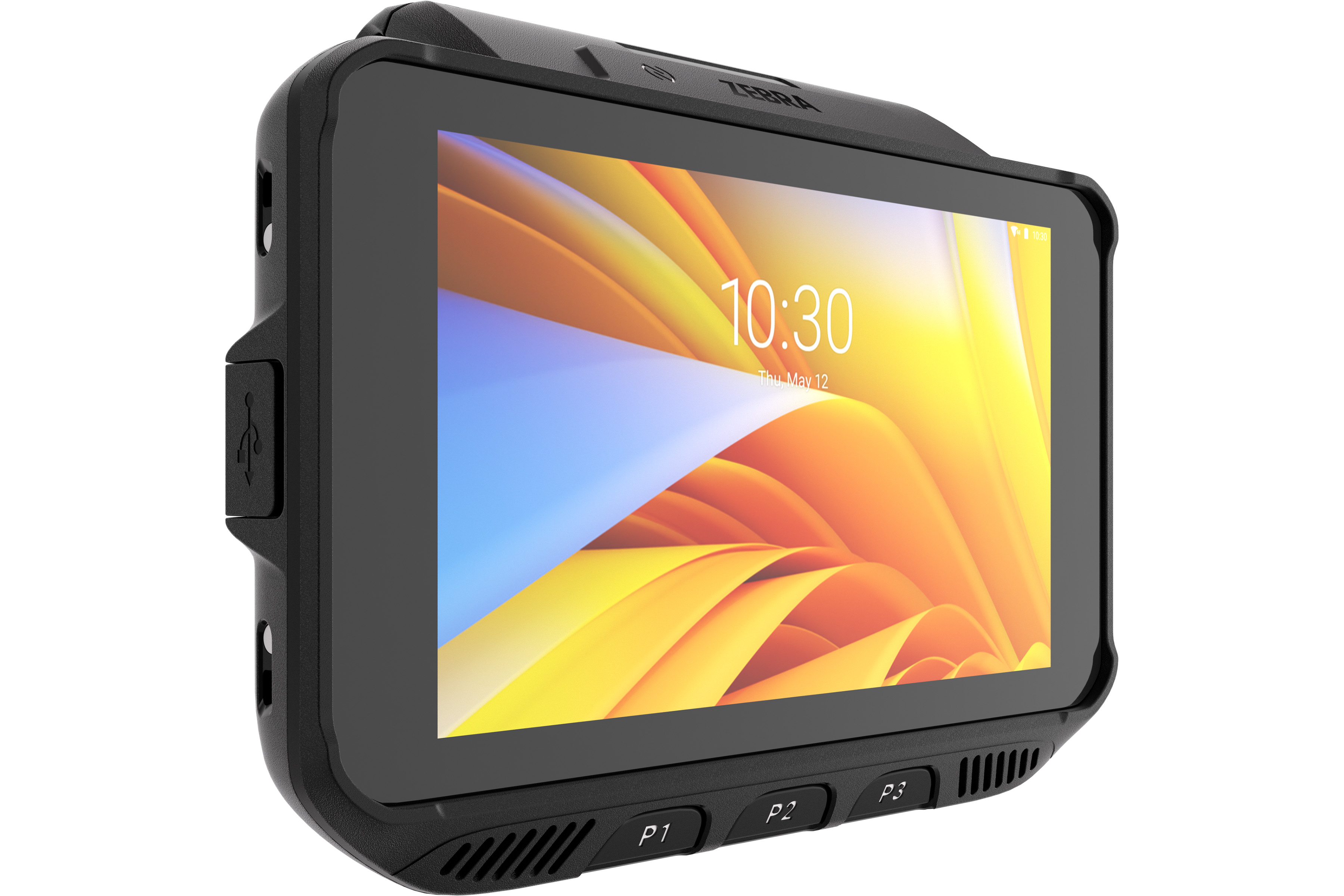

5. Large Display: The 4.7-inch screen minimizes scrolling, giving users a clear view of all necessary information in one glance.
6. Built for Durability: The WT5400 is drop-proof, tumble-proof, waterproof, and dustproof, with a scratch-resistant Corning® Gorilla® Glass screen for added protection.
7. Fast Connectivity: Supports Wi-Fi 6 for rapid, reliable connections, enhanced by Zebra’s Mobility DNA Wireless Fusion for smooth communication.
8. Bluetooth Scanner Options: Compatible with various Bluetooth scanners, including the RS2100, RS5100, and RS6100, offering versatility for different scanning needs.
9. Long-Lasting Power: The standard battery supports full shift usage, with an extended battery option for even longer operation.


   Specifications

   Physical Characteristics

   Dimensions	5.22 in L x 3.66 in W x 0.55 in D (132.5mm L x 93mm W x 13.97mm D)
   Weight	Standard battery: 9.0 oz (254g) Extended battery: 10.9 oz (310g)
   Display	4.7 inch; 720x1280; color display
   Touch Panel	Multimode capacitive touch panel; bare or light gloved fingertip input; Corning® Gorilla® Glass
   Power	Standard battery: typical capacity — 3500mAh Extended battery: typical capacity — 5000mAh
   Network Connections	WLAN (Wi-Fi); WPAN (Bluetooth); USB 3.0 (super-speed client and host)
   Notifications	Audible tone; multi-color LED; haptic feedback
   Voice and Audio	Speaker; microphone; PTT voice
   Buttons	Power button; three (3) programmable function buttons
   Interface Ports	One (1) USB-C (USB 3.0); two (2) charge pogo pads on each side

   Performance Characteristics

   CPU	Qualcomm® QCS4490 octa-core; 2.4 GHz
   Operating System	Android 13; upgradeable to Android 17
   Memory	6 GB RAM; 64 GB Flash
   Security	FIPS 140-2; Secure Boot; Verified Boot

   User Environment

   Operating Temp.	-4F to +122F (-20C to +50C)
   Storage Temp.	-40F to +158F (-40C to +70C)
   Humidity	5% to 95%, non-condensing
   Drop Spec.	Per MIL-STD 810H: 6 ft (1.8m) to concrete at (+73F to +122F/+23C to +50C) 4 ft (1.2m) to concrete across temperature (-4F to +122F/-20C to +50C)
   Tumble Spec.	1,000 Tumbles at 1.6 ft (0.5m) at room temperature
   Sealing	IP65; IP67 with battery per applicable IEC sealing specifications
   Vibration	4g PK Sine (5Hz to 2kHz); 0.04g 2/Hz Random (20Hz to 2kHz); 60 minutes duration per axis, 3 axis
   Electrostatic Discharge (ESD)	+/- 15kV air discharge, +/- 8kV direct/indirect discharge

   Interactive Sensor Technology (IST)

   Light Sensor	Automatically adjusts display backlight brightness
   Motion Sensor	3-axis accelerometer with MEMS Gyro

   General Certifications

   Android Enterprise Recommended (AER)

   Yes

   Data Capture

   Scanning	Compatible with Zebra wearable Bluetooth scanners (RS2100, RS5100, RS6100) via NFC tap-to-pair. The RS5100 and RS6100 can be powered by the WT5400 using the USB-C corded adapter, with communication over Bluetooth.
   NFC	ISO 14443 Type A and B; FeliCa and ISO 15693 cards; NFC Forum cards 1 to 5

   Wireless LAN

   Radio	IEEE 802.11 a/b/g/n/ac/ax/d/h/i/r/k/v/w/mc; 2x2 MU-MIMO; Tri-band (2.4 GHz, 5 GHz, 6 GHz); Wi-Fi CERTIFIED 6™ (Wi-Fi 6E); Dual Band Simultaneous; IPv4, IPv6
   Data Rates	2.4 GHz: 802.11b/g/n/ax — 20 MHz - up to 286.8 Mbps; 5 GHz: 802.11a/n/ac/ax — 20 MHz, 40 MHz, 80 MHz, 160 MHz — up to 2402 Mbps; 6 GHz: 802.11ax — 20 MHz, 40 MHz, 80 MHz, 160 MHz — up to 2402 Mbps
   Operating Channels	Channel 1-13 (2401-2483 MHz): 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13; Channel 36-165 (5150-5850 MHz): 36, 40, 44, 48, 50, 52, 56, 60, 64, 100, 104, 108, 112, 114, 116, 120, 124, 128, 132, 136, 140, 144, 149, 153, 157, 161, 165; Channel 1-233 (5925-7125 MHz); Channel Bandwidth: 20, 40, 80, 160 MHz. Actual operating channels/frequencies and bandwidths depend on regulatory rules and certification agency.
   Security and Encryption	WEP (40 or 104 bit); Enhanced Open (OWE); WPA/WPA2 Personal (TKIP and AES); WPA3 Personal (SAE); WPA/WPA2 Enterprise (TKIP and AES); WPA3 Enterprise (AES); EAP-TTLS (PAP, MSCHAP, MSCHAPv2), EAP-TLS, PEAPv0-MSCHAPv2, PEAPv1-EAP-GTC, LEAP, EAP-PWD; WPA3 Enterprise 192-bit mode (GCMP256) - EAP-TLS
   Certifications	Wi-Fi Alliance Certifications: Wi-Fi CERTIFIED; Wi-Fi CERTIFIED ac; Wi-Fi CERTIFIED 6 (Wi-Fi 6E); WPA2-Personal; WPA2-Enterprise; WPA3-Personal WPA3-Enterprise (includes 192-bit mode); Protected Management Frames: Wi-Fi Enhanced Open; WMM (Wi-Fi Multimedia); WMM-Power Save WMM-Admission Control; Voice-Enterprise: Wi-Fi Direct; Wi-Fi Agile Multiband; Wi-Fi QoS Management; Wi-Fi Optimized Connectivity; Passpoint

   Wireless PAN

   Bluetooth

   Class 1; Bluetooth v5.3

   Warranty

   Subject to the terms of Zebra’s hardware warranty statement, the WT5400 is warranted against defects in workmanship and materials for a period of one (1) year from the date of shipment. For complete warranty statement, please visit www.zebra.com/warranty

   Recommended Services

   Zebra OneCare™ Essential and Select support services; Zebra Visibility Services — VisibilityIQ™ Foresight. For information on Zebra services, please visit www.zebra.com/services

   Footnotes

   1. Requires an active Zebra OneCare support contract. Specifications are subject to change without notice.

   Mobility DNA

   Mobility DNA solutions help you get more value out of our mobile computers by adding functionality as well as simplifying deployment and management of our mobile devices. For more information on these Zebra-only features, please visit www.zebra.com/mobilitydna Mobility DNA is available on Android only. Features may vary by model and a Support Contract may be required. To learn what solutions are supported, please visit: https://developer.zebra.com/mobilitydna
