Five Interchangeable Wearing Styles Grocery store worker wears Zebra RS5100 wireless Bluetooth barcode scanner on her index finger as she collects a lemon Wireless and Practically Weightless At just over two ounces and two cubic inches, your workers will barely feel the RS5100, virtually eliminating hand fatigue. And Bluetooth provides freedom from cords — there are no cables to the host device for workers to manage, improving ergonomics and the user experience. Worker holds a brown box while he scans its barcode label uses Zebra RS5100 wireless Bluetooth barcode scanner A Rugged Design with World-class Scanning Read more

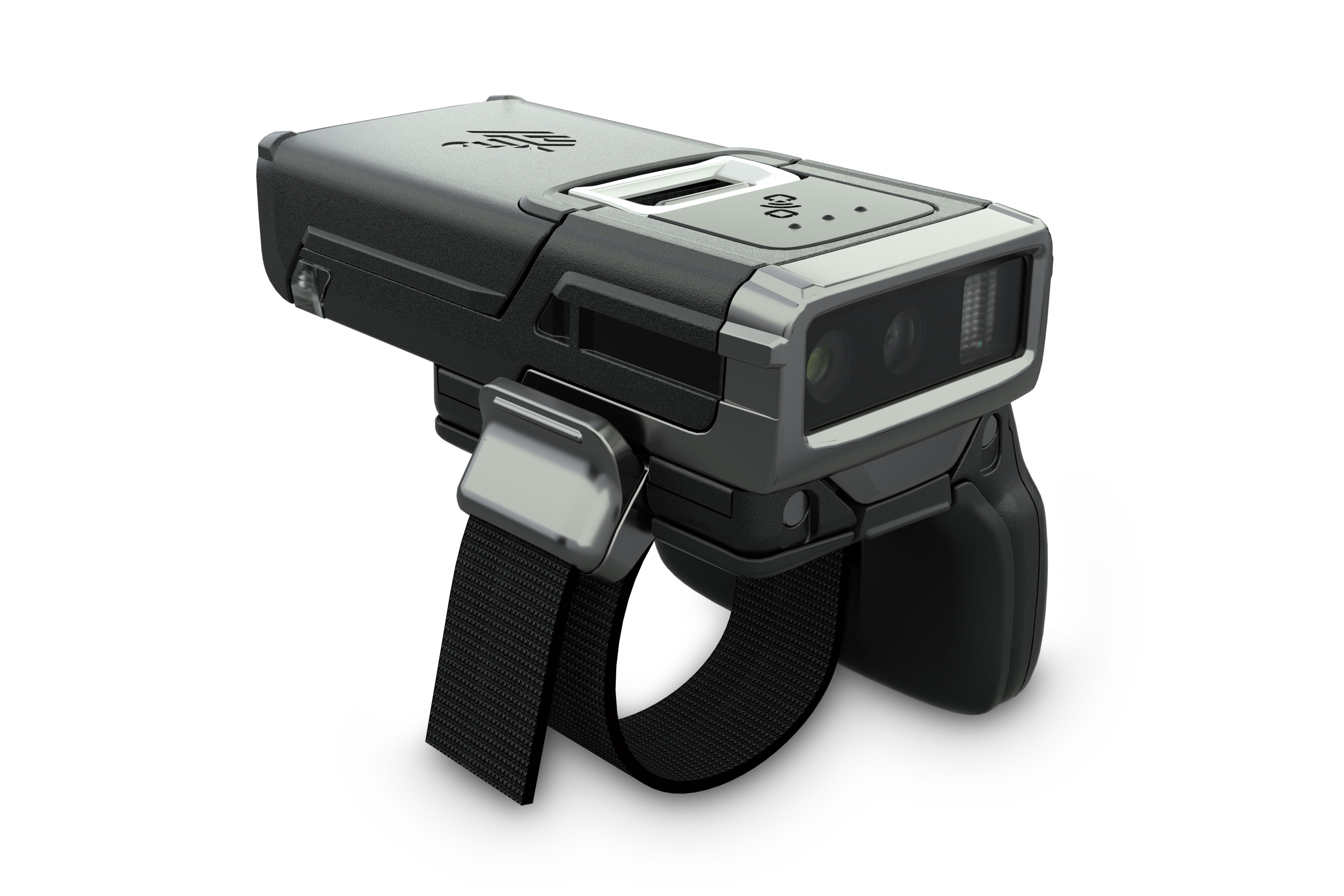

The Zebra RS5100 Bluetooth Wearable Scanner is a versatile, ergonomic, and rugged scanner designed for various industrial environments. Here’s a brief overview:
The RS5100 wearable scanner is typically priced between $400 and $600 per unit, depending on configuration, accessories, and volume of purchase. For precise pricing, contacting Zebra Technologies or an authorized distributor would provide the most accurate quote.
Physical Characteristics
| Dimensions | 2.67 in. L x 1.10 in. W x 0.83 in. D (2.4 cubic inches) |
| Weight | 2.47 oz./70 g |
| Power | 480 mAh standard; 735 mAh extended; PowerPrecision+; Li-ion battery pack |
Performance Characteristics
| Optical Resolution | 1280 x 960 pixels |
| Roll | 360° |
| Pitch | ±60° |
| Skew | ±60° |
| Aiming Element | SE4710: 610 nm LED SE4770: 655 nm Laser |
| Illumination Element | SE4710: 1 Hyper Red 660 nm LED SE4770: 1 Hyper Red 660 nm LED or 1 Warm-White LED |
| Field of View | SE4710: Horizontal: 42°, Vertical: 28° SE4770: Horizontal: 48°, Vertical: 30° |
| Ambient Light Immunity (from total darkness | Max 107,639 lux (direct sunlight) |
| Supported 1D Symbologies | Code 39, Code 128, Code 93, Codebar/NW7, Code 11, MSI, UPC/EAN, I 2 of 5, Korean 3 of 5, GSI DataBar, Base 32 (Italian Pharma) |
| Supported 2D Symbologies | PDF417, Micro PDF417, Composite Codes, TLC-39, |
| Supported OCR Symbologies | OCR-A, OCR-B |
User Interface
| LED | 4 RGB LEDs located at the back side of the device (programmable) |
| Beeper | Up to 85 dBA @ 10 cm from the back of the device beeper port |
| Restore Key | User accessible for emergency warm boot and Bluetooth reconnect (after disconnect timeout) |
| Scan Triggering | Manual ambidextrous trigger |
User Environment
| Operating Temp. | 32° F to 122° F/0° C to 50° with standard battery -4° F to 122° F/-20° C to 50° with extended battery |
| Storage Temp. | -40° F to 140° F/-40° C to 60° C including battery -40° F to 158° F/-40° C to 70° C excluding battery |
| Humidity | 5% - 95% non condensing |
| Drop Spec. | Multiple 6 ft./1.8 m drops to concrete over the operating temperature range |
| Tumble Spec. | 1,000 1.64 ft./0.5 m tumbles |
| Sealing | IEC 60529: IP65 |
| Vibration | Sine 5-2000Hz, 4g peak, 1 hour per axis; Random 20-2000Hz, 6g RMS or 0.04g2/Hz, 1 hour per axis |
| Pairing | NFC; Tap to Pair |
| Electrostatic Discharge (ESD) | ±15kVdc air discharge; ±8kVdc contact discharge |
SE4710
| Symbology/Resolution | Near/Far |
| Code 39: 4 mil | 3.3 in./8.4 cm to 8.8 in./22.4 cm |
| Code 128: 5 mil | 2.8 in./7.1 cm to 8.2 in./20.8 cm |
| Code 39: 5 mil | 2.0 in./5.08 cm to 13.5 in./34.3 cm |
| PDF417: 5 mil | 3.1 in./7.9 cm to 8.4 in./21.3 cm |
| DataMatrix: 10 mil | 2.9 in./7.4 cm to 10.1 in./25.7 cm |
| UPCA: 100% | 1.8 in./4.62 cm to 26.0 in./66.0 cm |
| Code 39: 20 mil | 2.0 in./5.082 cm to 30.0 in./76.2 cm |
SE4770
| Symbology/Resolution | Near/Far |
| Code 39: 3 mil | 3.0 in./7.6 cm to 5.8 in./14.7 cm |
| Code 128: 5 mil | 2.3 in./5.8 cm to 9.8 in./24.9 cm |
| PDF417: 5 mil | 3.0 in./7.6 cm to 7.9 in./20.1 cm |
| PDF417: 6.67 mil | 2.5 in./6.4 cm to 10.1 in./25.7 cm |
| DataMatrix: 10 mil | 2.1 in./5.3 cm to 11.0 in./27.9 cm |
| UPCA: 100% | 1.6 in./4.1 cm to 24.9 in./63.2 cm |
| Code 128: 15 mil | 2.4 in./6.1 cm to 27.8 in./70.6 cm |
| Code 39: 20 mil | 1.6 in./4.1 cm to 36.1 in./91.7 cm |
| QR: 20 mil | 1.1 in./2.8 cm to 17.5 in./44.5 cm |
Data Capture
| Scanning Options | SE4710 or SE4770 1D/2D standard range imaging engines |
Peripherals and Accessories

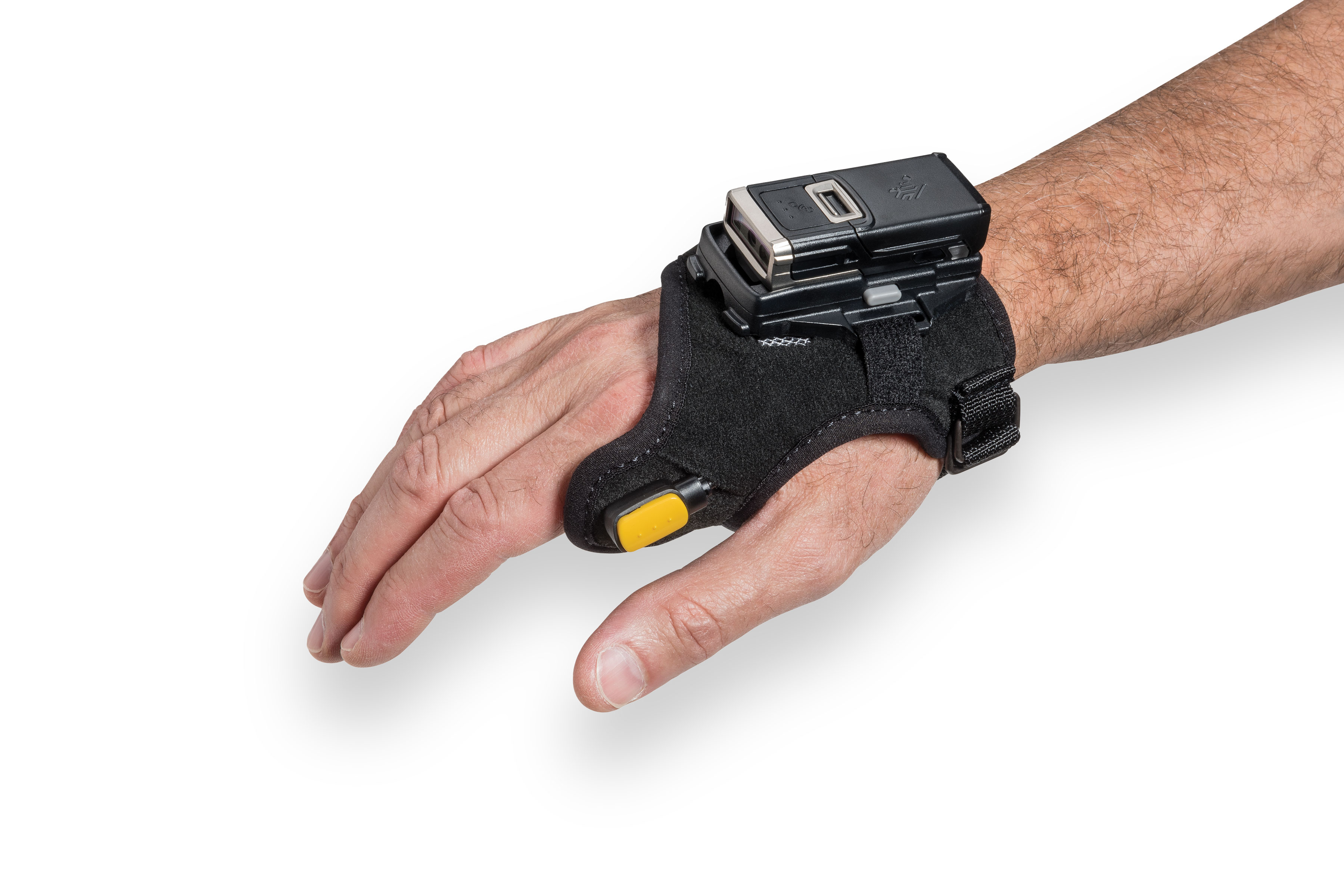

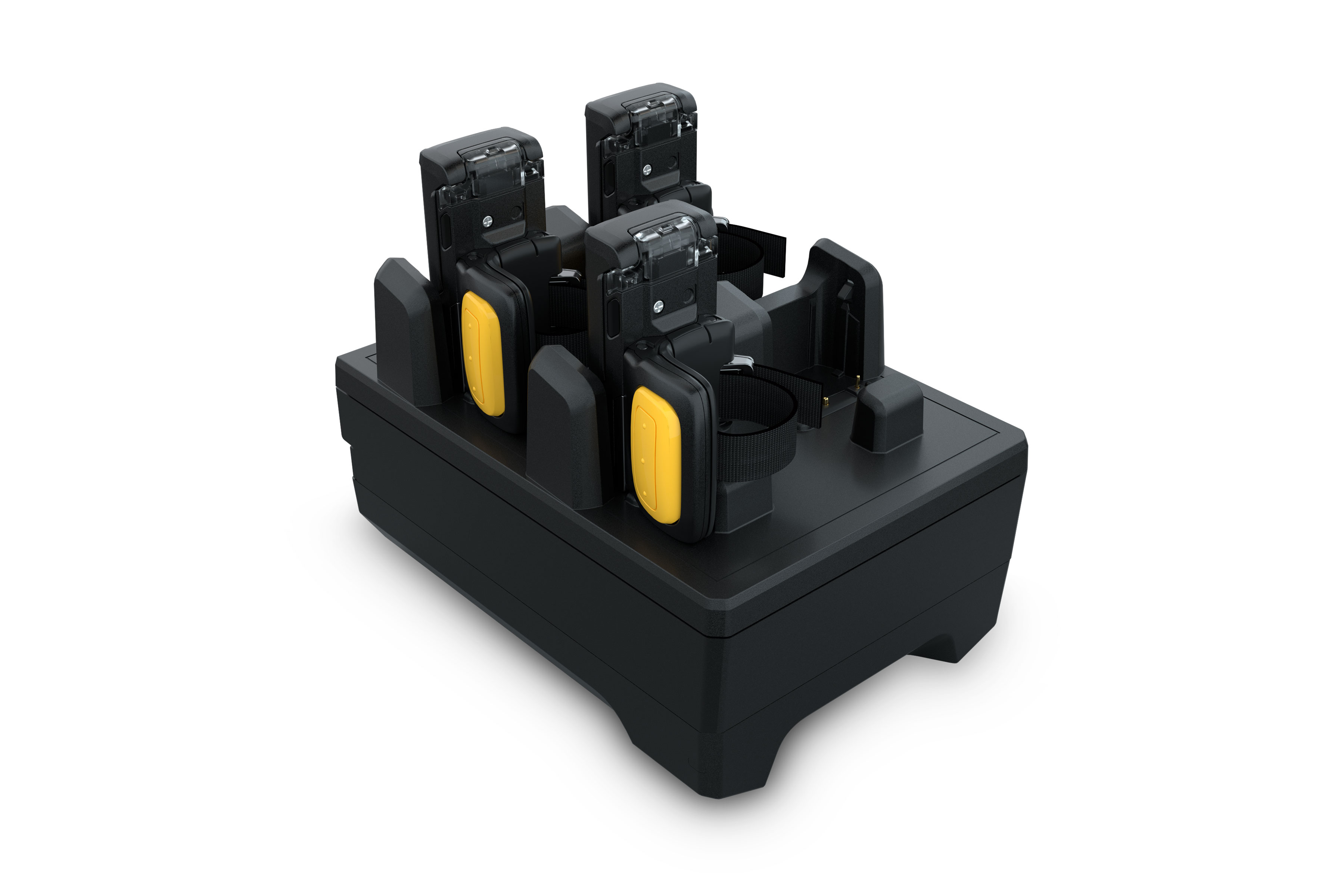

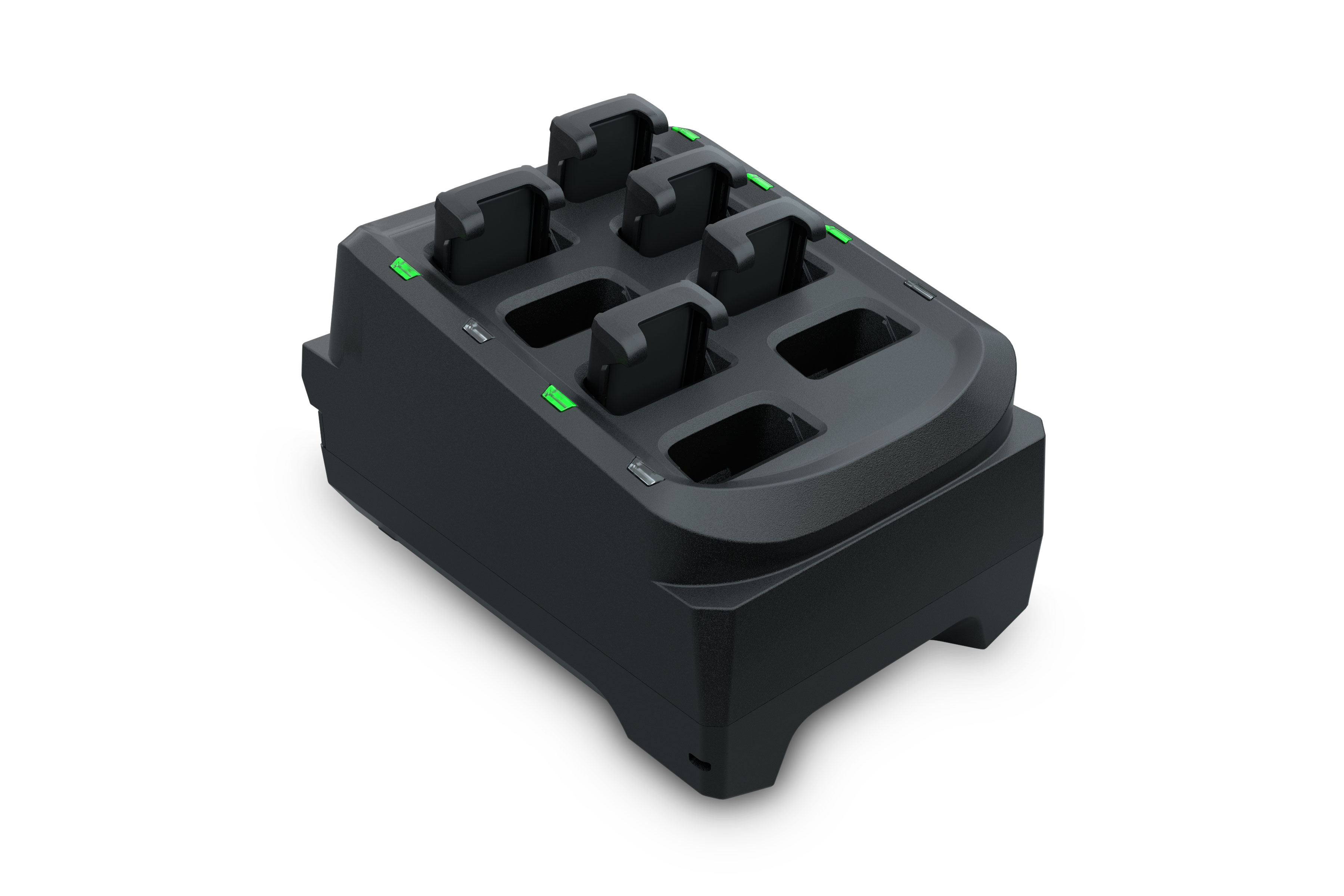

| 4-slot and 20-slot ring charger; 8-slot and 40-slot battery charger; enterprise hand mount, back of hand mount; single finger mount with three trigger options—single, double and top; lanyard; spare trigger mounts |
Wireless PAN
| Bluetooth | Class 1 and 2, Bluetooth v4.0 (RS51B0-xxxxxx) or v5.2 (RS51C0-xxxxxx) both with Bluetooth |
Warranty
Subject to the terms of Zebra’s hardware warranty statement, the RS5100 is warranted against defects in workmanship and materials for a period of 1 (one) year from the date of shipment. For complete warranty statement, go to: |
Regulatory
