Larger Display: Display size is over twice that of the WT6300, providing more task information space. Enhanced Ergonomics: Lighter, balanced design with a lower center of gravity reduces arm fatigue. Integrated Keypad Option: Model with a physical keypad for easy data entry, optimized for glove use. Rugged and Durable: Drop-proof, tumble-proof, waterproof, and dustproof; Corning® Gorilla® Glass Victus® 2 display. High-Resolution Camera and NFC: 13 MP camera for quick photo capture; NFC for easy Bluetooth device pairing. Flexible Wearing Styles: Multiple wrist strap options, including Velcro, micro-adjustable dial straps, and dual dial straps. Battery Design: Easy battery swaps with hot-swap support; extended freezer-rated batteries available. Data Capture Flexibility: Supports Bluetooth and corded wearable scanners with tap-to-pair NFC. Wi-Fi and Connectivity: Equipped with Wi-Fi 6E for fast, reliable connections in high-traffic areas. Sustainability: Built with 40% post-consumer recycled plastics and eco-friendly packaging. Future-Proof Performance: Qualcomm processor with double memory, supporting Android updates and future versions. Mobility DNA Software: Zebra's suite of tools for easier device management, security, and deployment. Markets and Applications Warehousing Picking Sorting Receiving/put-away Replenishment Packing Reverse logistics (returns) Manufacturing Inventory Put-away Line-side replenishment Work-in-Process (WIP) material Tracking and tracing Quality control Safety testing Read more
The WT6400 is Zebra's latest wearable computer, designed to enhance productivity and workflow efficiency in demanding environments. This next-generation device combines comfort, flexibility, and high performance for workers handling tasks such as order picking, sorting, and inventory management in warehouses, distribution centers, and manufacturing plants. Featuring a larger touchscreen display, a customizable ergonomic design, and robust performance capabilities, the WT6400 significantly improves the efficiency of hands-free workflows.

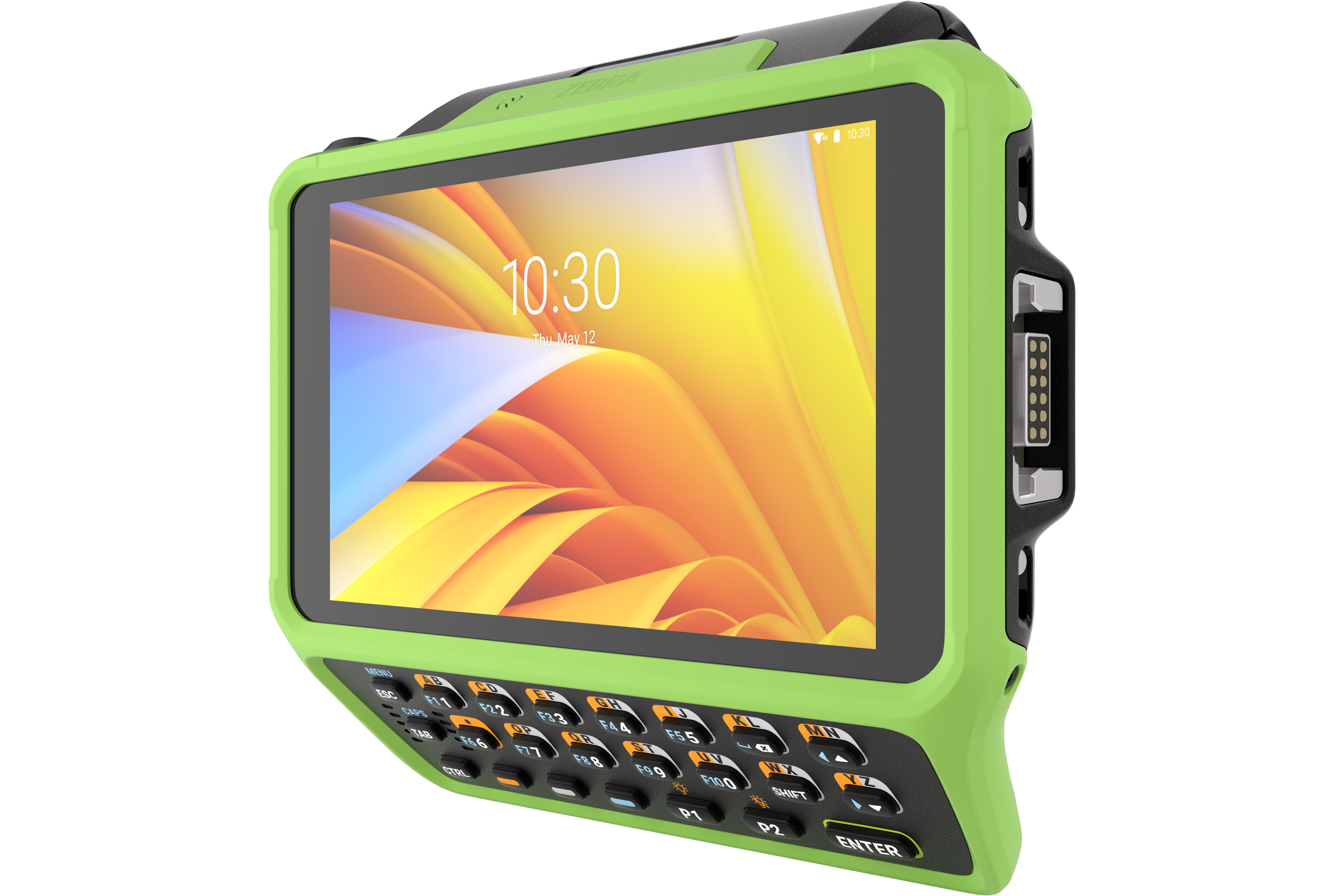

Larger Display:
Enhanced Ergonomics:

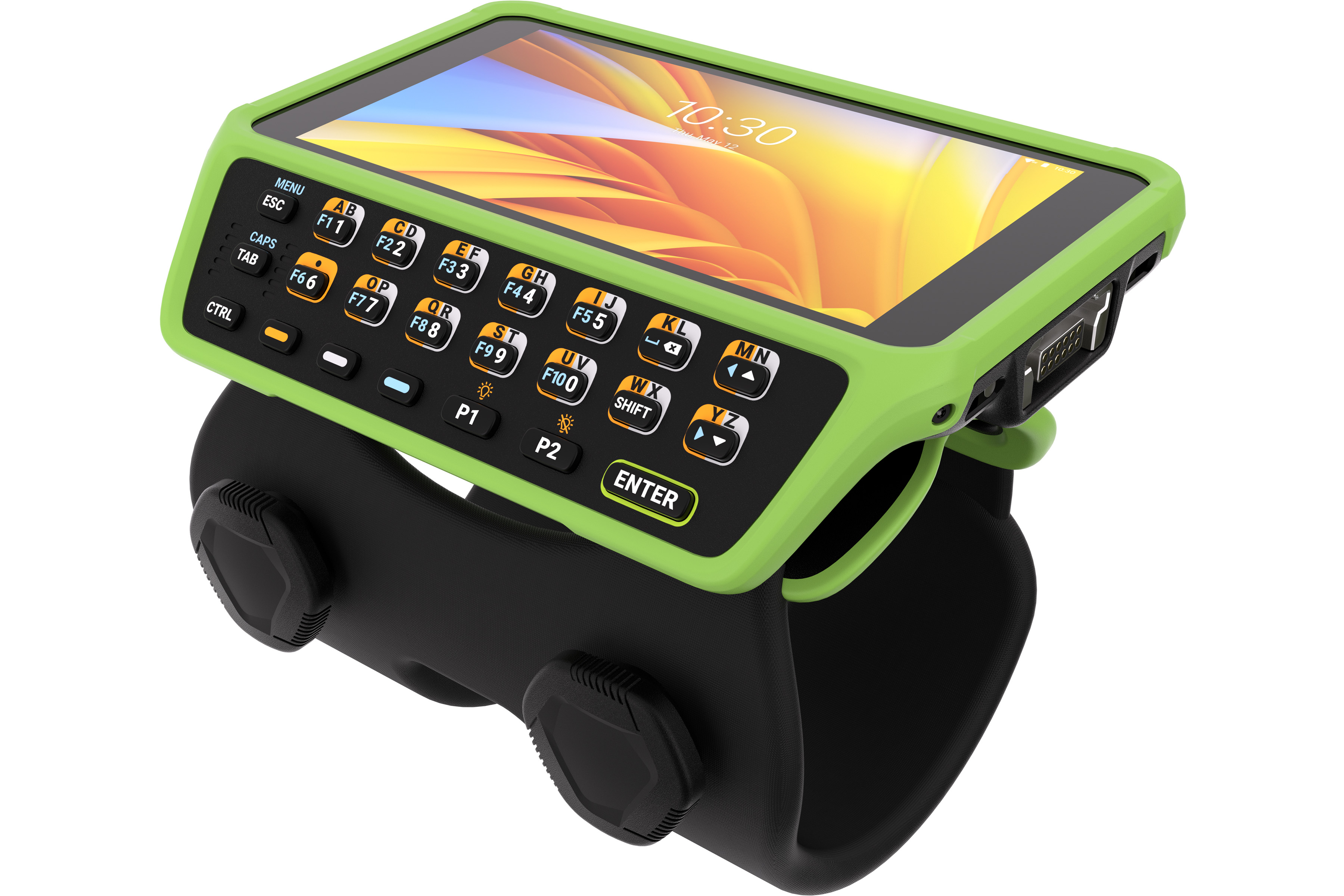

Integrated Keypad Option:
Rugged and Durable:
Camera and NFC:

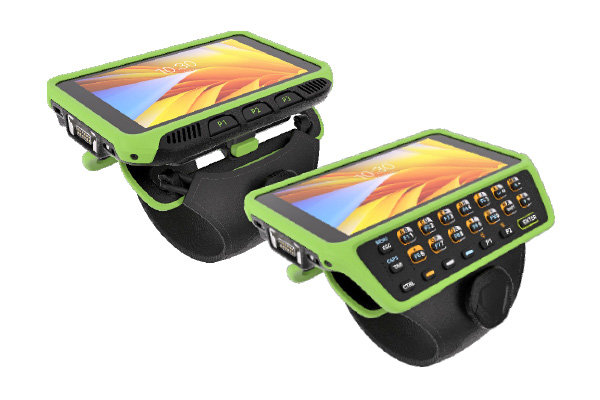

Flexible Wearing Styles:
Battery Design:
Data Capture Flexibility:
Wi-Fi and Connectivity:
Sustainability:
Future-Proof Performance:
Mobility DNA Software:
Physical Characteristics
Dimensions
| Touch Only: 5.22 in L x 3.66 in W x 0.55 in D (132.5mm L x 93mm W x 13.97mm D) Touch + Keypad: 5.22 in L x 4.21 in W x 0.55 in D (132.5mm L x 107mm W x 13.97mm D) |
| Weight | Without battery: Touch Only: 7.2 oz (205g) Touch + Keypad: 7.9 oz (223g) With standard battery: Touch Only: 9.8 oz (277g) Touch + Keypad: 10.4 oz (296g) With extended battery: Touch Only: 11.7 oz (331g) Touch + Keypad: 12.3 oz (350g) |
| Display | 4.7 inch; 720x1280; color display |
| Touch Panel | Capacitive touch panel; finger, gloved finger or conductive stylus support; Corning® Gorilla® Glass Victus® 2 |
| Power | Standard battery: typical capacity — 3500mAh -4F to +122F (-20C to +50C) Extended battery (freezer rated4): typical capacity — 5000mAh -22F to +122F (-30C to +50C) |
| Network Connections | WLAN (Wi-Fi); WPAN (Bluetooth); USB 2.0 (high-speed client and host) |
| Notifications | Audible tone; multi-color LED; haptic feedback |
| Keypad | 23 key alphanumeric/function (keypad model only) |
| Voice and Audio | Speaker; microphone; PTT voice |
| Buttons | Power button; touch-only model — three (3) programmable function buttons |
| Interface Ports | Two (2) rugged connectors (USB 2.0); two (2) charge pogo pads on each side |
Performance Characteristics
| CPU | Qualcomm® QCS4490 octa-core; 2.4 GHz |
| Operating System | Android 13; upgradeable to Android 17 |
| Memory | 6 GB RAM; 64 GB Flash |
| Security | FIPS 140-2; Secure Boot; Verified Boot |
User Environment
| Operating Temp. | With standard battery: -4F to +122F (-20C to +50C) With extended battery (freezer-rated4): -22F to +122F (-30C to +50C) |
| Storage Temp. | -40F to +158F (-40C to +70C) |
| Drop Spec. | Per MIL-STD 810H: 6 ft (1.8m) to concrete at (+73F to +122F/+23C to +50C) 4 ft (1.2m) to concrete across temperature (-22F to +122F/-30C to +50C) exceeding MIL-STD-810H |
| Tumble Spec. | 1,000 Tumbles at 1.6 ft (0.5m) at room temperature |
| Sealing | IP65; IP67 with battery per applicable IEC sealing specifications |
| Humidity | 5% to 95%, non-condensing |
| Vibration | 4g PK Sine (5Hz to 2kHz); 0.04g 2/Hz Random (20Hz to 2kHz); 60 minutes duration per axis, 3 axis |
| Electrostatic Discharge (ESD) | +/- 15kV air discharge; +/- 8kV direct/indirect discharge |
Interactive Sensor Technology (IST)
| Light Sensor | Automatically adjusts display backlight brightness |
| Motion Sensor | 3-axis accelerometer with MEMS Gyro |
| Magnetometer | eCompass automatically detects direction and orientation |
General Certifications
| Android Enterprise Recommended (AER) | Yes |
Data Capture
| Scanning | Compatible with Zebra wearable Bluetooth scanners (RS2100, RS5100, RS6100) via NFC tap-to-pair and Zebra wearable corded scanners (RS4000, RS5000) via rugged side connectors. The RS5100 and RS6100 can be powered by the WT6400 using the corded adapter, with communication over Bluetooth. |
| Camera | 13 MP side camera |
| NFC | ISO 14443 Type A and B; FeliCa and ISO 15693 cards; NFC Forum cards 1 to 5 |
Wireless LAN
Radio | IEEE 802.11 a/b/g/n/ac/ax/d/h/i/r/k/v/w/mc;2x2 MU-MIMO; Tri-band (2.4 GHz, 5 GHz, 6 GHz); Wi-Fi CERTIFIED 6™ (Wi-Fi 6E); Dual Band Simultaneous; IPv4, IPv6 |
| Data Rates | 2.4 GHz: 802.11b/g/n/ax — 20 MHz - up to 286.8 Mbps; 5 GHz: 802.11a/n/ac/ax — 20 MHz, 40 MHz, 80 MHz, 160 MHz — up to 2402 Mbps; 6 GHz: 802.11ax — 20 MHz, 40 MHz, 80 MHz, 160 MHz — up to 2402 Mbps |
| Operating Channels | Channel 1-13 (2401-2483 MHz): 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13; Channel 36-165 (5150-5850 MHz): 36, 40, 44, 48, 50, 52, 56, 60, 64, 100, 104, 108, 112, 114, 116, 120, 124, 128, 132, 136, 140, 144, 149, 153, 157, 161, 165; Channel 1-233 (5925-7125 MHz); Channel Bandwidth: 20, 40, 80, 160 MHz. Actual operating channels/frequencies and bandwidths depend on regulatory rules and certification agency. |
| Security and Encryption | WEP (40 or 104 bit); Enhanced Open (OWE); WPA/WPA2 Personal (TKIP and AES); WPA3 Personal (SAE); WPA/WPA2 Enterprise (TKIP and AES); WPA3 Enterprise (AES); EAP-TTLS (PAP, MSCHAP, MSCHAPv2), EAP-TLS, PEAPv0-MSCHAPv2, PEAPv1-EAP-GTC, LEAP, EAP-PWD; WPA3 Enterprise 192-bit mode (GCMP256) - EAP-TLS |
| Certifications | Wi-Fi Alliance Certifications: Wi-Fi CERTIFIED Wi-Fi CERTIFIED ac; Wi-Fi CERTIFIED 6 (Wi-Fi 6E); WPA2-Personal; WPA2-Enterprise; WPA3-Personal WPA3-Enterprise (includes 192-bit mode); Protected Management Frames: Wi-Fi Enhanced Open; WMM (Wi-Fi Multimedia); WMM-Power Save WMM-Admission Control; Voice-Enterprise: Wi-Fi Direct; Wi-Fi Agile Multiband; Wi-Fi QoS Management; Wi-Fi Optimized Connectivity; Passpoint |
Wireless PAN
| Bluetooth | Class 1; Bluetooth v5.3 |
Warranty
| Subject to the terms of Zebra’s hardware warranty statement, the WT6400 is warranted against defects in workmanship and materials for a period of one (1) year from the date of shipment. For complete warranty statement, please visit www.zebra.com/warranty |
Recommended Services
| Zebra OneCare™ Essential and Select support services; Zebra Visibility Services — VisibilityIQ™ Foresight. For information on Zebra services, please visit www.zebra.com/services |
Footnotes
| 1. Device display area is calculated by multiplying the length by the width of the display. 2. The WT6300 depth is .7 in (17.78mm) and the WT6400 depth is .55 in (13.97mm), making the WT6300 27.27 % deeper than the WT6400. 3. The WT6300 length is 6.25 in (158.7mm) vs. the WT6400 length of 5.22 in (132.5mm), making the WT6400 19.5%+ less wide on the arm. 4. Freezer is defined as -30C (-22F) with WT6400 extended battery. 5. LifeGuard for Android is available with any Zebra OneCare support contract.
|
Mobility DNA
| Mobility DNA solutions help you get more value out of our mobile computers by adding functionality as well as simplifying deployment and management of our mobile devices. For more information on these Zebra-only features, please visit www.zebra.com/mobilitydna Mobility DNA is available on Android only. Features may vary by model and a Support Contract may be required. To learn what solutions are supported, please visit: |
