Maximum Versatility, Power and Performance. Compact & Lightweight: Weighs just over 2 ounces, easy to wear all day. Cordless or Corded: Pairs with Bluetooth devices or connects corded for battery-free operation. Five Wearing Styles: Various mounts (hand, finger, lanyard) for comfort and productivity. Rugged Durability: Built for extreme environments (freezers, heat, rain, snow). Advanced Scanning: Captures barcodes from 2 inches to 40 feet, even damaged ones. Removable Battery: Swap batteries for continuous use, with PowerPrecision+ for longer shifts. Wi-Fi Friendly: Avoids interference with Wi-Fi networks. Durability Tested: Drop, tumble, and seal tested for reliability. Upgrade Compatibility: Works with RS5100 accessories for easy upgrade. Read more
I
Unmatched Versatility, Power, and Performance

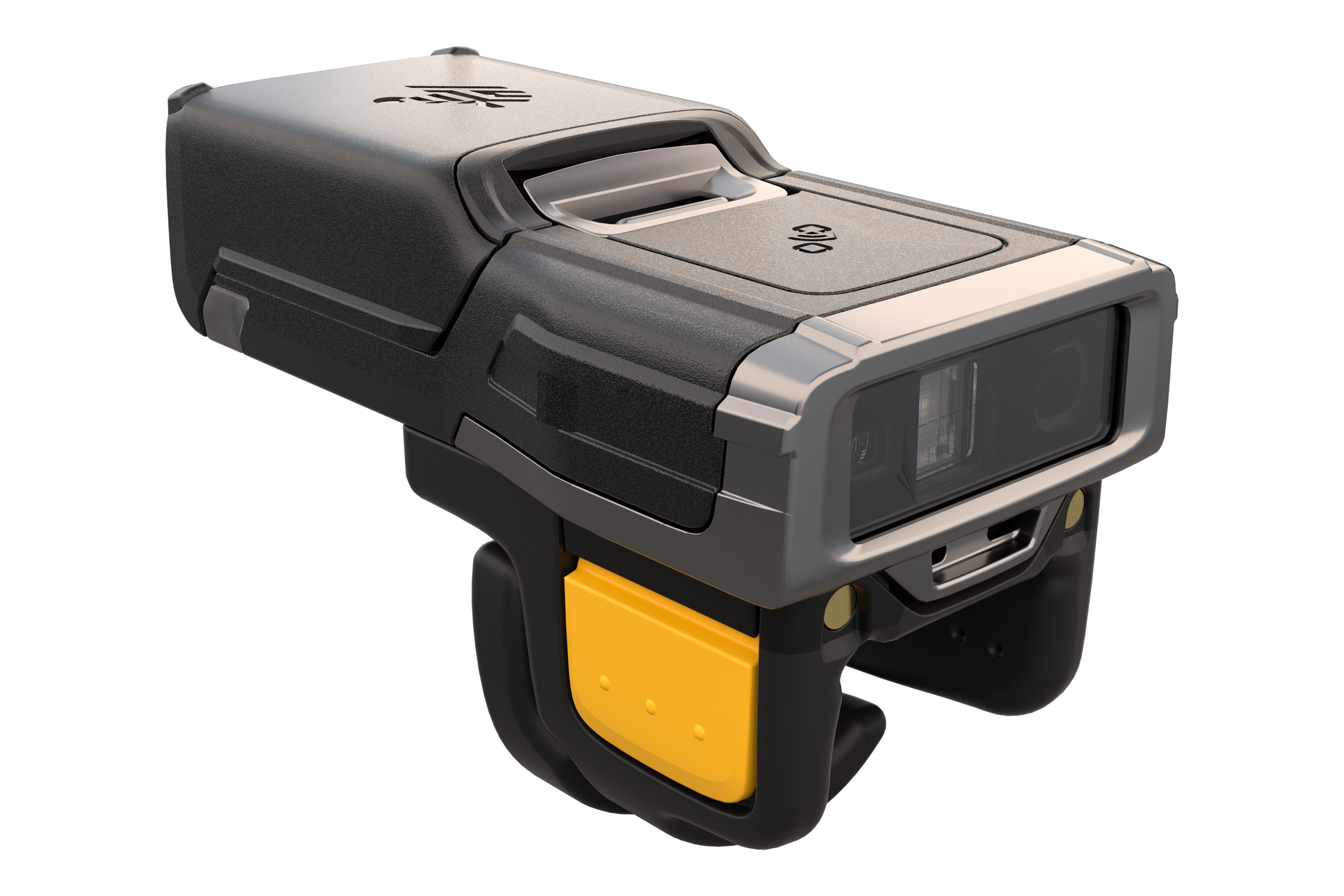

The Zebra RS6100 is a compact and lightweight wearable scanner, half the size and weight of its predecessor, the RS6000. It offers the flexibility to pair with any Bluetooth-enabled device for cordless operation or connect to select Zebra mobile devices using a corded adapter, eliminating the need for batteries. With five interchangeable wearing styles, the RS6100 ensures comfort for every worker. It's built to withstand extreme conditions—ideal for warehouses, freezers, or outdoor environments with rain, snow, or extreme temperatures. Plus, its removable battery ensures continuous service without downtime.
Physical Characteristics
Dimensions | 2.62 in. L x 1.29 in. W x 0.83 in. D (2.8 cubic inches) |
| Weight | With 1x battery: 2.47 oz./70 g |
| Optical Resolution | 2688 x 1520 pixels |
| Roll | 360° |
| Pitch | ±60° |
| Skew | ±60° |
| Aiming Element | 515 nm Laser |
| Illumination Element | 1 warm white LED |
| Field of View | Horizontal: 37°, Vertical: 21.4° |
| Ambient Light Immunity (from total darkness) | Max 107,639 lux (direct sunlight) |
| Supported 1D Symbologies | Code 39, Code 128, Code 93, Codebar/NW7, Code 11, MSI, UPC/EAN, I 2 of 5, Korean 3 of 5, GSI DataBar, Base 32 (Italian Pharma) |
| Supported 2D Symbologies | PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Chinese Sensible (Han Xin), Postal Codes |
| Supported OCR Symbologies | OCR-A, OCR-B |
| Power | 480 mAh standard; 735 mAh extended; PowerPrecision+; Li-ion battery pack; corded adapters for WT6000, WT6300, TC21/26 and TC53/58 |
| Network Connections | WPAN (Bluetooth) |
| Scanner | SE55 1D/2D Advanced Range Scan Engine with IntelliFocusTM technology |
| Pairing | NFC; Tap to Pair |
Performance Characteristics
| User Environment | RoHS Directive 2011/65/EU; Amendment 2015/863 |
| Operating Temperature | 32° F to 122° F/0° C to 50° C with standard battery |
| Storage Temperature | -40° F to 140° F/-40° C to 60° C including battery |
| Humidity | 5% - 95% non condensing |
| Drop Specification | Multiple 6 ft./1.8 m drops to concrete over the operating temperature range |
| Tumble Specification | 1,000 1.64 ft./0.5 m tumbles |
| Sealing | IEC 60529: IP65 |
| Vibration | Sine 5-2000Hz, 4g peak, 1 hour per axis; Random 20-2000Hz, 6g RMS or 0.04g2/Hz, 1 hour per axis |
| Electrostatic Discharge (ESD) | ±15kVdc air discharge; ±8kVdc contact discharge |
User Interface
| LED | 4 RGB LEDs located at the back side of the device (programmable) |
| Beeper | Up to 85 dBA @ 10 cm from the back of the device beeper port |
| Restore Key | User accessible for emergency warm boot and Bluetooth reconnect (after disconnect timeout) |
| Scan Triggering | Manual ambidextrous trigger |
| Bluetooth | Class 1 and 2, Bluetooth v5.2 with Bluetooth Low Energy (BLE) |
Decode Ranges (Typical)1
Symbology/Resolution | Near/far |
| 3 mil Code 39 | 2.7 in./6.9 cm to 16.2 in./41.1 cm |
| 5 mil Code 39 | 2.5 in./6.4 cm to 26.6 in./67.6 cm |
| 5 mil PDF417 | 2.8 in./7.1 cm to 19.6 in./49.8 cm |
| 6.7 mil PDF417 | 2.6 in./6.6 cm to 25.6 in./65.0 cm |
| 10 mil DataMatrix | 2.2 in./5.6 cm to 27.1 in./68.8 cm |
| 100% UPC (13 mil) | 2.5 in./6.4 cm to 71 in./180 cm |
| 15 mil Code 128 | 7.2 in./18.2 cm2 to 72 in./182.9 cm |
| 20 mil Code 39 | 109 in./276.9 cm2 |
| 55 mil Code 39 | 293 in./744.2 cm2 |
| 100 mil Code 39 | 554 in./1407.2 cm2 |
| 100 mil DataMatrix | 270 in./685.8 cm2 |
Footnotes
1. Printing resolution, contrast and ambient light dependent. |
Warranty
Subject to the terms of Zebra’s hardware warranty statement, the RS6100 is warranted against defects in workmanship and materials for a period of 1 (one) year from the date of shipment. For complete warranty statement, go to |
Recommended Services
Zebra OneCare EssentialTM and SelectTM: Maximize Zebra device availability, device value and operational efficiency with these fully-featured support services that set the industry bar for support. |
