Maximize Worker Productivity with Zebra’s RS5000 and RS5000x Hands-Free Ring Scanners

Zebra’s RS5000 and RS5000x wearable scanners are the perfect solution for boosting the productivity of your workers in demanding environments. These cost-effective, high-performance scanners offer hands-free barcode scanning, allowing employees to capture virtually any 1D or 2D barcode with ease, while keeping their hands free to handle materials. With their lightweight and comfortable design, these scanners fit securely on a single finger, offering all-day comfort even in the most rugged conditions.

RS5000 / RS5000x Wearable Scanners - Key Features:

1. Lightning-Fast Scanning:

• RS5000: Delivers fast, accurate scanning for 1D/2D barcodes in almost any condition, from near contact up to 25 inches (63.5 cm) away.
• RS5000x: Offers the same high-speed performance, with the ability to capture barcodes from near contact to over 3 feet (0.9 m) away.

2. Optimized for Challenging Environments:

• Both scanners are built to withstand demanding environments such as warehouses, distribution centers, and even freezer operations.
• The RS5000x operates in extreme cold conditions, down to -22°F (-30°C), making it ideal for grocery and pharmaceutical cold chain applications.
• With an IP65 rating, both models are dust-proof and spray-proof, ensuring reliability even in wet or dirty environments.

3. Superior Durability:

• The RS5000 series is designed to endure tough conditions, including drops from up to 4 feet (1.2 meters) and exposure to high-pressure hose downs.
• RS5000x features an upgraded durable strap and quick-adjust metal buckle, ensuring a secure fit even with heavy gloves.

4. Comfortable and Ergonomic:

• The scanners are designed to be worn on a single finger, leaving both hands free for other tasks. The RS5000x features a swivel design that allows workers to switch between right- and left-handed use effortlessly.
• RS5000x also offers a freezer trigger mount optimized for use with heavy gloves, ensuring comfort and precision in cold environments.

5. Seamless Integration:

• The RS5000 and RS5000x can be easily connected to Zebra’s wearable computers, such as the WT6000, WT6300, and WT6400, as well as Zebra headsets and TekSpeech Pro 4 software, enabling a complete hands-free mobile solution.
• Both scanners are powered by the connected wearable computers, eliminating the need for separate batteries or chargers.

6. Increased Productivity and Accuracy:

• Zebra’s PRZM Intelligent Imaging technology allows for ultra-fast scanning of barcodes in any condition, including scratched or poorly printed labels.
• Workers experience 39% fewer errors compared to speech-only systems, and productivity can increase by up to 15%.

7. Versatile for Any Application:

• RS5000x is ideal for environments ranging from freezer storage to the retail floor, and it is capable of scanning 2D barcodes, which are becoming increasingly important in supply chains.
• These scanners are essential for compliance with regulations such as the U.S. Food Safety Modernization Act (FSMA) and the U.S. Drug Supply Chain Security Act (DSCSA), which mandate the use of 2D barcodes for tracking and tracing goods.

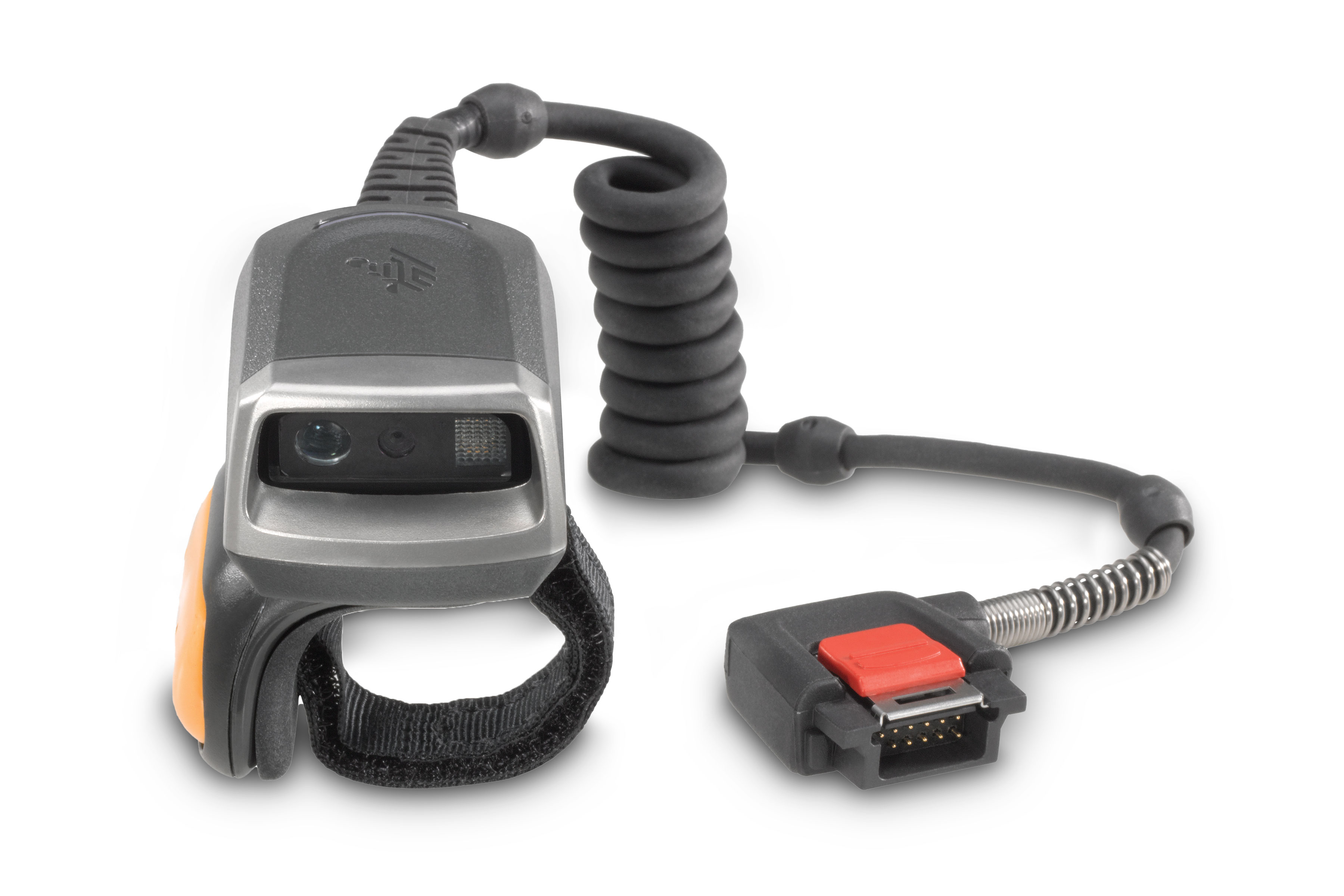

RS5000 Ring Scanner - Key Features:

1. High Performance Scanning:

• Utilizing Zebra’s PRZM Intelligent Imaging technology, the RS5000 scanner delivers unparalleled decoding performance, reducing capture time and improving battery efficiency.
• Omni-directional scanning allows workers to capture barcodes in any orientation, making the scanning process faster and more intuitive.

2. Robust and Reliable:

• Built for use in tough environments, the RS5000 is drop-tested to withstand impacts from up to 4 feet (1.2 meters), ensuring long-lasting durability.
• IP65 sealing ensures that the RS5000 is resistant to dust and water, making it perfect for dusty warehouses or environments with wet conditions.

3. Wide Range of Use:

• The RS5000 can scan barcodes from near contact up to 25 inches (63.5 cm) away, ensuring flexibility across different warehouse and manufacturing tasks.

4. Easy to Deploy and Use:

• Whether used with the WT41N0 or WT6000, the RS5000 easily connects in seconds, reducing the time needed for setup and training.
• With the Picklist Mode, workers can quickly scan specific barcodes from a field of multiple labels, improving task accuracy.

5. Ambidextrous Operation:

• The RS5000 is designed for both right- and left-handed use, with a convenient swivel feature that allows workers to switch between hands seamlessly without any additional configuration.

6. Hygiene and Safety:

• The RS5000 features a replaceable finger strap assembly, allowing for easy maintenance and ensuring hygiene in shared work environments.



  Specifications

  Models

  RS5000 Short Cable version for WT6000 (RS5000-LCFSWR) RS5000 Long Cable version for WT6000 (RS5000-LCFLWR) RS5000 Short Cable version for WT41N0 (RS5000-LCBSWR)

  Physical Characteristics

  Dimensions	2.0 in. L x 1.26 in. W x 1.1 in. D 51.5mm L x 32mm W x 27.5mm D
  Weight	WT41 version weight: 92 g WT6000 short cable version: 76 g WT6000 long cable version: 112 g

  Performance Characteristics

  Optical Resolution	1280 x 800 pixels
  Roll	360°
  Pitch Angle	±60° from normal
  Skew Tolerance:	±60° from normal
  Aiming Element	610nm LED
  Illumination	One Hyper Red 660nm LED
  Field of View	Horizontal: 42°, Vertical: 28.0°
  Ambient Light Immunity (from total darkness)	Indoor: 450 ft. candles (4,845 lux) Outdoor: 9,000 ft. candles (96,900 lux)
  Supported 1D Symbologies	Code 39, Code 128, Code 93, Codebar/NW7, Code 11, MSI, UPC/EAN, I 2of 5, Korean 3 of 5, GSI DataBar, Base 32 (Italian Pharma)
  Supported 2D Symbologies	PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Chinese Sensible (Han Xin), Postal Codes.

  User Interface

  LED	Two color red/green scan status LED
  Scan Triggering	Manual ambidextrous trigger

  User Environment

  Operating Temp.	-22°F to +122°F/-30°C to +50°C
  Storage Temp.	-40°F to +140°F/-40°C to +60°C
  Humidity	5% to 95% non-condensing
  Drop Rating	Multiple 4 ft. /1.2 m drops to concrete over the operating temperature range
  Tumble Rating	1,000 tumbles @ 0.5 m at room temperature
  Sealing	IEC 60529: IP65
  Vibration	Sine 5-2000Hz, 4g peak, 1 hour per axis; Random 20-2000Hz, 6g RMS or 0.04g2/Hz, 1 hour per axis
  Electrostatic Discharge (ESD)	+/-20kVdc air discharge +/-10kVdc contact discharge

  Software Compatibility

  DataWedge and select MDM solutions (via Zebra’s MDM toolkit)

  Recommended Services

  Zebra OneCare

  Warranty

  Subject to the terms of Zebra’s hardware warranty statement, the RS5000 is warranted against defects in workmanship and materials for a period of 1 (one) year from the date of shipment. For complete warranty statement, please visit: https://www.zebra.com/warranty

  SE4710 Focus Range*

  Symbology	Near
  5 mil Code 39	2.75 in./6.9 cm
  5 mil Code 128	3.5 in./8.89 cm
  5 mil PDF417	4.25 in./10.8 cm
  10 mil DataMatix	3.75 in./9.5 cm
  100% UPCA	1.8 in./4.5 cm
  20 mil Code 39	2 in./5.0 cm
  	Far
  5 mil Code 39	12 in./30.4 cm
  5 mil Code 128	7.5 in./19.0 cm
  5 mil PDF417	7.25 in./18.4 cm
  10 mil DataMatix	9 in./22.8 cm
  100% UPCA	19.75 in./50.1 cm
  20 mil Code 39	25 in./63.5 cm
