The ultimate industrial wearable computer for hands-free mobility Warehousing/Distribution/Transportation and Logistics Receiving Picking Carton put away Replenishment Packing Staging Truck loading/unloading Returns management Retail Back of store warehouse management Front of store picking for online orders Price audits/changes Store receiving Inventory management In-store communications Manufacturing Inventory management Line-side replenishment Parts tracking Read more

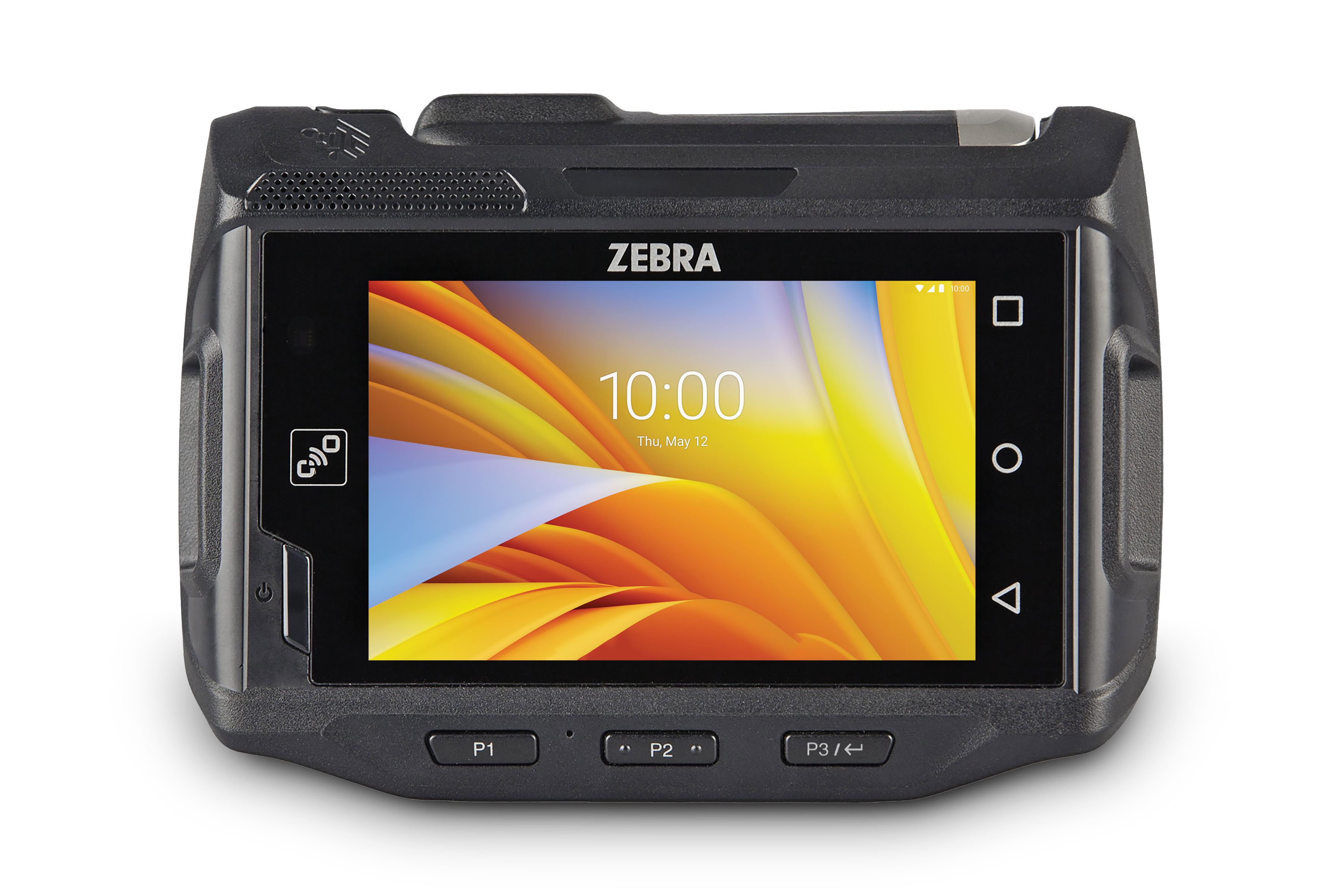

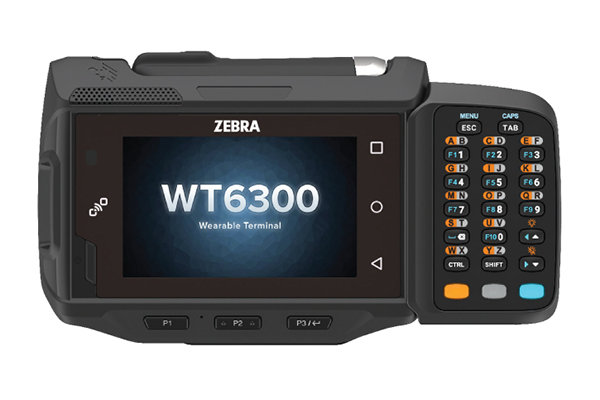

The Zebra WT6300 Wearable Computer is a specialized industrial device designed for hands-free mobility, aiming to enhance productivity and order accuracy in challenging environments. Building on the WT6000, the WT6300 provides several new features to address the growing demands of e-commerce and warehousing.
Key Features of the WT6300:
Hands-Free Mobility: Perfect for tasks such as picking and sorting, the WT6300 offers fast processing, increased RAM, and flash memory for seamless performance.
Rugged Design: Built to endure harsh environments, the device is water-resistant, dustproof, and durable enough for freezer use (operating in temperatures as low as -22°F/-30°C). Its Gorilla Glass touchscreen resists scratches and shattering, and the device is drop-tested across a wide temperature range.
Glove-Optimized Display: The touch screen is glove-compatible, automatically adjusting sensitivity and still working when wet. Workers can also use familiar gestures like pinch-to-zoom and swipe.
Long Battery Life: The WT6300 features hot-swappable batteries, allowing workers to replace batteries during operations without downtime. The PowerPrecision+ batteries also offer insights into battery health, helping avoid productivity loss.
Disinfectant-Ready: With frequent cleaning in mind, the device can withstand wipes with common disinfectants like isopropyl alcohol and soap, ensuring hygiene in shared work environments.

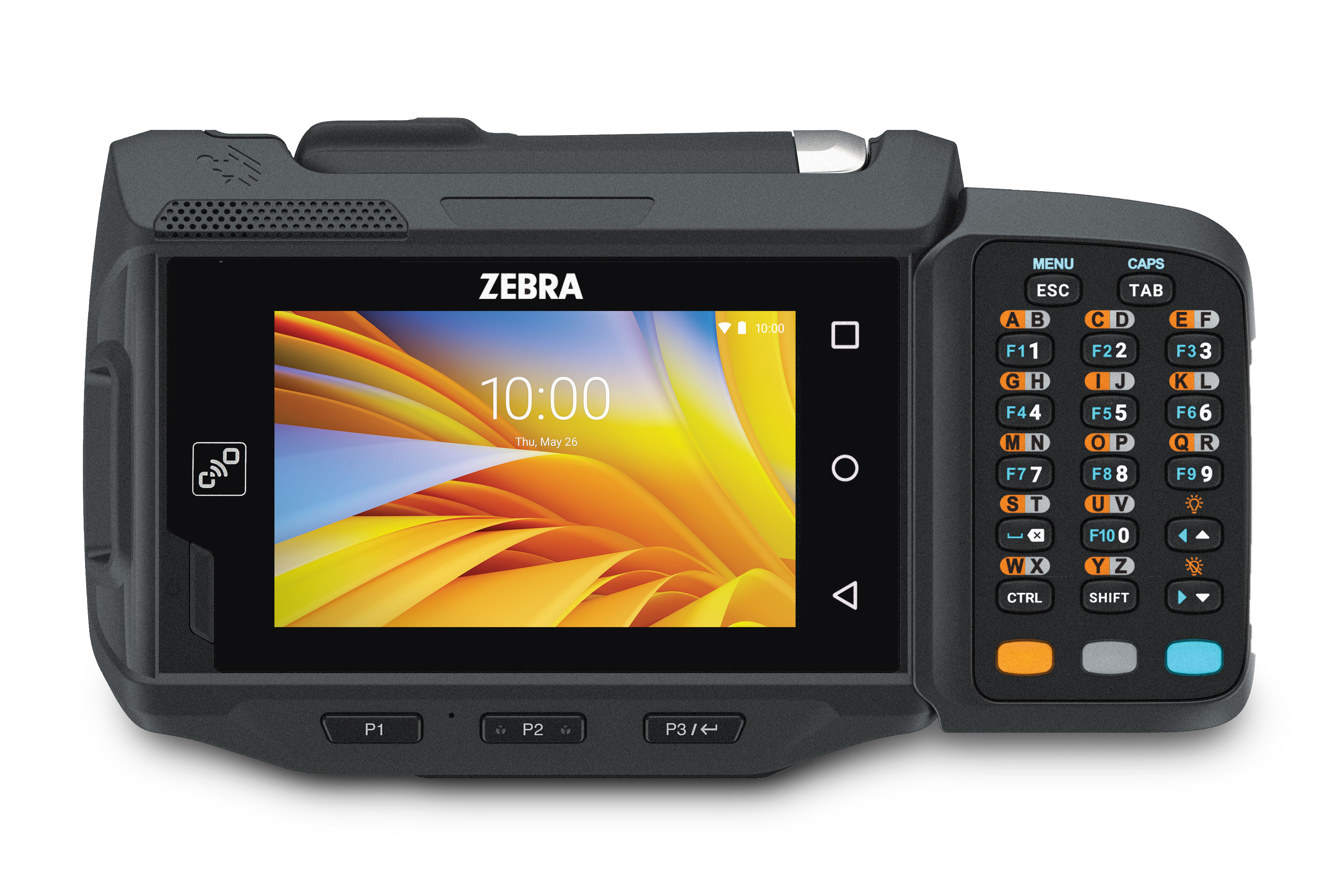

Ease of Migration: The WT6300 supports legacy applications and offers a keypad option for compatibility with older Windows CE devices. It ensures minimal user retraining while offering a simple migration path to Android.
Advanced Performance and Connectivity: With an advanced Android platform, the device supports Bluetooth 5.0 for improved range and faster peripheral connectivity. It also has a high-performance WiFi connection that guarantees reliable, "wired-quality" connections for real-time data.
Improved Scanning: The WT6300 works seamlessly with Zebra ring scanners, offering easy, accurate scanning of barcodes, including Multi-Barcode Scanning to capture multiple barcodes at once.
Complete Solution: It integrates with Zebra’s HD4000 Head-Mounted Display, offering hands-free guidance and improving picking efficiency, enabling workers to complete more orders in less time.
Physical Characteristics
Dimensions
| 4.7 in. L X 3.5 in. W X .7 in. D and 1.3 in. (D) 121 mm L X 89 mm W X 20 mm D and 34 mm (D) |
| Weight | 9 oz./256 g (standard battery) 11 oz./312 g (extended battery) |
| Display | 3.2 in. WVGA (800x480); LED backlight; color display; optically bonded to touch panel |
| Touch Panel | Capacitive touch panel; fingertip and glove support; conductive stylus support; Corning® Gorilla® Glass |
| Power | Standard battery — 3350 mAh Extended battery — 5000 mAh/freezer rated PowerPrecision+ battery; hot swap |
| Network Connections | WLAN, WPAN (Bluetooth), USB 2.0 (high speed client and host) |
| Notifications | Audible tone; multi-color LEDs; haptic feedback |
| Keypad | On-screen keypad; three programmable function keys; optional alphanumeric and function keyboard accessory |
| Voice and Audio | Integrated speaker and mic; PTT3 voice support wired and Bluetooth headset support; 3rd party VDP client support |
| Buttons | Volume up, volume down, enter; programmable |
Performance Characteristics
| CPU | Qualcomm SnapdragonTM 660 octa-core, 2.2 GHz |
| Operating System | Upgradeable to Android 14 |
| Memory | 3 GB RAM/32 GB Flash |
| Security | Product is FIPS 140-2 validated. This security feature can be enabled on select configurations through a custom SKU request. Product supports Secure Boot, Verified Boot |
User Environment
| Operating Temp. | -22° F to 122° F/-30° C to +50° C |
| Storage Temp. | -40° F to 158° F/-40° C to +70° C |
| Humidity | 5% - 95% non condensing |
| Drop Spec. | Multiple 4 ft./1.2 m drop to concrete across operating temperature per MIL-STD 810G |
| Tumble Spec. | 1,000 tumbles @ 1.6 ft./0.5 m; meets and exceeds IEC tumble specifications |
| Sealing | IP65 per applicable IEC sealing specifications |
| Vibration | 4g PK Sine (5Hz to 2kHz); 0.04g 2/Hz Random (20 Hz to 2 kHz); 60 minutes duration per axis, 3 axis |
| Electrostatic Discharge (ESD) | +/-15 kV air discharge, +/-8 kV direct/indirect discharge |
Interactive Sensor Technology (IST)
| Motion Sensor | 3-axis accelerometer with MEMS Gyro |
Data Capture
| Scanning | Corded ring scanners: RS4000 and RS5000 Bluetooth ring scanners: RS5100 and RS6000 with NFC tap to pair |
| NFC | ISO14443 Type A and B: FeliCa and ISO 15693 cards. P2P mode and Card Emulation via Host (HCE) support |
Wireless LAN
| WLAN Radio | IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/w/v/mc; 2x2 MU-MIMO Wi-Fi™ certified; Dual Band Simultaneous; IPv4, IPv6 |
| Data Rates | 2.4GHz: 802.11b/g/n — 20MHz, 40MHz - up to 300 Mbps 5GHz: 802.11a/n/ac — 20MHz, 40MHz, 80MHz - up to 866.7 Mbps |
| Operating Channels | Channel 1-13 (2412-2472 MHz): 1,2,3,4,5,6,7,8,9,10,11,12,13 Channel 36-165 (5180-5825MHz): 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140, 144, 149, 153, 157, 161, 165 Channel Bandwidth: 20, 40, 80 MHz Actual operating channels/ frequencies and bandwidths depend on regulatory rules and certification agency. |
| Security and Encryption | WEP (40 or 104 bit); WPA/WPA2 Personal (TKIP, and AES); WPA3 Personal (SAE); WPA/WPA2 Enterprise (TKIP and AES); WPA3 Enterprise (AES) — EAP-TTLS (PAP, MSCHAP, MSCHAPv2), EAP-TLS, PEAPv0-MSCHAPv2, PEAPv1-EAP-GTC, LEAP and EAP-PWD; WPA3 Enterprise 192-bit Mode (GCMP-256) — EAP-TLS; Enhanced Open (OWE) |
| Certifications | WFA (802.11n, 80211ac, WPA2-Personal, WPA3-Personal, WPA2-Enterprise, WPA3-Enterprise, WPA3-Enterprise 192-bit mode, WMM, WMM-PS, PMF, WiFi Direct, WMM-AC and Voice Enterprise) |
| Fast Roam | PMKID caching; Cisco CCKM; 802.11r (Over-the-Air); OKC |
Wireless PAN
| Bluetooth | Bluetooth 5.0; Bluetooth Low Energy (BLE) support; Class 1 |
Warranty
| Subject to the terms of Zebra’s hardware warranty statement, the WT6300 is warranted against defects in workmanship and materials for a period of one (1) year from the date of shipment. For complete warranty statement, please visit www.zebra.com/warranty |
Recommended Services
Support Services: Maximize device availability, operational efficiency, and security updates with Zebra OneCare™ Essential or Select services. Protect your investment with depot repair or advanced device replacement, technical support, software and support, LifeGuard updates, Device Diagnostics and included cloud-based VisibilityIQ™ OneCare™ for insight into repair, case, contract, LifeGuard reports and more.
|
Footnotes
| 1. Android security updates are provided through Zebra’s LifeGuardTM for AndroidTM, a part of every Zebra support contract. A valid Zebra OneCare support contract is required to access LifeGuard’s entitlements and features. 2. Paging function is available only on supported Bluetooth peripherals that have the capability to generate a beep tone. 3. Push-to-Talk (PTT) is not supported in all countries. Please consult with your Zebra representative to determine if PTT is supported in your country. For details related to Common Criteria support, please visit: www.zebra.com/commoncriteria |
